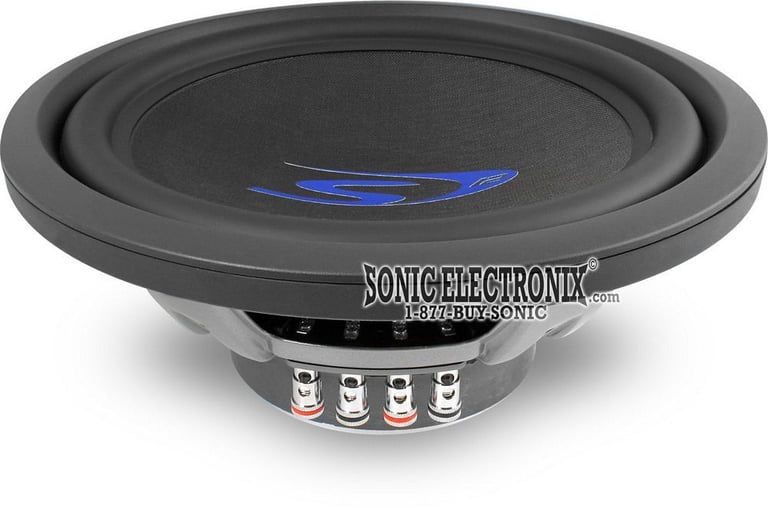

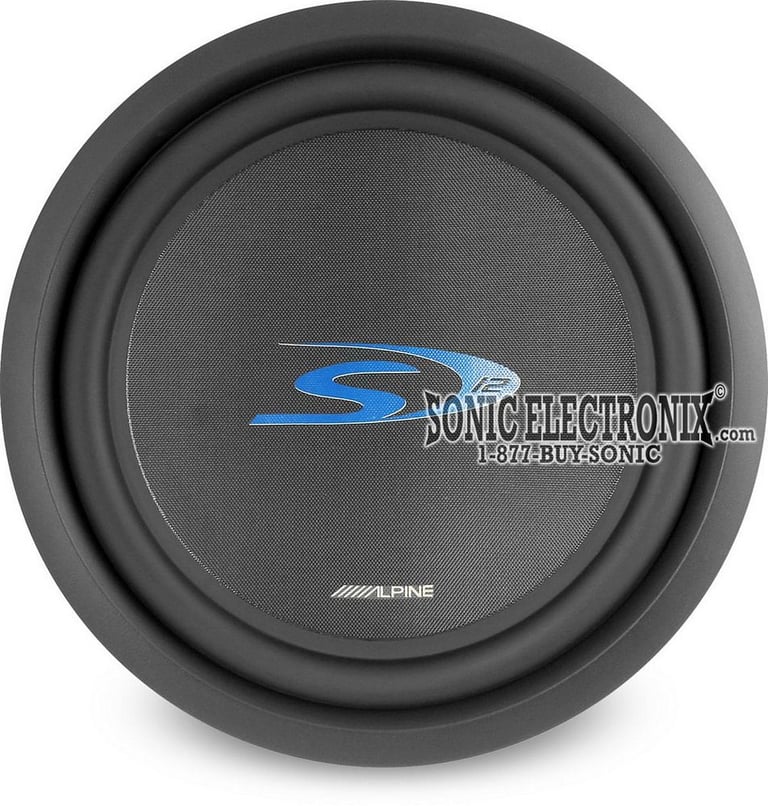

Alpine SWS-1223D

12" Dual 2 ohm Type-S Series Car Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

12" Dual 2 ohm Type-S Series Subwoofer • 900W Max • 300W RMS • Pulp/fiber cone reinforced with Kevlar • Santoprene rubber surround • Progressive NOMEX Spider • Reinforced layer spider integration • Compound radius curve motor structure

Learn more about the sws1223d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

s2w12d2 thumbnail

Alpine S2-W12D2

OUR PRICE: $215.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

Limited time!
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
-17.86%

$229.99

List price $279.99

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

H7TAK main

Cerwin Vega H7TAK

600W Peak (70W RMS) 0.75" HED Series 4-ohm Silk Dome Tweeters

8
-16.67%

$69.99

List price $83.99

Product Highlights


12" Dual 2 ohm Type-S Series Subwoofer • 900W Max • 300W RMS • Pulp/fiber cone reinforced with Kevlar • Santoprene rubber surround • Progressive NOMEX Spider • Reinforced layer spider integration • Compound radius curve motor structure

Description


Alpine brand icon

Authorized dealer

  • 12" Dual 2 ohm Type-S Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 300 watts
  • Impedance: Dual 2 ohm
  • Pulp/fiber cone reinforced with Kevlar
  • Santoprene rubber surround
  • Progressive NOMEX Spider
  • Reinforced layer spider integration
  • Compound radius curve motor structure
  • Co-molded Spider/voice coil coupling ring
  • High strength custom steel frame with perimeter venting
  • Frequency response: 27-700 Hz
  • Sensitivity: 86 dB
  • Top-mount depth: 5"
  • 1-year SonicElectronix.com warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Product history:

Alpine S2-W12D2 thumbnail
(newest, current model)
Alpine S-W12D2 thumbnail
(previous model, replaced by Alpine S2-W12D2)
Alpine SWS-12D2 thumbnail
(previous model, replaced by Alpine S-W12D2)
Alpine SWS-1223D thumbnail
(previous model, replaced by Alpine Type-S SWS-12D2)
Alpine SWS-1222D thumbnail
(previous model, replaced by Alpine SWS-1223D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine SWS-1223D Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine SWS-1223D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine SWS-1223D Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Alpine SWS-1223D Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
12"
Peak Power Handling
900 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
27 - 700 Hz
Sensitivity
86 dB
Xmax (millimeters)
12.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Glass Fiber and Pulp/Kevlar
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.85 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/16"
Cutout Diameter
10-11/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SWS-1223D

Weight:

17.00lbs

Internal SKU:

sws1223d

Internal Product ID:

9332

Product and How-to Videos


Customer Ratings & Reviews


Alpine SWS-1223D thumbnail image

5 star
64%
4 star
36%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.7
Features
4.7
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Nice

Just recieved mine today hooked em up to a kicker 400 watt amp which pounds the hell out of em. Really good sound. Crystal clear bass.

By juan on February 23, 2012

28 found this helpful


Alpine Rules Only

I brought 4 and put them in a sealed box, sounds good real low bass. If you are looking for good woofers look no more. Alpine is top of the line and have been making good car audio since N.W.A and before! So who you with.

By DREWKANG34 on August 29, 2011

26 found this helpful


Capable shallow mount sub

I have been a fan of Alpine head units and speakers for over a decade, although this is my first Alpine sub. I mounted it in a 1.0 cf box (recommended) and it hits hard and tight. You don't get the deep lows you would with a sub with a bigger magnet or more play but it works well for under the back seat of a crew cab truck. Not the sub you need if you are looking for window cracking bass but it enhances all types of music and will still set off car alarms. I am pleased with my purchase and will continue to purchase quality Alpine gear.

By L. Suga on July 6, 2013

25 found this helpful


Great price!!! Great quality!!!

Very good subs I have 2 of em in my car. it is powerful and for a very cheap price + it is Alpine!
I suggest everyone this great product!!

By Vladimir on November 15, 2010

25 found this helpful


Dual Type S

i have 2 of these in my 1992 ford explorer and they hit very clearly and very hard......with 2 of these things its makes my vision vibrate, these are very good subs as long as you power them correctly......i would give these subs 4 staRS ****

By vince on July 11, 2008

24 found this helpful


great

Love these subs got them pretty cheep on a Christmas clearance and hooked them up to a re audio 1000 watt amp and they sound amazing get them while you still can only had them for a couple weeks tho so cant say on the durability.

By Matt on January 5, 2013

23 found this helpful


great subs

I have two of these subs and they pound hard! Mine arent even being powered by the proper amp and they pound very hard cant wait until i get a proper mono amp. I would recommend these subs. Alpine is an extremely good brand. Very good quality.

By Josh on January 30, 2012

23 found this helpful


last long!

I've had this same sub going strong for a good 2 years now it was in my car for a year and now its in my dads truck in a 2.0 cubic foot ported box tuned to 34 hz and it hits pretty hard and sounds amazing in my dads truck....i myself have the alpine type R 12 in a 2.3 cubic foot ported box tuned to 32hz and i love it! it's been living for a year now lol.....if you're looking for a good sq/spl sub that will last long either of these subs would be a good choice cuz you can't go wrong with /////ALPINE.......and i ALWAYS let my alpine subs break in for about a month or so before i start pounding them real real hard everyday so they will live longer and sound better down the road

By jordan on April 5, 2011

23 found this helpful


Pretty good.

Ive had this sub a couple days and it has great sq! The lows come out pretty good for me and its in a small sealed box. I haven't gotten too much spl out of it but its still breaking in.

By Brett on February 15, 2010

23 found this helpful


Good SQ and SPL

I usually stay away from alpine because just like JL audio they're way over priced and just like JL audio they cant hold up to their claim vs cost and will blow up quick!

By Walter on July 29, 2013

22 found this helpful




STM-2000 small

Soundstream STM-2000

5-Speaker, 360 Degree Sound System

$227.99

List price $227.99

SPX-17MB small

Alpine SPX-17MB

6-1/2" MidBass Kit for Type-X Component Add-on or for Separates Use

$189.99

List price $329.99

HARXKL3 small

Directed HARXKL3 (Requires Programming)

XLoader3 Replacement Cable Kit

$24.99

List price $37.48

PCA1000D small

Soundstream PCA1000D

1000W RMS, Class D Monoblock Picasso Series Amplifier

(1)

$279.99

List price $589.99

471H small

Directed 471H

1-Button Replacement TX Transmitter for Hornet 569T

$22.99

List price $59.99

493T small

Directed 493T

2-Button Replacement Transmitter Uncoded 302MHz, 2/29 Codes for Select TX Car Alarm Security Systems

$19.99

List price $39.99

SXDW303 small

JVC SXDW303

100W Powered Subwoofer for JVC SXXD33 Surround Sound Speaker System

$39.99

List price $99.99

MSP100R small

Diamond MSP100R (Red)

Mini Rockers, Mobile Speakers for your Lap Top, MP3 Player, or Cell Phone

(3)

$18.99

List price $39.99

CBHV5 small

Scosche CBHV5

Bluetooth Sun-Visor Hands-free Kit for Wireless Cell Phone Use in the Car

(4)

$89.99

List price $109.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Ford Edge

2002 Ford E Series

2012 BMW M3

2014 Audi A5

2012 Subaru Impreza

2007 Kia Optima

2016 BMW M5

2003 Lexus RX300

2001 Ford Expedition

1986 Buick Skyhawk

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
