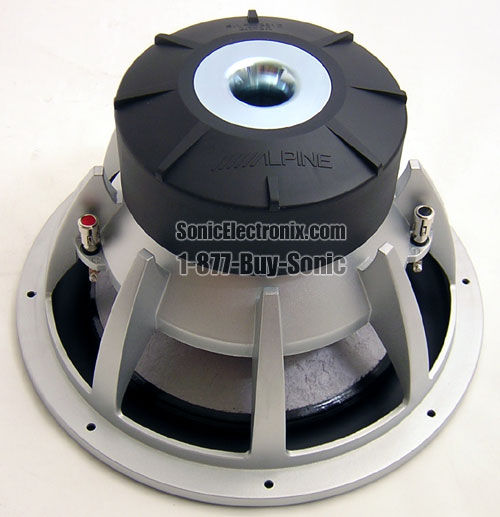

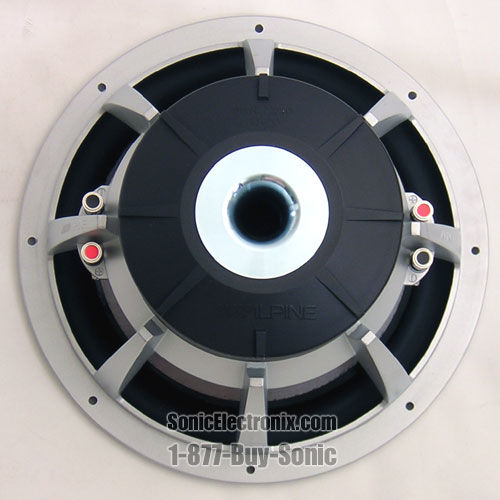

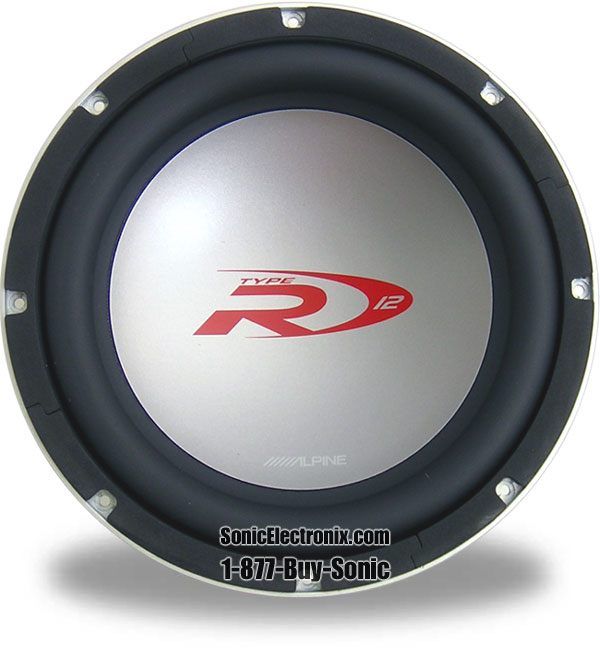

Alpine SWR-1221D Type R DVC 2-Ohm 12"

Alpine
Shop all Alpine
Product videos
highlight-star-icon

12" Dual 4-ohm Component Subwoofer • Dual 2-ohm voice coils • Kevlar™ reinforced pulp cone • Santoprene rubber surround • 1000W Peak, 300W RMS power range • 24-1,000 Hz frequency response

Learn more about the swr1221d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

rw12d2 thumbnail

Alpine R-W12D2

OUR PRICE: $159.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


12" Dual 4-ohm Component Subwoofer • Dual 2-ohm voice coils • Kevlar™ reinforced pulp cone • Santoprene rubber surround • 1000W Peak, 300W RMS power range • 24-1,000 Hz frequency response

Description


Alpine brand icon

Authorized dealer

  • Kevlar®-infused pulp cone
  • 1" Santoprene rubber surround
  • dual 2-ohm 2" voice coils (make sure your amplifier is compatible)
  • frequency response 24-1,000 Hz
  • RMS power handling: 300 watts
  • Peak power handling 1,000 watts
  • sensitivity 87 dB
  • top-mount depth 6-15/16"
  • sealed box volume: 0.7-1.0 cubic feet
  • ported box volume: 0.75-1.75 cubic feet

Product history:

Alpine R-W12D2 thumbnail
(newest, current model)
Alpine SWR-12D2 thumbnail
(previous model, replaced by Alpine R-W12D2)
Alpine SWR-1223D thumbnail
(previous model, replaced by Alpine Type-R SWR-12D2)
Alpine SWR-1222D thumbnail
(previous model, replaced by Alpine SWR-1223D)
Alpine SWR-1221D thumbnail
(previous model, replaced by Alpine SWR-1222D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine SWR-1221D Type R DVC 2-Ohm 12" Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine SWR-1221D Type R DVC 2-Ohm 12" Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine SWR-1221D Type R DVC 2-Ohm 12" Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Alpine SWR-1221D Type R DVC 2-Ohm 12" Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
24 - 1000 Hz
Sensitivity
87 dB
Woofer Surround
1" Santoprene Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-15/16"
Cutout Diameter
10-15/16"

Item Details


Manufacturer:

Model Number:

SWR-1221D

Weight:

22.00lbs

Internal SKU:

swr1221d

Internal Product ID:

47
