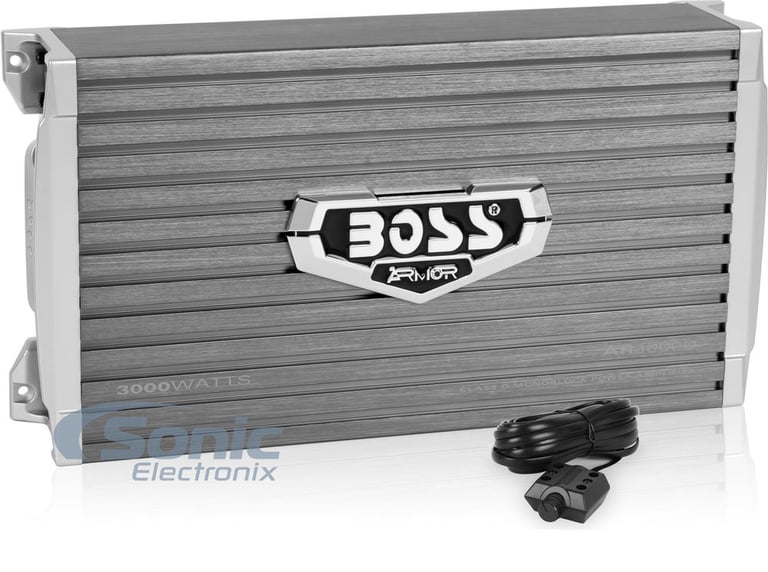

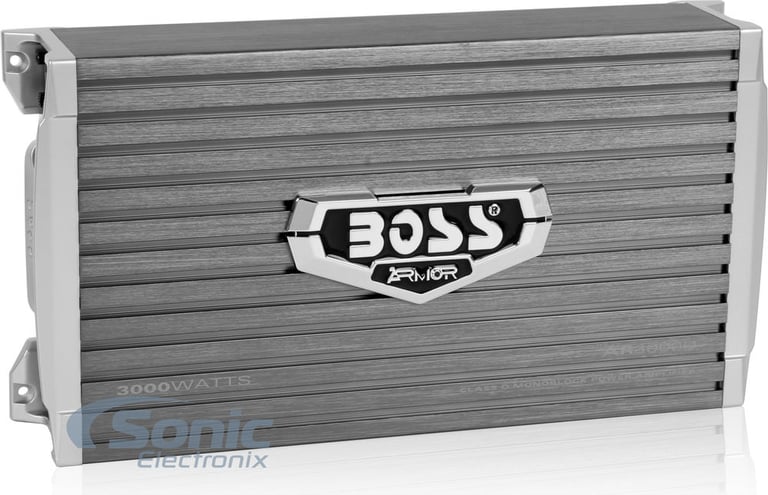

Boss AR3000D

3000W Max Monoblock ARMOR Series Class D Car Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

• RMS: 563Wx 1 @ 4 ohm
• Strappable: 4500 x 1 @ 2 ohm
• Bass Boost 0-12 dB
• Heavy Duty Aluminum Alloy Heatsink
• Dimensions: 12-1/3"W x 5"D x 2-8/10"H

Learn more about the ar3000d

We apologize

This item has been discontinued


Loading...
AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

99-5848CH main

Metra 99-5848CH TurboTouch Dash Kit

Single DIN or Double DIN Stereo TurboTouch Dash Kit and Harness for select 2011-2014 Edge with 4.2" Screen (Excluding SEL Trim)

1
-39.61%

$371.99

List price $615.99

VIMFD-95 main

Crux VIMFD-95

Video In-Motion Activation for select 2011-2015 vehicles from Ford, Lincoln with MyFord Touch Systems

-35.71%

$255.15

List price $396.90

99-5863HG main

Metra 99-5863HG Dash Kit

Install a New Single DIN 2" or Double DIN 4" Car Stereo with Factory 8" Screen in select 2011-2014 Edge

-44.62%

$735.99

List price $1328.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85

Product Highlights


• RMS: 563Wx 1 @ 4 ohm
• Strappable: 4500 x 1 @ 2 ohm
• Bass Boost 0-12 dB
• Heavy Duty Aluminum Alloy Heatsink
• Dimensions: 12-1/3"W x 5"D x 2-8/10"H

Description


Boss brand icon

Authorized dealer

General Features:

  • Monoblock ARMOR Series Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 563 watts x 1 chan.
    • 2 ohm: 1125 watts x 1 chan.
    • 1 ohm: 2250 watts x 1 chan.
    • Strapped, 2 ohm: 4500 watts
  • Total Max Power: 3000 Watts
  • Pulse Width Modulated MOSFET power supply

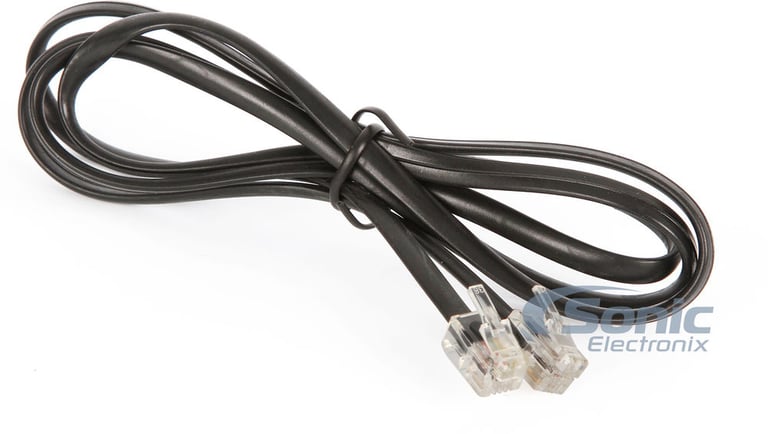

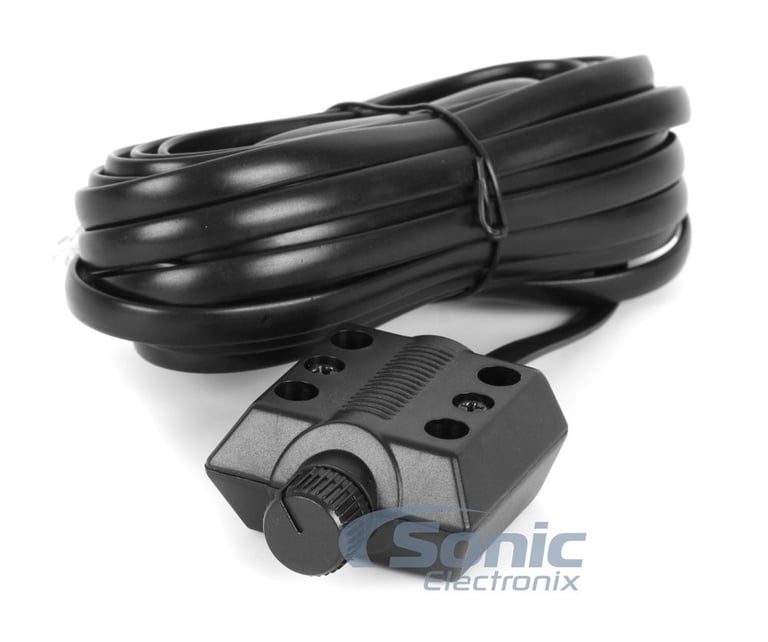

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

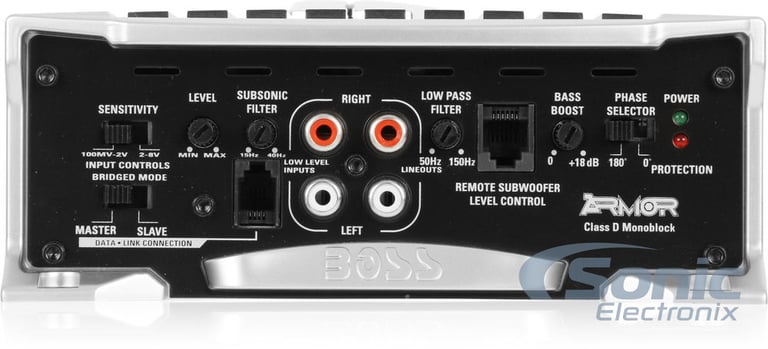

  • Nickel-plated RCA level inputs

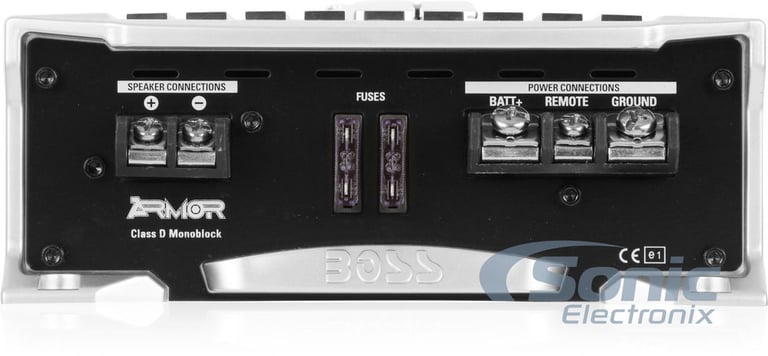

  • Nickel-plated screw terminals
  • Variable low-pass filter (50-150 Hz, 24 dB/octave)
  • Variable subsonic filter (15-40 Hz, 24 dB/octave)
  • Damping factor: 125
  • Frequency response: 9-50000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 12-1/3"W x 5"D x 2-8/10"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(14)

$199.99

List price $287.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
563 watts x 1 channel
RMS Power @ 2 ohms
1125 watts x 1 channel
RMS Power @ 1 ohm
2250 watts x 1 channel
Amplifier Specifications
Series
Armor Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.01%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

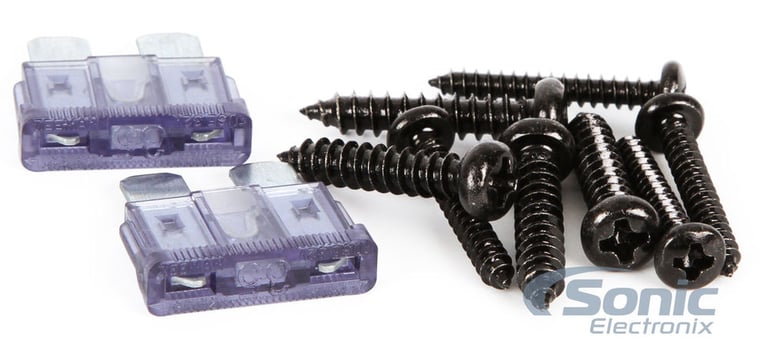

Mounting screws (6)
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AR3000D

Weight:

7.80lbs

Internal SKU:

ar3000d

Internal Product ID:

52122

Product and How-to Videos


Customer Ratings & Reviews


Boss AR3000D thumbnail image

5 star
48%
4 star
35%
3 star
9%
2 star
9%
1 star
0%



Durability
4.5
Value
4.9
Features
4.5
Design
4.2
Usability
4.9

Customer Reviews

Sort by:

Loading...

best value

I have 2 12 inch cerwin vega 1500 watt speakers and this boss amp is pushing them like they were made for each other

By ron j on September 2, 2014

64 found this helpful


cheaper elsewhere

Although I have switched to Fosgate since purchasing this, I really cant complain. I used it to power a 122x MOFO and it sounded great. It does not produce anywhere near the rated wattage so dont expect it to. Emblem makes it look pretty silly but its nice and heavy and if I had to guess I would say it probably produces 400rms. Fits 4 gauge wire

By Zachary on September 17, 2013

57 found this helpful


affordable price

For the affordable price. I would recommend this product to any one .

By W@LE on November 21, 2014

54 found this helpful


It is alright!

It is a really great amp for the price, and it is also not only have somewhat durability but the features of this amp is great. It came in and i had it for about a month and i already overloaded the amp. I had 2 Audiobahn A1206 12s hooked up and it made them slam. One of the best normal bass hitting amp you could find unless you do want to go big. i recommend it, just waiting on the new one to come in.

By Everyone on September 26, 2013

57 found this helpful


Pretty damn powerful

Although I am extremely skeptical about the 3000 watt max, I can feel the rms watts doing their business. Pretty boxy boring design but sometimes I don't mind a company saving money on the componets (what really matters) by cutting back on design. Wish it didn't have such a cheesy "Boss" name plate on the front.

By Evan on October 17, 2012

49 found this helpful


boss amp

Works but wish there was more power like it says it has

By Darrell on July 7, 2015

28 found this helpful


Protection system is AWESOME

Blew the amp fuses the first time hooking the amp to my battery. MY bad. There's no way i should've, but i guess i was too excited to noticed. :( Mistakenly hooked positive to negative and negative to positive on the amp. rewired quickly, and put in the spare fuses that comes with and it worked like nothing happen.

I had this powering a BOSS P126DVC, all the way! And shortly added another one. I'm debating on another one; to powered each sub separately. (One sub runs at 2000ish RMS, and the amp at most can only put out 3000 RMS running at 2 ohms.) so its only runnong both subs at half.
I have noticed the amp turn off... if listing to real heavy nonstop bass after 30-45mins. Scared me the first time, thought I blew a sub or the amp. Turns out the thermal protection works wonders. Again that's because I'm running it to its maxed settings on two subs that the amp can only truly power one of.

2 Months of constant use, hour drives too!

By Tim on July 13, 2015 Checkmark Icon Verified purchase

24 found this helpful


awesome amp....does what it say it will do...plan to get 4 more

i have heard of boss ..but never tried them well im glad i have it was worth every penny..this amp delivers.....

By QTRML on June 8, 2015

24 found this helpful


nice but over heats

I brought the amp in the winter time, work all winter until summer came. It do give off some nice bass, but over heats in the summer!!!!

By K Walk on August 30, 2015

15 found this helpful


Need a bass knob in it kept getting hot to fast

Didn't come with a bass knob kept getting hot but the power light was on also the fuel was good

By Terrance on August 2, 2015 Checkmark Icon Verified purchase

16 found this helpful




CS-MP140 small

Coby CS-MP140 (CSMP140)

Portable CD Boombox with iPod Dock and AM/FM Radio

(1)

$35.99

List price $59.99

i552WHT small

iLuv i552WHT

Portable iPod Audio System with AM/FM Radio (White)

$69.99

List price $89.99

ASA200.2x small

PowerBass ASA 200.2x

400W Max, 2-Channel Auto Sound Series Amplifier (ASA200.2x)

(1)

$89.99

List price $119.99

ATM440.2 small

PowerBass ATM440.2

400W RMS Atom Series 2-Channel Class A/B Car Amplifier

(1)

$95.99

List price $159.99

FS12.200PB small

Xscorpion FS12.200PB

200 Ft of 12 Gauge Expert Link Ultra Flat Speaker Cable

$79.99

List price $109.99

ATX3000.2 small

Autotek ATX3000.2

3000W Max 2-Channel Class AB ATX Series Amplifier

(3)

$109.99

List price $499.95

12DSPF small

12DSPF Dual 12-inch Sub Box Open Box

Dual 12" Sealed Subwoofer Enclosure (Open Box)

$39.99

List price $0.00

D4-1000 small

Power Acoustik D4-1000

1000W 4-Channel Demon Series MOSFET Power Amplifier with Remote Subwoofer Level Control

(2)

$99.99

List price $164.95

i552BLK small

iLuv i552BLK

Portable iPod Audio System with AM/FM Radio (Black)

$69.99

List price $89.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Ford Escape

2013 Ford Edge

2014 Mazda 3

2016 Audi Q5

1994 Cadillac DeVille

2007 Audi A4

2006 Chrysler Pacifica

2007 Buick Terraza

2005 BMW X3

1957 Ford Thunderbird

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
