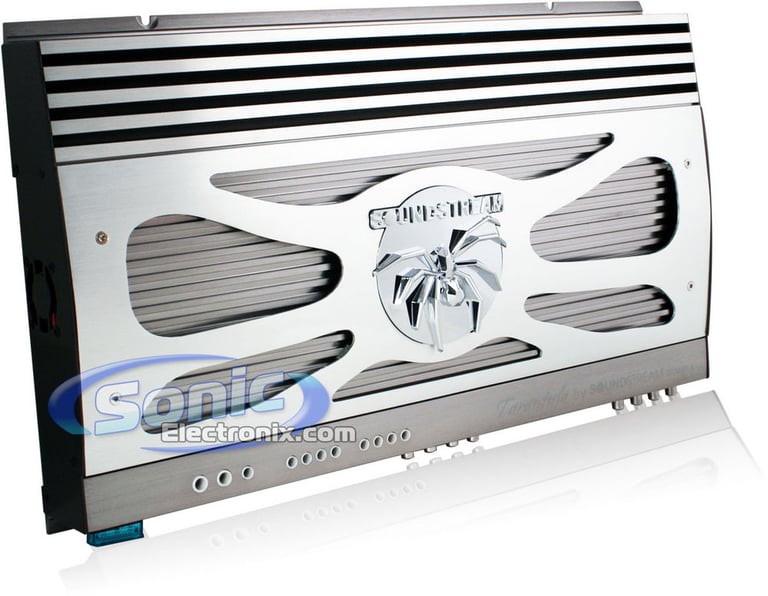

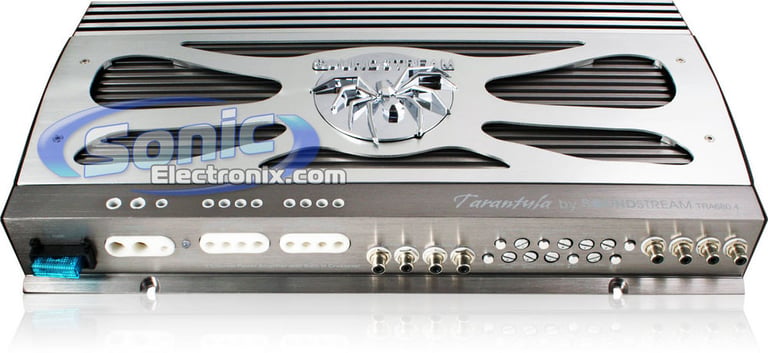

Soundstream TRA680.4 R/B

680W RMS Tarantula Series 4-Channel Amplifier

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

4-Channel Amplifier • 170W x 4 chan. @ 2 Ohm • 340W x 2 chan. @ 4 Ohm Bridged • Double-Sided Glass Epoxy Circuit Board • Tri-Guard Amplifier Protection • SMT Cooling Fan • Tri-Mode Capable • Line Output

Learn more about the LS-tra6804-RB

We apologize

This item has been discontinued

Product Highlights


4-Channel Amplifier • 170W x 4 chan. @ 2 Ohm • 340W x 2 chan. @ 4 Ohm Bridged • Double-Sided Glass Epoxy Circuit Board • Tri-Guard Amplifier Protection • SMT Cooling Fan • Tri-Mode Capable • Line Output

Description


Soundstream brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • Tarantula Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 85 watts x 4 chan.
    • 2 ohm: 170 watts x 4 chan.
    • Bridged, 4 ohm: 340 watts x 2 chan.
  • T.H.D.: < 0.02%
  • Frequency Response: 10 Hz - 50 kHz
  • S/N Ratio: >115dB
  • Damping Factor: >500
  • Input Sensitivity: 0.15 - 12.0V
  • Crossover Slope: 12dB
  • Crossover Frequency: 50 Hz - 5 kHz
  • Variable high pass, band pass, low pass
  • Variable 18dB bass boost
  • Double sided glass epoxy SMT circuit board
  • PWM mosfet power supply
  • Tri-guard amplifier protection
  • SMT cooling fan built in
  • Tri-mode capable
  • Line output
  • Dimensions: 10.75" x 2.6" x 20"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
85 watts x 4 channel
RMS Power @ 2 ohms
170 watts x 4 channel
Bridged RMS Power
340 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
680 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Signal-to-Noise Ratio
115 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRA680.4-RB

Weight:

16.45lbs

Internal SKU:

LS-tra6804-RB

Internal Product ID:

20800
