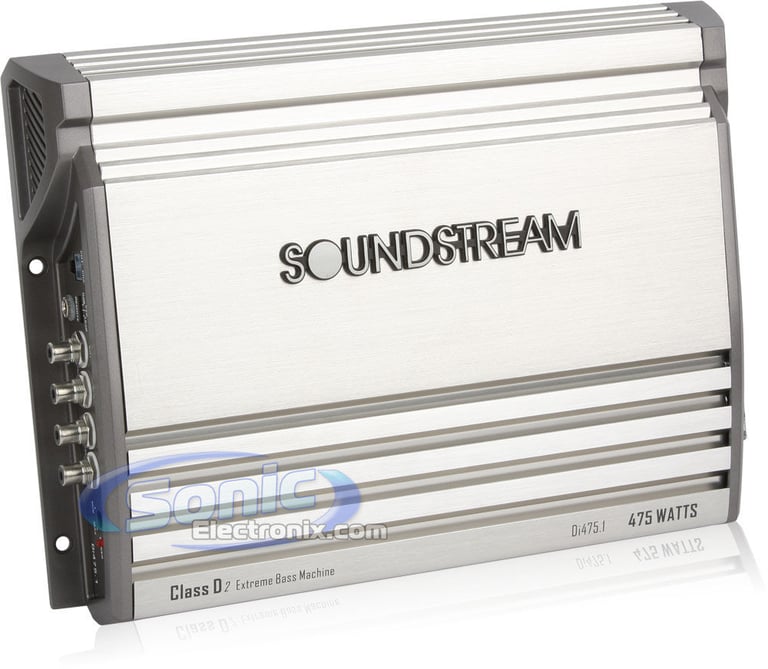

Soundstream Di475.1

475W, Class D Monoblock Amplifier (Di 475.1)

Product videos
highlight-star-icon

Extreme Bass Machine Single-Channel Car Amplifier • Class D2 • 350W x 1 Chan. @ 4 ohms • 475W x 1 Chan. @ 2 ohms • Selectable Bass Boost • Speaker-Level Inputs • 3 Stage Protection Circuit • Compact Chassis and Design

Learn more about the di4751

We apologize

This item has been discontinued

Product Highlights


Extreme Bass Machine Single-Channel Car Amplifier • Class D2 • 350W x 1 Chan. @ 4 ohms • 475W x 1 Chan. @ 2 ohms • Selectable Bass Boost • Speaker-Level Inputs • 3 Stage Protection Circuit • Compact Chassis and Design

Description


Soundstream brand icon

Authorized dealer

For those looking to install a basic subwoofer, you are going to need a solid and reliable amplifier. The Soundstream Di475.1 is just that, a simple and reliable amplifier. Wired at 4 ohms, the amplifier will produce a stable 350 watts to a single channel. When wired down to 2 ohms, the amplifier is rated at 475 watts. That is plenty of power for a basic subwoofer that can fill in that low bass without overbearing the rest of the speakers. The Soundstream amp is made using a Mil-Spec fiberglass circuit board and powered by a PWM MOSFET power supply. If you don't have an aftermarket stereo, or just prefer to use speaker level inputs for your amplifier, this amplifier will be compatible and includes the speaker-level input harness. The inputs and screw terminals are nickel plated for optimal signal transfer and the heatsink keeps the amp running cool. For those just getting into the world of car audio, this is a fantastic amp that will power your basic subwoofers. The Soundstream Di475.1 is named the Extreme Bass Machine for a reason!

  • Extreme Bass Machine Single-Channel Class D2 Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 350 watts x 1 chan.
    • 2 ohms: 475 watts x 1 chan.
  • PWM MOSFET power supply

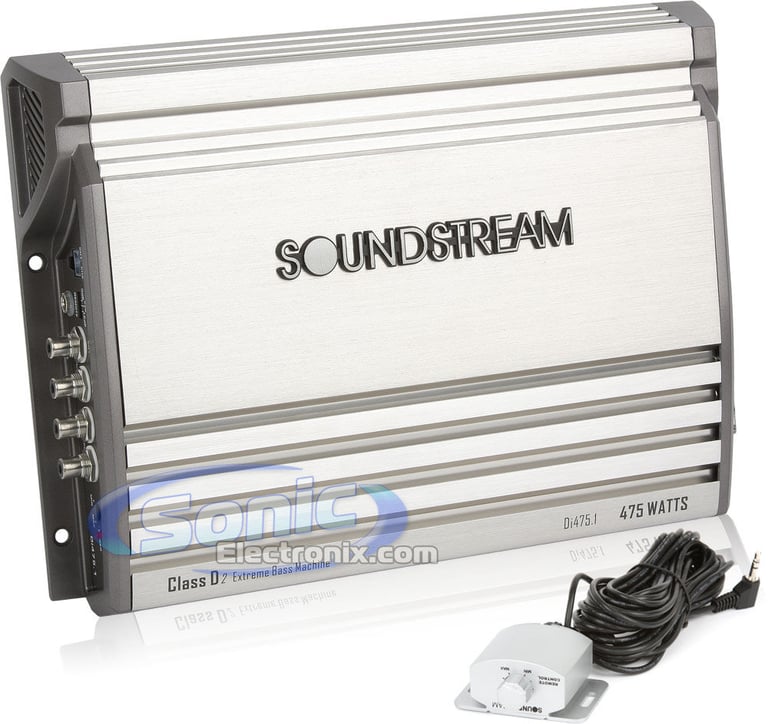

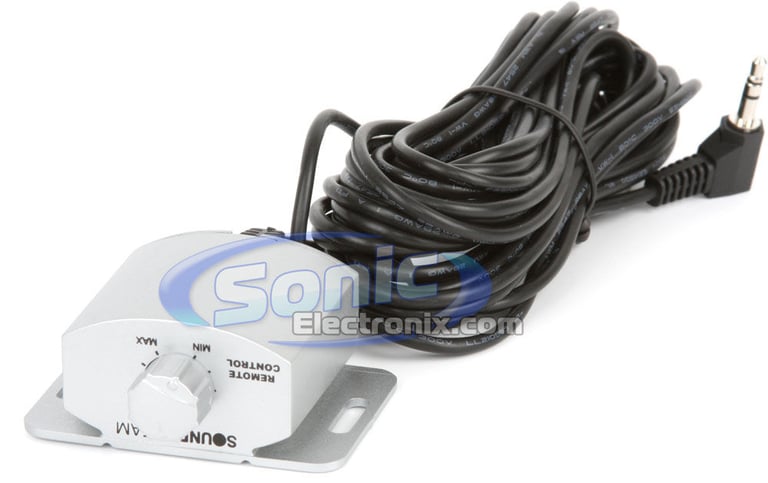

  • Wired remote bass level control included
  • LED power indicator

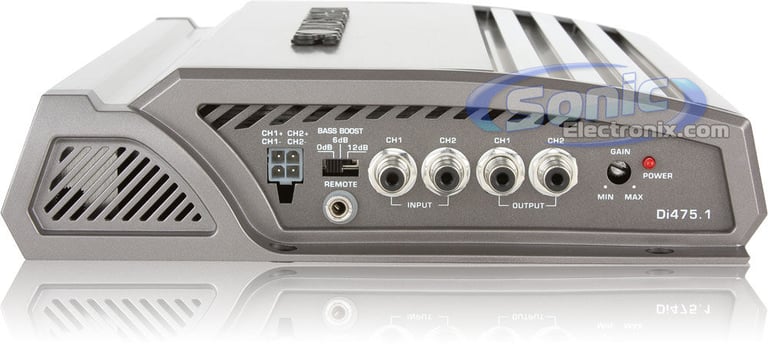

  • Selectable bass boost (0, 6, 12 dB @ 45 Hz)
  • 3 Stage protection circuit
  • Single channel operation

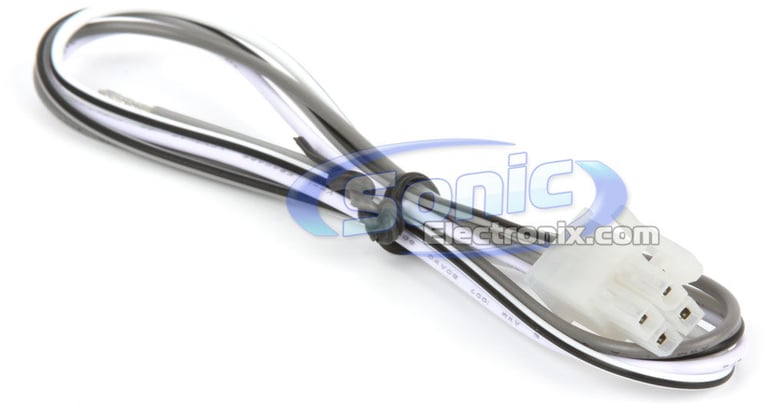

  • Speaker-level inputs with signal sensing for automatic turn-on
  • 1 Set of preamp RCA outputs
  • SMD Technology
  • Mil-Spec fiberglass circuit board
  • True digital switching
  • High rail voltage
  • Compact chassis and design
  • 18dB Crossover centered at 80 Hz
  • Heavy duty aluminum alloy heatsink for heat dissipation
  • Nickel-plated RCA level inputs

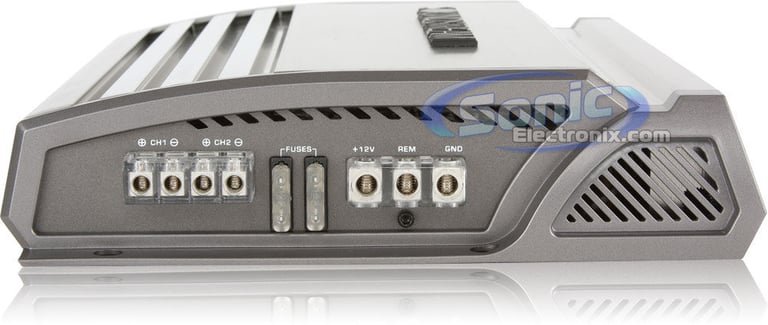

  • Nickel-plated screw terminals
  • Frequency response: 50-150 Hz
  • Dimensions: 11-3/4"L x 8-3/4"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Learn more about the Di475.1 at our blog.

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
350 watts x 1 channel
RMS Power @ 2 ohms
475 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
475 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
THD at Rated RMS Power
0.5%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Di475.1

Weight:

8.00lbs

Internal SKU:

di4751

Internal Product ID:

19812

Product and How-to Videos


Customer Ratings & Reviews



5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

not bad

its a good starter amp. it has power but when it starts it makes a loud buzzing sound for about 45 seconds then it quiets down. I think its just the capacitor in it charging. no worries. it also is a mono amp but it has two channels it is purely for speaker configuration.i have it hooked up to an old Fosgate Punch P2 12" in a vented box. sounds good at high levels not high on the db meter though.all in all "decent"

By Zone on September 21, 2009

11

found this helpful.

Great amp

I would not hesitate to buy another one of these amps, or to strongly encourage a friend to purchase one . I have had several car amps in the past but none like this one, great value, a price you cannot beat. would highly recommend this amp to anyone looking for a great amp at a very reasonable price ,Thanks.

By Fran on March 18, 2010

7

found this helpful.
