Name: Audiobahn A12001DT R/B
Brand: Audiobahn
SKU: LS-a12001dt-RB
Price: 219.99 USD
Availability: Discontinued

by Audiobahn

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

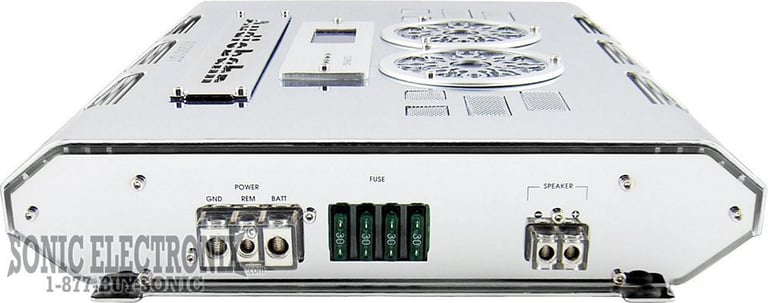

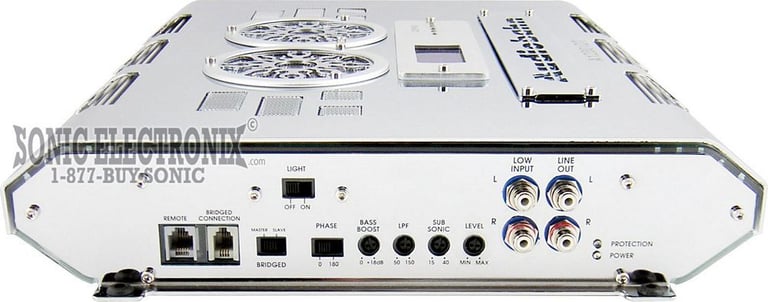

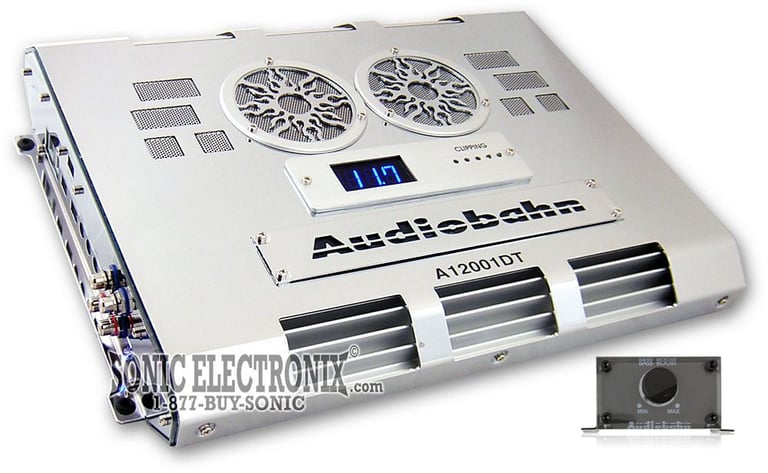

Audiobahn A12001DT R/B Image 1 — Audiobahn A12001DT R/B

Audiobahn A12001DT R/B Image 2 — Audiobahn A12001DT R/B

Audiobahn A12001DT R/B Image 3 — Audiobahn A12001DT R/B

Audiobahn A12001DT R/B Image 4 — Audiobahn A12001DT R/B

Audiobahn A12001DT R/B Image 5 — Audiobahn A12001DT R/B

Product videos

Product highlights

Class D Monoblock Amplifier • 2400W Max • 1200W RMS @ 1 ohm • Blue Digital Volt Meter Display • Dual Cooling Fans • 4-way protection circuitry • Variable Low-Pass Crossover: 50-150Hz • Cobalt blue illumination (with on/off selector)

Learn more about the LS-a12001dt-RB

Product Highlights

Description

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

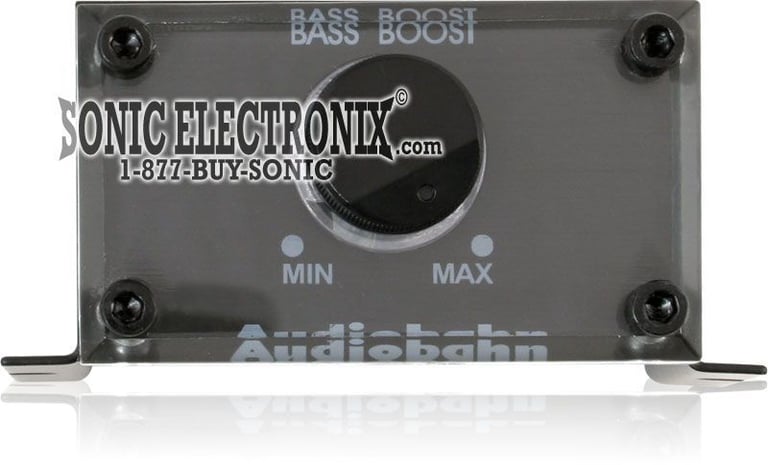

NOTE: A bass remote is pictured, but it is not included with the amplifier. It can be purchased at an additional cost of $25.00 if you purchase this amplifier.
Click here to purchase the Audiobahn ABR100T bass remote.

2400W Max, Class D Monoblock Car Amplifier
RMS Power Rating:

4 ohm: 400 watts x 1 chan.
2 ohm: 750 watts x 1 chan.
1 ohm: 1200 watts x 1 chan.

Max Power Output: 2400 watts @ 1 ohm
Optional Wired Remote Bass Level Control Available with Blue Illuminated Knobs (MODEL: ABR100T)
- Also illuminates red to indicate when amplifier is clipping
4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset

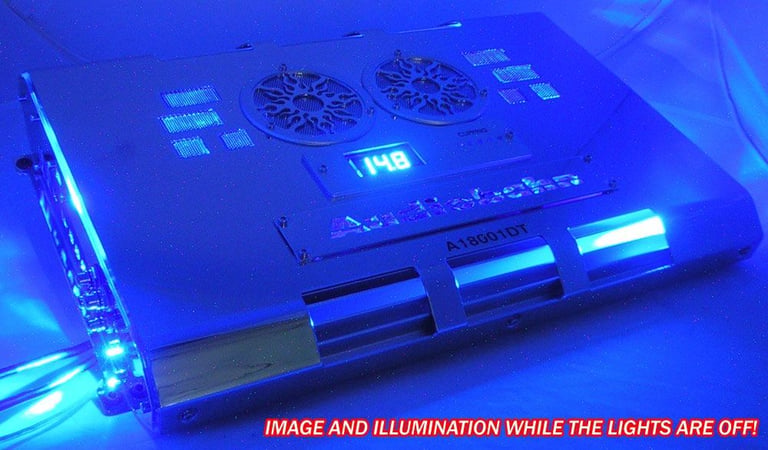

Cobalt Blue LED Illuminated heat sink design (on/off switch for your preference)
Large Digital Volt-meter Display
Preamp outputs
Dual Cooling Fans
Chrome Flame Cooling Fan Grill covers included (other optional designs available and sold separately)
Multi-Stranded Power Supply Toroids
Double Sided Glass Epoxy Circuit Board
High gloss chrome plated finish
Variable Bass Boost: 0-18dB at 40-100Hz
Variable Low-Pass Crossover: 50-150Hz
Variable Subsonic Filter: 15-40Hz
Frequency Response: 15-150Hz
THD: 0.05%
Variable Phase Control: 0 or 180°
Dimensions: 14-3/4"L x 11-15/16"W x 2-1/2"H
4-gauge power and groud leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

400 watts x 1 channel

RMS Power @ 2 ohms

750 watts x 1 channel

RMS Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2400 watts

Total RMS Power Output

1200 watts

Minimum Impedance Unbridged

1 ohm

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Audiobahn ABR100T

Fuse Rating

30A x 4
