Name: Audiobahn A18001DT R/B
Brand: Audiobahn
SKU: LS-a18001dt-RB
Price: 219.99 USD
Availability: Discontinued

by Audiobahn

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

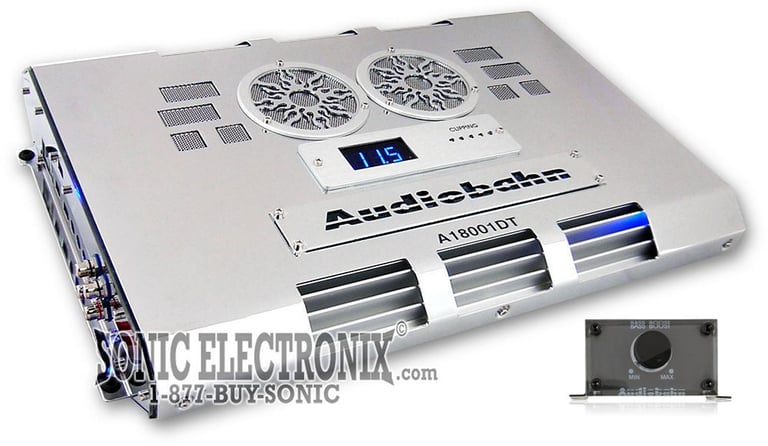

Audiobahn A18001DT R/B Image 1 — Audiobahn A18001DT R/B

Audiobahn A18001DT R/B Image 2 — Audiobahn A18001DT R/B

Audiobahn A18001DT R/B Image 3 — Audiobahn A18001DT R/B

Audiobahn A18001DT R/B Image 4 — Audiobahn A18001DT R/B

Product videos

Product highlights

3600W Max, Class D Monoblock Amplifier • 3600W Max • 1800W RMS @ 1 ohm • Blue Digital Volt Meter Display • Dual Cooling Fans • 4-way protection circuitry • Variable Low-Pass Crossover: 50-150Hz • Cobalt blue illumination (with on/off selector)

Learn more about the LS-a18001dt-RB

Product Highlights

Description

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

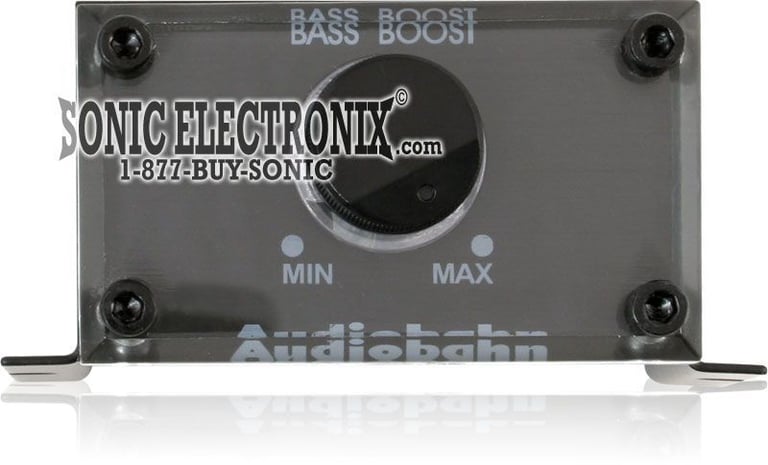

NOTE: A bass remote is pictured, but it is not included with the amplifier. It can be purchased at an additional cost of $25.00 if you purchase this amplifier.
Click here to purchase the Audiobahn ABR100T bass remote.

3600W Max, Class D Monoblock Car Amplifier
RMS Power Rating:

4 ohm: 600 watts x 1 chan.
2 ohm: 1200 watts x 1 chan.
1 ohm: 1800 watts x 1 chan.

Max Power Output: 3600 watts @ 1 ohm
Optional Wired Remote Bass Level Control Available with Blue Illuminated Knobs (MODEL: ABR100T)
- Also illuminates red to indicate when amplifier is clipping
4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset

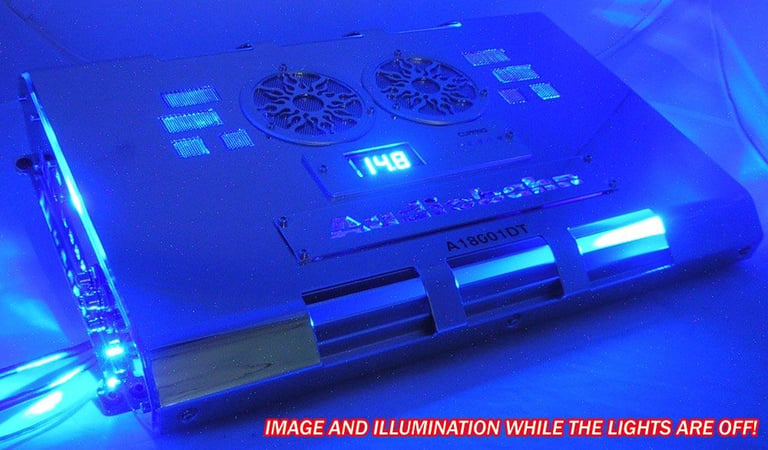

Cobalt Blue LED Illuminated heat sink design (on/off switch for your preference)
Large Digital Volt-meter Display

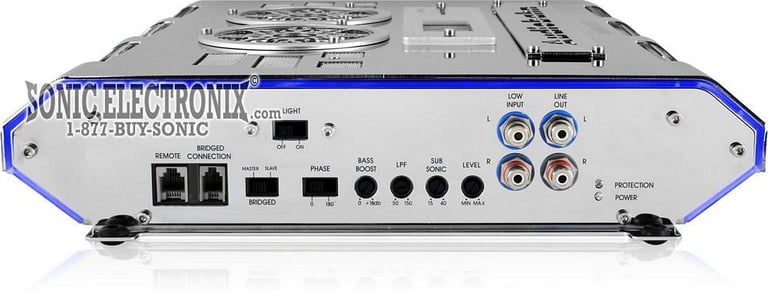

Preamp outputs
Dual Cooling Fans
Chrome Flame Cooling Fan Grill covers included (other optional designs available and sold separately)
Multi-Stranded Power Supply Toroids
Double Sided Glass Epoxy Circuit Board
High gloss chrome plated finish
Variable Bass Boost: 0-18dB at 40-100Hz
Variable Low-Pass Crossover: 50-150Hz
Variable Subsonic Filter: 15-40Hz
Frequency Response: 15-150Hz
THD: 0.05%
Variable Phase Control: 0 or 180°
Dimensions: 16-7/8"L x 11-15/16"W x 2-1/2"H
1/0-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

600 watts x 1 channel

RMS Power @ 2 ohms

1200 watts x 1 channel

RMS Power @ 1 ohm

1800 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3600 watts

Total RMS Power Output

1800 watts

Minimum Impedance Unbridged

1 ohm

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Audiobahn ABR100T

Fuse Rating

30A x 4
