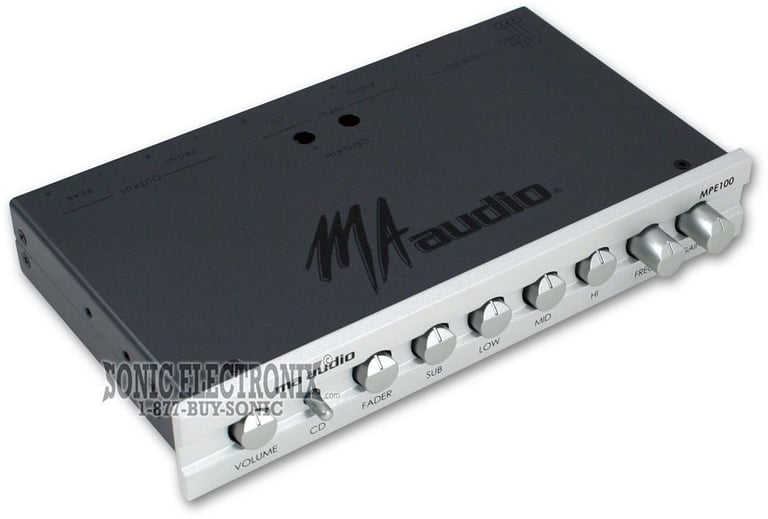

MA Audio MPE100

4-Band Parametric Equalizer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

4-Band Parametric Equalizer • Fader • Sub Gain • Adjustable Subwoofer Crossover • 20dB Headroom • 3 Pair Outputs • 2 Pair Inputs • AUX Input Sensitivity

Learn more about the mpe100

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Product Highlights


4-Band Parametric Equalizer • Fader • Sub Gain • Adjustable Subwoofer Crossover • 20dB Headroom • 3 Pair Outputs • 2 Pair Inputs • AUX Input Sensitivity

Description


MA Audio brand icon

Authorized dealer

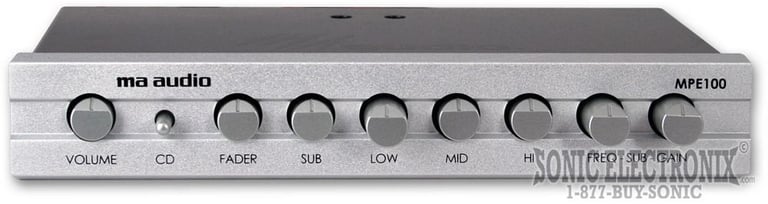

  • 4-Band Parametric Equalizer
  • 1/2 DIN Size

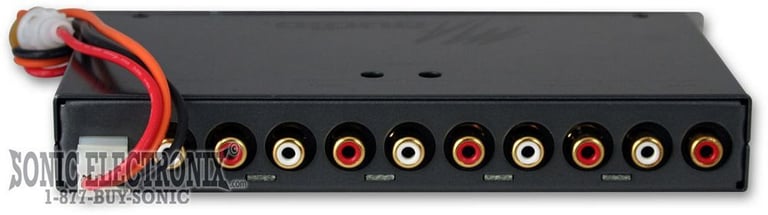

  • 2 Pair RCA Inputs
  • Adjustable AUX Input Sensitivity
  • 3 Pair RCA Outputs (Front, Rear, Sub)
  • Independant Subwoofer Gain
  • Front / Rear Fader Control
  • Radio / CD Input Selector
  • Gold Plated RCA Connectors
  • On-Board 30V Bi-Polar Switching Power Supply
  • Parametric EQ Bands:
    • Subwoofer: 50 Hz
    • Low: 220 Hz
    • Mid: 1 khz
    • Hi: 16 kHz
  • 20 dB Headroom
  • Low Noise Bi-Fet Op-Amp Design
  • Variable Subwoofer Crossover: 50 - 260 Hz, 12dB / Oct
  • Equalizer Boost / Cut: +-18 dB
  • Frequency Response: 10 Hz - 150 kHz
  • THD: 0.005%
  • Max Output Level: 7.5V RMS
  • Signal to Noise Ratio: 110 dB
  • Input Impedance: 10k Ohm
  • Dimensions: 7.205" L x 4.291" W x 1.299" H
  • 2-year Manufacturer's warranty

Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

Specifications & Details


Equalizer Specifications
Equalizer Bands
4 band
Equalizer Frequencies
High (16 kHz), Mid (1 kHz), Low (220 Hz), Sub (50 Hz)
Built-in Crossover
Low-Pass (LP)
Built-in Bass Reconstruction
No
Line Driver
No
Signal Boost/Cut
18 dB
Max Output Level
7V RMS volts
Frequency Response
10 - 150000 Hz
THD (Total Harmonic Distortion)
0.005%
Signal-to-Noise Ratio
110 dB
Width
4-3/8"
Height
1-3/8"
Depth
7-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MPE100

Weight:

3.00lbs

Internal SKU:

mpe100

Internal Product ID:

5819

Product and How-to Videos


Customer Ratings & Reviews


MA Audio MPE100 thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

MA Audio MPE100 MA Audio 4-Band Parametric Equalizer Works Great !

I have had mine for 2 years and it still works great. I love it, a must have for tuning.

By Shane Hager on August 15, 2009

3 found this helpful
