Name: Audiobahn A2200HCT R/B
Brand: Audiobahn
SKU: LS-a2200hct-RB
Price: 249.99 USD
Availability: Discontinued

by Audiobahn

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

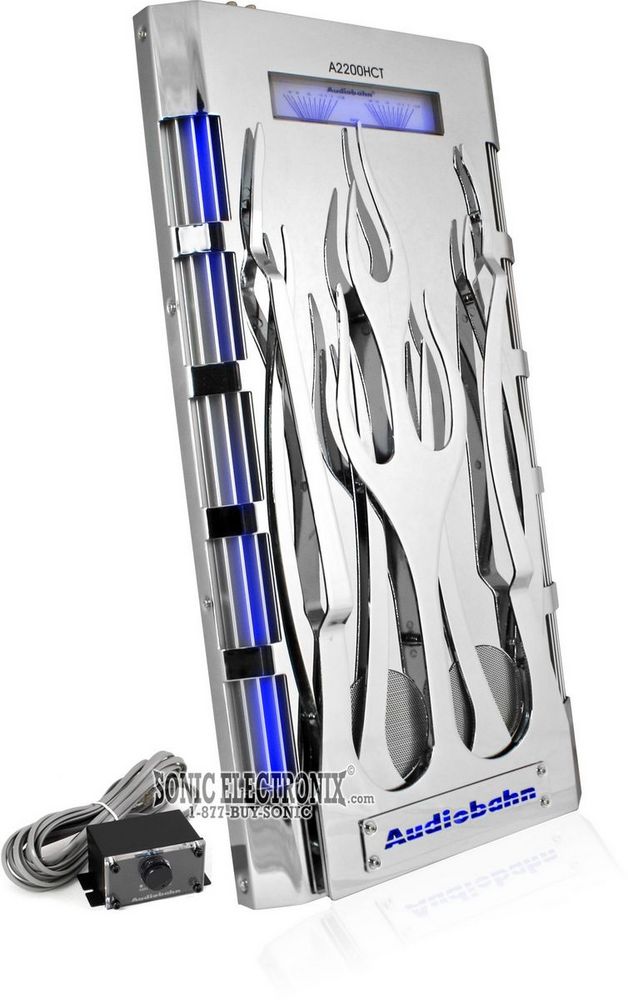

Audiobahn A2200HCT R/B Image 1 — Audiobahn A2200HCT R/B

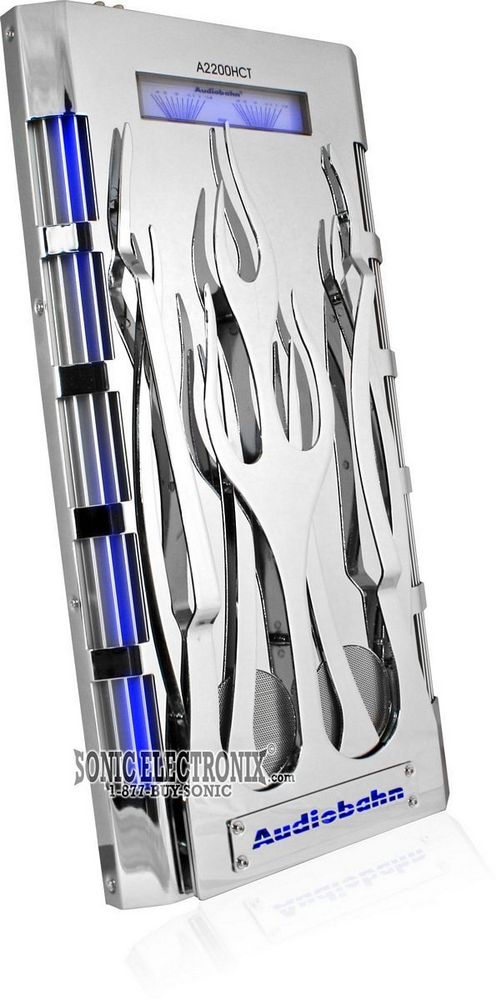

Audiobahn A2200HCT R/B Image 2 — Audiobahn A2200HCT R/B

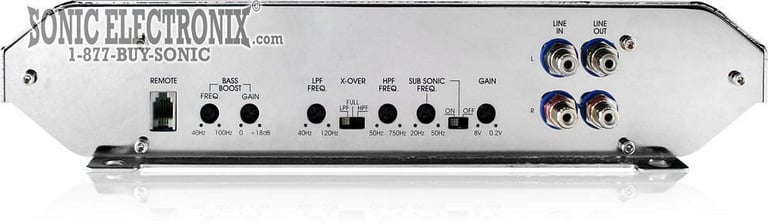

Audiobahn A2200HCT R/B Image 3 — Audiobahn A2200HCT R/B

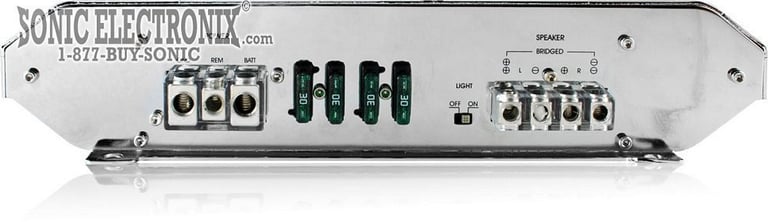

Audiobahn A2200HCT R/B Image 4 — Audiobahn A2200HCT R/B

Audiobahn A2200HCT R/B Image 5 — Audiobahn A2200HCT R/B

Product videos

Product highlights

3200W Max, High Current Series 2-Channel Amplifier • 1600W RMS @ 1 ohm • 800W RMS @ 2 ohm • 400W RMS @ 4 ohm • Blue Illuminated VU Meter • Beautiful Chrome Design Heatsink • S/N Ratio: 100dB • Bass Boost: 0-18dB

Learn more about the LS-a2200hct-RB

Product Highlights

Description

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

NOTE: A bass remote is pictured, but it is not included with the amplifier. It can be purchased at an additional cost of $25.00 if you purchase this amplifier.
Click here to purchase the Audiobahn ABR100T bass remote.

3200W Max, High-Current 2-Channel Car Amplifier
RMS Power Rating:

200 watts x 2 chan. @ 4 ohm
400 watts x 2 chan. @ 2 ohm
800 watts x 2 chan. @ 1 ohm
Bridged:

400 watts x 1 chan. @ 4 ohm
800 watts x 1 chan. @ 2 ohm
1600 watts x 1 chan. @ 1 ohm

Max Power Output: 3200 watts @ 1 ohm

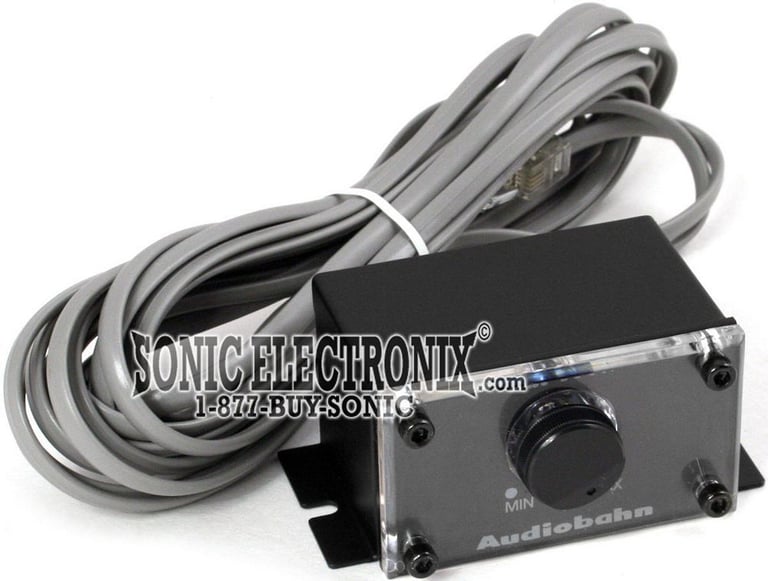

Optional Wired Remote Bass Level Control Available with Blue Illuminated Knobs (MODEL: ABR100T)
- Also illuminates red to indicate when amplifier is clipping
High-Current, Non-Regulated Power Supply
Preamp Outputs
Cobalt Blue LED Illuminated Heat Sink Design (on/off switch for your preference)
Thermal Regulated, Air Induction Dual Cooling Fans
Double Sided PCB (Circuit Board)
High Gloss Chrome Plated Finish
Unique, Clean Chrome Fire/Flame Design
Blue Illuminated VU Meters Indicating Output Response
Clear Power and Speaker Connectors
Variable Bass Boost: 0-18dB @ 40-100Hz
Variable Low-Pass Crossover: 40-120Hz
Variable High-Pass Crossover: 50-750Hz
Variable Subsonic Filter: 20-50Hz
Signal-to-Noise Ratio: 100dB
Frequency Response: 10Hz-40kHz
THD: 0.05%
Channel Separation: 50dB
Input Sensitivity: 200mV - 8V
1/0- or 2-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
Dimensions: 23" L x 11-15/16" W x 2-1/2" H
- Note: Flames add an additional 1" to the height
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

200 watts x 2 channel

RMS Power @ 2 ohms

400 watts x 2 channel

RMS Power @ 1 ohm

800 watts x 2 channel

Bridged RMS Power

1600 watts x 1 channel

Amplifier Specifications

Number of Channels

2-Channel

Total Peak Power Output

3200 watts

Total RMS Power Output

1600 watts

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

1 ohm

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 750 Hz

Low-Pass Crossover Frequency

40 - 120 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

100 dB

Channel Separation

50 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Audiobahn ABR100T

Fuse Rating

30A x 4
