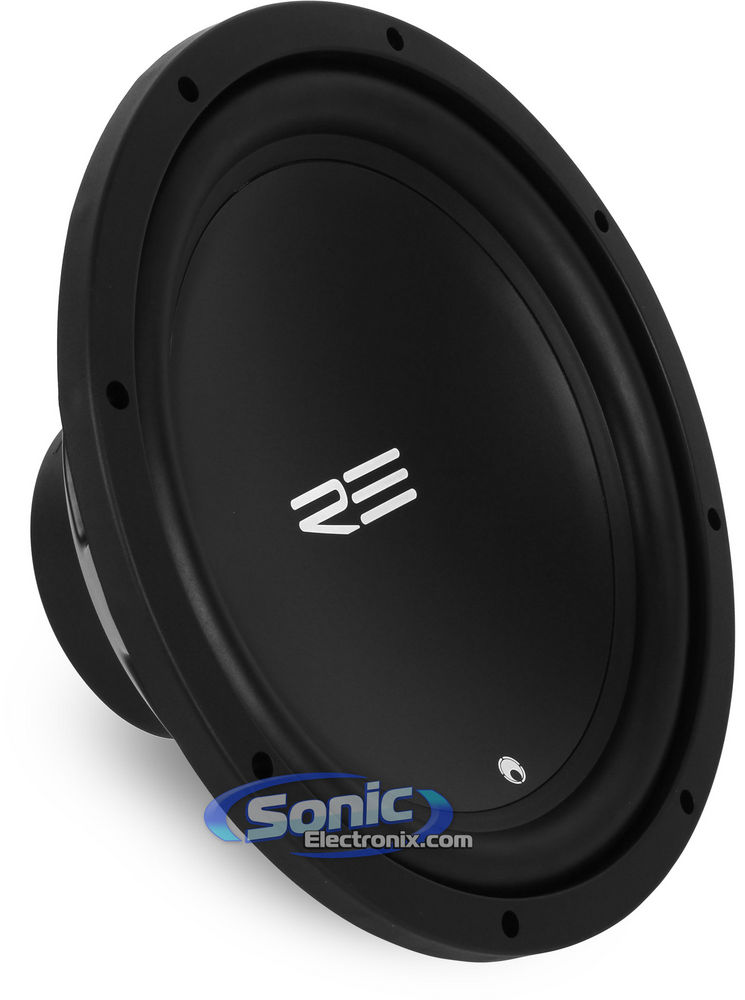

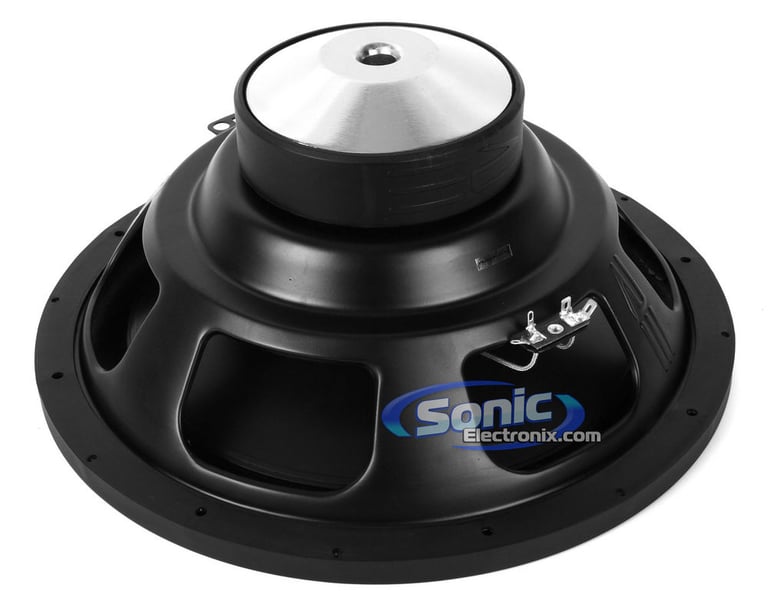

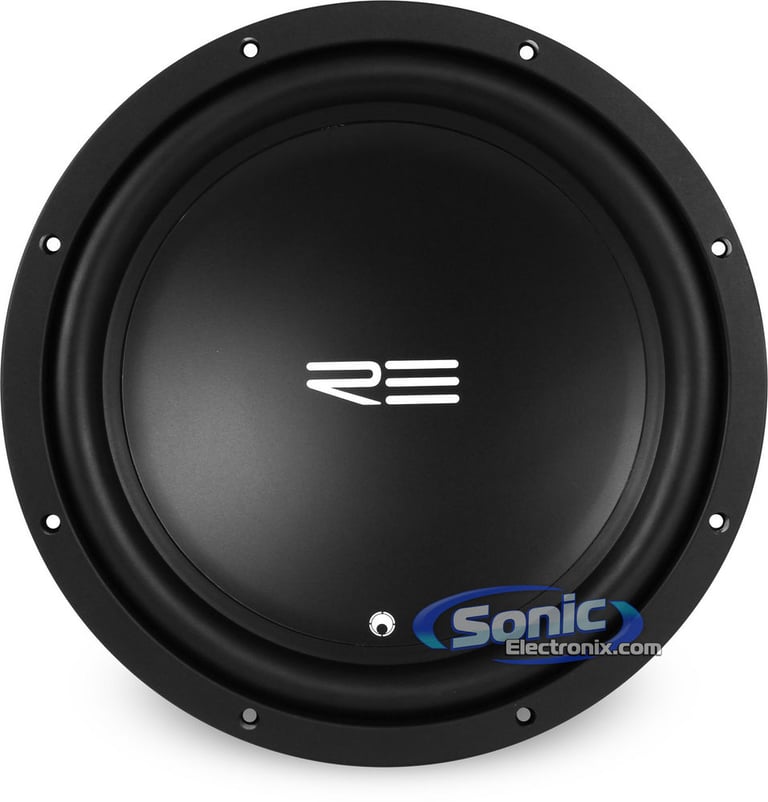

RE Audio REX12S4

175W 12" REX Series Single 4 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 175W
• Mica Filled Poly Cone Woofer
• Santoprene Surround
• FEA Optimized Motor Structure
• High Temperature 6-Layer Copper Voice Coil
• Linear Conex Spiders

Learn more about the rex12s4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

rexv212s4 thumbnail

RE Audio REXv2-12 (REXv2-12 S4, REX12S4 v2)

OUR PRICE: $72.99

View item

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

Product Highlights


• RMS Power: 175W
• Mica Filled Poly Cone Woofer
• Santoprene Surround
• FEA Optimized Motor Structure
• High Temperature 6-Layer Copper Voice Coil
• Linear Conex Spiders

Description


RE Audio brand icon

Authorized dealer

Anything But Entry Level

What RE Audio calls entry-level is anything but entry-level. Introducing the new REX series. It offers incredible output and distortion free sound you would come to expect from subs costing far more. REX car subwoofers are perfect for those just entering the car audio scene. Popular among the import and other cars where weight is important, these lightweight subwoofers are an excellent solution for performance vehicles that can’t have heavy subwoofers with large boxes. The mica filled poly cone is stiff and rigid, while the Santoprene rubber surround allows excellent response. Behind the cone is a high temperature 8-layer copper voice coil, a FEA optimized motor structure, and a conex spider that all assist in the linearity of the subwoofer when in use. With a RMS power handling of only 175 watts, these subwoofers do not require a large, powerful amplifier. However, like all of the RE Audio subwoofers, they are capable of accepting much more power then the recommended RMS. For an entry-level subwoofer that is far beyond all the other entry-level subwoofers, trust the RE Audio REX series of car subwoofers to bring great bass in your car.

General Features:

  • 12" Single 4 ohm REX Series Subwoofer
  • Power Handling:
    • RMS: 175 watts
  • Impedance: Single 4 ohm
  • Mica filled poly cone woofer
  • Santoprene rubber surround
  • Pressed steel basket
  • FEA Optimized motor structure
  • Linear Conex spiders
  • Rubber gasket
  • High temperature 6-layer copper voice coil
  • Powerful, single stacked magnet
  • Resonance Frequency (Fs): 24.12 Hz
  • Top-mount depth: 5-1/2"
  • Sensitivity: 84.54 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

RE Audio REXv2-12 thumbnail
(newest, current model)
RE Audio REX12S4 thumbnail
(previous model, replaced by RE Audio REXv2-12 (REXv2-12 S4, REX12S4 v2))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio REX12S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio REX12S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio REX12S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 RE Audio REX12S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
REX Series
Subwoofer Size
12"
RMS Power Handling
175 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.3 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Santoprene Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.4 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
20 Hz
Equivalent Compliance (Vas)
182 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.42
Electrical Resistance of Voice Coil (Re)
3.2 ohm
Mechanical Q Value (Qms)
4.27
Efficiency Bandwidth Product (EBP)
47.61
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REX12S4

Weight:

9.40lbs

Internal SKU:

rex12s4

Internal Product ID:

60588
