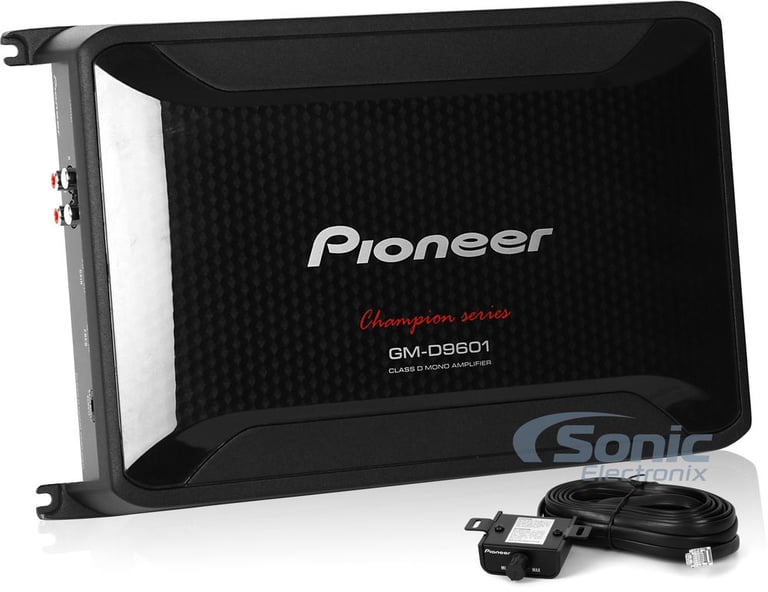

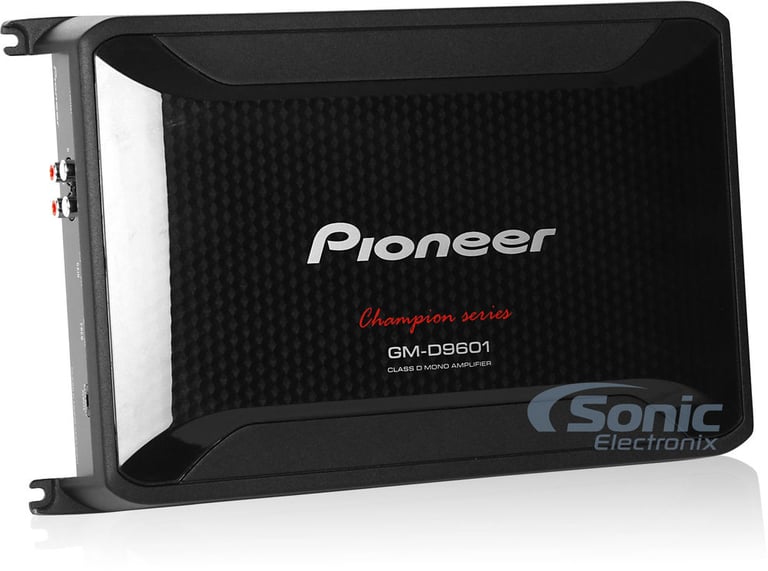

Pioneer GM-D9601

2400W Peak (1200W RMS) GM Series Class-D Monoblock Car Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 500 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

Learn more about the gmd9601

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gmd9701 thumbnail

Pioneer GM-D9701

OUR PRICE: $389.99

View item

Loading...
82-8900 main

Metra 82-8900

6.5" Multi Speaker Adapter for select 2005-2021 vehicles from Subaru

1
-55.90%

$14.99

List price $33.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
Limited time!
DMX4710S main

Kenwood DMX4710S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM & iDatalink Maestro Ready)

2
-37.71%

$299.00

List price $480.00

S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

S2-S65 main

Alpine S2-S65

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

5
-16.69%

$149.95

List price $180.00

XS-162GS main

Sony XS-162GS

500W Peak (90W RMS) 6.5" GS Series 2-way 4-ohm Component Car Speakers

$198.00

List price $199.99

Product Highlights


• 500 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

Description


Pioneer brand icon

Authorized dealer

Product Details:

  • GM Digital Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 channel
    • 2 ohm: 800 watts x 1 channel
    • 1 ohm: 1200 watts x 1 channel
  • Total RMS power output: 1200 watts
  • LED Power/Protect Light

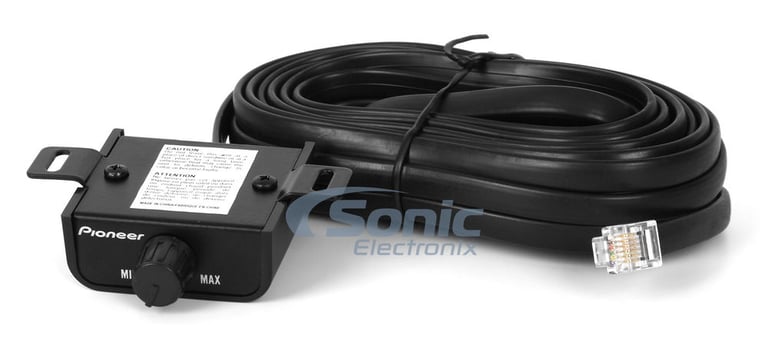

  • Wired bass level remote control included

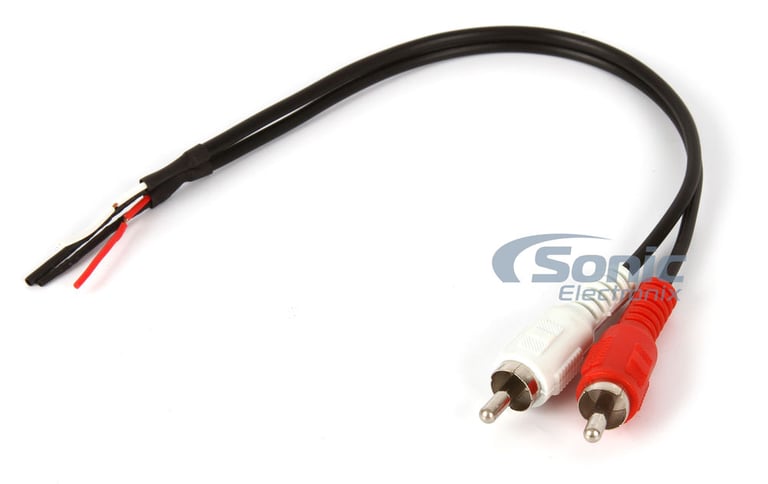

  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

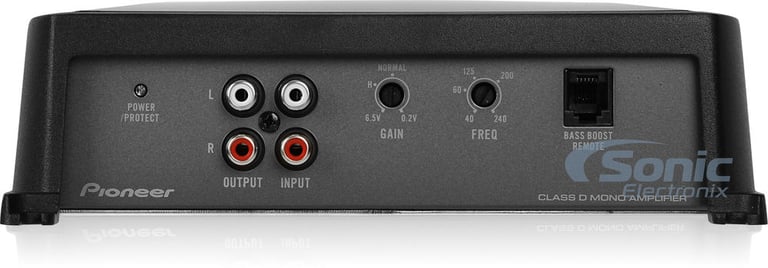

  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • CTA-2006 compliant
  • Input sensitivity:
    • Low level: 200mV - 6.5 volts
    • High level: 800mV - 16 volts
  • Frequency Response: 10 - 240 Hz
  • Total Harmonic Distortion (THD): <0.5%
  • Signal to Noise Ratio: 100 dB
  • Variable low-pass filter: 40 - 240 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 120A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 12-3/4" L x 8-1/2" W x 2-3/8" H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • MFR #: GM-D9601

Product history:

Pioneer GM-D9701 thumbnail
(newest, current model)
Pioneer GM-D9601 thumbnail
(previous model, replaced by Pioneer GM-D9701)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Compact Design
Speaker Level Inputs
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Series
GM Digital Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
10 - 240 Hz
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 240 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes

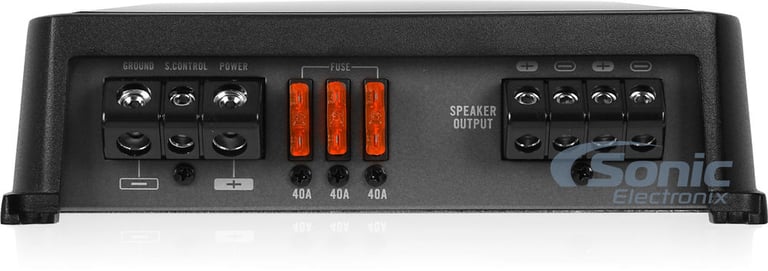

Fuse Rating
40A x 3
Total Fuse Rating
120
Strappable
No
Sonic Certified Amplifier
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 6.5 volts
High-Level Input Sensitivity
800mV - 16 volts
What is in the box?
Paperwork

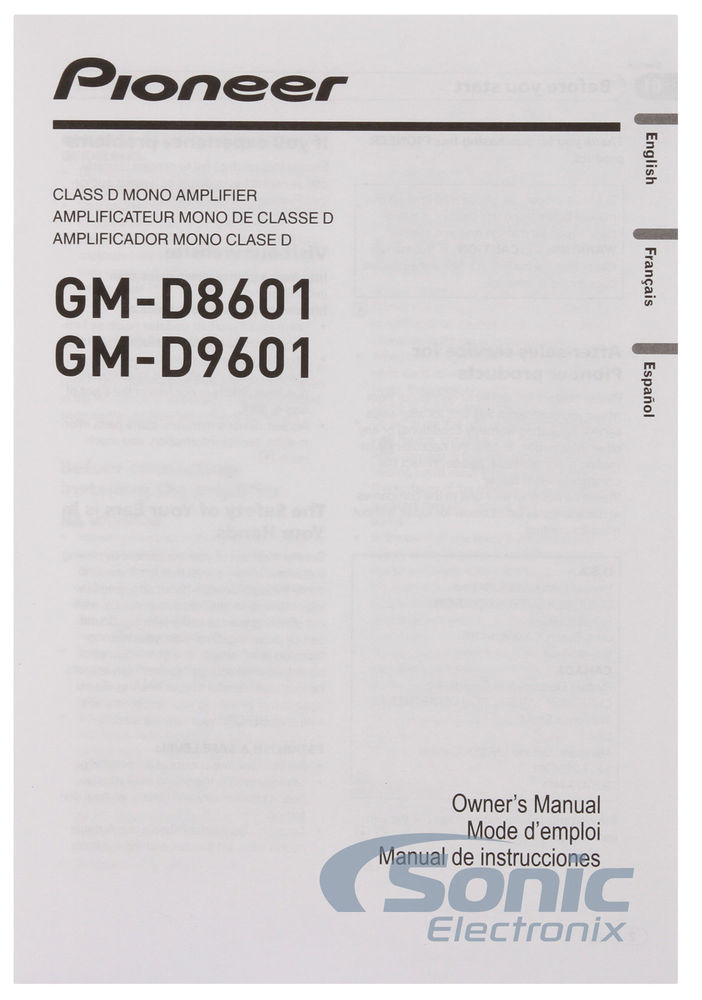

User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-D9601

Weight:

7.33lbs

Internal SKU:

gmd9601

Internal Product ID:

63975

Product and How-to Videos


Customer Ratings & Reviews


Pioneer GM-D9601 thumbnail image

5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.6
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great price, true power, looks awesome!

Never really followed pioneer for anything other then headunits till now. My system has been built up over two years of buying stuff and selling stuff from it. I blew an old Sony 800W Max amp running a 2011 Rockford Fosgate P2 and was looking for a new amp that wouldn't break the bank and didn't fake the ratings, which is hard to do especially for the common folk. I'm not new to systems, built mine with no planning and learned from trial and error.

I accidentally came across this amp while bored, searching for a new amp while I had a custom box built. What interested me the most was it was 1ohm stable and my current setup could be ran at 1ohm. Asked a few trusted audio friends and they said to go for it. Bought it the next day, shipping was quick, and the product looked great besides the cheesy looking packaging. Cracked it open, had some beefy components and even the fuses match up to the stated 1200rms rating they give you.

Installed it once the new box was built. At the time it was wired to 1ohm, on a P2 that had a 400rms power rating, with 10awg CCA wire. Everything ran awesome, amp never heated up, and the sub eventually gave up a few months later. Went ahead and bought my dream sub a Rockford Fosgate T1D412 . Installed that to 1ohm and the same previous setup. Sounded absolutely amazing untuned for 15 seconds. Amp did a great job of recognizing the resistance from my cheap CCA power wires and went into protect so it wouldn't over heat the amp. Eventually ordered Cadence 4G150MP-B wire, installed that. I was shaking the Glasses rack at my local 7-Eleven. Thanks to the bass boost knob, I'm able to listen to it comfortably and turn it up for demos and laughs.
Eventually though I started to smell burning plastic coming from the trunk after long periods of use. Come to find out, it wasn't my coils cooking, it was my wire terminal in the back of the sub box melting cause I had 16awg while from amp to the sub. Just ordered a new terminal and 8awg Cadence wires to fix that issue.

All in all guys, the sub has only gotten hot cause of my cheap wires and protected itself from disaster just like a good amp should. Looks awesome, stays cool, easy to use, and this amp has been tested to put out 1200+rms all for $169. Can't beat that decision. Feel free to look me up if you want info on the setup, will be tested, and tuned after new wires are ran.

By Matthew T Anderson on July 10, 2013

83 found this helpful


Great price hits hard

Great price hits very hard I hooked it up to my 15 inch L7 and it shakes everything!

By Frederick on September 17, 2013

81 found this helpful


Nice amp

Replaced a kicker 2 channel amp bridged. Hooked it up to a Kicker 10" Shallow truck box which is installed under the back seat of an F150 Crew.
This amp has a ton of power. At 4 ohms it produces a nice tight bass that plays across all genres. Also only has two settings to adjust. Gain and LP crossover. By far, the easiest amp install to date. Great product.

By schambo on October 29, 2013

77 found this helpful


Good but....

Everything seems great as far as the amp goes,it looks nice and seems to run my subs more efficintly than my alpine mrp-500 did. I use two jl 12w1-v3 good for 300rms a peice. The thing is...the bass control knob doesnt do ANYTHING, no decernable difference between max and minimum. That was one of the reasons i bought this amp. Maybe i got a defctive bass knob? Im sure they would want me to return the whole amp and that seems like a hassle when my head unit can still do the same function. Other than the bass knob its a great amp.As a side note, its MUCH cheaper here on sonix than anywhere else.

By Audiophile 2.0 on March 8, 2014

75 found this helpful


OUTSTANDING

WOW, this amp is unbelieveable. slams my two sa-12's. And by the way they have the fuse rateing on the description wrong. it has 3 (40amp) fuses. anyway ive spent a fortune on numerous amps always trying to find the best for value. this is by far the best, so clean, stays cool, and the price is unbelieveable. I would not own any other pioneer products, but when it comes to the gmd amps they realy know what their doing. By the the way mine tests out at 1268 rms @ 1 ohm.

By truthsayer on December 6, 2012

76 found this helpful


Pioneer GM-D9601

I have always been a big fan of Pioneer head units and speakers but not their amps until now. These amps are by far the best. they don't get hot and have an excellent response with no distortion. Great price

By Jaime on October 14, 2014

74 found this helpful


good amp

This is a pretty good amp that does what it says, i would recommend running it no lower than 2ohms if you want power. Even at 2 ohms bumping it hard for 30min-1hr it barely gets warm and its underneath a seat. If you are having problems with your bass knob make sure you plug in the wire and the knob from pioneer, i thought i could get away with leaving my old bass knob from my previous amp in there and even the pioneer knob would not work with the old wire plugged into the amp.

By jack on March 23, 2014

74 found this helpful


Pioneer GM-9601

This amp is very strong the 1,200 watts it says it does is wrong i just got mine and i have it running 4 10's and i had my amp checked and its pushing out 1,473 watts and this amp does not get hot pioneer really did a great job making this amp!!!!

By wolfpup on November 6, 2013

71 found this helpful


great amp,and good value

i would recommend this product to anyone. I bought this amp to go along with my 2 pioneer champion pro series subs and everything sounds sweet.

By Shawn on November 6, 2013

71 found this helpful


Solid performer

For the price level this amp is in, it works great. I currently have it hooked to two Dual 12" subs, it does not disappoint. Not a good amp for most DVC subs as you lose upper lows....

By Liam on April 4, 2014

69 found this helpful




MC584LL/A small

Apple iPod Shuffle 2GB Silver (4th Generation) - MC584LL/A

Silver 2 GB 4th Generation iPod Shuffle (Newest 4th Generation Release)

$49.00

List price $199.99

PTID-8300NR small

Power Acoustik PTID-8300NR HUGE 8.3" SCREEN!

In-Dash 8.3" TFT-LCD Touchscreen Monitor with DVD/CD/MP3 Player, USB and Aux Inputs

(8)

$229.99

List price $529.99

ID8 D4 V.3 small

Image Dynamics ID8 D4 V.3 Open Box Complete

150W RMS 8" ID V.3 Series Dual 4 ohm Subwoofer

$49.99

List price $189.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1986 Buick Century

2007 Nissan Maxima

2008 Subaru Legacy

2002 Subaru Outback

2012 Chrysler 200

1995 Mitsubishi Mighty Max

2006 BMW M3

2003 Ford Focus

2019 Acura RDX

2004 Chevrolet SSR

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
