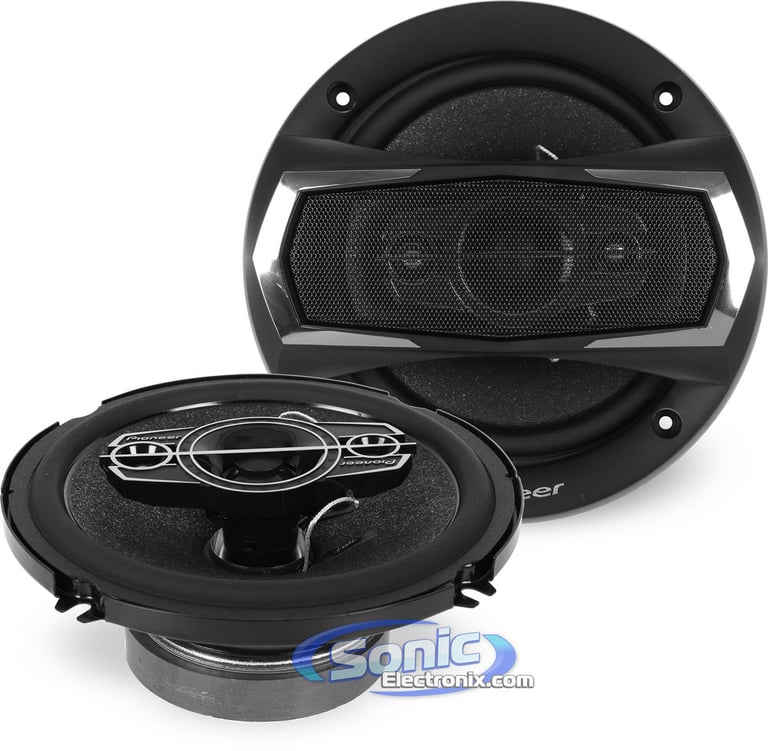

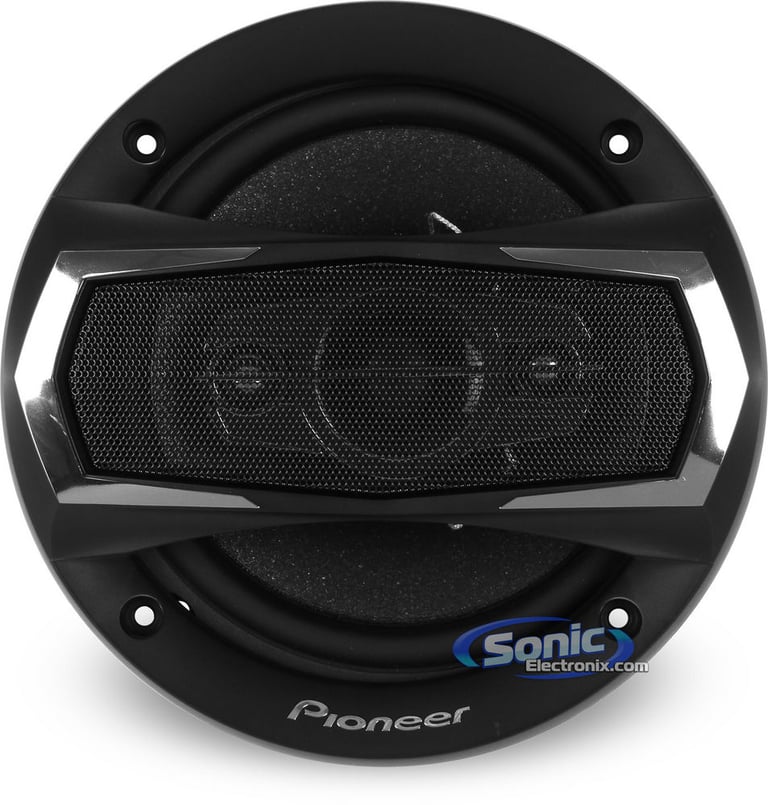

Pioneer TS-A1685 (TS-A1685R) - Open Box, Good Condition (Used)

120W 6.5" / 6.75" 4-Way A-Series Coaxial Speakers w/ Soft Tweeters - Open Box, Good Condition (Used)

Pioneer
Shop all Pioneer
highlight-star-icon

• Peak Power: 350W
• RMS Power: 120W

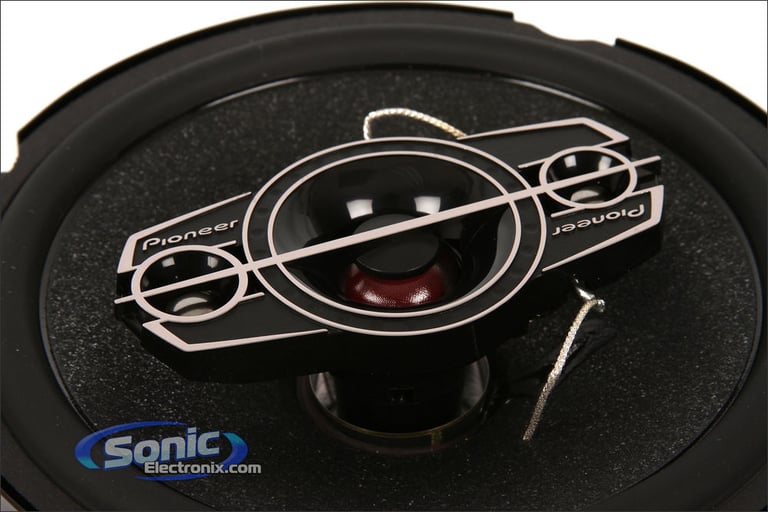

• Soft Dome Tweeters with Wave Guide
• Mounting Depth: 2-1/8"
• Multilayer Mica Matrix Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 91dB

Learn more about the LS-tsa1685-OBC5

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Good Condition:
A Good Open Box used product shows wear from consistent use, but it remains in good condition and works perfectly. It may be marked, have identifying markings on it, or show other signs of previous use or installation. Original packaging, paperwork or protective wrapping may be missing or not included in its entirety. Warranty details are included in the item description or comments.


Quality Sound by Pioneer

The A-Series speakers are your solution to upgrading those worn out factory speakers. The cone is composed of a multilayer mica matrix material that is rigid enough to resist warping during playback, but soft enough to produce smooth and subtle mids. The soft dome tweeter uses Wave Guide technology in order to increase the sensitivity, thus providing great articulation in the high frequency spectrum. The passive crossover network will blend the mid-woofer and tweeter for a perfectly balanced sound all throughout the audible frequency range. These speakers are designed with a wide frequency response to ensure you are hearing every note of your favorite songs. The high temperature voice coil will reduce distortion by dissipating heat quickly, which will protect your investment for years to come. These speakers can be ran off either a head-unit or an amplifier, making them very versatile and applicable for most vehicles. Available in most common sizes, the A-Series speakers make for a great audio upgrade.

General Features:

  • 6-1/2" / 6-3/4" A-Series 4-Way Coaxial Speakers
  • Power Handling:
    • Peak: 350 watts per pair / 175 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Multilayer Mica Matrix cone material
  • Elastic Polymer speaker surround
  • Soft Dome tweeters with Wave Guide for increased sensitivity
  • High temperature voice coil
  • 4 ohm impedance
  • Protective speaker grilles
  • Frequency response: 34-30,000 Hz
  • Top-mount depth: 2-1/8"
  • Sensitivity: 91dB
  • 1-year Sonic Electronix Warranty

Priced Per Pair
Also Found As: TSA1685R, TS A1685R, TSA-1685R

Product history:

Pioneer TS-A1685R-3 thumbnail
(newest, current model)
Pioneer TS-A1684R thumbnail
(previous model, replaced by Pioneer TS-A1685 (TS-A1685R) - Open Box, Good Condition (Used))
Pioneer TS-A1683R thumbnail
(previous model, replaced by Pioneer TS-A1684R)
Pioneer TS-A1682R thumbnail
(previous model, replaced by Pioneer TS-A1683R)
Pioneer TS-A1681R thumbnail
(previous model, replaced by Pioneer TS-A1682R)
Pioneer TS-A1680R thumbnail
(previous model, replaced by Pioneer TS-A1681R)

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Speaker Size
6-1/2" (also mounts in 6-3/4" w/ included brackets)
Design
4-way Coaxial
Tweeter Design
Dome
Tweeter Size
3/4"
Woofer Composition
Mica Reinforced Cellular Glass-Fiber
Woofer Surround
Elastic Polymer
Peak Power Handling
175 watts
RMS Power Handling
60 watts
Sensitivity
91 dB
Frequency Response
34 - 30000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
5" x 5"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1685R-3

Weight:

4.90lbs

Internal SKU:

LS-tsa1685-OBC5

Internal Product ID:

137339
