Rack mount, 2-channel high current amplifier • 1200 watts x 2 chan. at 1 ohm • VU meters indicating output response • Cobalt blue illumination

Learn more about the a2x600hq

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


Rack mount, 2-channel high current amplifier • 1200 watts x 2 chan. at 1 ohm • VU meters indicating output response • Cobalt blue illumination

Description

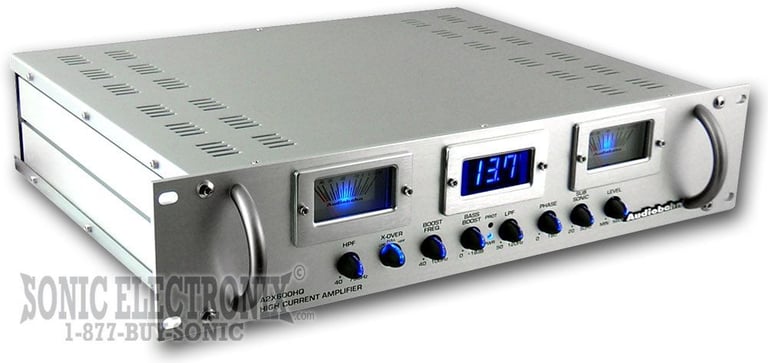

  • 2-Channel Rack-Mount, High-Current power amplifier
  • Rack Mount style for a unique design
  • RMS Power Ratings:
    • 4 ohm stereo: 300 watts x 2 chan.
    • 2 ohm stereo: 600 watts x 2 chan.
    • 1 ohm stereo:1200 watts x 2 chan.
    • 4 ohm mono: 600 watts x 1 chan.
    • 2 ohm mono: 1200 watts x 1 chan.
    • 1 ohm mono: 2400 watts x 1 chan.
  • Double sided expoxy circuit board
  • PWM MOSFET Power supply
  • Dual cooling fans
  • Blue LED power supply display

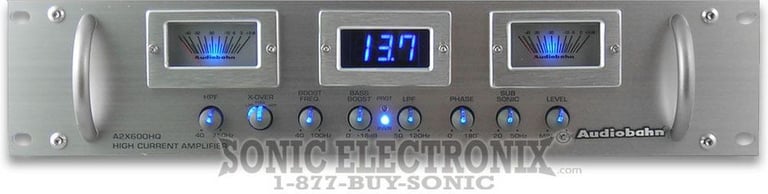

  • VU meters indicating output response
  • Volt meter with blue illumination
  • Cobalt blue illumination
  • 3-way Protection Circuitry: Thermal, Short Circuit, Overload
  • Built in crossover:
  • Variable low pass crossover: 50Hz - 120Hz
  • Variable high pass crossover: 40Hz - 750Hz
  • Variable bass boost: 0 - 18dB
  • Variable bass boost frequency: 40Hz - 100Hz
  • Variable subsonic filter: 20Hz - 50Hz
  • Variable phase control: 0° ~ 180°

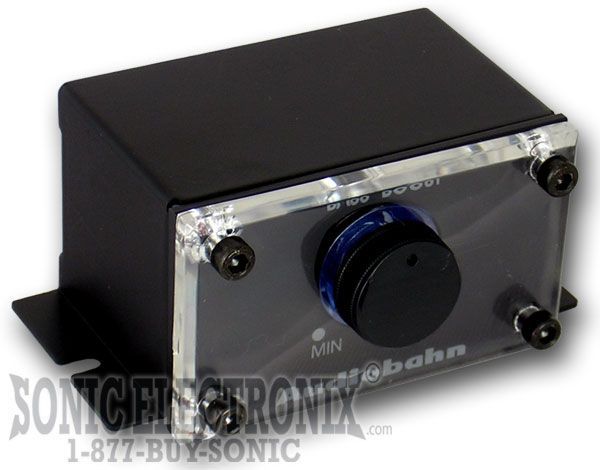

  • Remote bass control with blue backlight know
  • Low level input / line out
  • Input sensitivity: 200mV - 8V
  • Signal to noise ratio: >100dB
  • Dimensions: 16-3/4"W x 3-1/2"H x 11-3/4"D

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 2 channel
RMS Power @ 2 ohms
600 watts x 2 channel
RMS Power @ 1 ohm
1200 watts x 2 channel
Bridged RMS Power
2400 watts x 1 chan. (at 1 ohm)
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
2400 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
Yes
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Fuse Rating
40A x 4

Item Details


Manufacturer:

Model Number:

A2X600HQ

Weight:

22.00lbs

Internal SKU:

a2x600hq

Internal Product ID:

64

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A2X600HQ Rack-Mount thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
4

Customer Reviews

Sort by:

Loading...

Wow is all I can say

I am using this amp to run 1 audiobahn immortal 15 and at a quad 2 ohm voice coil sub with an rms of 2250 it was hard to find anything that would run this sub the way it wanted to be run. I used this amp to run each set of voice coils wired down to 1 ohm to each ch. All I can say is that I very well may be Needing new weather stripping after I remove everything because this amp puts out more power to those subs that my truck can handle! I would use this amp for subs but it has the capability for a full or high pass filter. I could run my two subs out of 1 ch and all my door speakers out of the other and still have way to much power running to these speakers. This amp puts the power out and does exactly what the specs say it will in a nice compact design. Not to mention its a unique style of amp for the car audio world. I would strongly suggest this amp because for the money you will not find a better more powerful amp with the options this amp has!
