Planet Audio PX4000D

4000W Max Axis Series Class D Monoblock Car Amplifier

Product videos
highlight-star-icon

• RMS: 1100W x 1 @ 4 ohm, 1800W x 1 @ 2 ohm, 2400W x 1 @ 1 ohm
• Total Peak Power: 4000W
• Wired Bass Knob Included
• Switchable Bass Boost: 0 or +18 dB at 50 Hz
• Class D Circuitry
• Dimensions: 10-11/16"W x 14-3/4"D x 2-3/8"H

Learn more about the px4000d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Lowest price in 30 days
NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$54.99

List price $65.99

Product Highlights


• RMS: 1100W x 1 @ 4 ohm, 1800W x 1 @ 2 ohm, 2400W x 1 @ 1 ohm
• Total Peak Power: 4000W
• Wired Bass Knob Included
• Switchable Bass Boost: 0 or +18 dB at 50 Hz
• Class D Circuitry
• Dimensions: 10-11/16"W x 14-3/4"D x 2-3/8"H

Description


Planet Audio brand icon

Authorized dealer

General Features:

  • Axis Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1100 watts x 1 chan.
    • 2 ohm: 1800 watts x 1 chan.
    • 1 ohm: 2400 watts x 1 chan.
  • Max power output: 4000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

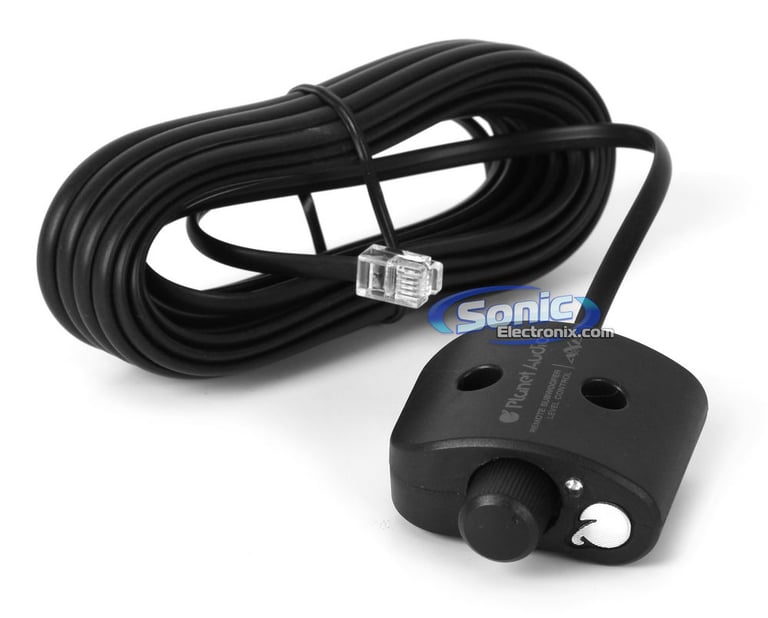

  • Wired remote bass level control included
  • Preamp RCA outputs to daisy chain multiple amps
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Strapping capability: Strap two amps together for twice the power. Datalink strapping cable included
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Black anodized aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated speaker and power terminals
  • Input sensitivity:
    • Switchable Low level: 100mV-2V or 2V-8V
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Subsonic filter (15-40 Hz)
  • Phase Shift: 0-180°
  • Frequency response: 10-200 Hz
  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10-11/16"W x 14-3/4"D x 2-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-25.50%

$298.00

List price $399.99

XAV-AX3200, BLPCAM2 main

Sony XAV-AX3200 with License Plate Camera

6.95" Double-DIN Touchscreen Digital Multimedia Receiver with License Plate Backup Camera

72
-32.40%

$337.99

List price $499.98

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1100 watts x 1 channel
RMS Power @ 2 ohms
1800 watts x 1 channel
RMS Power @ 1 ohm
2400 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
2400 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 4
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PX4000D

Weight:

11.00lbs

Internal SKU:

px4000d

Internal Product ID:

65707

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio PX4000D thumbnail image

5 star
33%
4 star
33%
3 star
0%
2 star
33%
1 star
0%



Durability
3.4
Value
3.7
Features
3.7
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

px 4000d great deal

Have the planet audio px 4000d hooked up to 2 power acoustik mofo 12s in a 4.5 cube box tuned to 37hz in a 99 denali and they pound make my whole truck shake and blurs my vision and was told I could be heard 3 blocks away I definitely recommend this amp its a great deal and an awesome amp I've had it about a year now and still no problems with it and considering buying another one.

By wes on March 2, 2014

3 found this helpful


Not sure....

I bought this amp for my 4000 watt sub obviously. But as soon as I hooked everything up my amp was squealing , I put my rca's on the opposite side of my car so I know it couldn't have been interference. IT also stopped putting out full power for awhile. overall I wouldn't buy this amp again.

By jack on November 4, 2013

2 found this helpful


Amp

Amp performed very well for the period I had it. Pushed my RE SX very well.

By detters on September 18, 2013

2 found this helpful
