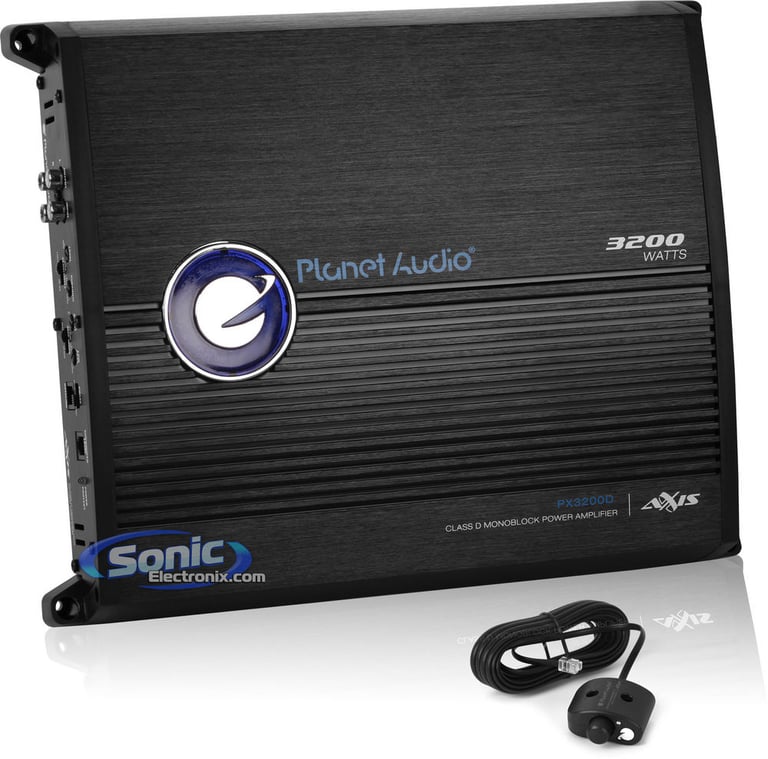

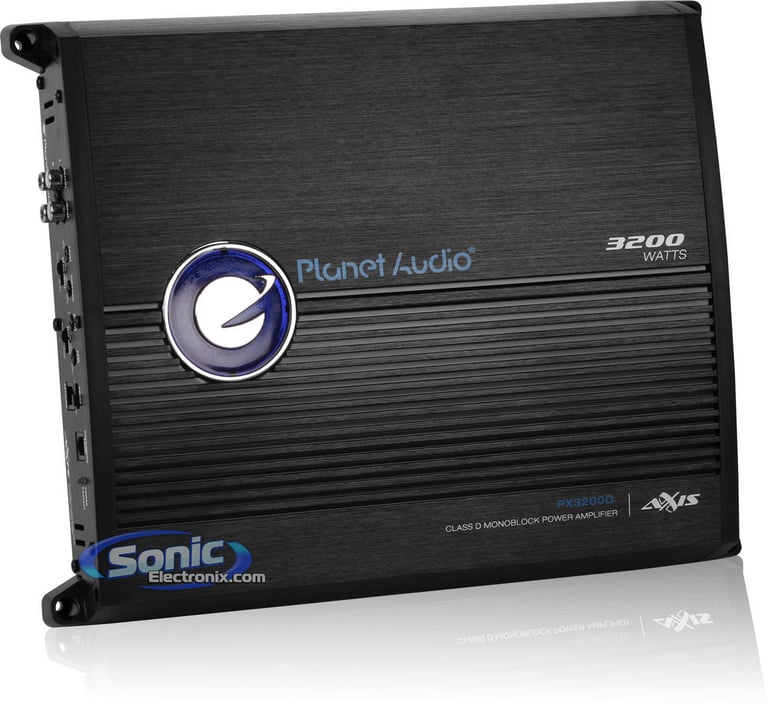

Planet Audio PX3200D

1800W RMS Axis Series Class D Monoblock Car Amplifier

Product videos
highlight-star-icon

• RMS: 850W x 1 @ 4 ohm, 1400W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total Peak Power: 3000W
• Wired Bass Knob Included
• Switchable Bass Boost: 0 or +18 dB at 50 Hz
• Class D Circuitry
• Dimensions: 10-11/16"W x 13-1/8"D x 2-3/8"H

Learn more about the px3200d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Product Highlights


• RMS: 850W x 1 @ 4 ohm, 1400W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total Peak Power: 3000W
• Wired Bass Knob Included
• Switchable Bass Boost: 0 or +18 dB at 50 Hz
• Class D Circuitry
• Dimensions: 10-11/16"W x 13-1/8"D x 2-3/8"H

Description


Planet Audio brand icon

Authorized dealer

General Features:

  • Axis Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 850 watts x 1 chan.
    • 2 ohm: 1400 watts x 1 chan.
    • 1 ohm: 1800 watts x 1 chan.
  • Max power output: 3000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

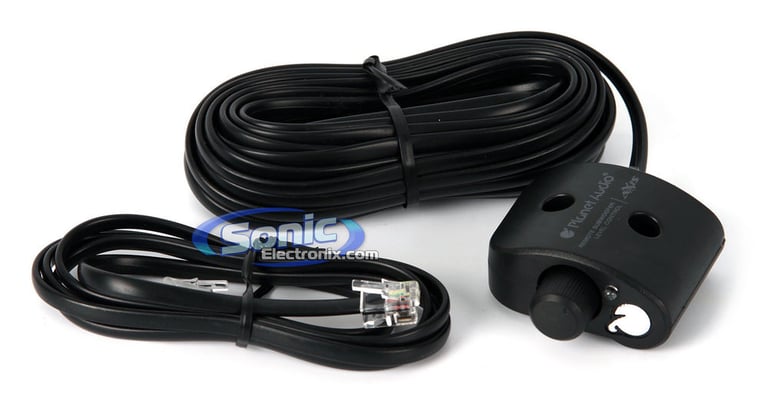

  • Wired remote bass level control included
  • Preamp RCA outputs to daisy chain multiple amps
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Strapping capability: Strap two amps together for twice the power. Datalink strapping cable included
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Black anodized aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated speaker and power terminals
  • Input sensitivity:
    • Switchable Low level: 100mV-2V or 2V-8V
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Subsonic filter (15-40 Hz)
  • Phase Shift: 0-180°
  • Frequency response: 10-200 Hz
  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10-11/16"W x 13-1/8"D x 2-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
850 watts x 1 channel
RMS Power @ 2 ohms
1400 watts x 1 channel
RMS Power @ 1 ohm
1800 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1800 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 3
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PX3200D

Weight:

9.50lbs

Internal SKU:

px3200d

Internal Product ID:

65720
