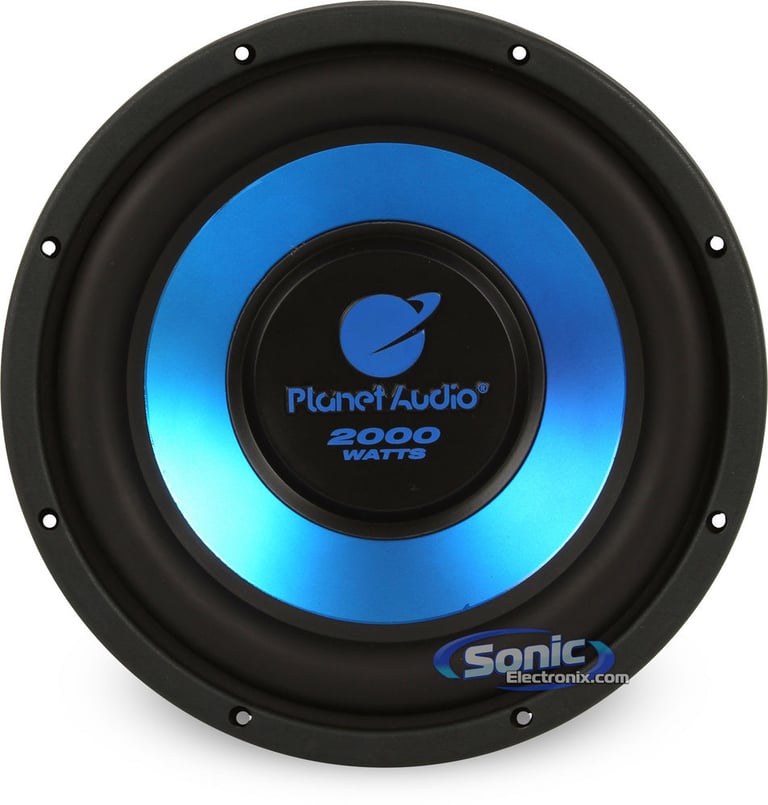

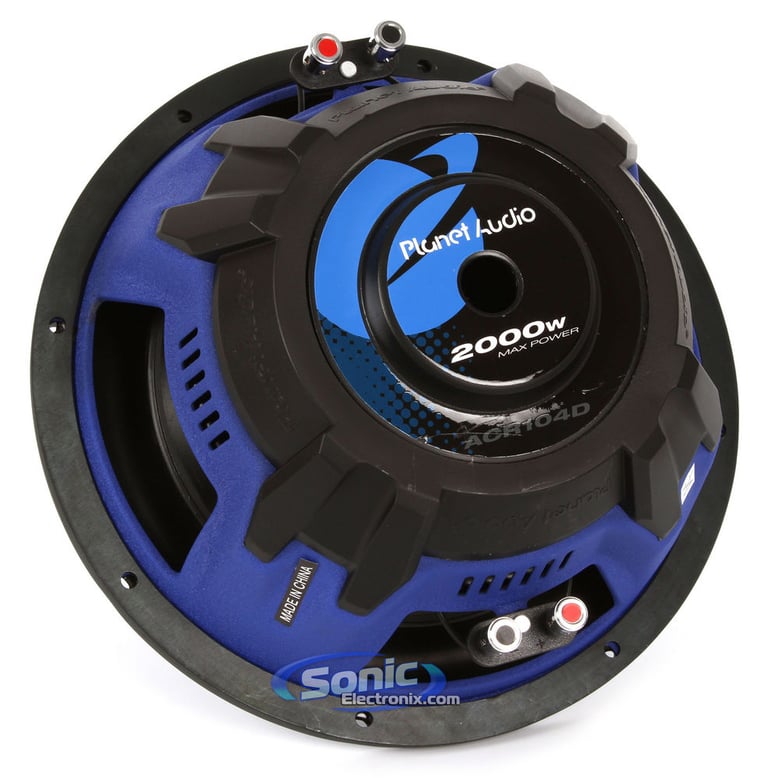

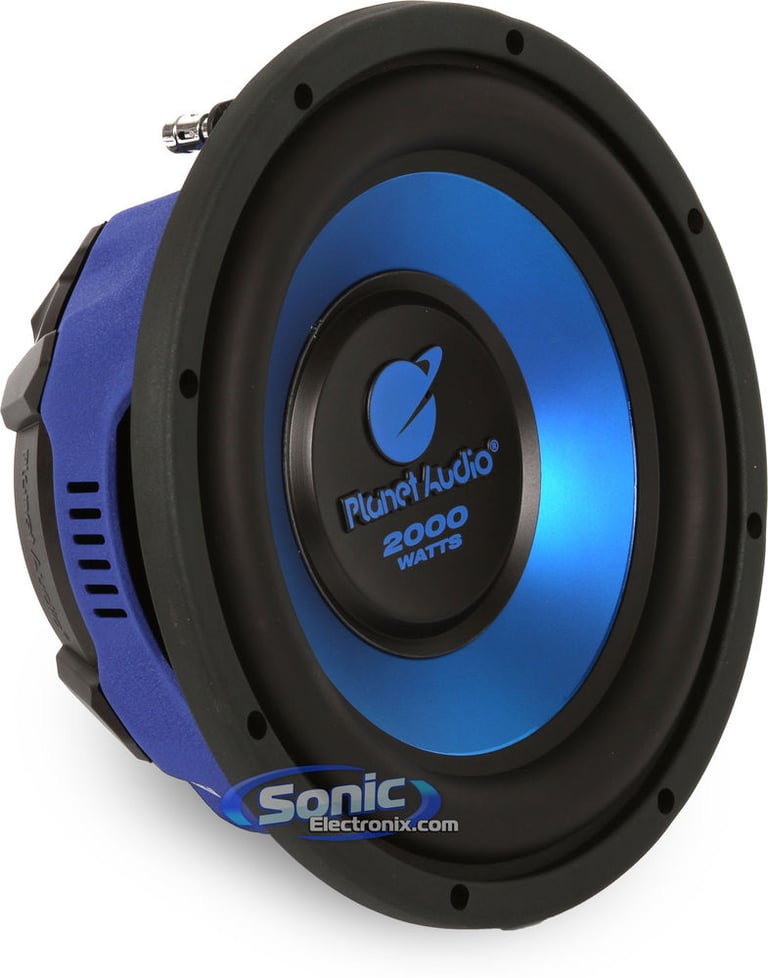

Planet Audio ACR104D

10" Dual 4-Ohm Anarchy Series Subwoofer

Planet Audio
Shop all Planet Audio
Product videos
highlight-star-icon

• 2000W Peak
• 1000W RMS
• Dual 4-Ohm Voice Coil
• Color Chrome Treated Poly Injection Cone
• Butyle Rubber Surround
• Blue Stamped Steel Basket

Learn more about the acr104d

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

95-8202 main

Metra 95-8202 Dash Kit

Install a new Double-DIN car stereo in select 2000-2020 vehicles from Toyota, Subaru, Scion

35
-43.50%

$12.99

List price $22.99

82-3412 main

Metra 82-3412

Speaker Adapter Bracket for select 1998-2024 vehicles from Chevrolet, GMC, Subaru

1
-34.63%

$16.99

List price $25.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

Product Highlights


• 2000W Peak
• 1000W RMS
• Dual 4-Ohm Voice Coil
• Color Chrome Treated Poly Injection Cone
• Butyle Rubber Surround
• Blue Stamped Steel Basket

Description


Planet Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 4-Ohm Anarchy Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Impedance: Dual 4 ohm
  • Color Chrome Treated Poly Injection Cone
  • Butyle rubber surround
  • Blue stamped steel basket
  • Dual 1-1/2" High Temp Kapton voic coil
  • Frequency response: 35-3,000 Hz
  • Resonance Frequency (Fs): 37 Hz
  • Top-mount depth: 4-3/4"
  • Sensitivity: 95 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Planet Audio ACR104D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Planet Audio ACR104D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Planet Audio ACR104D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Planet Audio ACR104D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Anarchy Series
Subwoofer Size
10"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-1/2"
Frequency Response
35 - 3000 Hz
Sensitivity
95 dB
Main Cone Color
Blue
Woofer Composition
Injection Molded Polypropylene with Metallic Finish
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Sealed Box Volume
0.80 cubic feet
Optimum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
37 Hz
Total Speaker Q Value (Qts)
0.92
Electrical Q Value (Qes)
1.1
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
5.34
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ACR104D

Weight:

7.50lbs

Internal SKU:

acr104d

Internal Product ID:

65762
