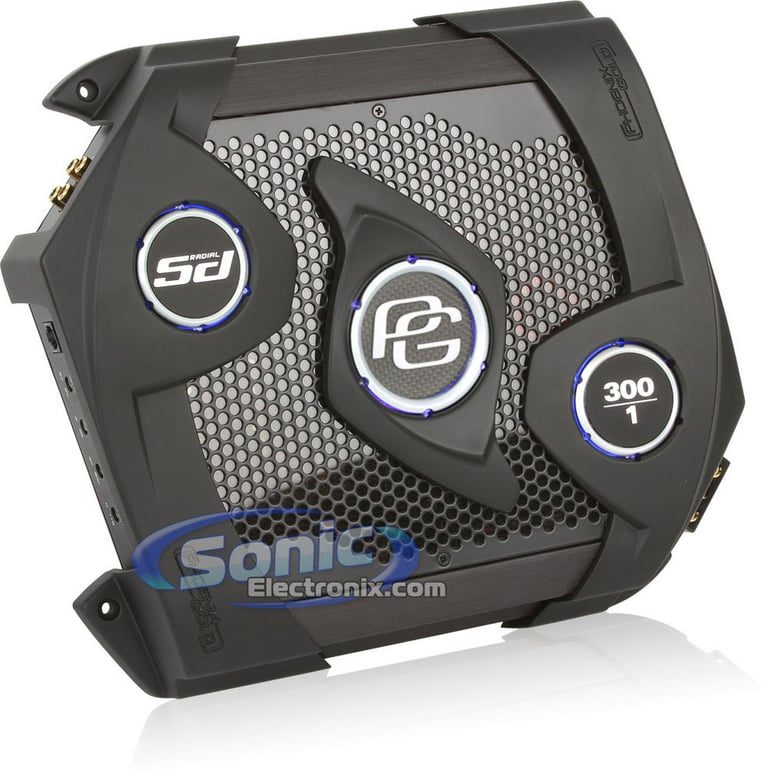

Phoenix Gold RSd 300.1 (RSd300.1)

300W RMS, Radial Sd Series Class AB Monoblock Amplifier

Product videos
highlight-star-icon

300W RSd Class AB Monoblock Amplifier • 180W x 1 chan. @ 4 Ohm • 310W x 1 chan. @ 2 Ohm • MOSFET power supply • protection circuitry • line level inputs • variable bass boost • S/N ratio: 84dB

Learn more about the rsd3001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
VOAB main

Scosche VOAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1997-2009 vehicles from Volvo

5
-14.34%

$11.95

List price $13.95

99-9229G main

Metra 99-9229G Dash Kit

Single DIN or Double DIN Stereo Dash Kit for select 2001-2004 S60 and V70 and XC70

3
-10.87%

$40.99

List price $45.99

70-9223 main

Metra 70-9223 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1999-2009 vehicles from Volvo

2
-19.28%

$17.75

List price $21.99

iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Product Highlights


300W RSd Class AB Monoblock Amplifier • 180W x 1 chan. @ 4 Ohm • 310W x 1 chan. @ 2 Ohm • MOSFET power supply • protection circuitry • line level inputs • variable bass boost • S/N ratio: 84dB

Description


Phoenix Gold brand icon

Authorized dealer

  • 300 watts, RSd Class AB Monoblock Amplifier
  • RMS Power Output:
    • 4 Ohm: 180 watts x 1 chan.
    • 2 Ohm: 310 watts x 1 chan.
  • High Speed, High Current MOSFET Switching Power Supply
  • On Board Protection Circuitry
  • Multi-Function Protection Indicator
  • Built-In Low Pass Crossover, 30 Hz - 300 Hz @ 18 dB/oct.
  • Variable Bass Boost(0 - 18 dB)
  • Wide Range Input Sensitivity Adjustment
  • Line Outputs
  • S/N Ratio: 84 dB
  • Dimensions: 12-7/8"L x 11-3/16"W x 2-3/8"H
  • Exclusive Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
310 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total RMS Power Output
310 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
5 - 55 Hz
Signal-to-Noise Ratio
84 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RSd300.1

Weight:

13.00lbs

Internal SKU:

rsd3001

Internal Product ID:

6637

Product and How-to Videos


Customer Ratings & Reviews


Phoenix Gold RSd 300.1 (RSd300.1) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

One word,... Awesome!!!

Pros: Reliable, User friendly, Great power...
Cons: None found so far....

I've had this amp for a out 6 months now and I must say it's a trooper. I've already blow one subwoofer. I've ran it in the hot summer days, and it stays cool, has shut down on me! Even on these cold winter days I haven't had any performance issues! And my music has never sounded so precise and crisp!!! 2 thumbs up in my books. Also thanks to Sonicelectronix for providing such awesome products as this Phoenix Gold RSd300.1 amp!!! Great, great, great product

By Co on December 24, 2010

14 found this helpful
