Name: Rockford Fosgate P1000X1BD Open Box Complete
Brand: Rockford Fosgate
SKU: ls-p1000x1bd-obc6
Price: 342.99 USD
Availability: Discontinued

by Rockford Fosgate

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

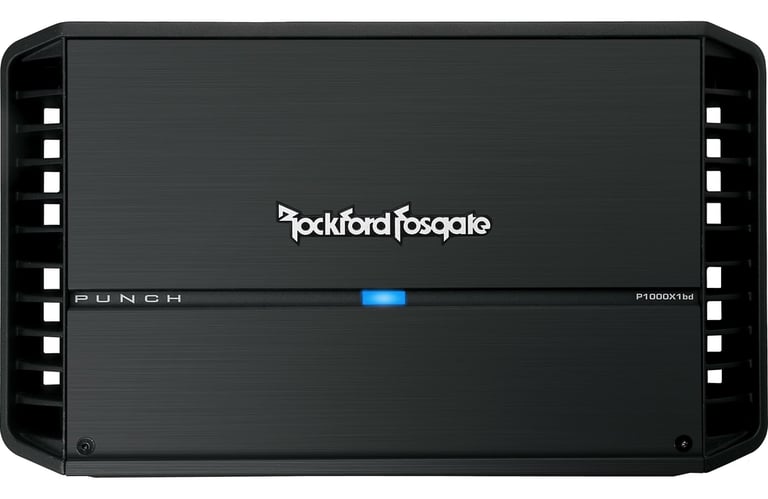

Rockford Fosgate P1000X1BD Open Box Complete Image 1 — Rockford Fosgate P1000X1BD Open Box Complete

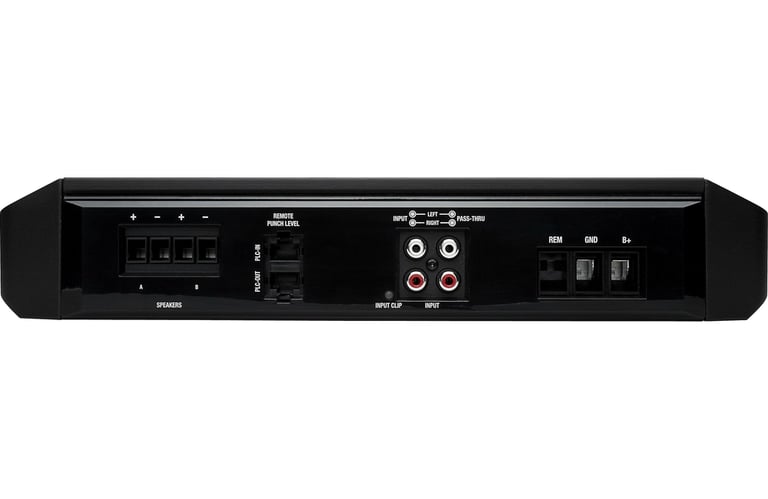

Rockford Fosgate P1000X1BD Open Box Complete Image 2 — Rockford Fosgate P1000X1BD Open Box Complete

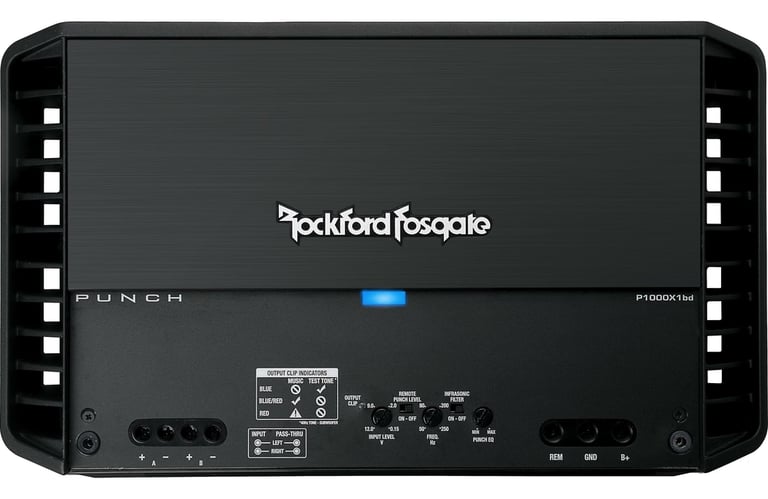

Rockford Fosgate P1000X1BD Open Box Complete Image 3 — Rockford Fosgate P1000X1BD Open Box Complete

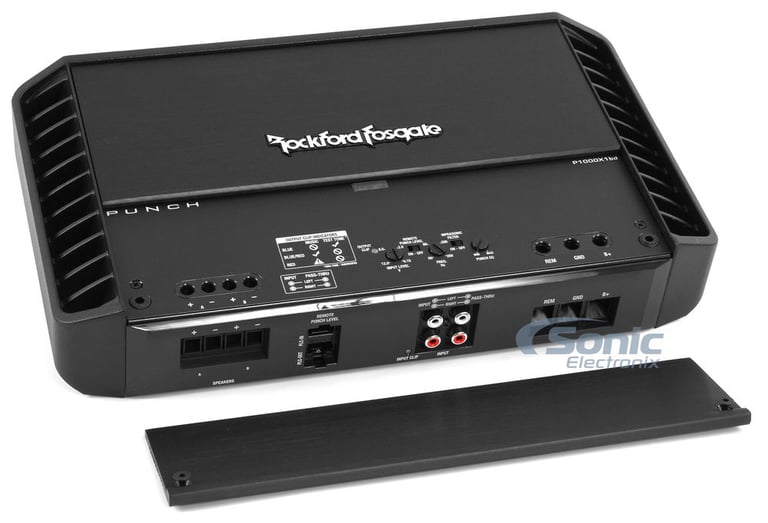

Rockford Fosgate P1000X1BD Open Box Complete Image 4 — Rockford Fosgate P1000X1BD Open Box Complete

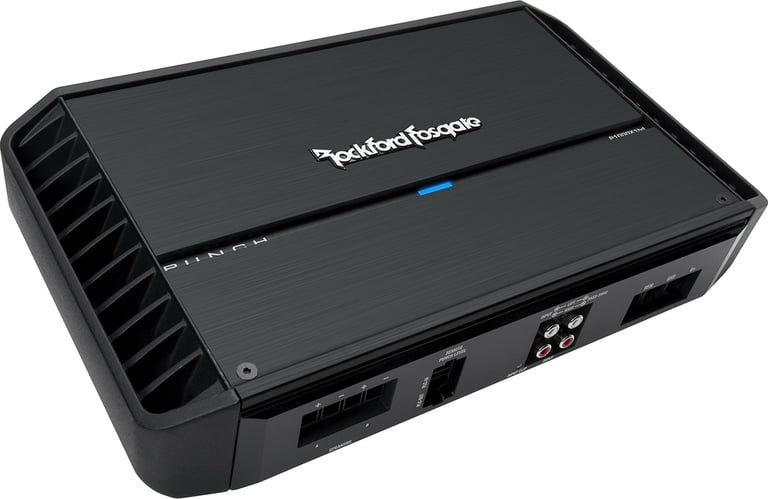

Rockford Fosgate P1000X1BD Open Box Complete Image 5 — Rockford Fosgate P1000X1BD Open Box Complete

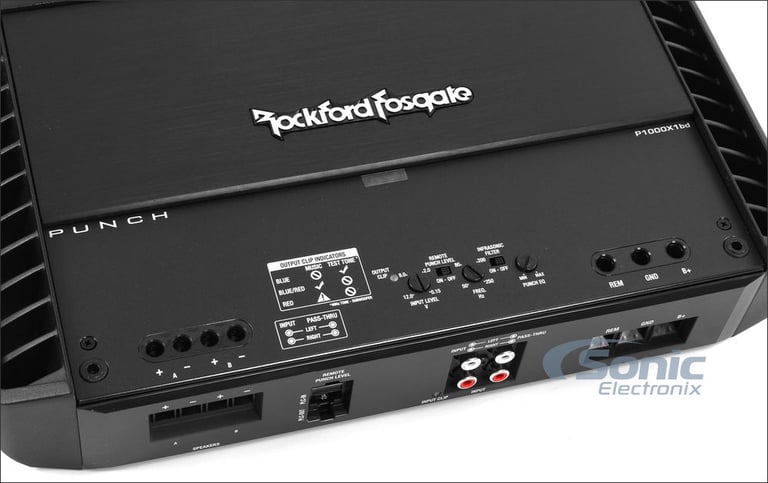

Rockford Fosgate P1000X1BD Open Box Complete Image 6 — Rockford Fosgate P1000X1BD Open Box Complete

Product highlights

• Open Box Complete
• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total RMS Power: 1000W
• CEA-2006 Compliant
• Tuned Bass EQ: 0 to +18 dB
• Super Efficient Class BD Circuitry
• Dimensions: 13-5/16"L x 7-3/4"W x 2-3/8"H

Learn more about the ls-p1000x1bd-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features

Punch BD Series Monoblock Class BD Car Amplifier
RMS Power Rating:

4 ohm: 300 watts x 1 chan.
2 ohm: 500 watts x 1 chan.
1 ohm: 1000 watts x 1 chan.

CEA-2006 compliant amplifier
Features C.L.E.A.N. Set-up with 10-step set-up procedure
w/ input/output clip detection and indicator LEDs
MOSFET power supply
Muted turn on
Cast aluminum heatsink
12dB/octave Butterworth crossover
Stealth top mounted control panel
LED power, thermal, and protect indicators
Nickel-plated captive C-clamp terminals
Ultra efficient Class BD circuitry to maximize amplifier power efficiency
On-board differential inputs eliminates noise picked up by the signal cable
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
High level input capable with Auto Turn-On circuit (RFIF2SW required, sold separately)
MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
Built in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across entire amplifier heatsink to efficiently keep the amplifier temperatures low
DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving efficiency of the circuit and lowers operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
Input sensitivity: 150mV - 12V
On-board Punch EQ with +18dB boost @ 45Hz.
Variable low-pass filter: 50-250 Hz
Selectable infrasonic filter: off / 28 Hz
Frequency response: 20 - 250 Hz
Total Harmonic Distortion: <1.0%
Dimensions: 13-5/16"L x 7-3/4"W x 2-3/8"H
8 AWG to 18 AWG speaker wire output terminals
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

300 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

RMS Power @ 1 ohm

1000 watts x 1 channel

Amplifier Specifications

Series

Punch Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Optional (Requires Accessory Adapter)

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

Switchable Off/28 Hz

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Rockford Fosgate PLC2

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
