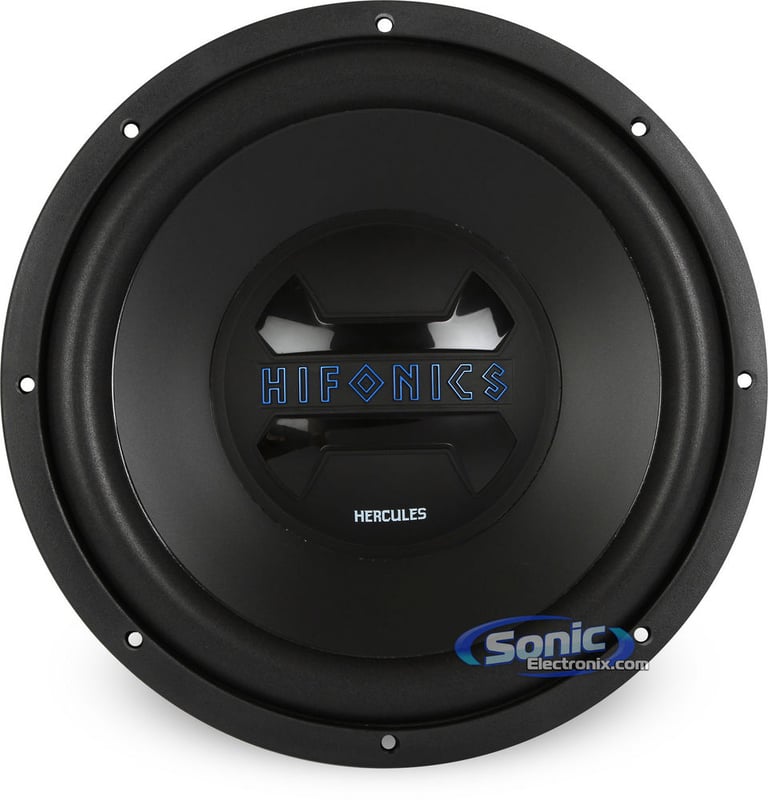

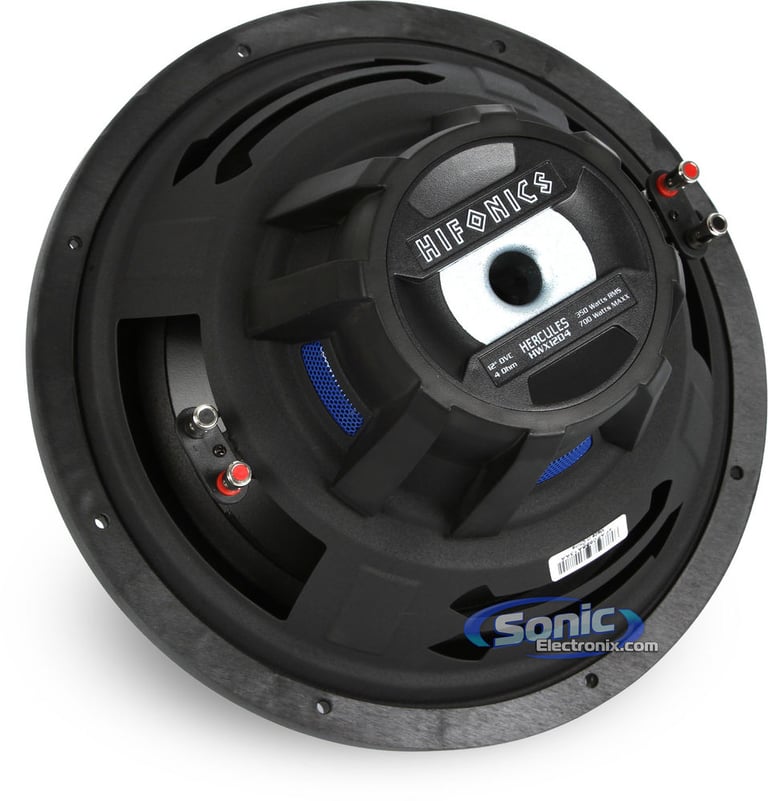

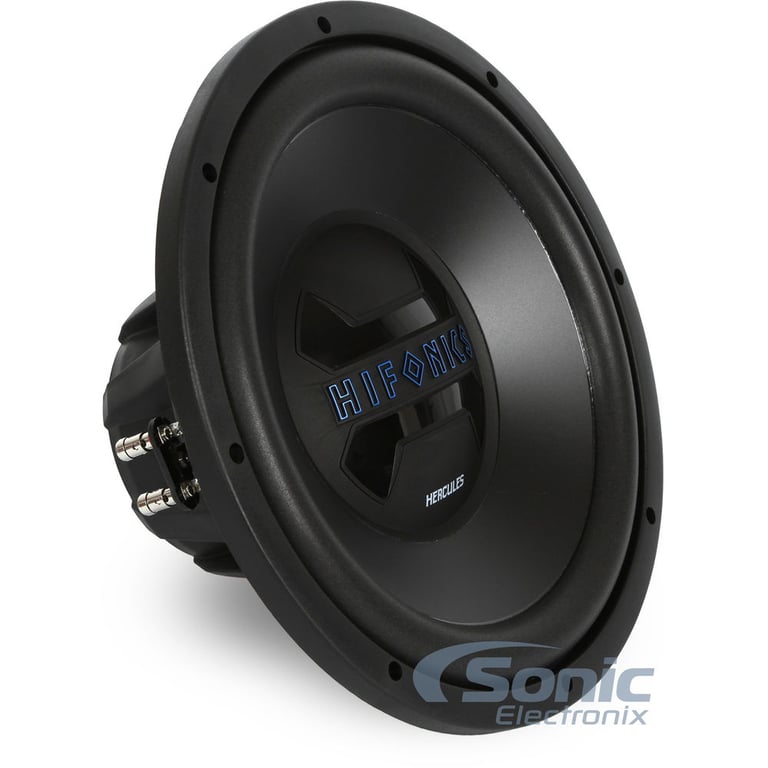

Hifonics HWX12D4

350W 12" Hercules Series Dual 4 Ohm Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• 700W Peak
• 350W RMS
• Satin Black Polypropylene Cone
• Powder Coated OTS Steel Frame
• Spring Loaded Terminals
• 2" High Temperature Aluminum Voice Coil

Learn more about the hwx12d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

DKGM-C2D main

Crux DKGM-C2D Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2000-2012 vehicles from Chevrolet, GMC, Pontiac

2
-35.71%

$81.00

List price $126.00

SAGTE6 main

Scosche SAGTE6

5 1/4" - 6 1/2" Speaker Adaptors for select 2002-2009 vehicles from GMC, Chevrolet, Isuzu

4
-6.63%

$19.99

List price $21.41

82-3021 main

Metra 82-3021

6-6.75 inch speakers - Front door for select 2002-2009 vehicles from Chevrolet, GMC, Buick

5
-42.87%

$15.99

List price $27.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Product Highlights


• 700W Peak
• 350W RMS
• Satin Black Polypropylene Cone
• Powder Coated OTS Steel Frame
• Spring Loaded Terminals
• 2" High Temperature Aluminum Voice Coil

Description


Hifonics brand icon

Authorized dealer



General Features:

  • 12" Dual 4 Ohm Hercules Series Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Impedance: 4 ohm
  • Satin black polypropylene cone
  • Satin black linear butyl rubber surround
  • Nickel-plated P&I (push and insert) speaker terminals to easily secure speaker wire
  • Thermoformed dust cap adds strength to the subwoofer and proudly displays the Hifonics logo
  • Unique back venting system allows more heat to be exchanged with cool air allowing more power handling and increased reliability
  • Heavy duty PVC cover to keep the subwoofer looking good and protected from the action in the trunk
  • Specialized cotton spider
  • 2" Aluminum voice coil
  • 30 oz. magnet motor structure
  • Top-mount depth: 5-3/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics HWX12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics HWX12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics HWX12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics HWX12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Hercules Series
Subwoofer Size
12"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
85 dB
Xmax (millimeters)
7.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/16"
Cutout Diameter
10-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.45 Hz
Equivalent Compliance (Vas)
88.159 liters
Total Speaker Q Value (Qts)
0.904
Electrical Q Value (Qes)
1.059
Electrical Resistance of Voice Coil (Re)
7.23 ohm
Mechanical Q Value (Qms)
6.201
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HWX12D4

Weight:

8.30lbs

Internal SKU:

hwx12d4

Internal Product ID:

67941

Product and How-to Videos


  • Hifonics HWX Car Subwoofers | New Hercules Subs for 2013!
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Hifonics HWX12D4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Good sub for the money

I'm new to the audio scene but I highly recommend this sub for anyone who is on a low budget build. It plays really well and seems to be an accurate representation of the power suggested by hifonics (350 rms).

By Trini guy on September 15, 2016

2 found this helpful




VMX-10.4 small

Cerwin-Vega VMX-10.4

V-Max 10.4 Dual 4 ohms 10" Subwoofer V-Max 10

$99.99

List price $189.99

TW12D4 small

Hifonics TW12D4

1000W Max (500W RMS) 12" TITAN Series Dual 4 Ohm Car Subwoofer

(1)

$69.99

List price $199.99

TFE60 small

DCM Loudspeakers TFE60

6-1/2" 2-Way Bookshelf Speaker

$249.95

List price $249.95

HM-50DG small

Cuisinart HM-50DG

Power Advantage™ 5-Speed Hand Mixer (Dark Green)

$49.95

List price $90.00

Kappa 693C-2 small

Infinity Kappa 693C (INFSPKKA693CAM)

870W Peak (290W RMS) 6x9” Kappa Series 2 Way 3-ohm Component Speaker System

(1)

$439.95

List price $489.95

No picture

JBL Club 64 (JBLSPKCB64) (Open Box, Good)

360W Peak (120W RMS) 6.5" Club Series 2 Way Coaxial 3-ohms Speakers

$65.97

List price $139.95

HM-50DY small

Cuisinart HM-50DY

Power Advantage™ 5-Speed Hand Mixer (Dark Yellow)

$49.95

List price $90.00

HD-7BK small

Power Acoustik HD-7BK (Black)

2 Universal BLACK Headrests Loaded with 7" TFT-LCD Monitors and Remote

$179.99

List price $399.99

Stroker-122 small

Cerwin-Vega Stroker 122

12" Dual 2 ohms Stroker Series Subwoofer (Stroker122, Stroker 12, Stroker12)

(4)

$219.99

List price $499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Chevrolet TrailBlazer

2004 Dodge Viper

2008 Buick Enclave

2009 BMW M6

2002 Chevrolet Express 2500

2002 Mazda B3000

1997 Lincoln Continental

2012 Ford Transit Connect

2018 Lincoln MKZ

1979 Ford Pinto

Vehicle
Store
Delete

2007 Harley Davidson FXSTC Softail Custom

Vehicle
Store
Delete

2019 Can-Am Defender HD5

2024 Can-Am Defender MAX DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
