Name: Crunch PZ1200.4 (Factory Refurbished)
Brand: Crunch
SKU: LS-pz12004-RB
Price: 69.99 USD
Availability: Discontinued
Rating: 4.0000 (1 reviews)

Shop all Crunch

by Crunch

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

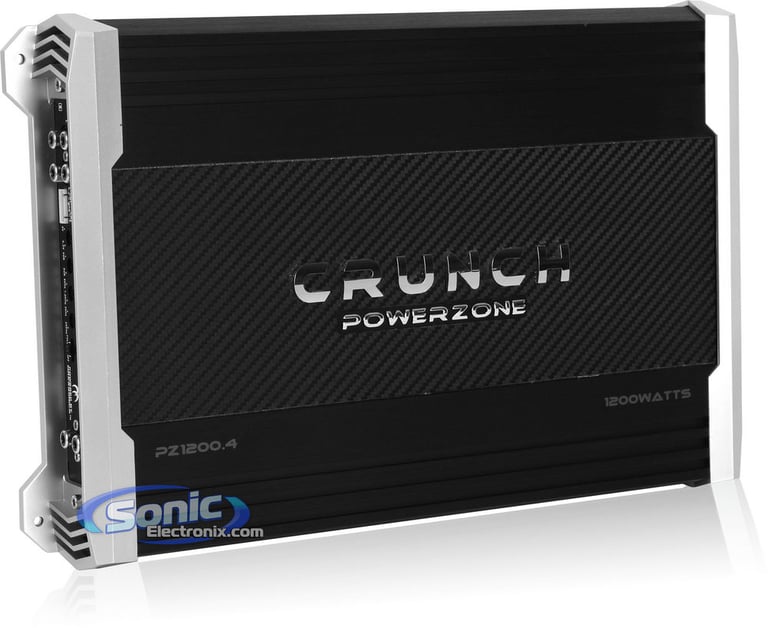

Crunch PZ1200.4 (Factory Refurbished) Image 1 — Crunch PZ1200.4 (Factory Refurbished)

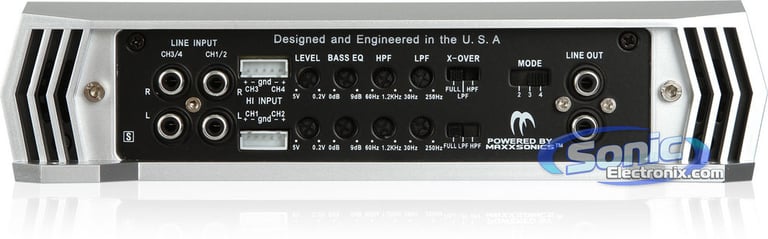

Crunch PZ1200.4 (Factory Refurbished) Image 2 — Crunch PZ1200.4 (Factory Refurbished)

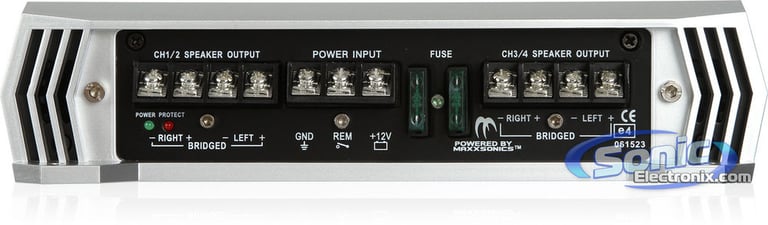

Crunch PZ1200.4 (Factory Refurbished) Image 3 — Crunch PZ1200.4 (Factory Refurbished)

Crunch PZ1200.4 (Factory Refurbished) Image 4 — Crunch PZ1200.4 (Factory Refurbished)

Crunch PZ1200.4 (Factory Refurbished)-video

Product videos

Product highlights

• 1200 Watts Max
• 300 Watts x 4-Chan. @ 2 Ohm
• 4-Way System Protection
• Selectable Highpass/Lowpass Filters
• Speaker-level (high-level) inputs
• Signal to Noise Ration: >90 dB

Learn more about the LS-pz12004-RB

Product Highlights

• 1200 Watts Max
• 300 Watts x 4-Chan. @ 2 Ohm
• 4-Way System Protection
• Selectable Highpass/Lowpass Filters
• Speaker-level (high-level) inputs
• Signal to Noise Ration: >90 dB

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features

PowerZone Series 4-Channel Class A/B Car Amplifier
Max Power Rating:

4 ohm: 150 watts x 4 chan.
2 ohm: 300 watts x 4 chan.
Bridged, 4 ohm: 600 watts x 2 chan.

Rugged Pulse Width Modulated MOSFET power supply for Instant Maxx Power Output
Exponential variable-power supply (EXVP) for efficient DC to AC conversion
Carbon Fiber effect body with chrome Crunch logo
LED power (green) and protect (red) indicators
Silver-plated RCA level inputs
Silver-plated screw terminals
4/3/2 channel operation
Speaker-level (high-level) inputs
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
3-way protection circuitry (thermal, overload, and speaker short protection)
Input sensitivity: 200mV - 5V
Frequency Response: 10 - 45,000 Hz
Total Harmonic Distortion (THD): <0.05%
Signal to Noise Ration: >90 dB
Selectable crossover modes: FULL / LPF / HPF
Variable low-pass filter: 30 - 250 Hz
Variable high-pass filter: 60 - 1200 Hz
Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
Fuse Rating: 30A x 2
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 12-5/8"L x 9-1/4"W x 2"H
Authorized Internet Dealer
90 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

Bridged RMS Power

300 watts x 2 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

150 watts x 4 channel

Peak Power @ 2 ohms

300 watts x 4 channel

Bridged Peak/Max Power

600 watts x 2 channel

Amplifier Specifications

Series

PowerZone Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1200 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.05%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 1200 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

>90 dB

Channel Separation

>80 dB

Bass Boost

0 - 9 dB

Remote bass/level controller

Fuse Rating

30A x 2

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
