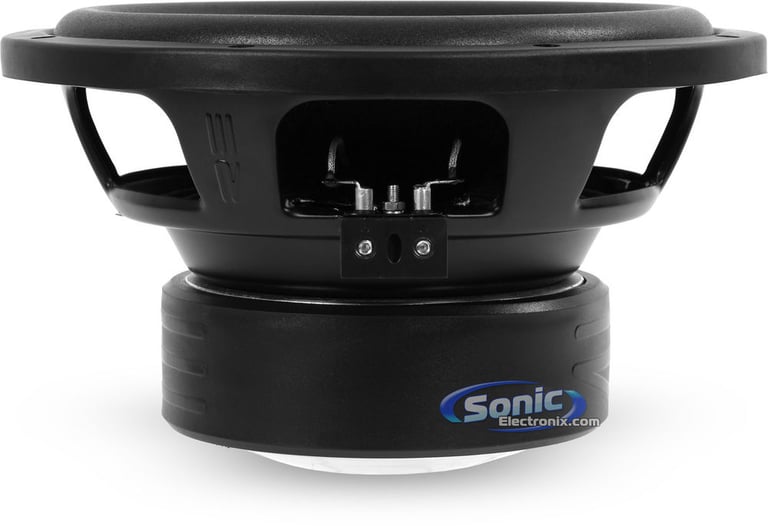

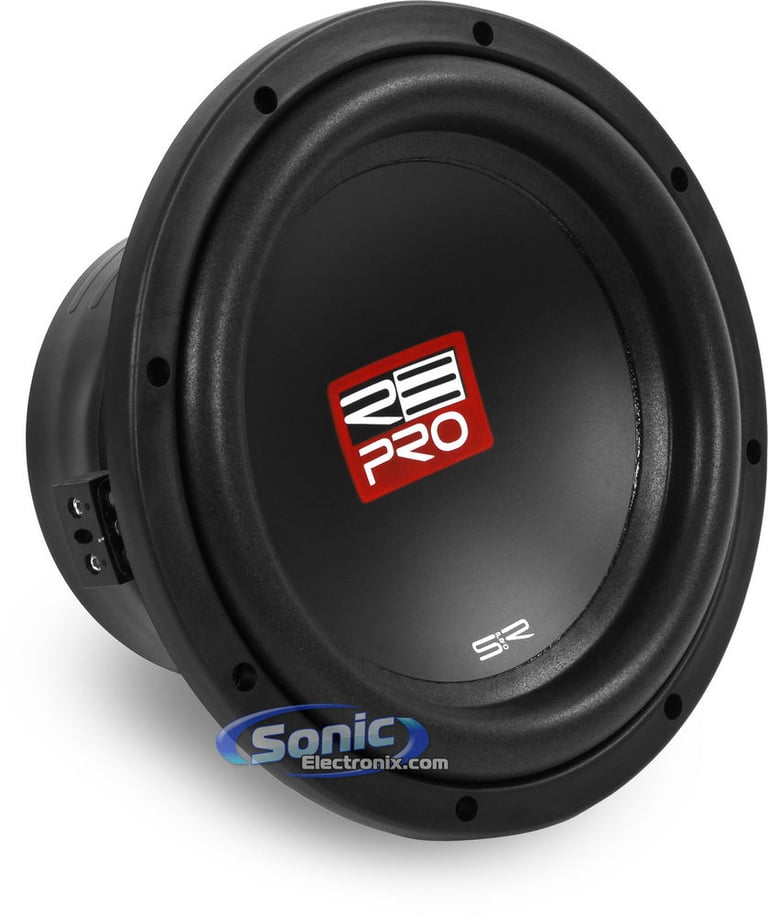

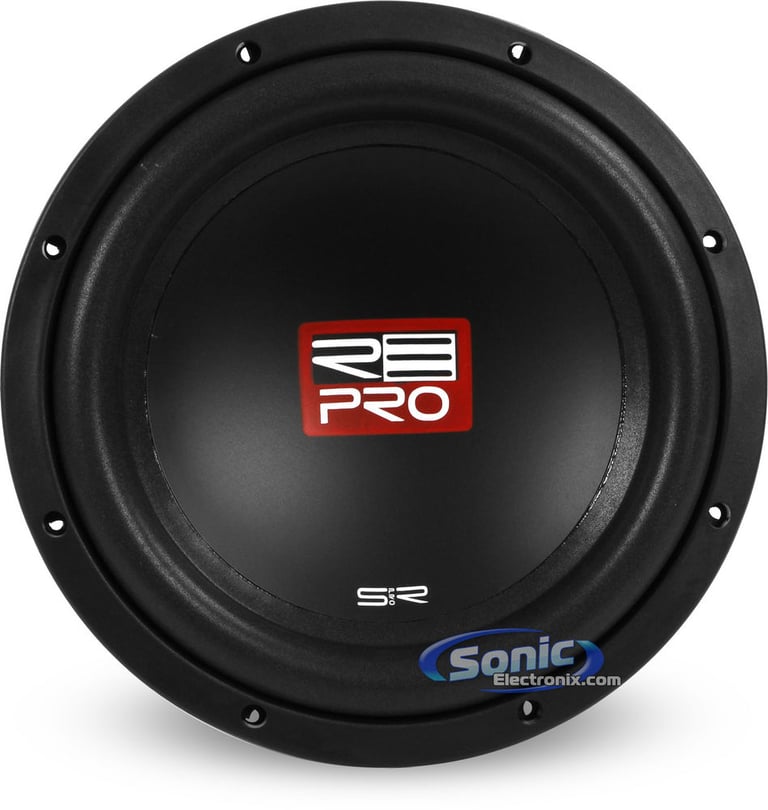

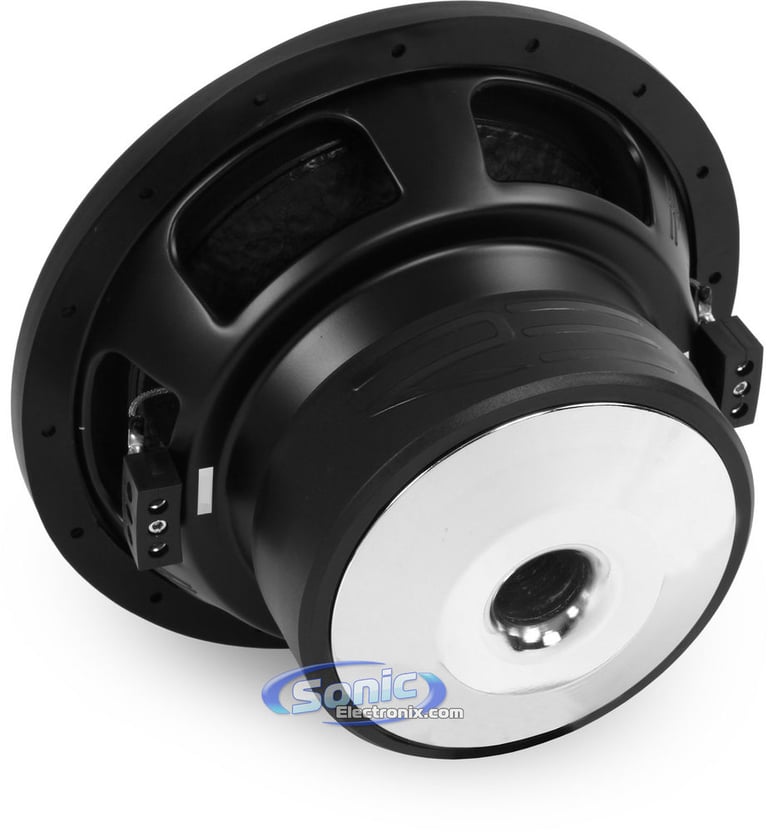

RE Audio SR PRO 10D2

320W 10" SR PRO Series Dual 2 Ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 320W
• Dual 2 ohm Voice Coil
• Dual Composite 2-Piece Cone
• Rubetek Foam Surround
• Pressed Steel Basket
• Foam Gasket
• 4-Layer Copper Voice Coil

Learn more about the srpro10d2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• RMS Power: 320W
• Dual 2 ohm Voice Coil
• Dual Composite 2-Piece Cone
• Rubetek Foam Surround
• Pressed Steel Basket
• Foam Gasket
• 4-Layer Copper Voice Coil

Description


RE Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 2 Ohm SR PRO Series Subwoofer
  • Power Handling:
    • RMS: 320 watts
  • Kraft pulp cone
  • Rubber surround
  • Progressive spiders
  • FEA-Optimized motor structure
  • Pressed steel basket
  • Foam gasket
  • 4-Layer copper voice coil
  • Double-stack magnets
  • Resonance Frequency (Fs): 26.6 Hz
  • Top-mount depth: 6"
  • Sensitivity: 85.3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SR PRO 10D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SR PRO 10D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SR PRO 10D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SR PRO 10D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Street Reference Pro
Subwoofer Size
10"
RMS Power Handling
320 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
85.3 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kraft Pulp
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.33 cubic feet
Optimum Sealed Box Volume
0.50 cubic feet
Optimum Ported Box Volume
0.50 cubic feet
Maximum Ported Box Volume
0.65 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
9.3"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25.3 Hz
Equivalent Compliance (Vas)
31 liters
Total Speaker Q Value (Qts)
0.36
Electrical Q Value (Qes)
0.39
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
5.5
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SR PRO 10D2

Weight:

15.00lbs

Internal SKU:

srpro10d2

Internal Product ID:

68050
