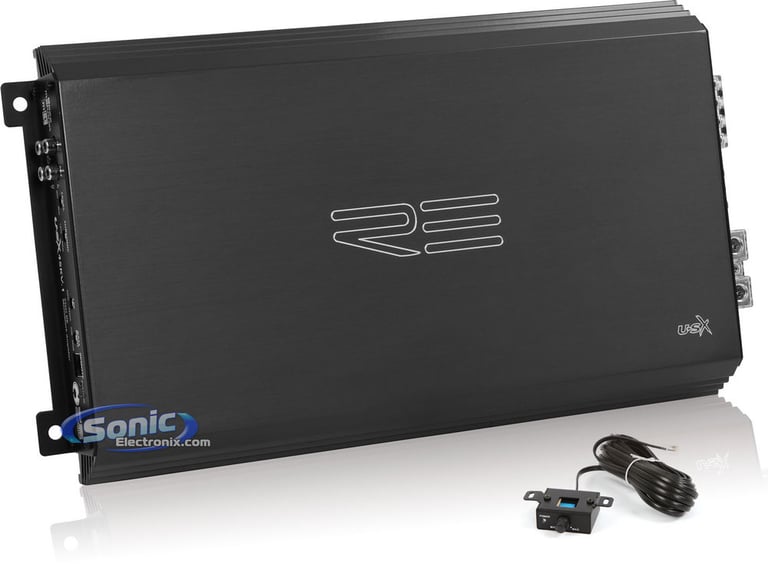

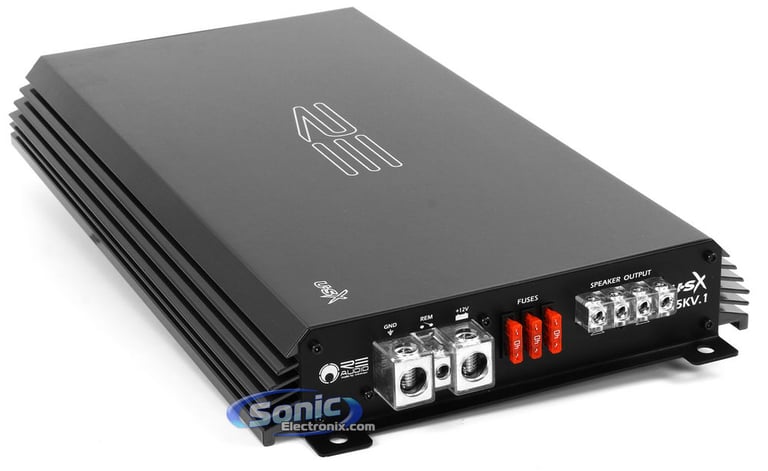

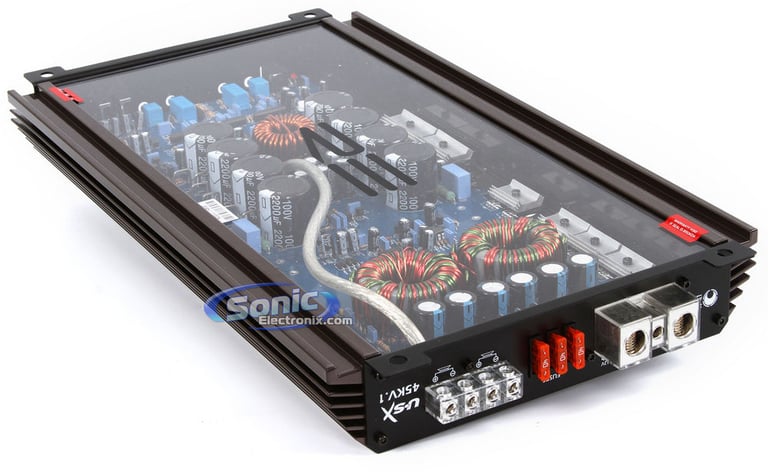

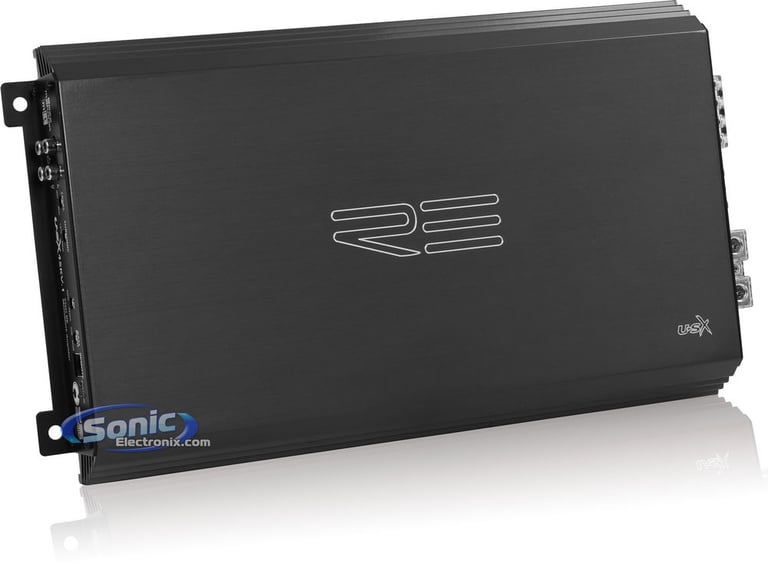

RE Audio USX-45KV.1

1500W RMS Class DE Monoblock USX Series Stereo Bridgeable Car Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS: 600W x 1 @ 4 ohm, 1000W x 1 @ 2 ohm, 1500W x 1 @ 1 ohm
• Total Peak Power: 3000W
• 3-Way Protection Circuitry
• Selectable Bass Boost (0-6-12 dB)
• Class D Circuitry
• Dimensions: 9-11/16"W x 17-3/8"L x 2-1/16"H

Learn more about the usx45kv1

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• RMS: 600W x 1 @ 4 ohm, 1000W x 1 @ 2 ohm, 1500W x 1 @ 1 ohm
• Total Peak Power: 3000W
• 3-Way Protection Circuitry
• Selectable Bass Boost (0-6-12 dB)
• Class D Circuitry
• Dimensions: 9-11/16"W x 17-3/8"L x 2-1/16"H

Description


RE Audio brand icon

Authorized dealer



Sonic Electronix Power Certified Amplifier

RE Audio USX-45KV.1 monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings. Learn more about this amp's Sonic Electronix Certified Power Here!

Impedance
Claimed Output
Certified Results
Dynamic Results
4 Ω
600W @ 14.4v
581W @ 14.59v
590W @ 14.70v
2 Ω
1000W @ 14.4v
995W @ 14.3v
1134W @ 14.60v
1 Ω
1500W @ 14.4v
1529W @ 14.05v
2072W @ 14.42v



General Features:

  • USX Series Monoblock Class DE Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 1500 watts x 1 chan.
  • Max power output: 3000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +20 dB bass boost at 45 Hz)
  • MLT (Multi-Link Technology) capable - allows master/slave mode to have multiple amplifiers powering one speaker
  • New stability filter design for reduction in noise
  • Platinum plated RCA inputs and connectors
  • Auto-bridge feature

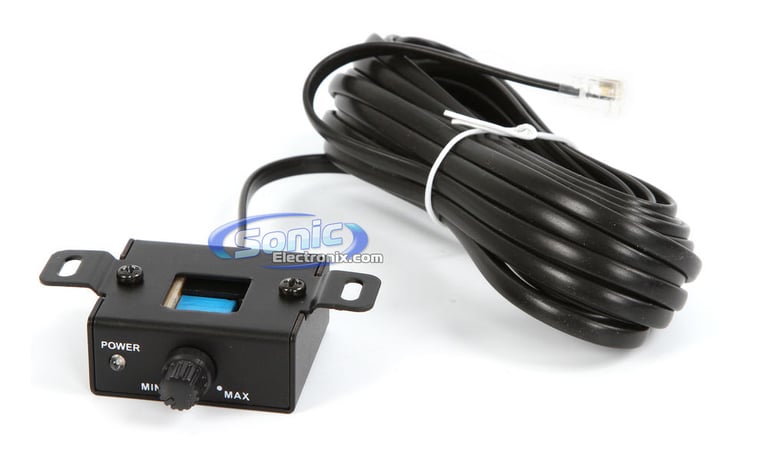

  • Wired bass knob included
  • Soft start turn-on
  • Mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink

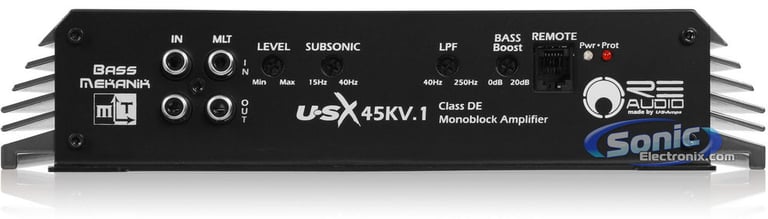

  • Input sensitivity:
    • Level: 200mV-8V
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Variable subsonic filter (15-40 Hz, 24 dB/octave)

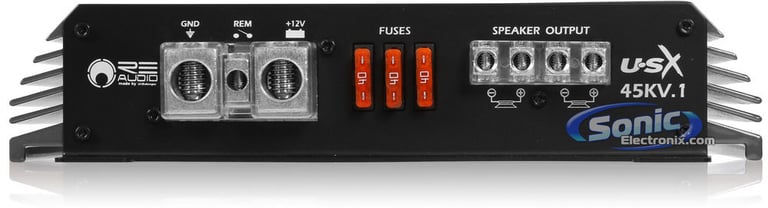

  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-11/16"W x 17-3/8"L x 2-1/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
1500 watts x 1 channel
Amplifier Specifications
Series
USX Series
Amplifier Class
DE
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 20 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

USX-45KV.1

Weight:

11.00lbs

Internal SKU:

usx45kv1

Internal Product ID:

68122

Product and How-to Videos

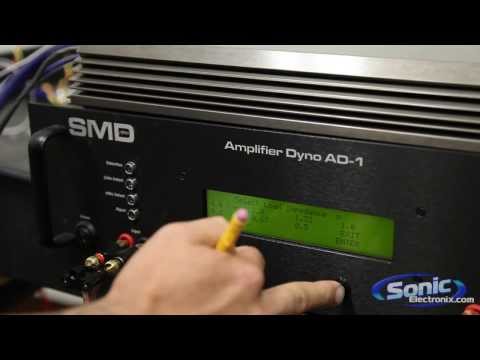

  • Re Audio USX-45KV.1 Amplifier Dyno Test | SMD D'Amore AD-1
  • RE Audio USX Series Car Amplifiers
  • RE Audio New Product Line Overview | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


RE Audio USX-45KV.1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
5
Design
4.7
Usability
5

Customer Reviews

Sort by:

Loading...

no nonsense power

Great amp for the price us amps does it again out performs rated power and runs cool no tacky lights or retarded heat fins not a big fan of the flimsy bottom cover but all in all a good amp got it running a sundown x18 d2 with ease

By Drew on March 28, 2014

12 found this helpful


BEST AMP I'VE OWNED! SAME AS VLX & MERLIN SERIES FROM US AMPS! INCREDIBLE CLEAN SUPER EFFICIENT POWER! JUST AS GOOD AS SUNDOWN AUDIO OR DC AUDIO, SKAR AUDIO, CT SOUNDS, INCRIMINATOR AUDIO, DIGITAL DESIGNS AMPS! CEA 2006 COMPLIANT TRUE RATED POWER!

I HAVE 1 OF THESE BUT I JUST GOT ANOTHER TO LINK TOGETHER @ 4 OHMS TO PUSH MY 2 C2 AUDIO THREATCON-2 12D4 SUBWOOFERS IN MY OBCON DUAL LABYRINTH BOX TUNED TO 36 HZ @ 1.86 CU FT/ CHAMBER. WITH JUST 1 OF THESE CONNECTED TO 1 SOUNDSTREAM SCELL-400 CAPCELL @ 1500 WATTS @ 1 OHM IT HIT'S SOO LOUD AND DEEP THAT MY REAR VIEW MIRROR KEEPS MOVING UNTIL IT HITS THE WINDSHIELD & THE ENTIRE ROOF OF MY 1996 OLDSMOBILE 88 RATTLES LIKE IT HAS 4 12'S RUNNING IN IT. WITH 2 OF THESE RUNNING @ 3000 WATTS RMS @ 4OHMS IT WOULD BE UNREAL PUSHING CLOSE TO 3 TIMES THE RMS WATTS TO THE 2 C2 AUDIO THREATCON- 2 12D4 SUBWOOFERS. I COULD REALLY WIN CAR AUDIO SPL COMPETITIONS NOW. MAYBE HIT 160 DB'S WITH JUST 2 12" C2 AUDIO THREATCON-2 12D4 SUBWOOFERS & 2 RE AUDIO USX45KV.1 AMPS LINKED TOGETHER @ 4OHMS/ 3000 WATTS RMS. TOTALLY WELL WORTH EVERY PENNY EARNED WORKING YOUR BUTT OFF AT WORK!!!! BUY THIS AMP INSTEAD OF OTHER OVER INFLATED PRICED AMPS WITH OVER INFLATED POWER RATINGS. YOU WON'T EVER REGRET IT! I GUARANTY IT! YOU WILL BE SMILING CHEEK TO CHEEK WHEN YOU HEAR AND FEEL THE BASS THIS AMP PUTS OUT AND THE POWER IS SUPER CLEAN AND EFFICIENT WITH NO CLIPPING LIKE OVER RATTED AMPS OUT THERE. CLIPPING WILL BLOW ANY SUBWOOFER NO MATTER HOW GOOD IT IS.

By MRCLYDIEBOY on October 19, 2013

5 found this helpful


Perfect Amplifier

Good mono amplifier driving 2 RE SX Pro@ 40hz. Lots of power.

By ambrocio on September 17, 2013

5 found this helpful


*BEST AMP OUT IN THE MARKET BY FAR*CEA 2006 COMPLIANT*TRUE RATED POWER*

I HAVE 2 OF THESE AMPS (MLT'D) 3000 WATTS RMS @ 4 OHMS JUST INSTALLED 1 ON SATURDAY TO (MLT) IT WITH MY CURRENT ONE. GOT IT PUSHING 2 C2 AUDIO THREATCON-2 12D4 SUBS @ CLOSE TO 3 TIMES THE RMS AND IT'S CRAZY LOUD AND THE EXCURSION ON THE SUBS ARE HUGE AND IT FLEXES BOTH MY FRONT AND REAR WINDSHIELD AND MY WHOLE ENTIRE CAR RATTLES LIKE IT'S GONNA FALL APART. I'M TOTALLY IMPRESSED WITH THIS AMP AND WOULD DEFINITELY BUY 2 MORE TO BRING MY POWER LEVEL TO 6000 WATTS RMS (MLT'D) TOGETHER. BEST AMP I'VE EVER OWNED. I'D RECOMMEND EVERYONE TO GET THIS AMP. YOU WON'T REGRET IT. THESE AMPS ARE GOING TO BE POWERING 2 C2 AUDIO THREATCON-4 12D4 SUBS THAT I JUST ORDERED ON THURSDAY

By MRCLYDIEBOY on November 29, 2013

4 found this helpful


great price for a nice amp

Jus recieved this baby yesterday, looks awesome only thing i didnt like is the bottom side clear cover is a lil flimsy but still looks good.added sum leds to make it look better. Overall its a good amp and the shipping process was smooth like my cadillac. Sonic is the only place ill order for great car audio products .
By the way this amp is cea 2006 certified

By Rolando on November 21, 2013

3 found this helpful


Amp made in heaven

Good amp..powering two RE Pro SX....lots of power.....

By Bruce Dam on September 19, 2013

3 found this helpful




99-7338S small

Metra 99-7338S (Silver)

Single or Double DIN Dash Kit for 2010-13 Kia Forte/Forte Koup

(1)

$20.99

List price $69.99

SPI2312 small

Stinger SPI2312

12 ft. 2-Channel PRO3 Series Interconnect Cable

$16.99

List price $32.99

SI4217 small

Stinger SI4217

17 ft. of 2-Channel 4000 Series RCA Interconnect Cable

(5)

$19.99

List price $49.00

44-TY205 small

Metra 44-TY205 Antenna

Replacement Antenna for 1984-1992 Toyota Corolla/Camry and 1991-Up Toyota Tercel Vehicles

$25.99

List price $83.99

VX3024 small

Jensen VX3024

Double DIN Bluetooth In-Dash DVD/CD/AM/FM/Digital Media Car Stereo Receiver w/ 6.2" Screen

$199.99

List price $299.99

CWL-3860 small

Lite Glow CWL-3860

Yellow Split Loom Tubing 3/8" 20' Roll

$4.99

List price $29.99

HD3500 small

American Bass HD3500

3500W RMS Class D Monoblock HD Series Car Amplifier

(2)

$289.99

List price $499.99

PCXT352 small

Blaupunkt PCxt352 3-1/2"

$17.99

List price $59.99

SI1212 small

Stinger SI1212

12 Ft 1000 Series 2-Channel Audiophile Grade RCA Stereo Interconnect Cable

$14.99

List price $19.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Subaru Forester

2008 Mazda RX-8

2009 Jeep Commander

1989 Mazda B2600

2017 Buick LaCrosse

2013 Subaru Forester

2018 Ram 1500

1981 Toyota Tercel

2000 Acura Integra

2003 Ford Taurus

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
