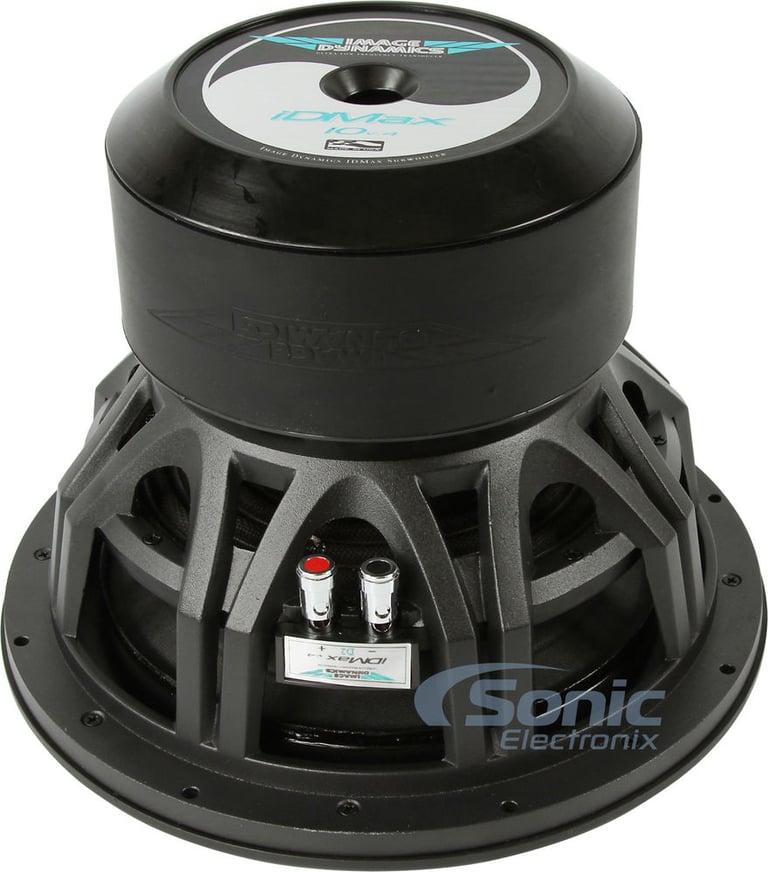

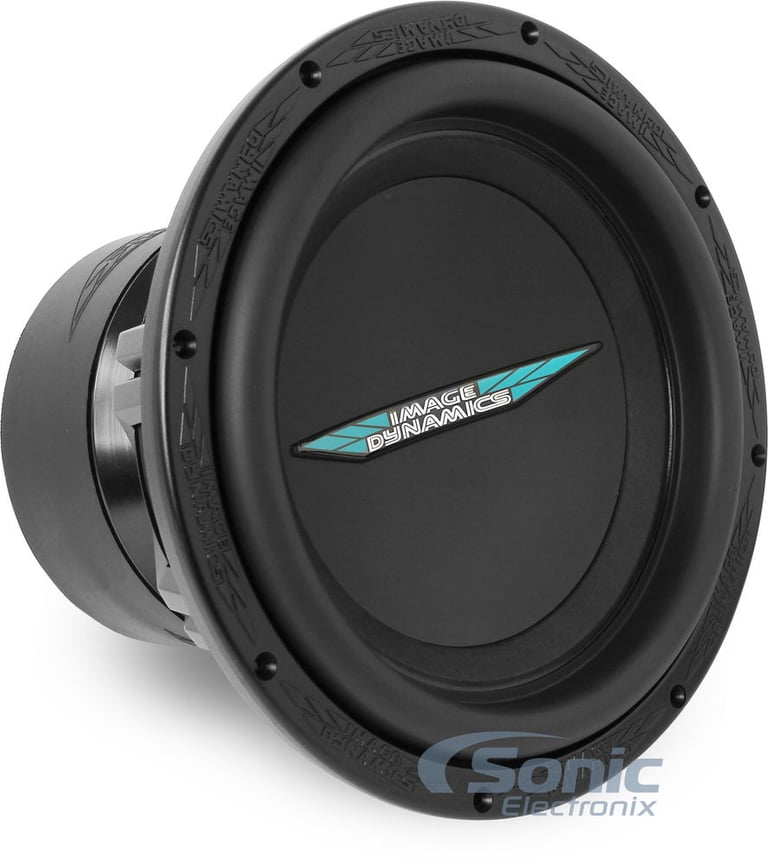

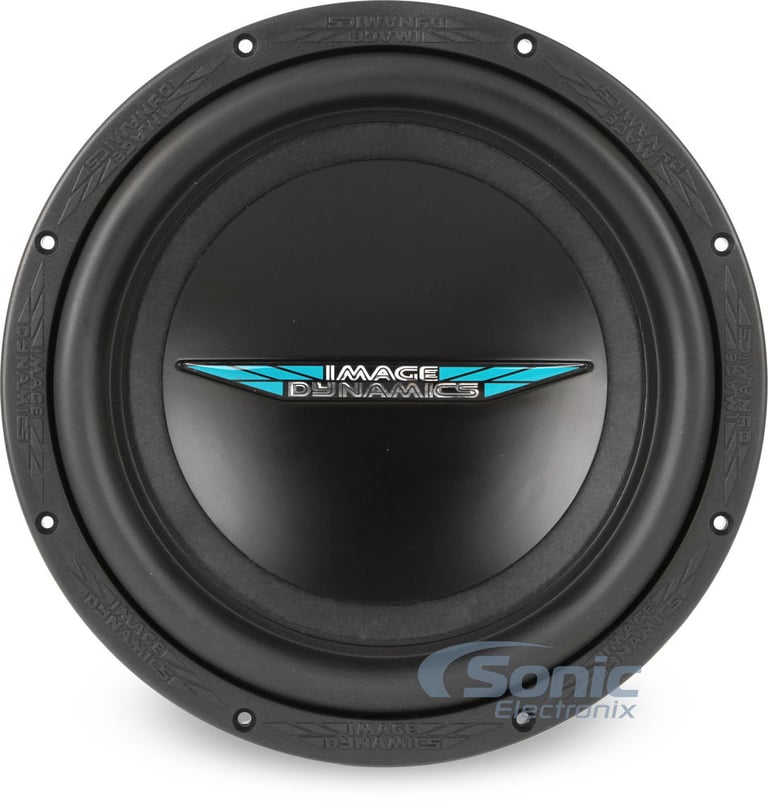

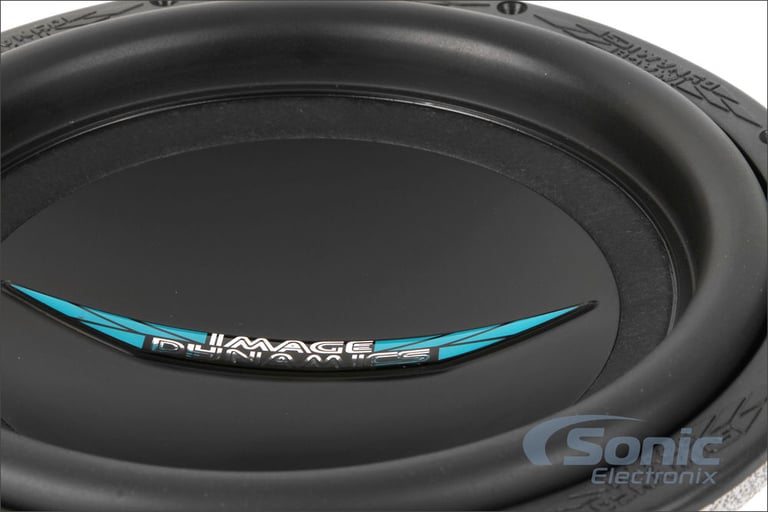

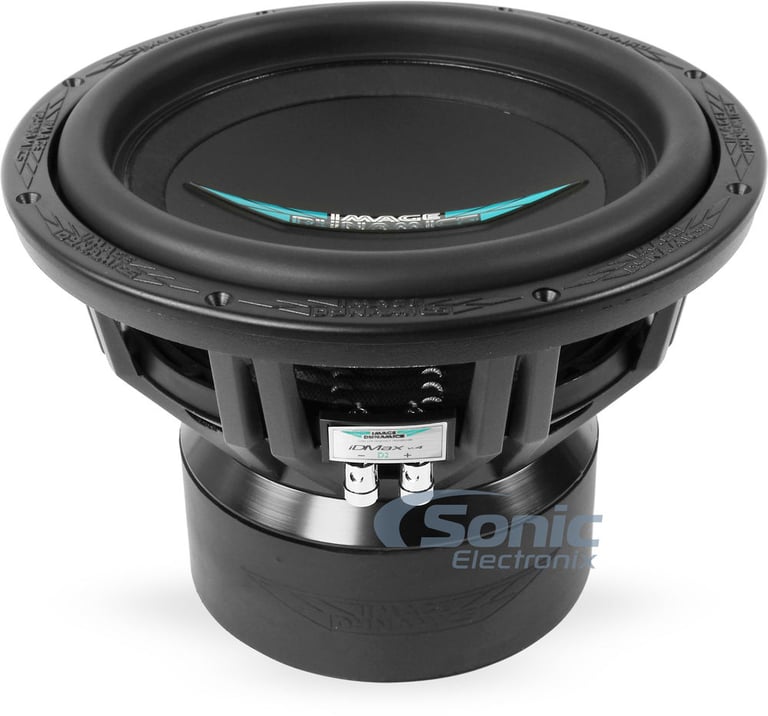

Image Dynamics IDMAX10 D2 V.4

1000W 10" ID MAXv4 Series Dual 2 Ohm Subwoofer

Image Dynamics
Shop all Image Dynamics
Product videos
highlight-star-icon

• 1000W RMS
• Paper Composite Cone Woofer
• Parabolic EPDM Rubber Surround
• Over 2" Linear Excursion
• RaDiaToR Cooling System

Learn more about the idmax10d2v4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

Product Highlights


• 1000W RMS
• Paper Composite Cone Woofer
• Parabolic EPDM Rubber Surround
• Over 2" Linear Excursion
• RaDiaToR Cooling System

Description


Image Dynamics brand icon

Authorized dealer



Product Features:

  • 10" Dual 2 ohm ID MAX V.4 Series Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Recommended Power Range: 200-1000 watts
  • Pressed paper composite cone woofer
  • Parabolic EPDM rubber surround
  • Over 2" long linear excursion
  • RaDiaToR cooling system for heat dissipation
  • Radiant Diametric Torisonal Reinforcement
  • High compliance suspension design
  • Flat spider with NOMEX cloth woven tinsel leads
  • High-temperature flat wire, flat wound voice coil
  • Inverted dust cap with logo
  • Powder coated alloy proprietary basket
  • 3-1/2" peak-to-peak surround excursion
  • Frequency response: 20-250 Hz
  • Mounting depth: 7-5/8"
  • Cutout dimensions: 9-5/8"
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
Also found as: IDMAX10D2 V.4, IDMAX10 D2 V.4, IDMAX10 D2, IDMAX10D2, IDMAX10V.4 D2, IDMAXv4

Product history:

Image Dynamics IDMAX10 D2 V.4 thumbnail
(newest, current model)
Image Dynamics IDMAX10 V.3 D2 thumbnail
(previous model, replaced by Image Dynamics IDMAX10 D2 V.4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics IDMAX10 D2 V.4 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics IDMAX10 D2 V.4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics IDMAX10 D2 V.4 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics IDMAX10 D2 V.4 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
ID Max V.4 Series
Subwoofer Size
10"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Xmax (millimeters)
24.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Reinforced Paper
Woofer Surround
EPDM Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.90 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
7-5/8"
Cutout Diameter
9-5/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDMAX10 D2 V.4

Weight:

33.65lbs

Internal SKU:

idmax10d2v4

Internal Product ID:

68184
