Cerwin-Vega HED31000.1D

1000W Max Class D Monoblock HED3 Series Power Car Amplifier

Cerwin-Vega
Shop all Cerwin-Vega
Product videos
highlight-star-icon

• RMS: 350W x 1 @ 4 ohm, 2 ohm 550W x 1 @ 2 ohm
• Total Peak Power: 1000W
• Class D Circuitry
• Bass Boost 0-12 dB at 45 Hz
• Wired Bass Control Included
• Dimensions: 9-1/8"W x 11-9/16"L x 2-1/8"H

Learn more about the hed310001d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

h410001d thumbnail

Cerwin-Vega H41000.1D

OUR PRICE: $149.99

View item

Loading...
LPHTSL01 main

PAC LPHTSL01

Vehicle Specific Audio Integration T-Harness for select 2019-2022 Model Y and Model 3

-56.84%

$59.99

List price $139.00

Product Highlights


• RMS: 350W x 1 @ 4 ohm, 2 ohm 550W x 1 @ 2 ohm
• Total Peak Power: 1000W
• Class D Circuitry
• Bass Boost 0-12 dB at 45 Hz
• Wired Bass Control Included
• Dimensions: 9-1/8"W x 11-9/16"L x 2-1/8"H

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • HED Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 350 watts x 1 chan.
    • 2 ohm: 550 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

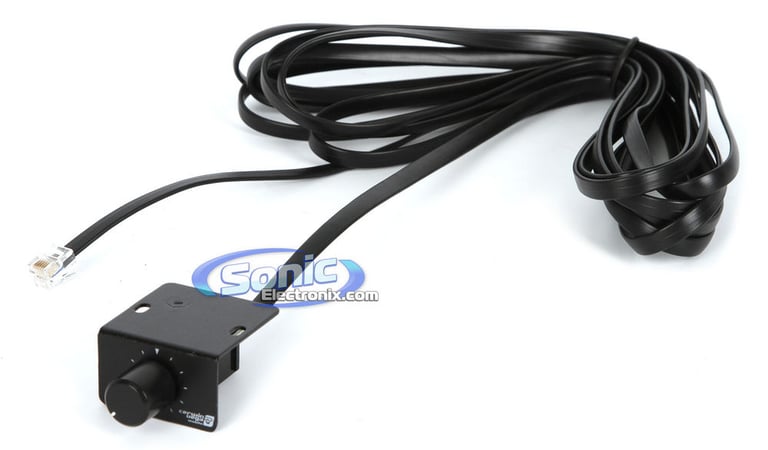

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • High-density alloy heat sink design
  • Input sensitivity:
    • Level: 200mV-5V
  • Variable low-pass filter (50-200 Hz)
  • Subsonic filter (24 dB at 10-50 Hz)
  • CEA-2006 compliant amplifier
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/8"W x 11-9/16"L x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega H41000.1D thumbnail
(newest, current model)
Cerwin-Vega HED31000.1D thumbnail
(previous model, replaced by Cerwin-Vega H41000.1D)

Loading...
Limited time!
PSS-TSUB-T3A main

Alpine PSS-TSUB-T3A

500W Peak (200W RMS) Loaded Single 10" Sealed Enclosure with Monoblock Amplifier for select 2017-2025 Model 3 with Factory-Equipped Premium Audio

-25.00%

$899.95

List price $1200.00

BE-TM3-G1 main

NVX Tesla Model 3 Sub Box - BE-TM3-G1 BOOST Box

Custom Fit 500W RMS 10" Loaded BOOST Subwoofer Enclosure for 2017-Up Tesla Model 3

2
-50.27%

$279.99

List price $562.99

PBK-TM3-VSW10S2 main

NVX PBK-TM3-VSW10S2 - 2017-2022 Tesla Model 3 - Complete Bass Package

For select 2017-2022 Model 3 - 10" 500W RMS Complete Amplified Subwoofer Bass Package Solution

92
-40.72%

$609.99

List price $1028.96

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
350 watts x 1 channel
RMS Power @ 2 ohms
550 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
550 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED31000.1D

Weight:

10.00lbs

Internal SKU:

hed310001d

Internal Product ID:

68563
