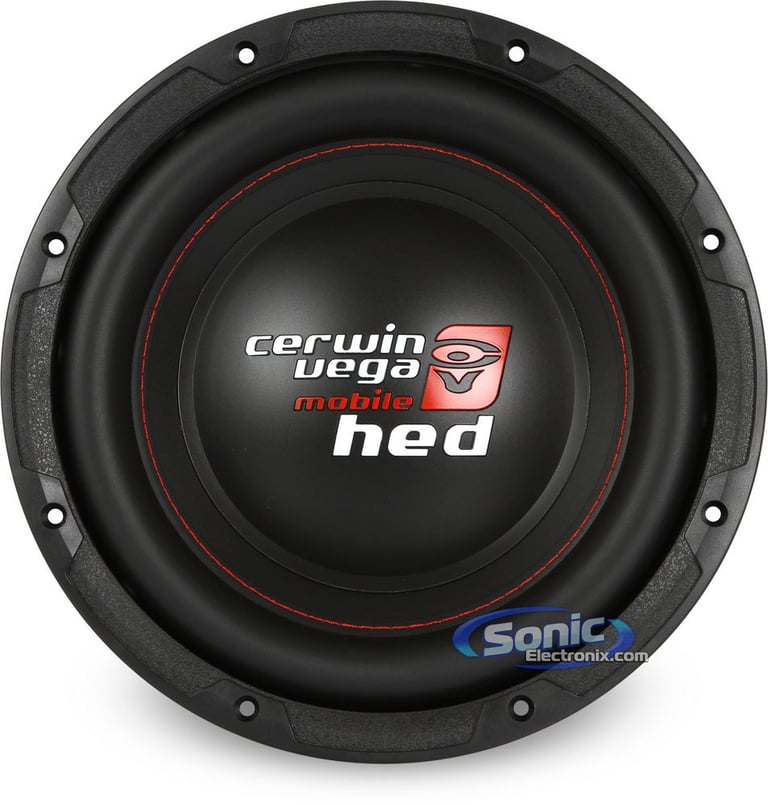

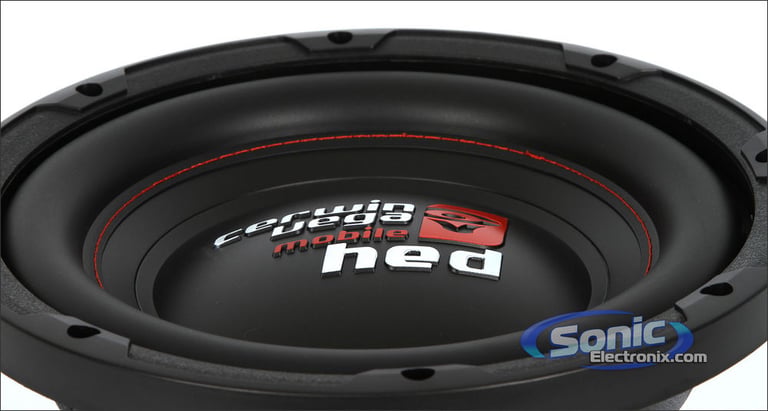

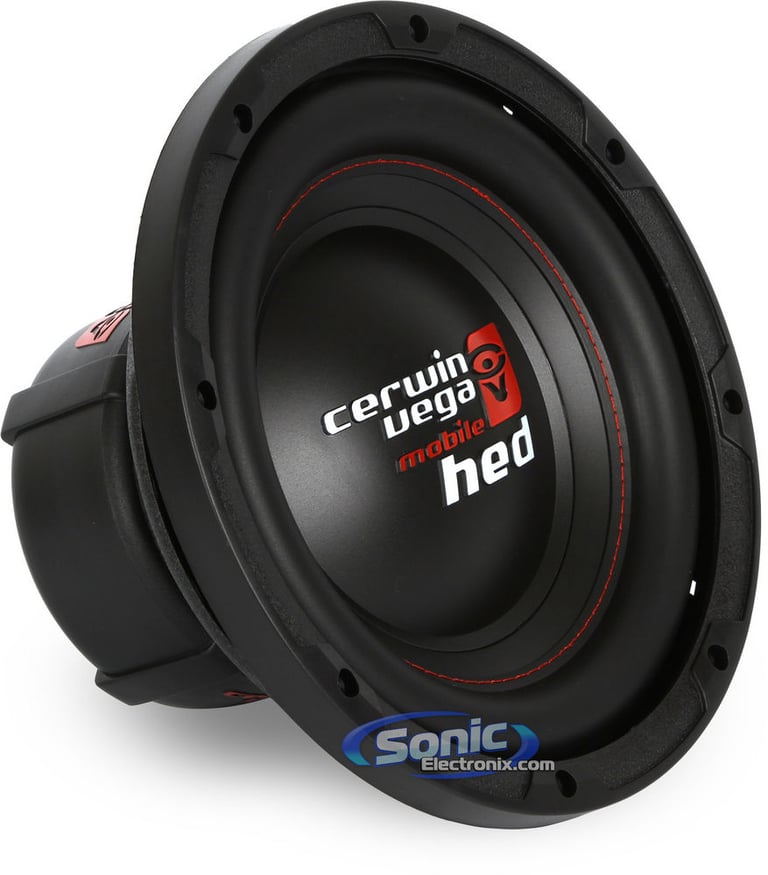

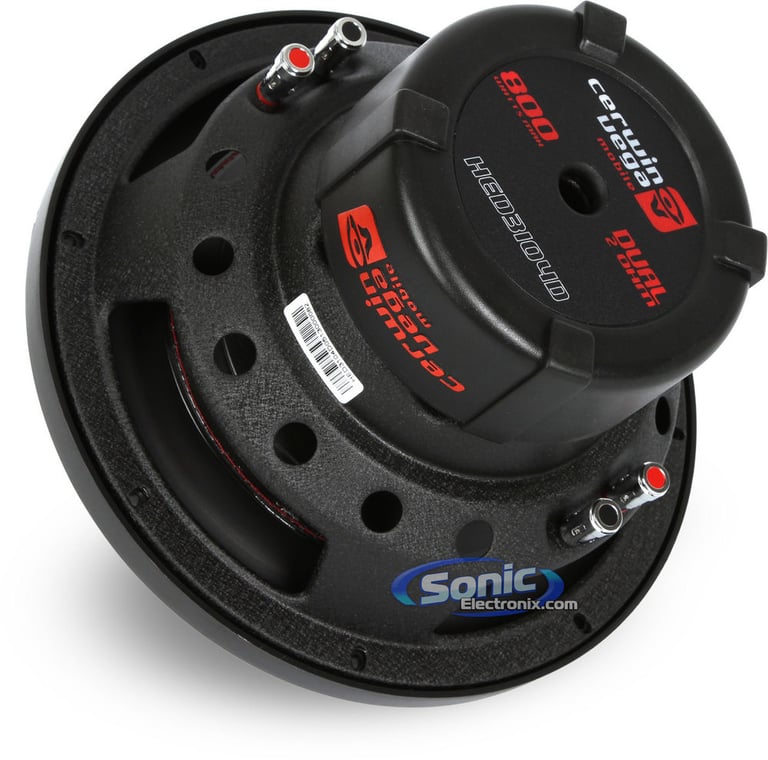

Cerwin-Vega HED3104D

150W 10" HED3 Series Dual 4 Ohm Subwoofer

Product videos
highlight-star-icon

• 800W Peak
• 150W RMS
• Dual 4 ohm Voice Coil
• Composite Polypropylene Cone
• Butyl Rubber Surround
• Rolled Aluminum Former
• XFV Cross-Flow Window Venting for Massive Heat Dissipation

Learn more about the hed3104d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

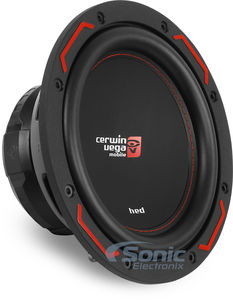

h4104d thumbnail

Cerwin-Vega H4104D

OUR PRICE: $59.99

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• 800W Peak
• 150W RMS
• Dual 4 ohm Voice Coil
• Composite Polypropylene Cone
• Butyl Rubber Surround
• Rolled Aluminum Former
• XFV Cross-Flow Window Venting for Massive Heat Dissipation

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 10" Dual 4 Ohm HED3 Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 150 watts
  • Impedance: 4 ohm
  • Composite Polypropylene cone (CPPC)
  • Butyl rubber surround
  • Radial contact convex dome design (RCCD)
  • Rolled aluminum former
  • XFV Cross-flow window venting allows for massive heat dissipation from the voice coil
  • Resonance Frequency (Fs): 27 Hz
  • Top-mount depth: 5-9/16"
  • Sensitivity: 85 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega H4104D thumbnail
(newest, current model)
Cerwin-Vega HED3104D thumbnail
(previous model, replaced by Cerwin-Vega H4104D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega HED3104D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega HED3104D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega HED3104D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega HED3104D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
HED3 Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
150 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85 dB
Xmax (millimeters)
7.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27 Hz
Equivalent Compliance (Vas)
47.2 liters
Total Speaker Q Value (Qts)
0.41
Electrical Q Value (Qes)
0.46
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
3.95
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED3104D

Weight:

9.50lbs

Internal SKU:

hed3104d

Internal Product ID:

68567

Product and How-to Videos


  • Cerwin-Vega HED3 Car Subwoofers | New HED Subs for 2013!
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Cerwin-Vega HED3104D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

nice cerwin vega for low price low power and good performance

i bought this woofer 5 months ago and im really impressed because i compared with my kicker comp 10 and cerwin vega is much better in low frequencies and has good excursion and the manual says 150w per coil =300wrms has a good power for the cheapest line of cerwin vega in my opinion i recomend this woofer 100%.

By hugo ignacio on January 9, 2014

6 found this helpful
