Name: Precision Power i520.4 Open Box Complete
Brand: Precision Power
SKU: ls-i5204-obc6
Price: 69.99 USD
Availability: Discontinued

by Precision Power

About
Specs & Details
Reviews
Add-ons
Related Searches

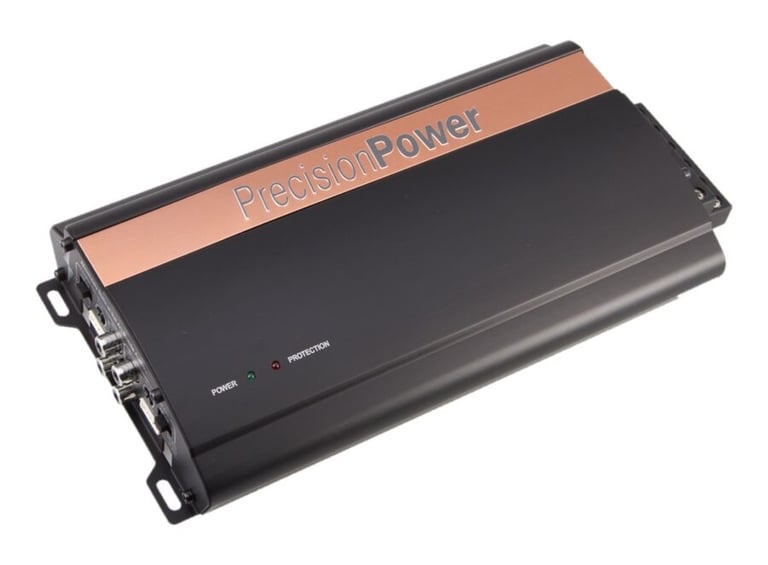

Precision Power i520.4 Open Box Complete Image 1 — Precision Power i520.4 Open Box Complete

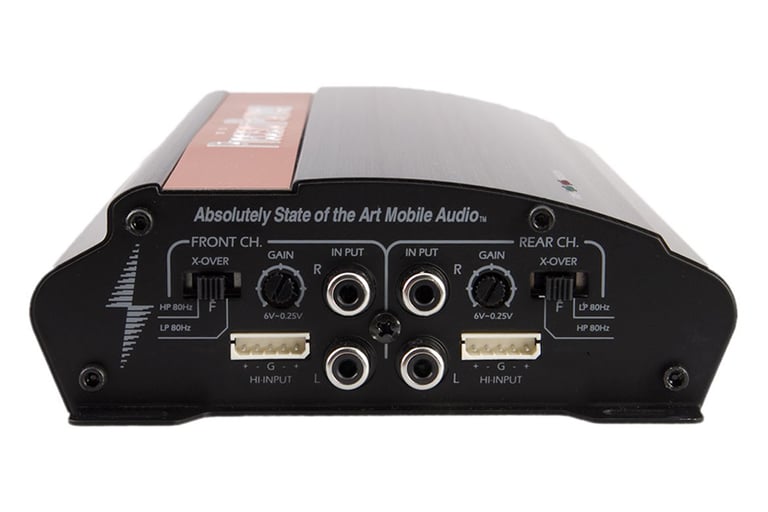

Precision Power i520.4 Open Box Complete Image 2 — Precision Power i520.4 Open Box Complete

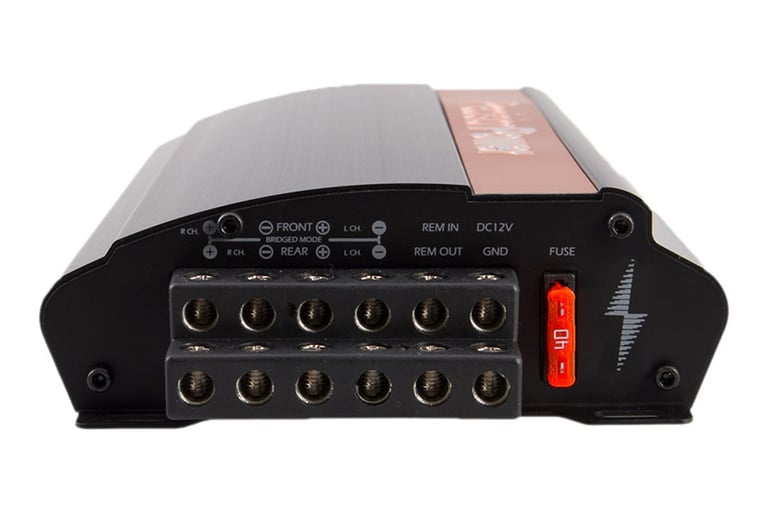

Precision Power i520.4 Open Box Complete Image 3 — Precision Power i520.4 Open Box Complete

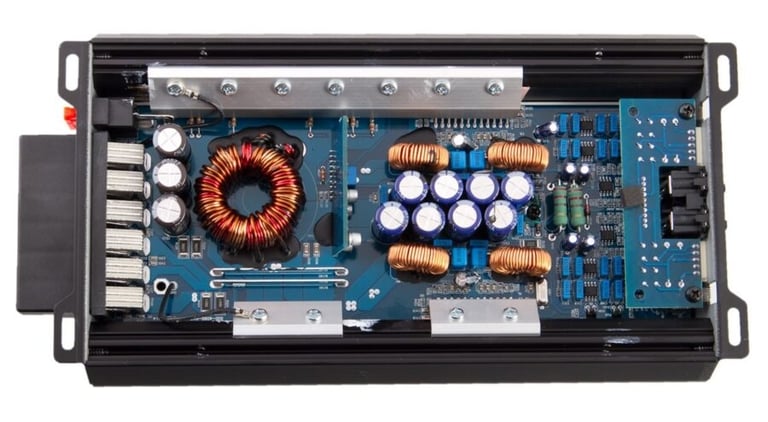

Precision Power i520.4 Open Box Complete Image 4 — Precision Power i520.4 Open Box Complete

Product highlights

• Open Box Complete
• 100W x 4-Chan. @ 4 ohm
• 130W x 4-Chan. @ 2 ohm
• 260W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Surface Mount Technology (SMT)

Learn more about the ls-i5204-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Sonic Electronix Power Certified Amplifier

The Precision Power PPI i520.4 4-Channel amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings.
Learn more about this amp's Sonic Electronix Certified Power Here!

Impedance	Claimed Output	Certified Results	Dynamic Results
4 Ω	100W @ 14.4V	96W @ 14.16V	100W @ 14.20V
2 Ω	130W @ 14.4V	153W @ 14.14V	173W @ 14.16V
4 Ω Br.	260W @ 14.4V	277W @ 14.13V	329W @ 14.18V

A part that is fully functional but shows no sign of use outside of installation.

General Features:

Precision Power iON Series PPI i520.4
Class-D Digital Full Range, 2-Ohm Stable 4-Channel Amplifier
RMS Power Rating:

4 ohm: 100 watts x 4 chan.
2 ohm: 130 watts x 4 chan.
Bridged, 4 ohm: 260 watts x 2 chan.

Sonic Electronix Certified Power Rating*:

4 ohm: 96 watts x 4 chan.
2 ohm: 153 watts x 4 chan.
Bridged, 4 ohm: 277 watts x 2 chan.

MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
LED power (green) and protect (red) indicators
Speaker-level (high-level) inputs
Soft start turn-on
4, 3 or 2 channel operation
Low-Heat producing circuit
Military Grade SMT PCB Maintains Dynamic Performance
Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
Double sided FR-4 PC board
Quick Disconnect RCA/High Level Wire Harness
SMT (Surface Mount Technology) for easy installation
Nickel-plated RCA, Power/Ground and Speaker Connections
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity: 200mV - 6V
Frequency Response: 10 - 20,000 Hz
Total Harmonic Distortion (THD): 0.5%
Signal to Noise Ration: 70 dB
Selectable high-pass filter: 80 Hz, 12 dB/octave
Selectable low-pass filter: 80 Hz, 12 dB/octave
Made in Korea
Fuse Rating: 40A x 1
8 gauge power and ground wiring is recommended for installation.

Most "True To Spec" 4 Gauge Power/Ground cables will not fit and will require the installer to shave away excess wire.
Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.

Dimensions: 5-5/16"W x 9"L x 1-11/16"H
Authorized Internet Dealer
90 Day Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

130 watts x 4 channel

Bridged RMS Power

260 watts x 2 channel

Amplifier Specifications

Series

iON Series

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

520 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.5%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

Fixed 80 Hz

Low-Pass Crossover Frequency

Fixed 80 Hz

Signal-to-Noise Ratio

70 dB

Channel Separation

55 dB

Remote bass/level controller

Fuse Rating

40A x 1

Strappable

Sonic Certified Amplifier

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
