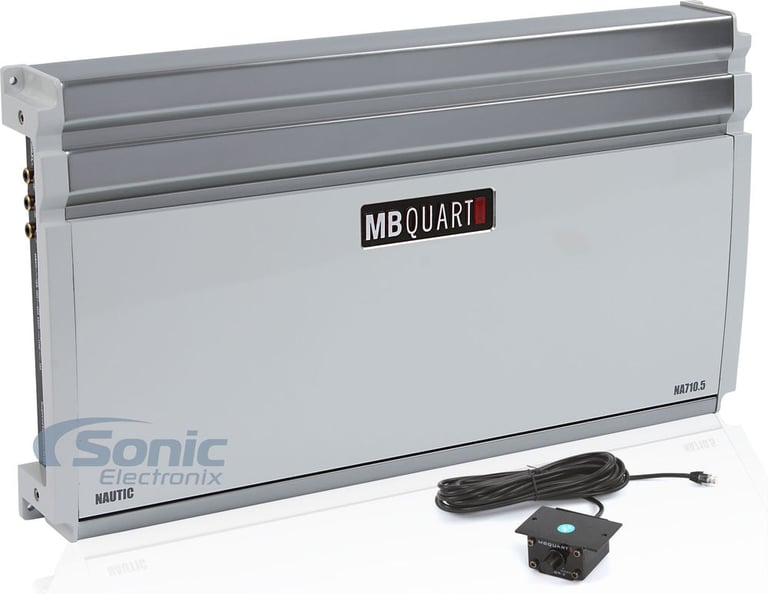

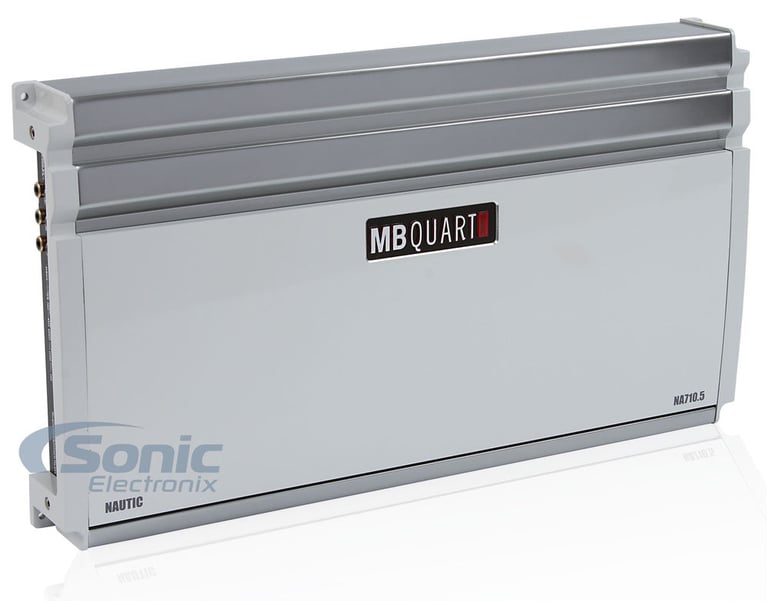

MB Quart NA710.5

360W RMS 5-Channel Nautical Series Class SQ Marine Amplifier

MB Quart
Shop all MB Quart
highlight-star-icon

• Full-Range RMS: 60W x 4 @ 4 ohm, 90W x 4 @ 2 ohm
• Subwoofer RMS: 200W x 1 @ 4 ohm, 350W x 1 @ 2 ohm
• Marine Ready
• Raven Black Finish
• Preamp RCA Outputs
• Dimensions: 9-1/2"W x 18"L x 2-1/4"H

Learn more about the na7105

We apologize

This item has been discontinued


Loading...

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Description


MB Quart brand icon

Authorized dealer

General Features:

  • Nautical Series 5-Channel Class SQ Car Amplifier
  • Channel 1-4 RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 90 watts x 4 chan.
    • Bridged, 4 ohm: 180 watts x 2 chan.
  • Subwoofer Channel RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 350 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Soft start turn-on
  • 5/4/3/2 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink

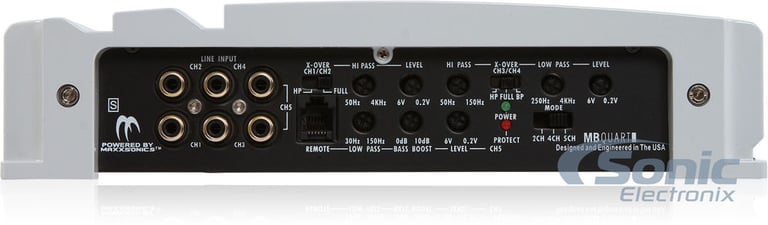

  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (250-4000 Hz)
  • Variable low-pass filter (40-250 Hz)
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/2"W x 18"L x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

MB Quart NA710.5 thumbnail
(newest, current model)
(previous model, replaced by MB Quart NA710.5)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
Bridged RMS Power
180 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
350 watts x 1 channel
Amplifier Specifications
Number of Channels
5-Channel
Total RMS Power Output
710 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
250 - 4000 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
93 dB
Channel Separation
80 dB
Bass Boost
0 - 10 dB

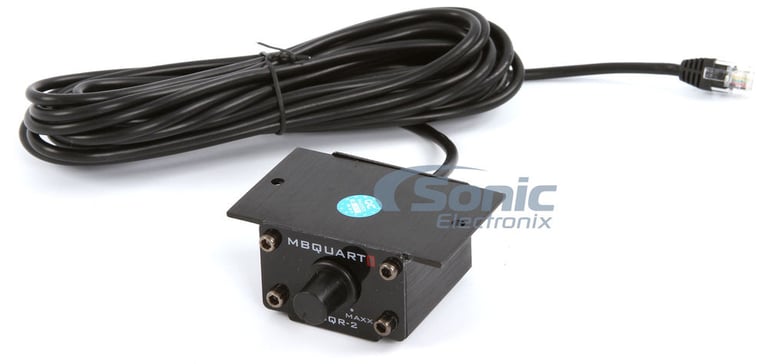

Remote bass/level controller
Yes

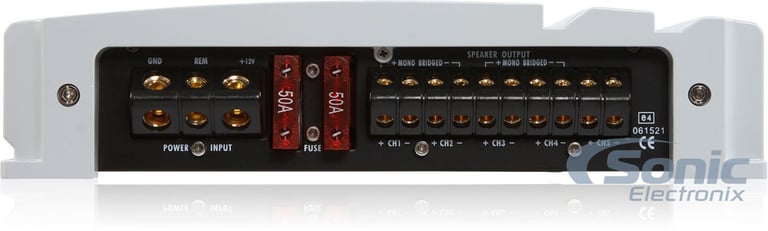

Fuse Rating
50A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

NA710.5

Weight:

12.00lbs

Internal SKU:

na7105

Internal Product ID:

69264

Customer Ratings & Reviews


MB Quart NA710.5 thumbnail image

5 star
56%
4 star
22%
3 star
22%
2 star
0%
1 star
0%



Durability
4.5
Value
4.8
Features
4.8
Design
4.9
Usability
4.6

Customer Reviews

Sort by:

Loading...

Exactly as advertised

I ordered this amp after purchasing a boat with a system that was wired up with car audio equipment rather than marine equipment. The existing wiring was corroded and the two amp system just wasn't working very well. The only good thing was that the existing amps were class D amps, and stayed cool in the hot/damp environment, at the cost of corrosion. Needless to say, I was apprehensive about the temperature levels for this class A/B amp, especially since the only quality ground on a fiberglass boat is the battery inside the engine compartment. However, this amp does exactly what it is designed to do. I routinely spend 6-8 hours on the water, and the amp has never skipped a beat. As far as overall power, yes, there are better amps out there if you want to spend $500-$800. As for me, I'm very pleased, and my sound has never been more clear. Oh, and I use all 5 channels to run four Kicker 6.5's and one 10" sub. Next year, I plan on changing things up a bit and getting two wakeboard tower speakers, and this amp will be switching duties to that. Definitely worth the money.

By Terry on August 24, 2014

48 found this helpful


Awesome amp

A little worried at first because of how cheap it was. Being a believer in MB products I got went Ahead with it. Put it in the boat and hooked it up. Sounds amazing and the two tens hit harder then a 1500 watt amp with two twelves. Highly recommended

By william on June 26, 2014

52 found this helpful


nice amp

Amp provides plenty of power mb quart is a top quality brand.

By tyrone on February 14, 2014

47 found this helpful


Impressed

Coming from a dual Alpine amplifier set up in my last vehicle I was apprehensive about going to a single 5 channel amp , Gotta admit I am glad I took the chance , Excellent highs and mids and the bass is clean and tight , very impressed , great bang for the buck , Hooked it up to a Pioneer AVH5500 , Polk DB 6501 components in the front doors , DB651 co-axials in the rear doors and (2) 10" Polk Mobile Monitor subs in a custom sealed enclosure , nice clean tight bass and still lots of gain to play with , if you are looking for a 5-channel amp and don't want to break the bank , take a chance on this MBQ 710.5

The only CON is that if you are looking to mount this under the front seat , its pretty good size and may not be possible.

By rcr1971 on December 14, 2013

44 found this helpful


Great product for the price

Received this amp in good time hooked it up and very impressed for the price happy with the sound and quality.

By bill on March 31, 2014

43 found this helpful


MB Quart Amplifier

I just recently purchased this amplifier from Sonic and have it powering 2 sets of JBL 5.25 components and 1 JBL 10" subwoofer. I have to say this is one of the best bang for your buck amplifiers. The sound quality is crystal clear and the power is certainly there. Another impressive feature is for being an A/B amplifier it doesn't get too hot. The amplifier is actually white in color (the picture on the Sonic page makes it appear almost stainless steel) but it is a nice looking amplifier if that sort of thing is important to you. I wasn't aware it was a marine amplifier before i bought it but i guess it doesn't really matter. Car or boat it works just as well. Are there better amplifiers out there? Absolutely, but for the price you'll be hard pressed to find one. I'm very satisfied with my purchase and will be purchasing MB Quart products again regardless of ownership currently being Maxxsonics. I think in this case you get more than what you pay for. The reason I'm giving it overall 4 stars is to be fair to all the audiophiles out there because there are better amplifiers but prepare to shell out the money :) Value I'd give it 6 stars if I could. Great entry level 5 channel. As far as 5 channels go under $200, MB Quart simply cannot be beaten.

By Joseph on January 24, 2014

43 found this helpful


WOW!!

Have this amp pushing a RE SEX10 and 4 6x9 mb quart,it never gets hot the bass is low and the highs have a great punch to them.

By Pedro on November 5, 2013

39 found this helpful


Excellent amp for the money

I installed this amp in my 2003 Sea Ray 220 Sundeck. I currently have it hooked up to 4 6.5" JL Audio and they sound amazing. Planning on adding a sub in the near future. This amp is the best bang for the buck on the market.

By Carter on May 29, 2015 Checkmark Icon Verified purchase

22 found this helpful


overheats...

unstable at 2 ohms. even after i moved the subs off channel 5 it still overheats. sounds great for the price though. Don't expect to run it all day with 2 ohm loads.

By when boats were boats on June 27, 2016

2 found this helpful




No picture

JBL Stadium 192T - Open Box, Great

Stadium Series 3/4" Aluminum Dome Car Tweeters

$104.96

List price $179.95

FA1-900.5 small

MB Quart FA1-900.5

900W Peak Formula Series Class A/B + Class D 5-Channel Amplifier

(2)

$259.99

List price $309.99

W60_Variety Pack-100_RD-CE0999N3B_180 Day Exchange small

Westone W60 Signature Series In-Ear Monitors + Sonic Electronix Bonus Pack 4

Signature In-Ear Monitors w/ 6 Balanced Armature Drivers & 3-Way Crossovers + Comply Variety Pack + Extended Warranty & Exchange Policy + 15% off Headphone Amp/DAC Coupon

(5)

$699.00

List price $1454.92

W30_FREEDOM JF3 small

Westone W30 In-Ear Monitors w/ FREE JayBird Freedom JF3 Headset

In-Ear Monitors w/ 3-Way Triple Balanced Armature Drivers + Active Sports Wireless Bluetooth Stereo Headset

(5)

$399.99

List price $549.98

ZA2-1500.5_XKIT46 small

MB Quart ZA2-1500.5 w/ Complete 100% OFC 5-Channel Amp Kit

1500W RMS Z-Line Class-D 5-Channel 1-Ohm Stable Amplifier w/ Complete 4 AWG Gauge OFC 5-Channel Amp Kit

$269.99

List price $574.99

W40_BlueBuds X BBX1MB small

Westone W40 In-Ear Monitors w/ FREE JayBird BlueBuds X BBX1MB Headset

In-Ear Monitors w/ 4-Way Quad Balanced Armature Drivers + Active Sports Wireless Bluetooth Stereo Headset

(10)

$499.99

List price $799.94

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1996 Mazda B3000

1998 Dodge Stratus

1997 BMW M3

1998 Mazda B4000

2021 Kia Forte

1995 BMW M3

1985 Dodge Ramcharger

2000 Toyota Camry

2017 Honda Ridgeline

2016 Honda Odyssey

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
