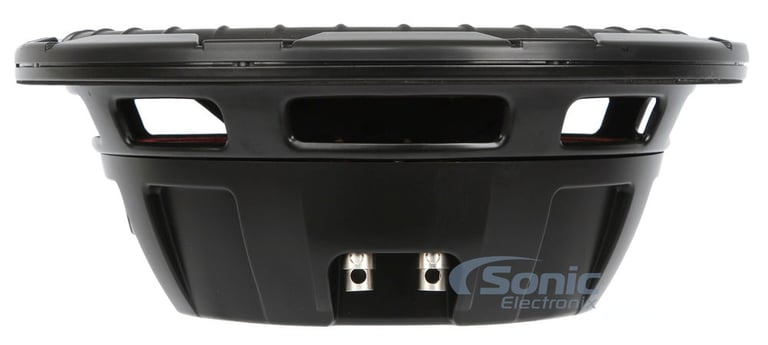

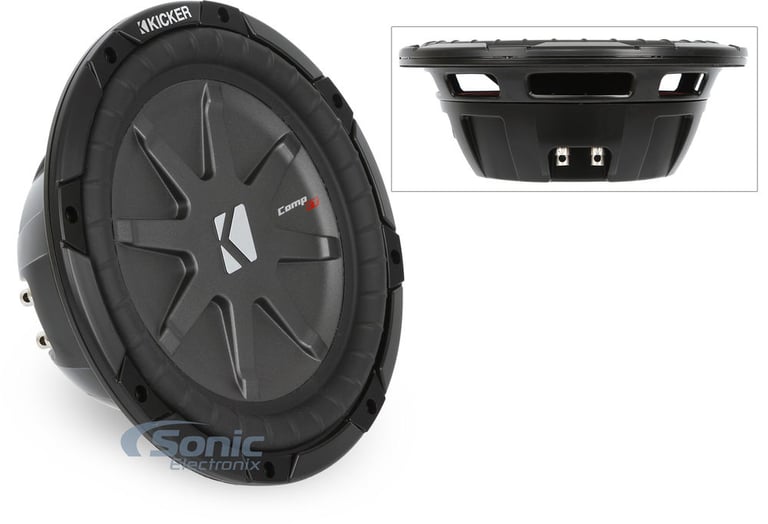

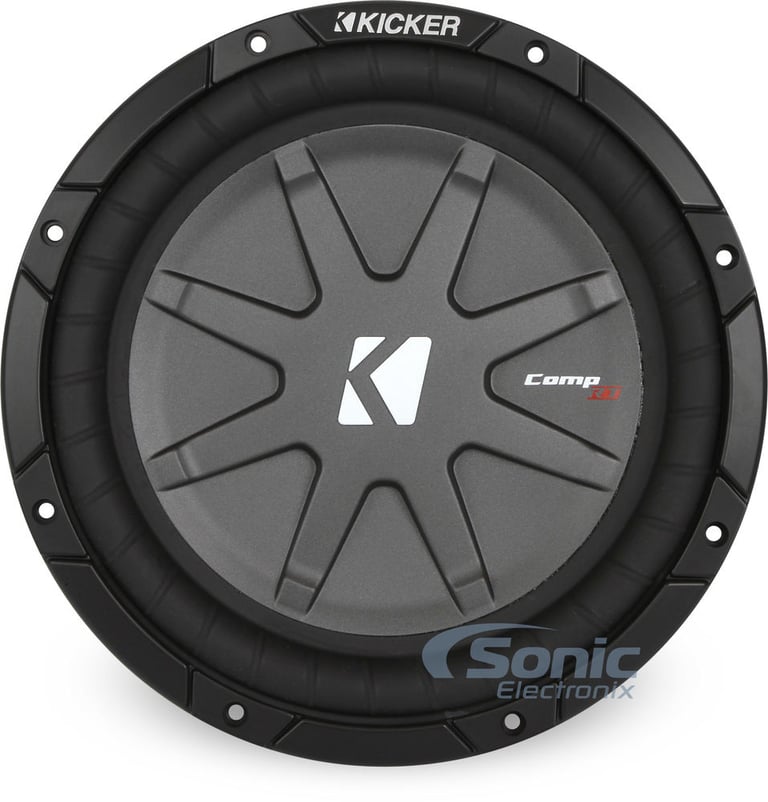

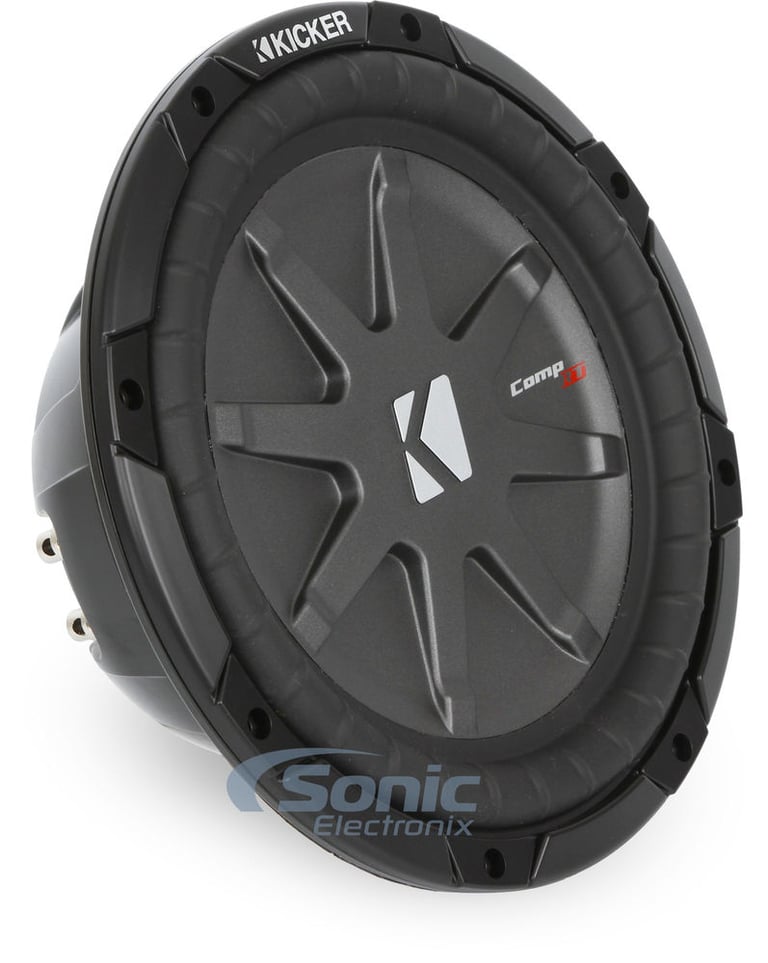

Kicker CompRT102 (40CWRT102)

800W 10" Dual 2-Ohm CompRT Shallow Mount Thin Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 800W Peak
• 400W RMS
• Dual 2 ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Tough Santoprene Surround with Interlocking Front Gasket
• Inverted-Bumped Back Plate and Bumped Top Plate for Voice-Coil Clearance and Excursion
• High-Temperature Voice Coil for Increased Power Handling

Learn more about the 40cwrt102

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

48cwrt104 thumbnail

Kicker CWRT104 (48CWRT104)

OUR PRICE: $159.96

View item

Product Highlights


• 800W Peak
• 400W RMS
• Dual 2 ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Tough Santoprene Surround with Interlocking Front Gasket
• Inverted-Bumped Back Plate and Bumped Top Plate for Voice-Coil Clearance and Excursion
• High-Temperature Voice Coil for Increased Power Handling

Description


Kicker

Authorized dealer




Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)



Kicker Authorized Dealer

General Features:

  • 10" CompRT Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Recommended power range: 100 - 400 watts RMS
  • Impedance: Dual 2 ohms
  • Injection-molded polypropylene cone
  • Tough Santoprene surround with interlocking front gasket

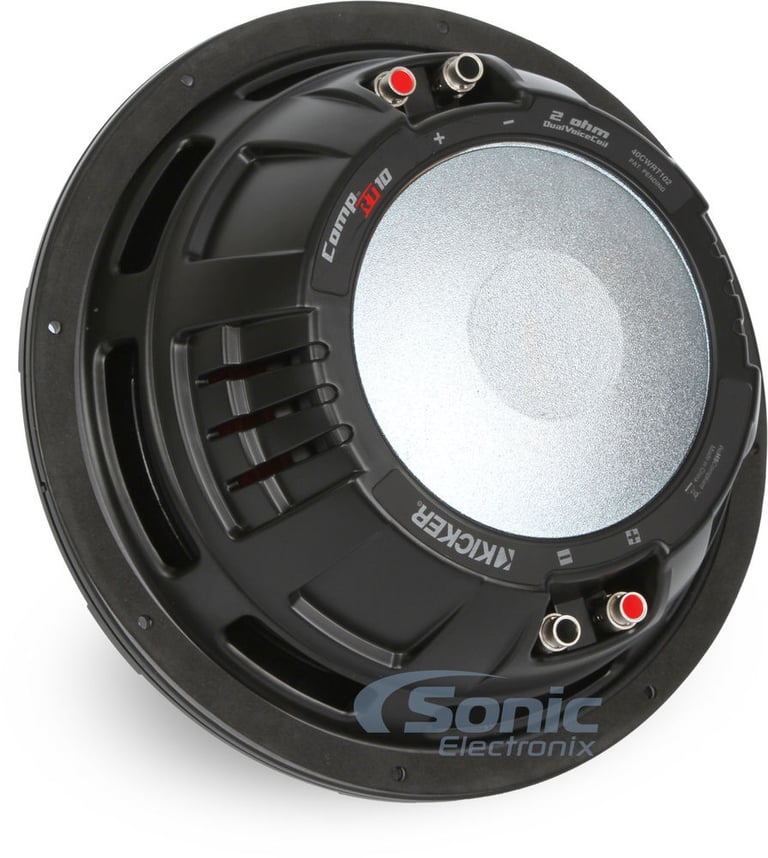

  • Dual pair of spring-loaded wire terminals custom designed for shallow mount installations
  • Weather-proof for outdoor powersports applications
  • Double venting for max cooling
  • Inverted-bumped back plate and bumped top plate for full voice-coil clearance and excursion while maintaining a shallow profile
  • High-temp voice coil for increased power handling
  • Resonance Frequency (Fs): 32.7 Hz
  • Top-mount depth: 3-7/16"
  • Sensitivity: 87.2 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Kicker CWRT104 thumbnail
(newest, current model)
Kicker 43CWRT102 thumbnail
(previous model, replaced by Kicker CWRT104 (48CWRT104))
Kicker 40CWRT102 thumbnail
(previous model, replaced by Kicker CompRT CWRT102 (43CWRT102))

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker CompRT102 (40CWRT102) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker CompRT102 (40CWRT102) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker CompRT102 (40CWRT102) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Kicker CompRT102 (40CWRT102) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Comp-RT/CRT Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Material
Sensitivity
87.2 dB
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Injection Molded Polypropylene - IMPP
Woofer Surround
Santoprene Rubber
Magnet Structure
Double Stacked
Magnet weight
Magnet Type
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.4 cubic feet
Maximum Sealed Box Volume
2 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
3-7/16"
Cutout Diameter
9-1/8"
Shallow Mount Installation
Yes
Electromechanical Parameters
Free-Air Resonance (Fs)
32.7 Hz
Equivalent Compliance (Vas)
37.14 liters
Total Speaker Q Value (Qts)
.440
Electrical Q Value (Qes)
.461
Electrical Resistance of Voice Coil (Re)
2.13 ohms
Mechanical Q Value (Qms)
9.56
What is in the box?
Paperwork
WITB: Subwoofers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

40CWRT102

Weight:

10.50lbs

Internal SKU:

40cwrt102

Internal Product ID:

69522
