See all parts that fit your 2003 SC430

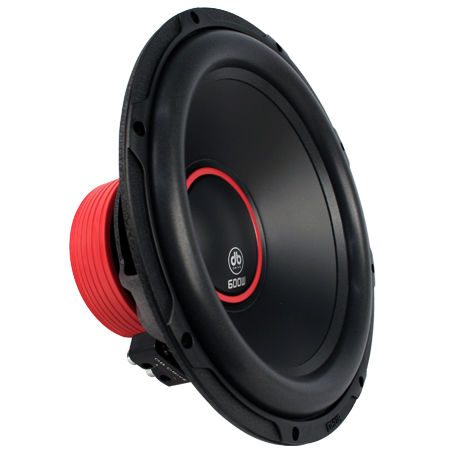

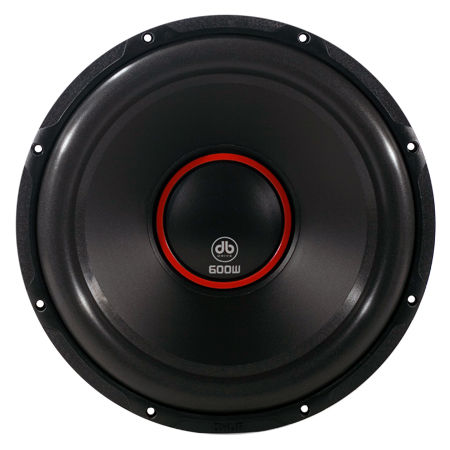

DB Drive K1 10S4

10" Single 4 Ohm K1 Series Car Subwoofer

db Drive
Shop all db Drive
Product videos
highlight-star-icon

• 10" K1 Series Subwoofer
• Single 4 ohm Voice Coil
• 600W Max
• 300W RMS
• Polypropylene Cone
• Polyether Foam Surround
• Spring Terminals
• Stamped Steel Basket

Learn more about the k110s4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-8161S main

Metra 99-8161S Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2002-2010 SC430 (Silver)

1
-45.37%

$52.99

List price $96.99

MVA-12L main

Beat-Sonic MVA-12L

Install a New Car Stereo and Retain Climate Controls and Other Factory Features in select 2002-2004 SC430 with Mark Levinson Sound System and Factory Navigation

1
-6.98%

$399.99

List price $430.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00

Limited time!
Stage3 527 main

JBL Stage3 527 (STAGE3527AM)

400W Peak (80W RMS) 5.25” Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-36.38%

$69.95

List price $109.95

MAS.524 main

Precision Power (PPI) MAS.524

150W RMS 5.25" MAS Series 2 Way Coaxial 4-ohm Motorcycle Speakers

1
-22.86%

$269.99

List price $349.99

TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Product Highlights


• 10" K1 Series Subwoofer
• Single 4 ohm Voice Coil
• 600W Max
• 300W RMS
• Polypropylene Cone
• Polyether Foam Surround
• Spring Terminals
• Stamped Steel Basket

Description


db Drive brand icon

Authorized dealer

General Features:

  • 10" Single 4 Ohm K1 Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Polypropylene cone
  • Polyether foam surround
  • Stamped steel frame
  • Black electro-plated top and bottom plates
  • Poly-cotton spider
  • PVC Trim ring and gasket
  • Spring terminals
  • 2" 4-Layer voice coil with aluminum former
  • 47.5 oz. Ferrite magnet
  • Resonance Frequency (Fs): 38 Hz
  • Top-mount depth: 5-3/4"
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DB Drive K1 10S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DB Drive K1 10S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DB Drive K1 10S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 DB Drive K1 10S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
K1 Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
87 dB
Xmax (millimeters)
9.398 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Polyether Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.74 cubic feet
Optimum Ported Box Volume
1.14 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
38 Hz
Equivalent Compliance (Vas)
30.63 liters
Total Speaker Q Value (Qts)
0.44
Electrical Q Value (Qes)
0.48
Electrical Resistance of Voice Coil (Re)
7.62 ohm
Mechanical Q Value (Qms)
5.08
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

K1 10S4

Weight:

0.00lbs

Internal SKU:

k110s4

Internal Product ID:

72091
