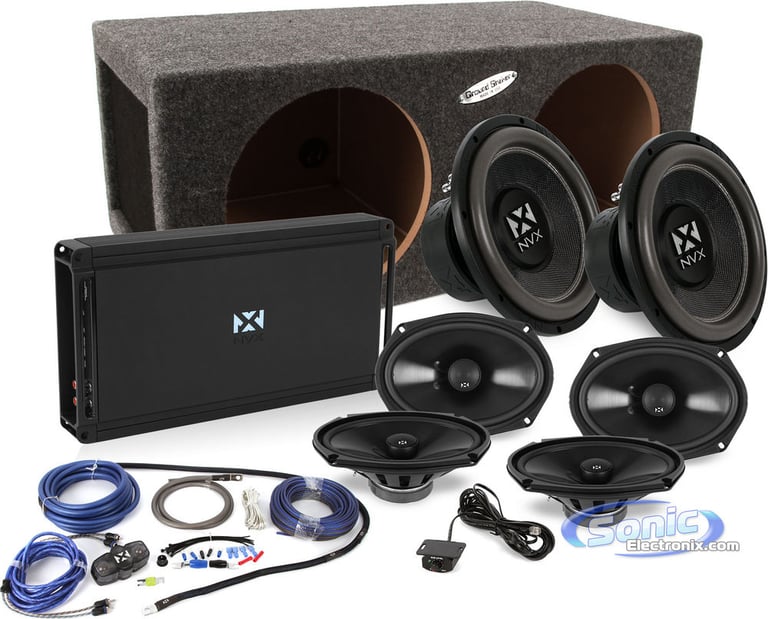

Complete NVX Audio Upgrade Package

Amp Class	Channels	Wattage
		4 ohm: 500 watts x 1 chan. 2 ohm: 800 watts x 1 chan. 1 ohm: 1200 watts x 1 chan.

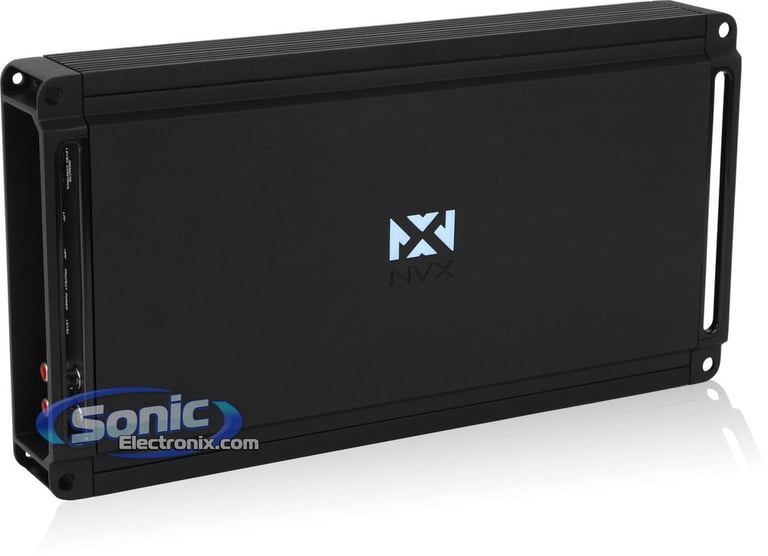

Amplifier Features:

• Class D Monoblock Amplifier with Bass Remote
• RMS Power Rating:
• 4 ohm: 500 watts x 1 chan.
• 2 ohm: 800 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• Non-regulated efficient S.M.P.S power supply design
• Pulse Width Modulated MOSFET power supply

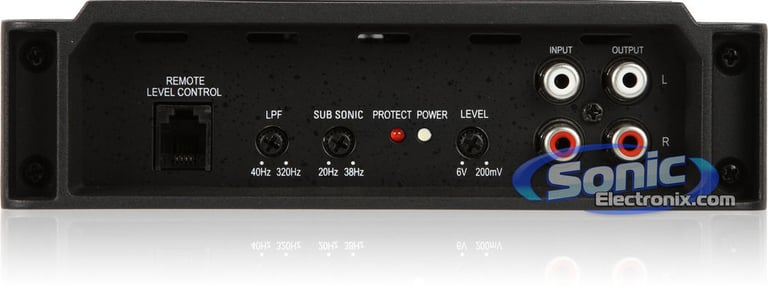

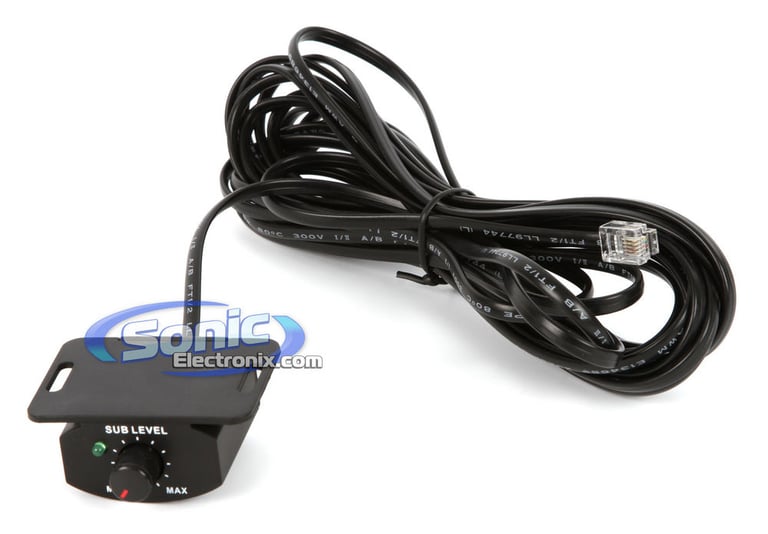

• Wired remote bass level control included
• LED power (green) and protect (red) indicators

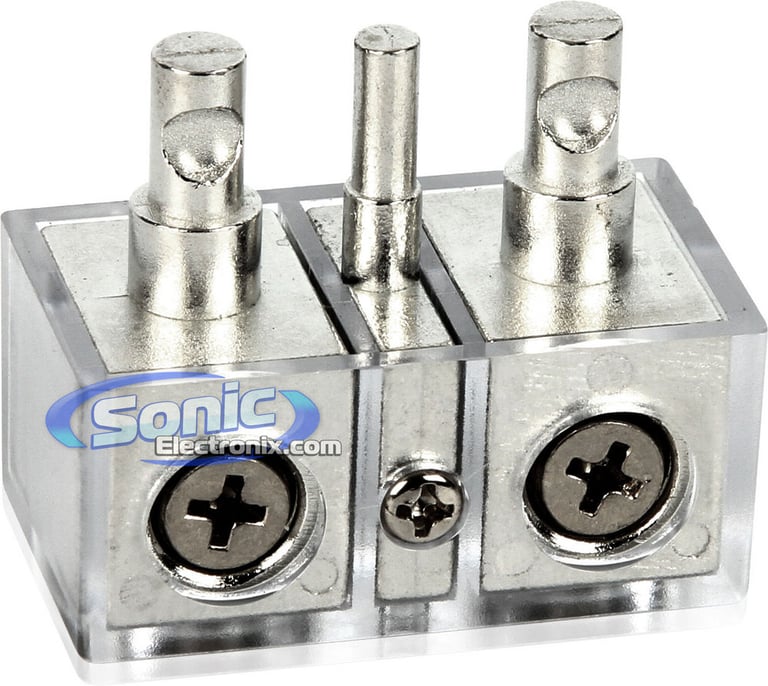

• Power and ground Gauge adapter included (Up to 0 gauge)
• Soft start turn-on
• Mono channel operation

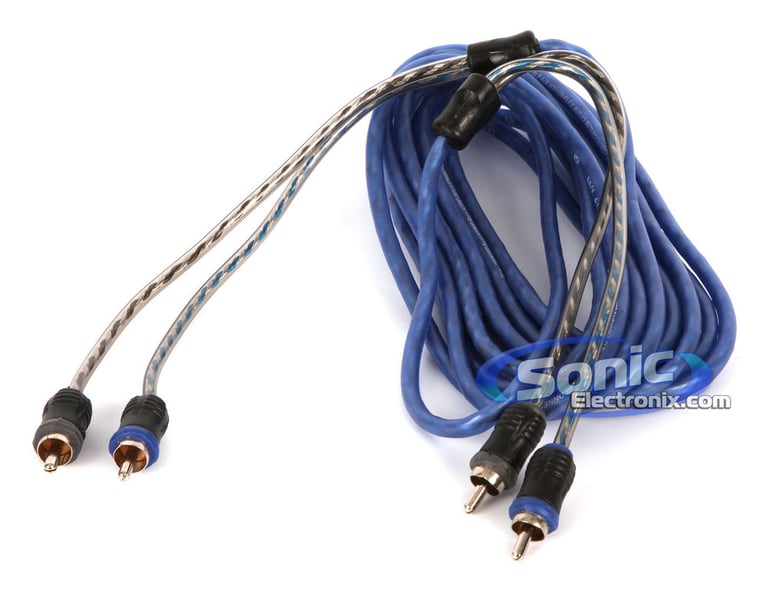

• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)

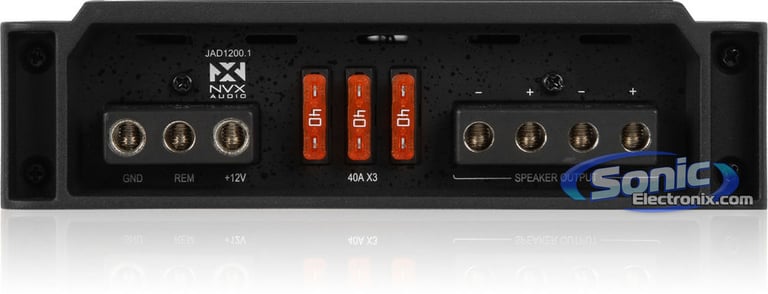

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Variable subsonic filter (20-38 Hz, 24 dB/octave)
• Variable low-pass filter (40-320 Hz, 24 dB/octave)
• Damping factor: 200
• Input Sensitivity: 200mV-6V
• Frequency response: 20-200 Hz
• Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter
• Also found as: JAD12001, JAD-12001, JAD1200

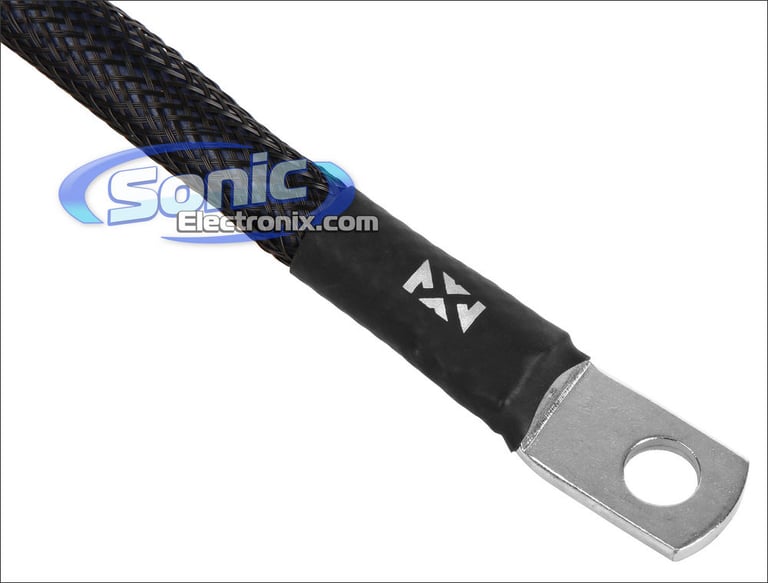

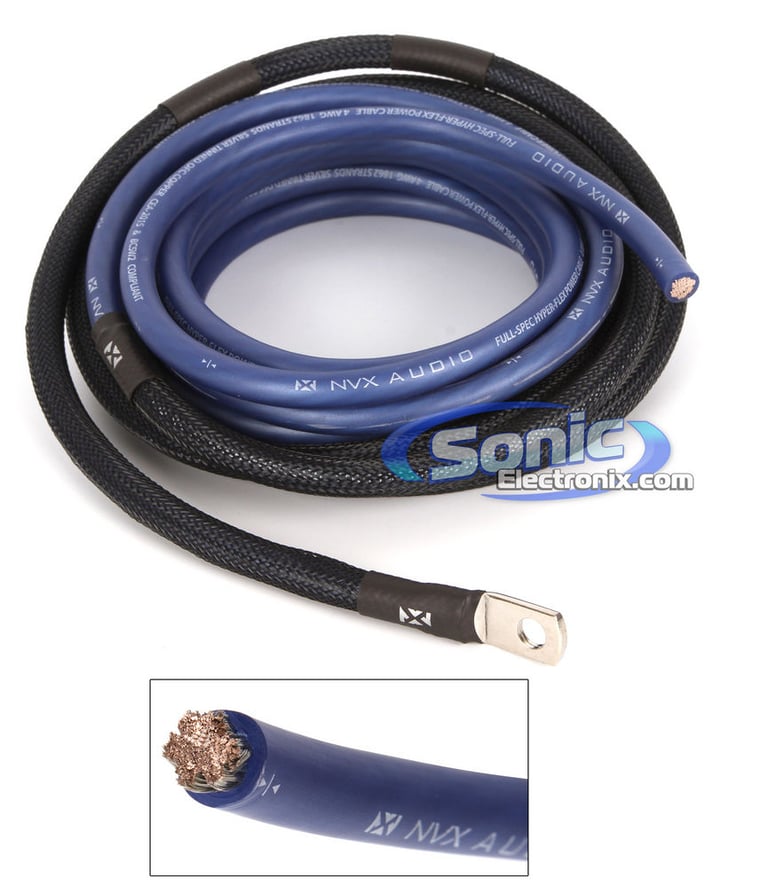

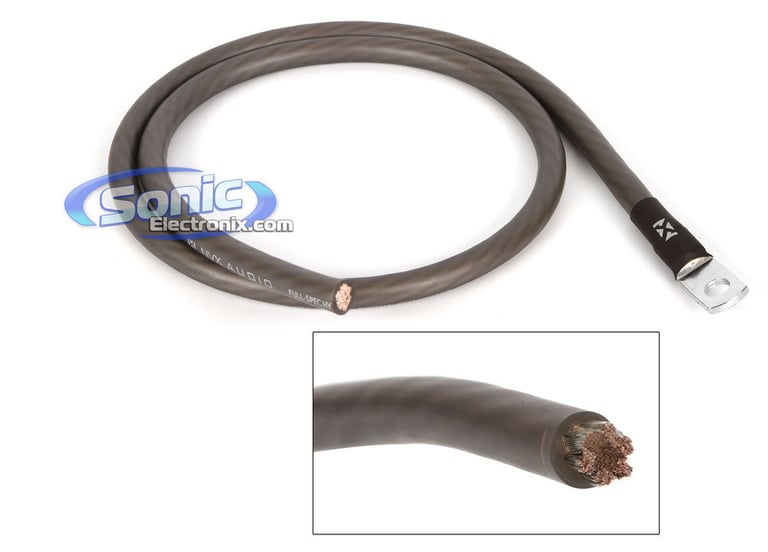

• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT42, or NVX XAPK4

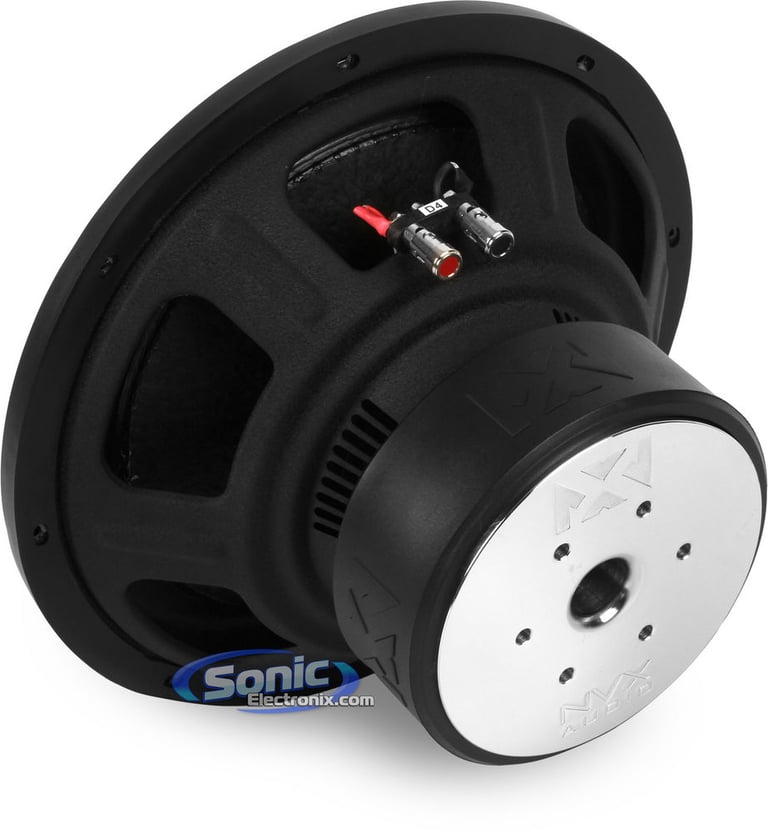

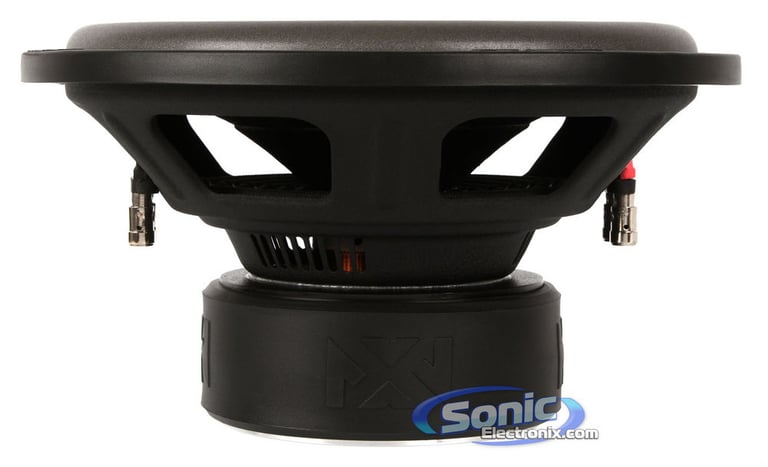

Subwoofer Features:

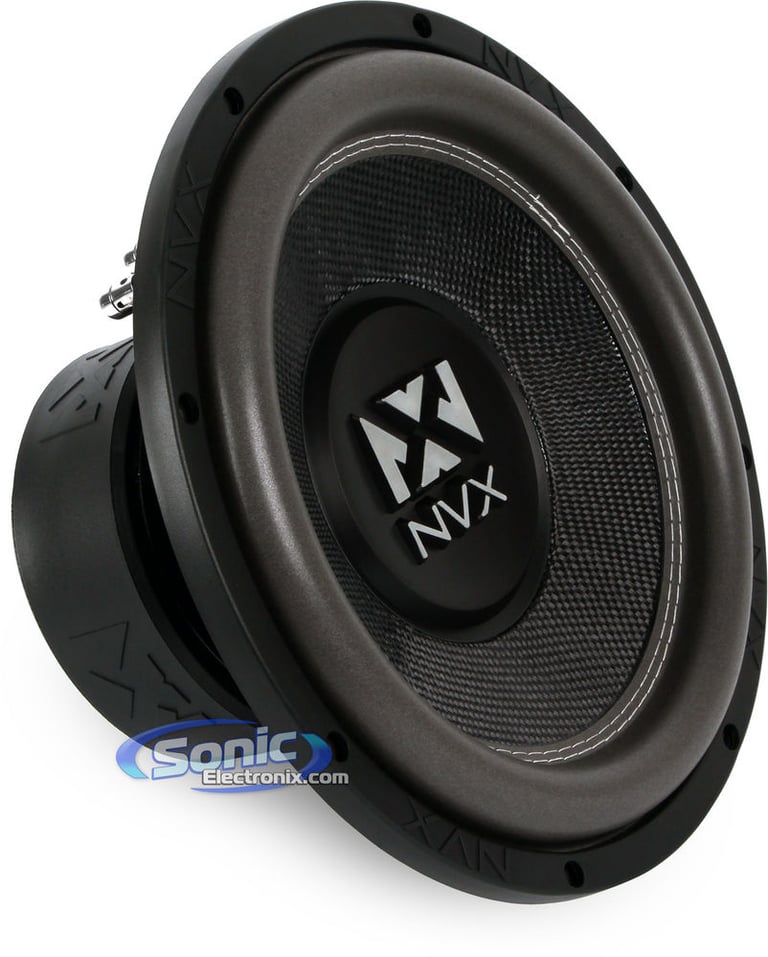

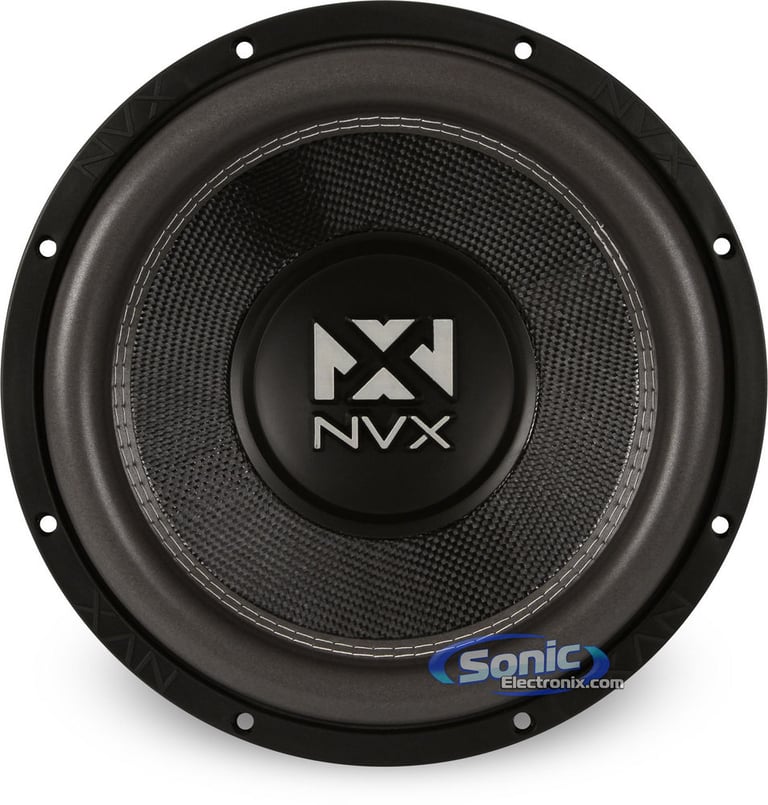

• 12" Dual 4-ohm VS-Series Car Subwoofer
• Power Range:
• RMS: 400-600 watts
• Impedance: Dual 4 ohm

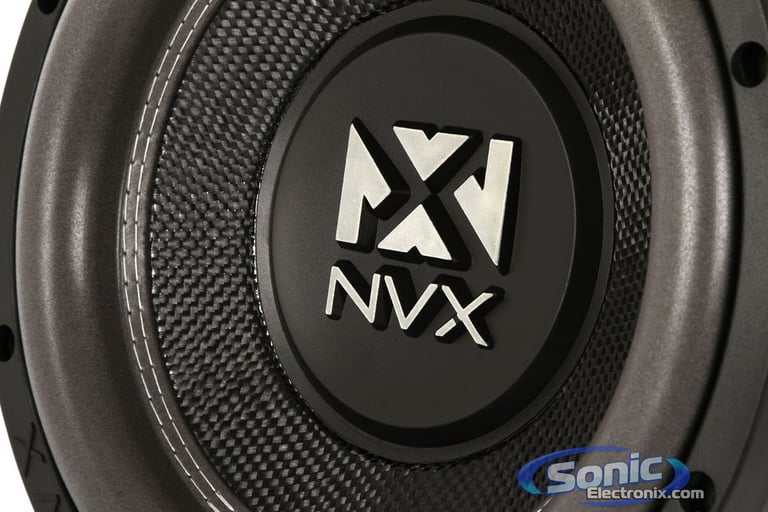

• Non-pressed paper cone with woven carbon fiber top
• High excursion 3-layer foam surround
• Heavy duty custom textured steel basket for maximum rigidity
• Dual Nomex Spiders
• 2.5" High temperature aluminum voice coil
• Double stacked Ferite magnet motor structure with protective rubber boot
• Frequency response: 30-500 Hz
• Resonance Frequency (Fs): 33.6
• Top-mount depth: 5-15/16"
• Sensitivity: 86.3dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Additional Information:

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.
