Name: Pioneer GM-A6604 Like New, Demo Product
Brand: Pioneer
SKU: LS-gma6604-LNDP
Price: 89.99 USD
Availability: Discontinued

by Pioneer

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

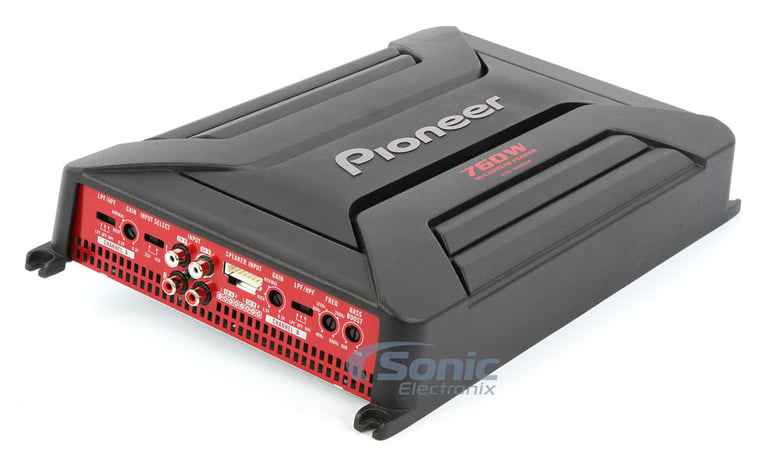

Pioneer GM-A6604 Like New, Demo Product Image 1 — Pioneer GM-A6604 Like New, Demo Product

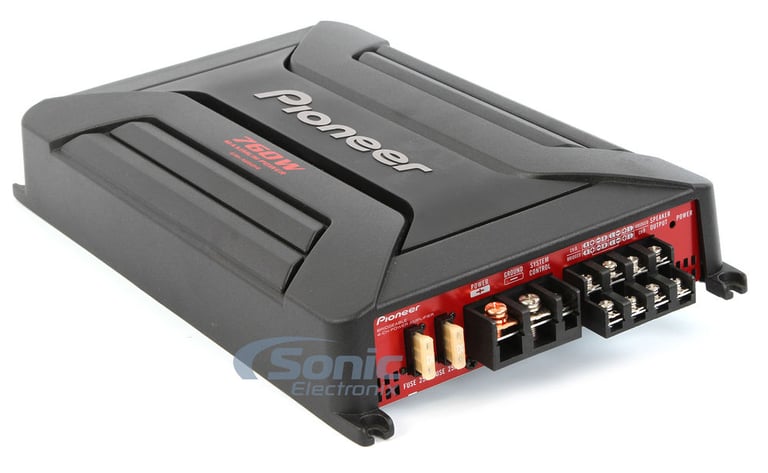

Pioneer GM-A6604 Like New, Demo Product Image 2 — Pioneer GM-A6604 Like New, Demo Product

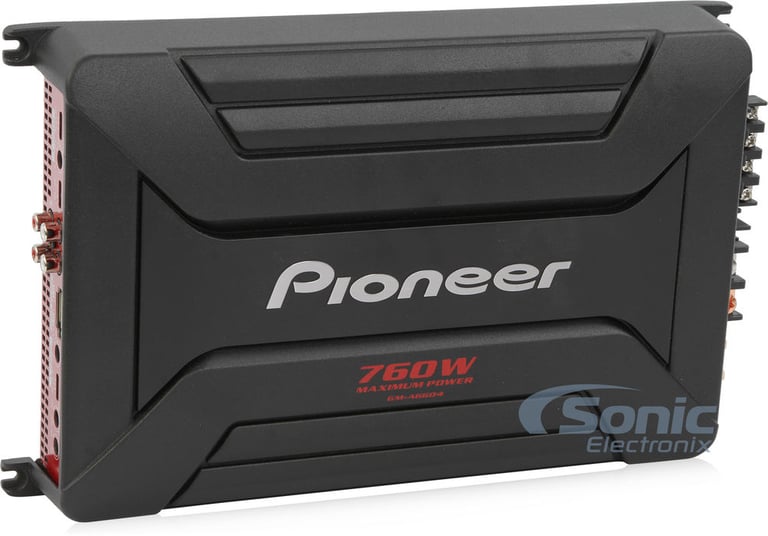

Pioneer GM-A6604 Like New, Demo Product Image 3 — Pioneer GM-A6604 Like New, Demo Product

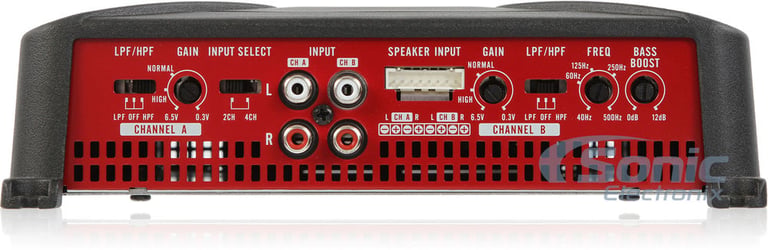

Pioneer GM-A6604 Like New, Demo Product Image 4 — Pioneer GM-A6604 Like New, Demo Product

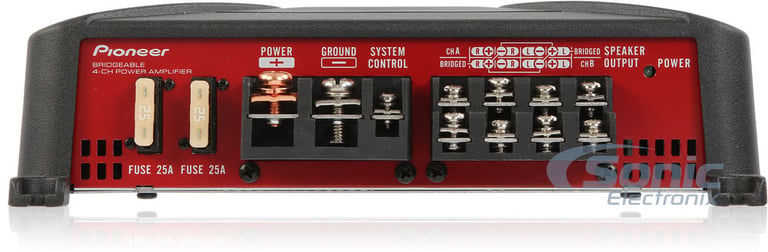

Pioneer GM-A6604 Like New, Demo Product Image 5 — Pioneer GM-A6604 Like New, Demo Product

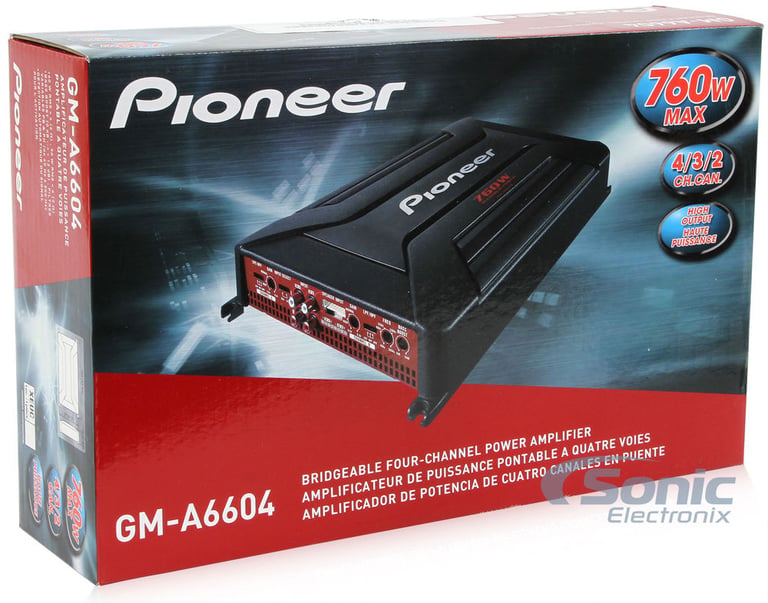

Pioneer GM-A6604 Like New, Demo Product Image 6 — Pioneer GM-A6604 Like New, Demo Product

Pioneer GM-A6604 Like New, Demo Product Image 7 — Pioneer GM-A6604 Like New, Demo Product

Pioneer GM-A6604 Like New, Demo Product Image 8 — Pioneer GM-A6604 Like New, Demo Product

Pioneer GM-A6604 Like New, Demo Product Image 9 — Pioneer GM-A6604 Like New, Demo Product

Pioneer GM-A6604 Like New, Demo Product Image 10 — Pioneer GM-A6604 Like New, Demo Product

Pioneer GM-A6604 Like New, Demo Product Image 11 — Pioneer GM-A6604 Like New, Demo Product

Pioneer GM-A6604 Like New, Demo Product Image 12 — Pioneer GM-A6604 Like New, Demo Product

Product highlights

Like new Damaged Package
• RMS: 60W x 4 @ 4 ohm, 90W x 4 @ 2 ohm, 180W x 2 @ 4 ohm
• Total Peak Power: 760W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H

Learn more about the LS-gma6604-LNDP

Description

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

Item Condition: Like New

Like new Damaged Package:

Pioneer A-Series GM-A6604
Class-AB FullRange 2-Ohm Stable 4-Channel Amplifier
RMS Power Rating:

4 ohm: 60 watts x 4 chan.
2 ohm: 90 watts x 4 chan.
Bridged, 4 ohm: 180 watts x 2 chan.

Max power output: 760 watts.
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply
Balanced Isolator Input Circuit
LED power (on) and protect (off) indicators
Soft start turn-on
4, 3 or 2 channel operation
Speaker-level (high-level) inputs with Signal Sensing Turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity:

Low level: 300mV - 6.5V
High level: 3V - 26V

Frequency Response: 10 - 70,000 Hz
Total Harmonic Distortion (THD): <0.05%
Signal to Noise Ration: >95 dB
Selectable crossover modes (Ch A&B): LPF / OFF / HPF
Crossover frequency Ch A: 80hz, 12 dB/octave
Variable crossover frequency (Ch B): 40 - 500 Hz, 12 dB/octave
Variable Bass Boost (Ch B): 0 to +12 dB bass boost at 50 Hz
Fuse Rating: 25A x 2
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 13-3/4"W x 8-1/2"L x 2-3/8"H
90 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channel

RMS Power @ 2 ohms

90 watts x 4 channel

Bridged RMS Power

180 watts x 2 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

120 watts x 4 channel

Peak Power @ 2 ohms

190 watts x 4 channel

Bridged Peak/Max Power

380 watts x 2 channel

Amplifier Specifications

Series

GM Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

760 watts

Total RMS Power Output

360 watts

Maximum Input Gauge Size

Any Gauge with use of Spade Terminal AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

40 - 500 Hz

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

25A x 2

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
