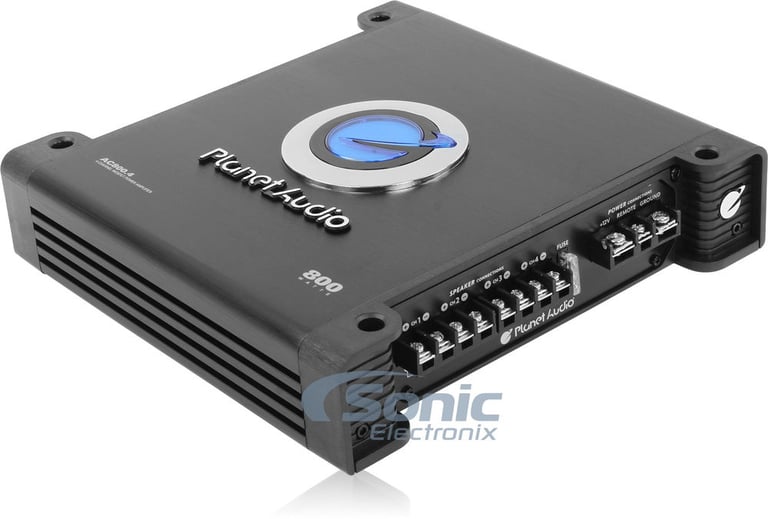

Planet Audio AC800.4-OPEN BOX Image 1 — Planet Audio AC800.4-OPEN BOX

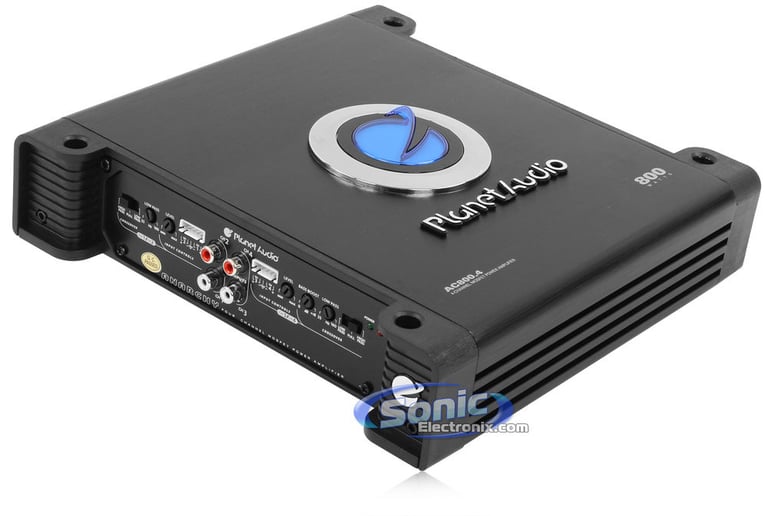

Planet Audio AC800.4-OPEN BOX Image 2 — Planet Audio AC800.4-OPEN BOX

Planet Audio AC800.4-OPEN BOX Image 3 — Planet Audio AC800.4-OPEN BOX

Planet Audio AC800.4-OPEN BOX Image 4 — Planet Audio AC800.4-OPEN BOX

Planet Audio AC800.4-OPEN BOX Image 5 — Planet Audio AC800.4-OPEN BOX

Planet Audio AC800.4-OPEN BOX Image 6 — Planet Audio AC800.4-OPEN BOX

Planet Audio AC800.4-OPEN BOX Image 7 — Planet Audio AC800.4-OPEN BOX

Planet Audio AC800.4-OPEN BOX Image 8 — Planet Audio AC800.4-OPEN BOX

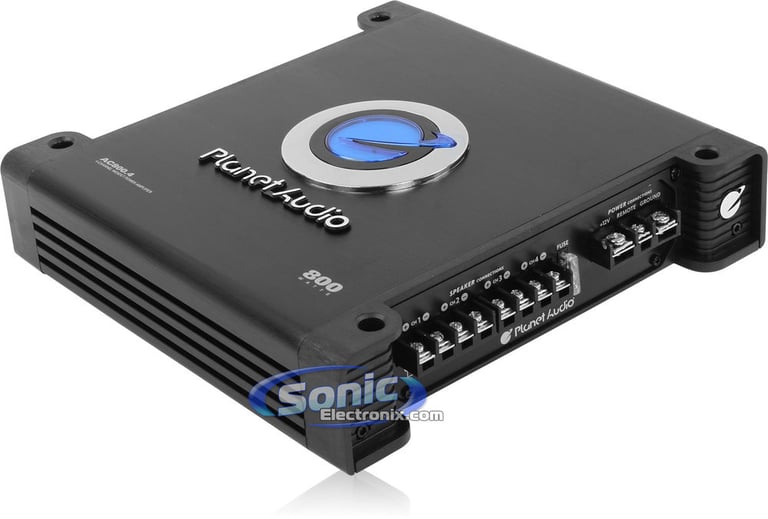

Planet Audio AC800.4-OPEN BOX Image 9 — Planet Audio AC800.4-OPEN BOX

Planet Audio AC800.4-OPEN BOX Image 10 — Planet Audio AC800.4-OPEN BOX

Planet Audio AC800.4-OPEN BOX Image 11 — Planet Audio AC800.4-OPEN BOX

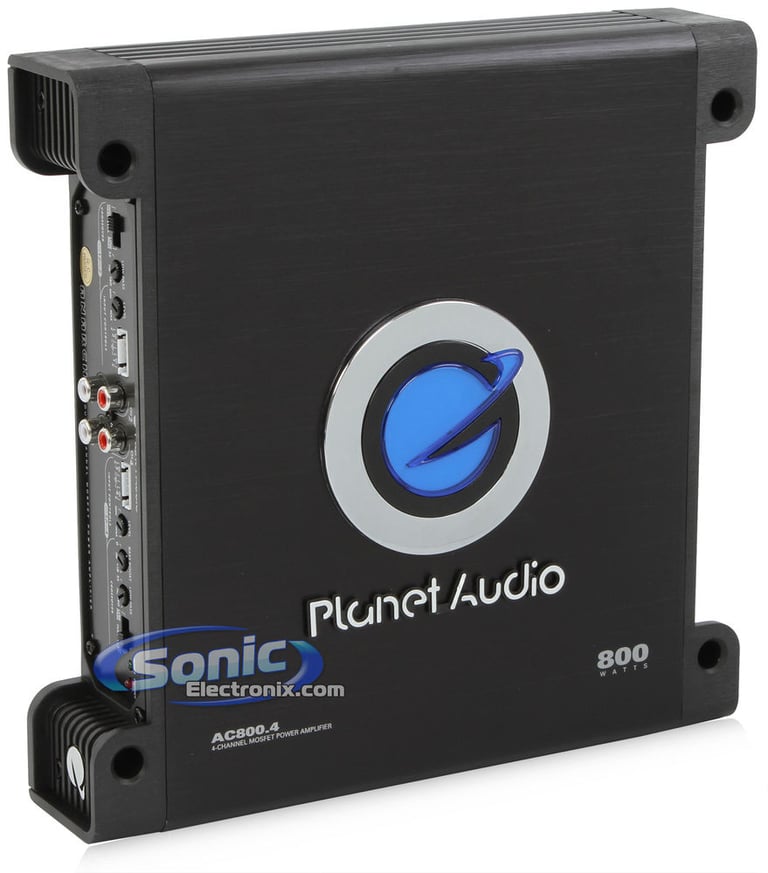

Planet Audio AC800.4-OPEN BOX Image 12 — Planet Audio AC800.4-OPEN BOX

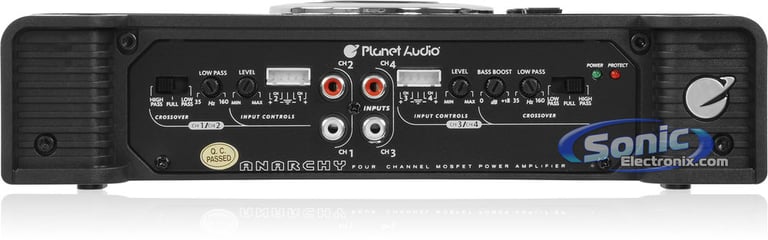

Planet Audio AC800.4-OPEN BOX Image 13 — Planet Audio AC800.4-OPEN BOX

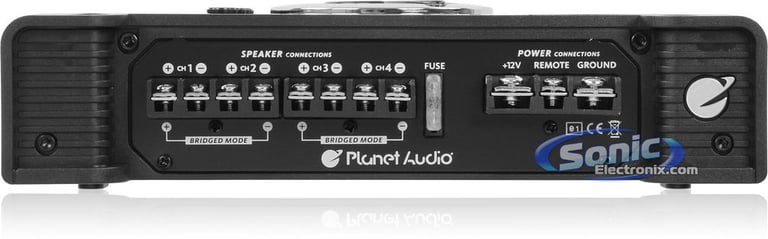

Planet Audio AC800.4-OPEN BOX Image 14 — Planet Audio AC800.4-OPEN BOX

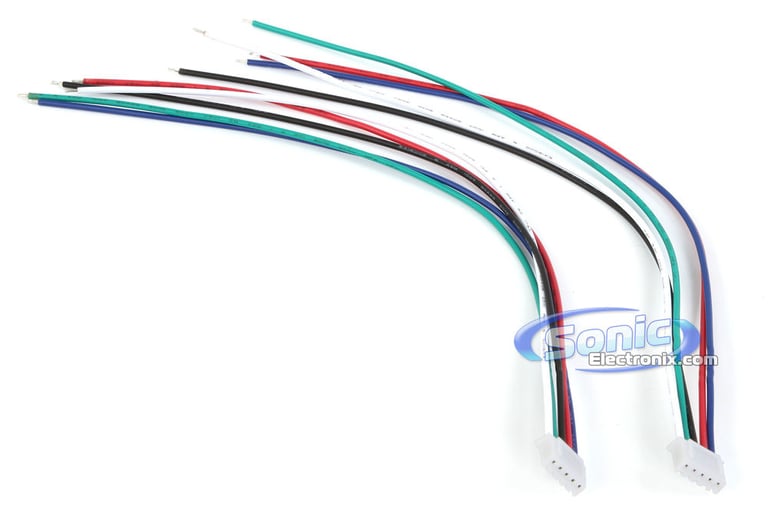

Planet Audio AC800.4-OPEN BOX Image 15 — Planet Audio AC800.4-OPEN BOX

Product videos

Product highlights

• RMS: 100W x 4 @ 4 ohm, 300W x 4 @ 2 ohm
• Total Peak Power: 1200W
• Pulse Width Modulated MOSFET Power Supply
• Variable Bass Boost
• Heavy Duty Black Anodized Heatsink For Heat Dissipation
• Dimensions: 10.66"W x 10"L x 2.41"H

Learn more about the LS-ac8004-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

Anarchy Series 4-Channel Class A/B Power Amplifier
RMS Power Rating:

4 ohm: 100 watts x 4 chan.
2 ohm: 200 watts x 4 chan.
Bridged, 4 ohm: 400 watts x 2 chan.

Max power output: 1200 watts
Pulse Width Modulated MOSFET power supply
Variable low pass crossover
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
Soft start turn-on
4 or 2 channel operation
Remote turn on/off circuit
Variable input gain control
Thermal and speaker short protection circuitry
Heavy duty black anodized heatsink for extreme heat dissipation
Variable high-pass filter (80 Hz, 24 dB/octave)
Variable low-pass filter (40-90 Hz, 24 dB/octave)
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 10.66"W x 10"L x 2.41"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

200 watts x 4 channel

Bridged RMS Power

400 watts x 2 channel

Amplifier Specifications

Series

Anarchy Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1200 watts

Total RMS Power Output

800 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Speaker Level Inputs

Yes

Preamp Outputs

2 pairs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

40 - 90 Hz

Signal-to-Noise Ratio

102 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

30A x 2

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
