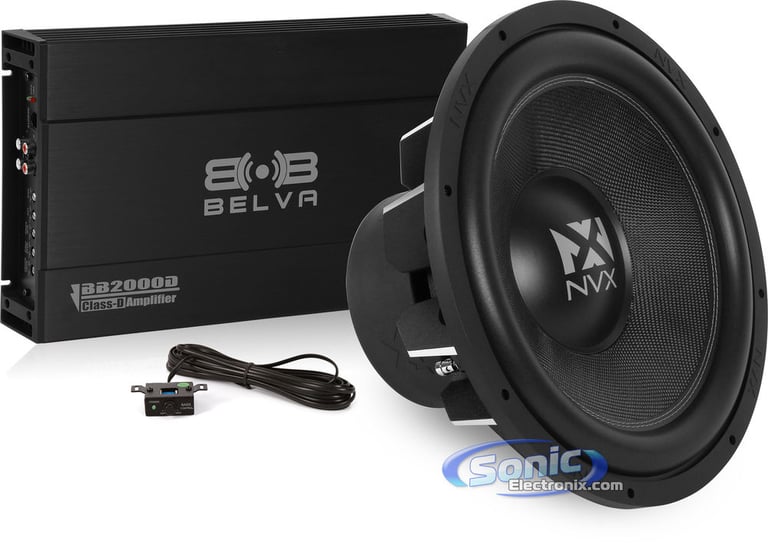

2000W NVX and Belva Bass Package

15" VCW152 VC Series Subwoofer + Class D Monoblock BB Series Amplifier

NVX
Shop all NVX
Product videos
highlight-star-icon

• Peak Power: 2000W
• RMS Power: 1200W
• Pressed Paper Cone With Woven Fiber Top
• High Excursion Foam Surround
• Class D Circuitry
• Bass Boost 0-12 dB at 30-80 Hz

Learn more about the bb2000d_vcw152

We apologize

This item has been discontinued


Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
P1V2-25 main

Rockford Fosgate Punch P1V2-25

300W Peak (150W RMS) 2.5" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.93%

$159.99

List price $215.99

Limited time!
P1V2-675 main

Rockford Fosgate Punch P1V2-675

300W Peak (150W RMS) 6.75" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.00%

$179.99

List price $239.99

DMDX675 main

Diamond Audio DMDX675

300W Peak (100W RMS) 6.75" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

H672 main

Cerwin-Vega H672

540W Peak (180W RMS) 6.75" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$159.99

List price $191.99

Lowest price in 30 days
VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-16.67%

$99.99

List price $119.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
25D120NO-4 main

DS18 25D120NO-4

240W Peak (120W RMS) 2.5" OEM Dashboard Full-Range 4-ohm Loudspeakers

-16.71%

$89.95

List price $107.99

Product Highlights


• Peak Power: 2000W
• RMS Power: 1200W
• Pressed Paper Cone With Woven Fiber Top
• High Excursion Foam Surround
• Class D Circuitry
• Bass Boost 0-12 dB at 30-80 Hz

Description


NVX brand icon

Authorized dealer

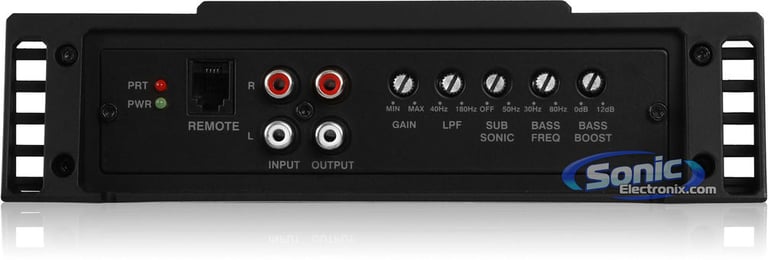

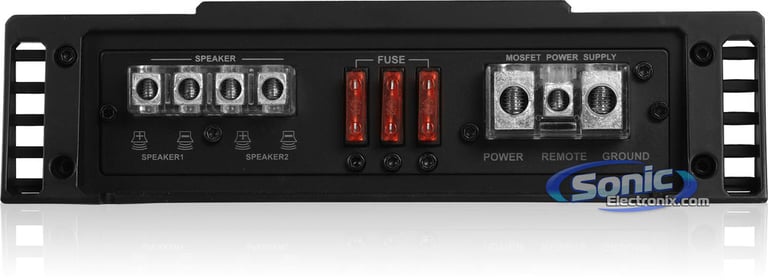

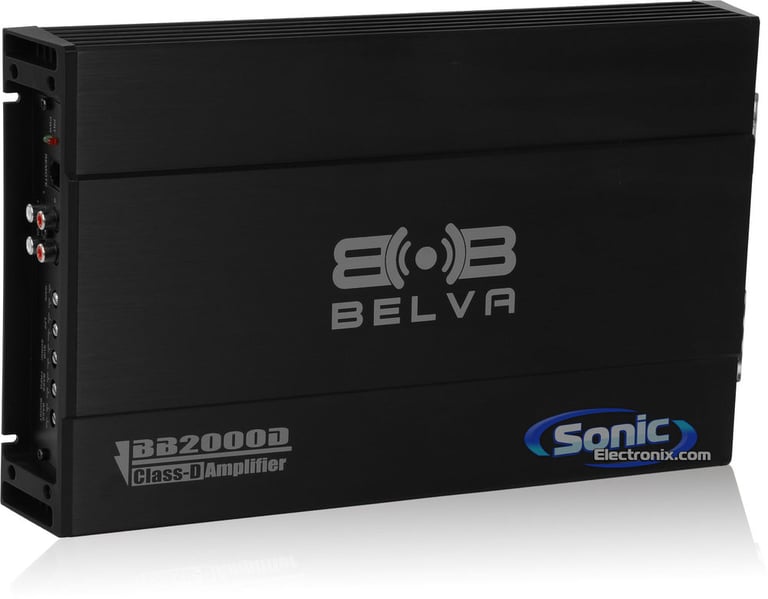

Belva BB2000D

2000W Max (1200W RMS) Class AB Monoblock BB Series Car Amplifier
Quantity: 1

General Features:

  • BB Series Monoblock Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 540 watts x 1 chan.
    • 2 ohm: 900 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Max power output: 2000 watts
  • Pulse Width Modulated MOSFET power supply

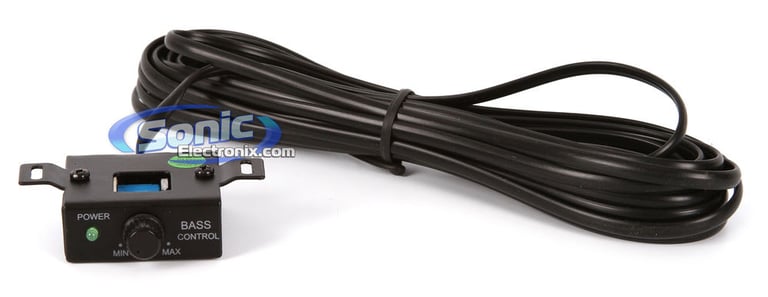

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 100mV-6mV
  • Variable low-pass filter (40-180 Hz, 12 dB/octave)
  • Subsonic filter (12 dB variable from 20Hz - 50 Hz)
  • Frequency response: 20-30,000 Hz
  • Depending on operating impedance, 1/0 or 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 12-1/2"W x 8-1/4"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

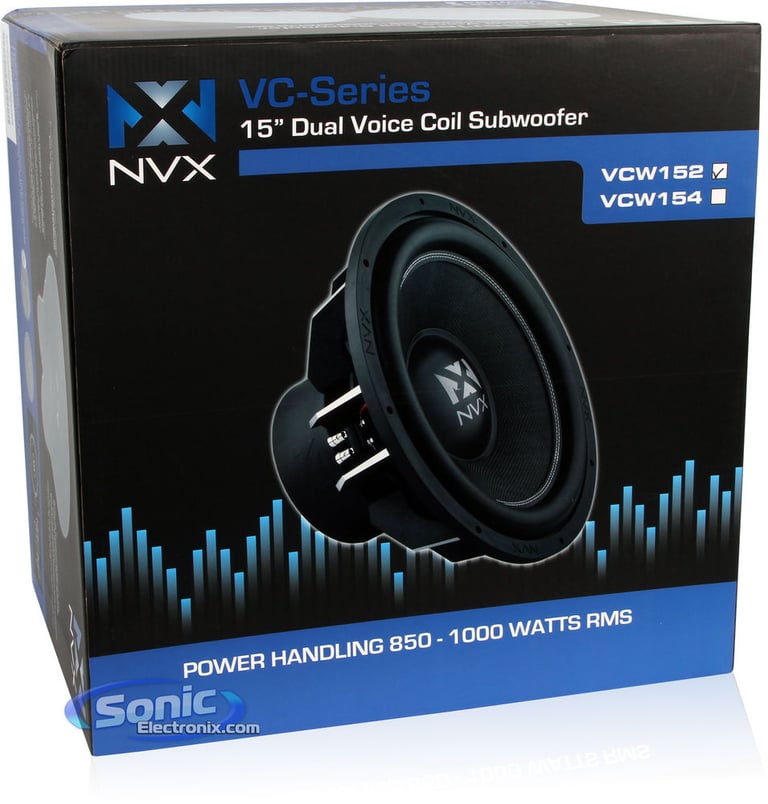

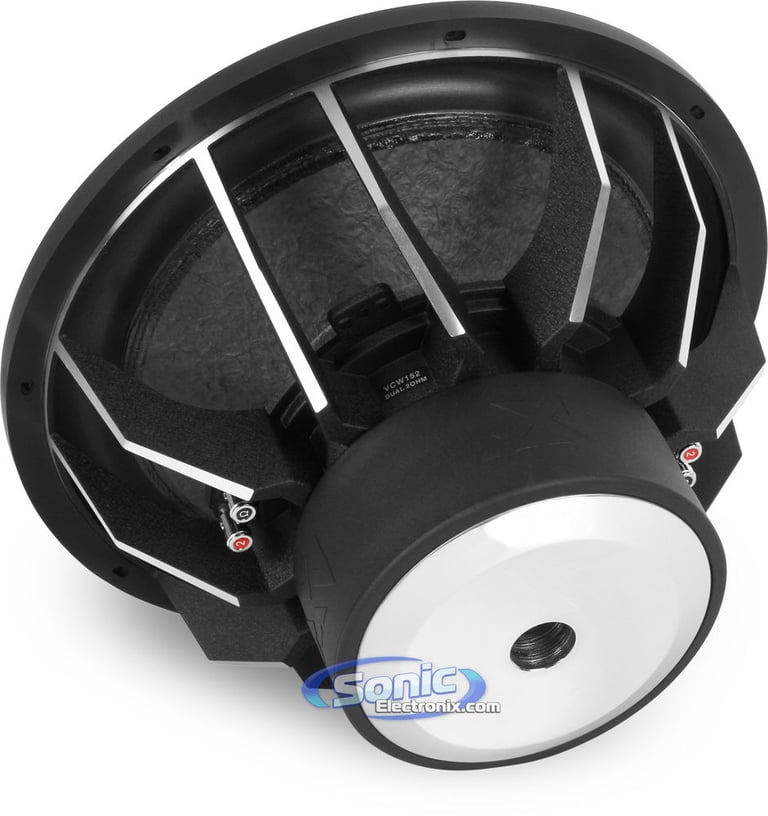

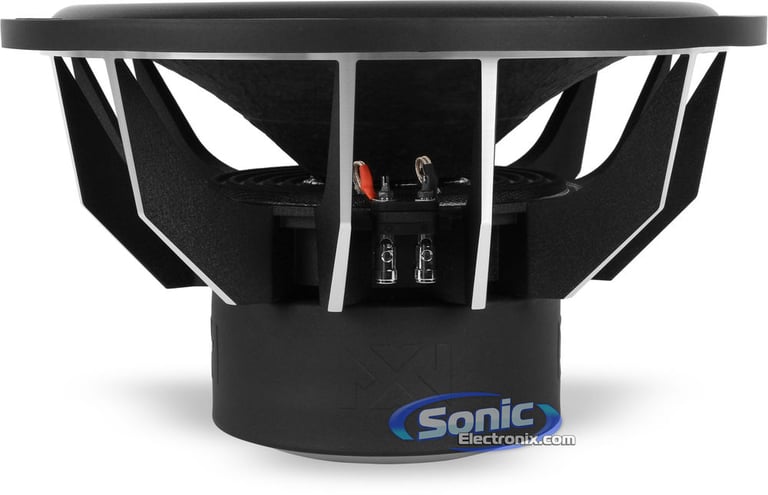

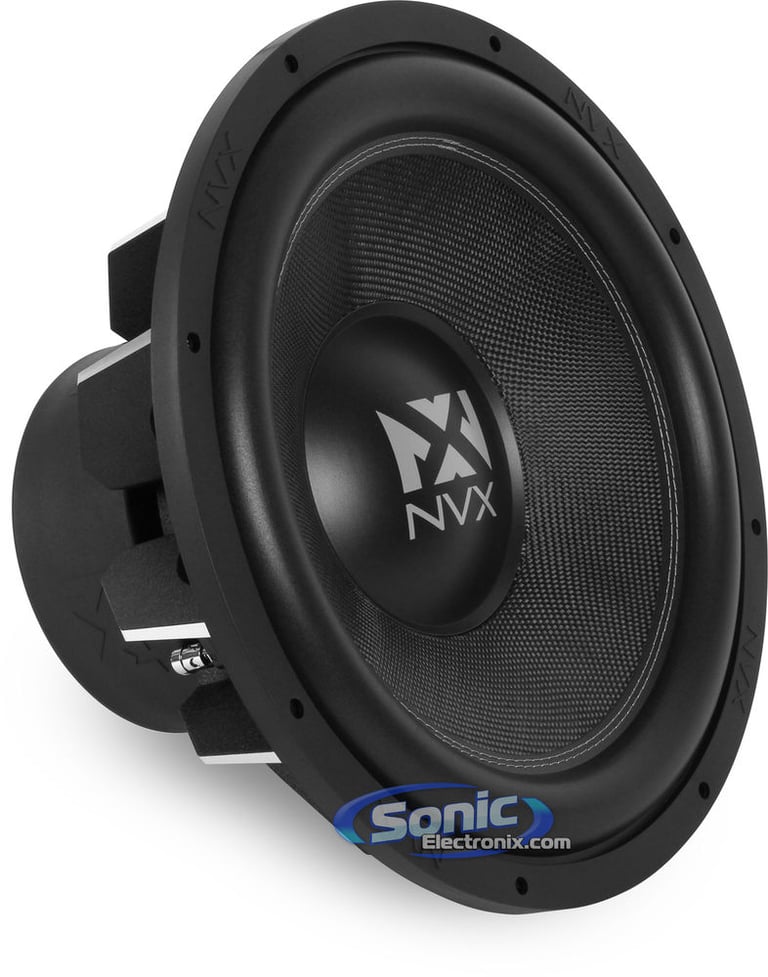

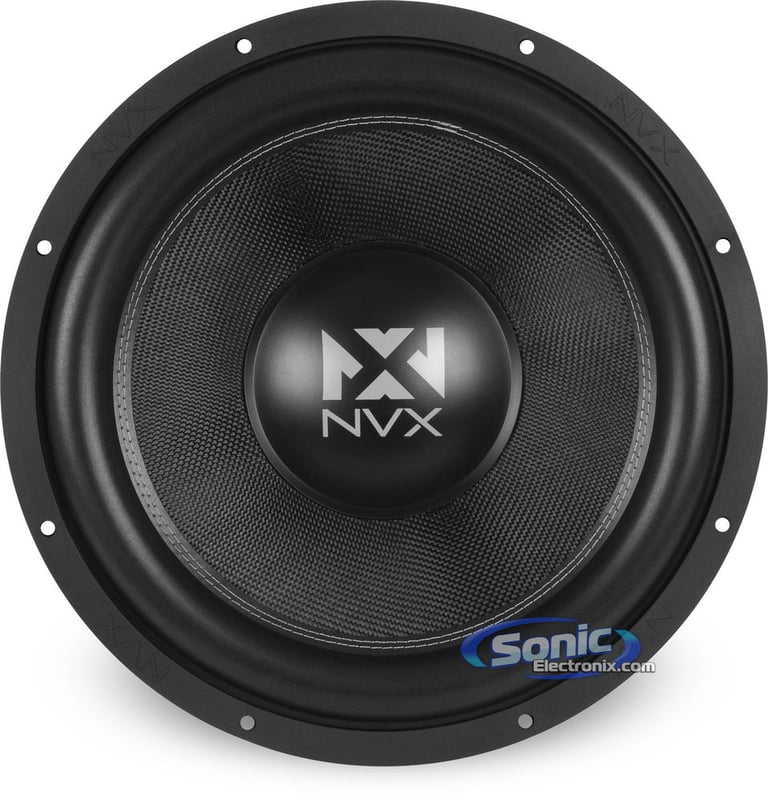

NVX VCW152 Version 3 (VCW152v3)

3000W Peak (1500W RMS) 15" VC-Series v3 Dual 2-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 15" Dual 2 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1500 watts

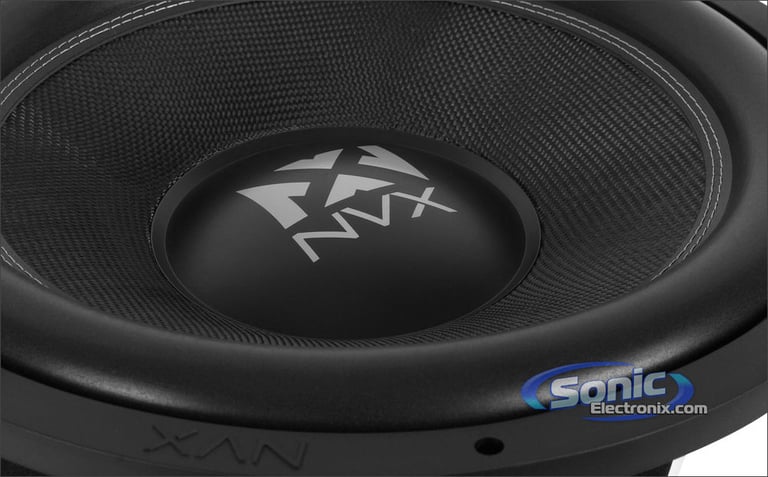

  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket

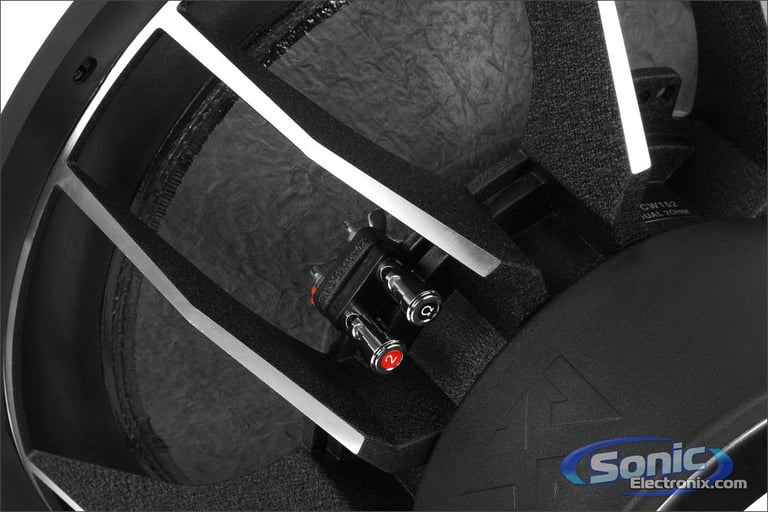

  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 29.30 Hz
  • Sensitivity: 88 dB (1W/1m)
  • Optimal sealed box volume: 2 cubic feet
  • Optimal ported box volume: 3 cubic feet
  • Top-mount depth: 8.19"
  • Cutout diameter: 14.21"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF Icon NVX VCW152v3 owner’s manual

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
540 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2000 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
40A x 3
CEA-2031 Compliant
No
Subwoofer Specifications
Series
VC Series
Subwoofer Size
15"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
1000 watts
Woofer Surround
Foam
Woofer Composition
Woven Fiber Pressed Paper
Sensitivity
87 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
20 mm
Top-Mount Depth (Mounting Depth)
7-9/16"
Cutout Diameter
14-7/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

BB2000D_VCW152

Weight:

41.50lbs

Internal SKU:

bb2000d_vcw152

Internal Product ID:

76085

Product and How-to Videos


Customer Ratings & Reviews


2000W NVX and Belva Bass Package thumbnail image

5 star
84%
4 star
12%
3 star
4%
2 star
0%
1 star
0%



Durability
4.6
Value
4.9
Features
4.8
Design
4.7
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Just as advertised !!!

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I have this hooked up to a Hifonics 1100.1 d Brutus amp pushing 1000 rms and it beats the block hard!! Hits incredible lows and all around great sound! Great price and fast shipping sonic is the best!!!!

By daniel on February 15, 2015

74 found this helpful


Amazing Subwoofer

The following review is for VCW152v3, which is a part of the bundle you are viewing.

Has a very good feel and structure very solid. Large cone area much better than average stitching and craftsmanship. Mine sounded amazing squeezed the trunk of a VW Golf but you will be heard, Make sure you give it accurate power because of that new motor rating wattage requirements I had mine going for 7 months at around 1200 watts and finally the voice coil was shot.

By Someone in on October 13, 2014

74 found this helpful


So far so good.

The following review is for BB2000D, which is a part of the bundle you are viewing.

I needed a new amp to power my AudioPipe BD3 12, it was on a 2channel Oxygen Audio amp that only did 600w @ 2ohms. The best it could do was 1200rms bridged @ 4ohms. Anyway, I needed a "budget" amp that could push some more power. I have it wired to 2ohms and it sounds noticeably better. I've only had it for a dew days so I can't speak for longevity, but price for power rationis definitely on point.
The only bad thing I can speak on so far is the bass remote. The minute I plugged it in I got a loud feedback and noise from my sub and it froze. Idk whatn the hell that was about, but I just stayed with the bass remote from my active xover. Because of very mixed reviews In was sure to buy the warranty plan for this amp. Rather be safe than sorry.

By Xspencer on September 24, 2014

80 found this helpful


not quite 2000 rms

The following review is for BB2000D, which is a part of the bundle you are viewing.

Wired to 1 ohm on the scope I can see more like 1300 before this amp clips. Overall totally worth the money sound is clean have not put it in protect yet nor cooked it. Right now its pushing a pair of infinity 12s hard enough to flex every panel in the car including the hood. Would like another one for my truck due to its small size. Too bad it doesnt take bigger than 4ga wire....

By Bobby on May 1, 2014

81 found this helpful


Amazing Deal! So Far So Good

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I bought this sub to install in a friend's car. I bought it with the free ported sub box deal for a fantastic price (Although it didnt fit in the box so I had to sand it down by about 1/2") Regardless this thing suggests about 900 Watts RMS in a ported box (I ran it off of a Rockford Fosgate 750-1D). Sound clarity is amazing and it gets some seriously crushing lows. Its almost as loud as my 2 15" Kicker CVR's in just one woofer! Overall great sub, i would definitely recommend it!

By Mark on October 24, 2013

72 found this helpful


Best Cheap amp

The following review is for BB2000D, which is a part of the bundle you are viewing.

This in my opinion is the best of the amps...It will definitely flex stuff if you have the right sub and box combo!!!

By Jeff on November 10, 2014

76 found this helpful


I guess it works?

The following review is for BB2000D, which is a part of the bundle you are viewing.

Bought this amp to power my Audiopipe BD3-12 and a week in, my sub is dead. The amp definitely powered it better than the OxygenAudio amp that was only doing 600w RMS @2ohms. Its wired with 4 guage Ground and P+. I went through the whole tuning with a 50hz wave and set my gains with a DMM at 41volts (which is from my math of 900wX2Ohms=1800, SqaureRoot of that being 42.xxx). I really hope that I didn't leave any space for clipping, but there is definitely a dead coil in my sub as I can feel some scraping when I push in the cone. I guess I dont know if I should be happy that the amp apparently has some power, or sad and confused that my sub is dead and it could possibly have been my fault...
Amp is very plain, sorry if im used to some sort of illumination from my previous O2 and Alpine amps, but I guess simplicity works. I would have loved an illuminated face on it. IJS.

By Xavier on September 27, 2014

78 found this helpful


Great amp! Not as "clean" as more expensive amps...

The following review is for BB2000D, which is a part of the bundle you are viewing.

This amp was a great surprise! Nice sound and great bass response. It's not as clean sounding as more expensive amps, but I have it on a kicker 12" with only 1/2 the gain and this thing pounds. Good for the price. Lots of tuning options also...

By Timmmmm on October 25, 2013

76 found this helpful


belva bb200

The following review is for BB2000D, which is a part of the bundle you are viewing.

I have this amp pushing to American bass xd 10's! Plenty of power it doesn't even get hot.

By jerm on February 5, 2014

76 found this helpful


Best deal on the net

The following review is for VCW152v3, which is a part of the bundle you are viewing.

I put on of these 15's in a ported box hooked up to a Hifonics 1000 watt RMS amp and WOW! I have used Sounstream, JL, FI Audio, Ascendant Audio, and a bunch others and this is right up at the top. You will not find a better deal anywhere, period.

By Kevin on February 7, 2013

68 found this helpful




CA-GRL14SG small

Kenwood eXcelon CA-GRL14SG

Direct Replacement Mesh Grilles for select 2014-2023 vehicles from Harley Davidson

$39.00

List price $60.00

HC1200 small

Kinetik HC1200 (KHC1200)

1200 Watts 12V High Current Car Audio Power Cell

(13)

$119.99

List price $329.99

No picture

NVX YSW154 (Open Box, Great)

1600W Peak (800W RMS) Y-Series 15" Dual 4-Ohm Car Subwoofer

$90.99

List price $167.99

CK2Z small

db Link CK2Z

2 Gauge Competition Series Amplifier Wiring Kit with ANL Fuse Holder (Amp Install Kit)

(13)

$42.99

List price $73.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Chevrolet C3500 Pickup

2000 Saab 9-5

2004 Saturn Vue

2021 Audi S4

2004 Pontiac GTO

1989 Suzuki Swift

2001 GMC Sierra 2500

2020 Ford Transit-350

1994 Jeep Cherokee

2011 Dodge Caliber

Vehicle
Store
Delete

1983 Kawasaki KL250

Vehicle
Store
Delete

2023 Can-Am Defender MAX XT

2014 Can-Am Commander 1000

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
