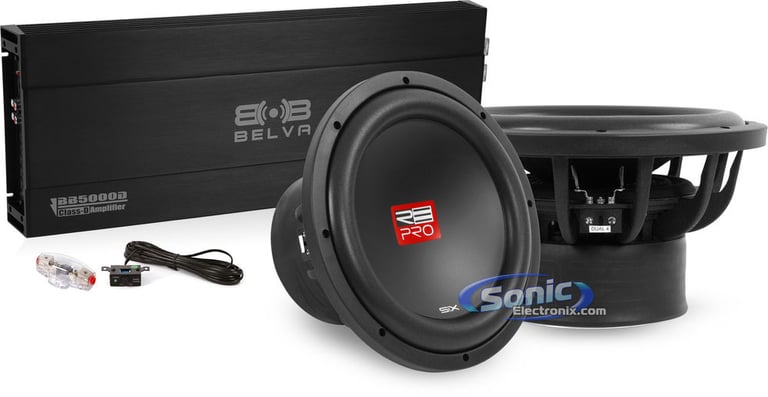

5000W RE Audio and Belva Bass Package

Dual 12" SX PRO 12D4 Subwoofers + Monoblock BB Series Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• Peak Power: 3000W
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Class D Car Amplifier

Learn more about the bb5000d_2-sxpro12d4

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

Product Highlights


• Peak Power: 3000W
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Class D Car Amplifier

Description


RE Audio brand icon

Authorized dealer

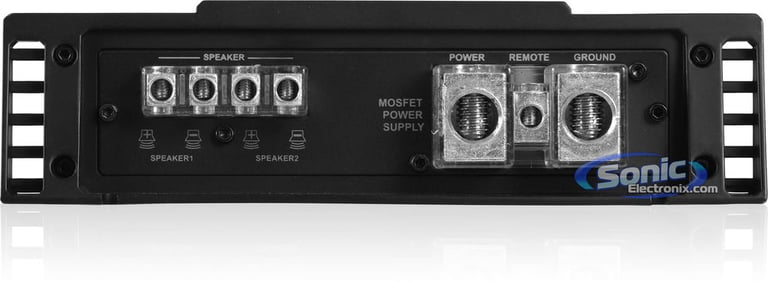

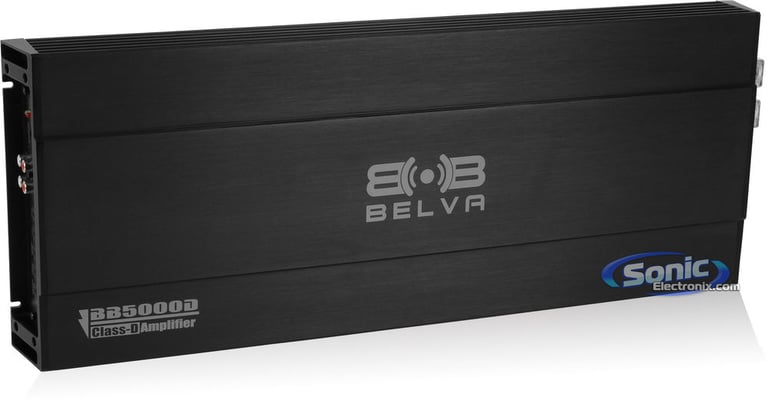

Belva BB5000D

5000W (3000W RMS) Class D Monoblock BB Series Car Amplifier
Quantity: 1

General Features:

  • BB Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1200 watts x 1 chan.
    • 2 ohm: 1800 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Max power output: 5000 watts
  • Pulse Width Modulated MOSFET power supply

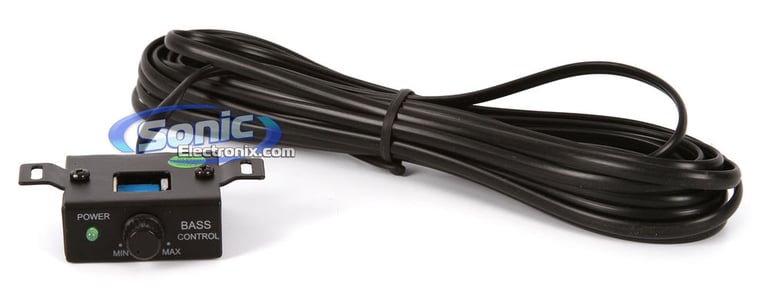

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)

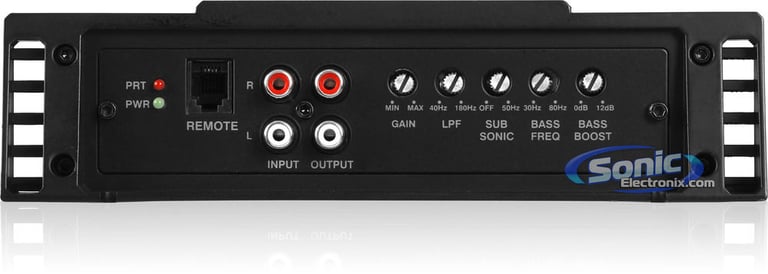

  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 100mV-6mV
  • Variable low-pass filter (40-180 Hz, 12 dB/octave)
  • Subsonic filter (12 dB variable from 20Hz - 50 Hz)
  • Frequency response: 20-30,000 Hz
  • 200-240 Amp in-line fuse required, see our selection of recommended fuse holders
  • Depending on operating impedance, 1/0 or 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

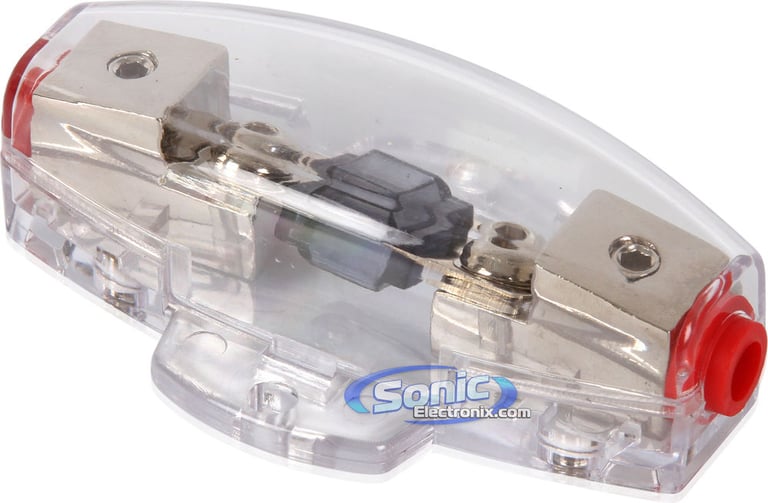

Note: Internal fuses are not included, so an external 200-240 Amp ANL Fuse is required to safely operate this amplifier.

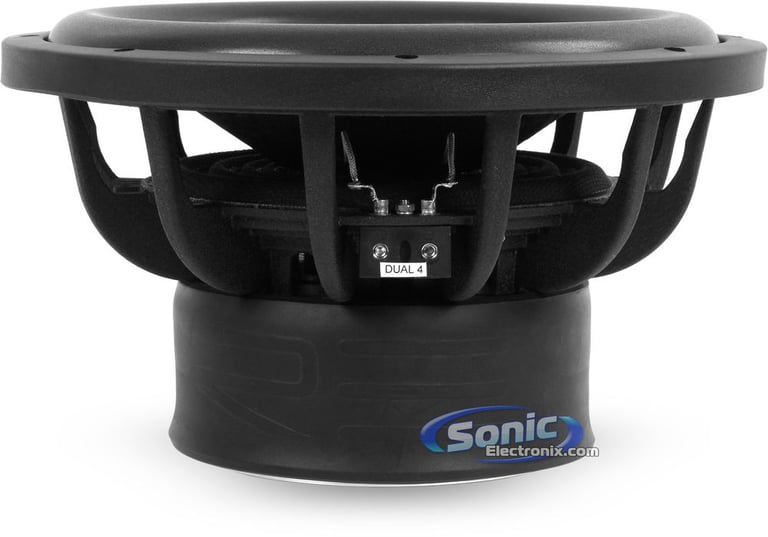

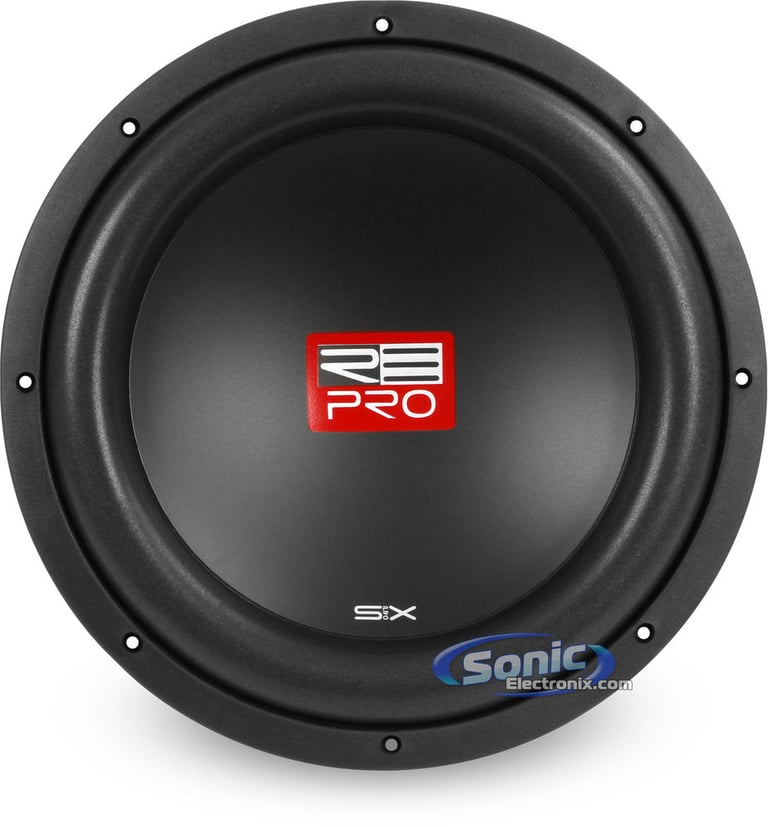

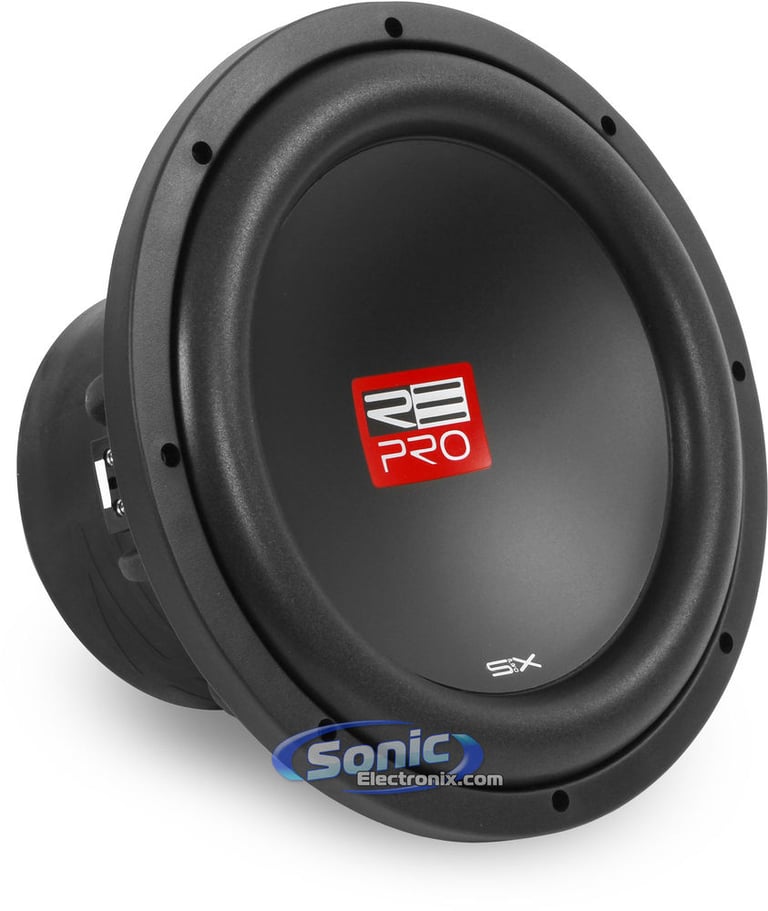

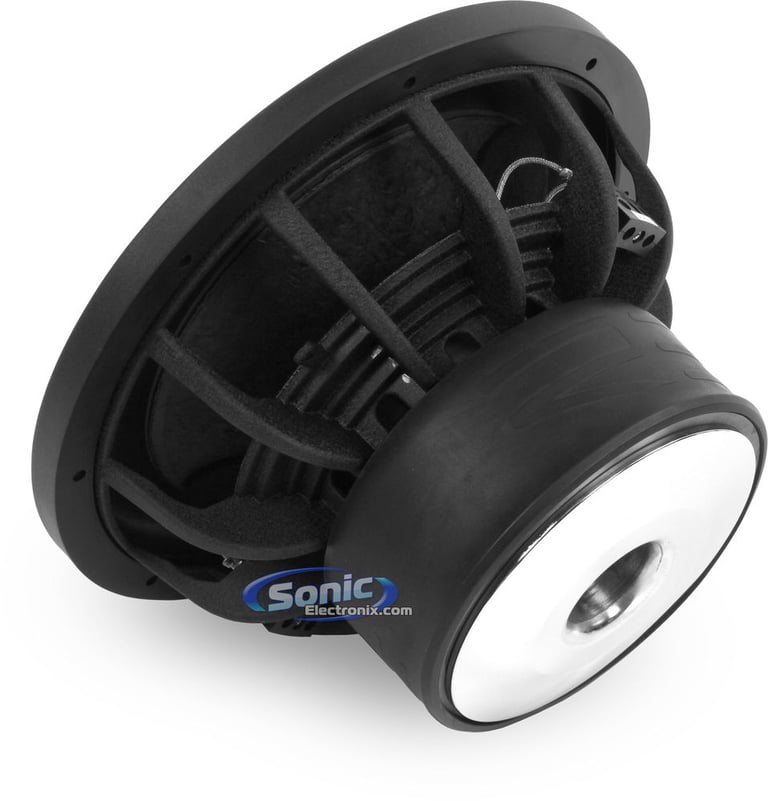

RE Audio SX PRO 12D4

1000W 12" SX Pro Series Dual 4 Ohm Subwoofer
Quantity: 2

General Features:

  • 12" Dual 4 Ohm SX Pro Series Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • Progressive spiders
  • Wrap-around rubber gasket
  • Cast aluminum basket
  • Tork-tite terminals
  • 3" 8-Layer aluminum voice coil
  • Triple-stack magnets
  • Resonance Frequency (Fs): 30.6 Hz
  • Top-mount depth: 6-3/4"
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1800 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
CEA-2031 Compliant
No
Subwoofer Specifications
Series
SX Pro Series
Number of Subwoofers
2
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
1000 watts
Woofer Surround
Rubatek Foam
Woofer Composition
Dual Composite 2-Piece
Minimum Ported Box Volume
1.5 cubic feet
Sensitivity
88.1 dB
Xmax (millimeters)
22 mm
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
11.2"
Recommended Enclosure Type
Ported / Vented
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BB5000D_2-SX PRO 12D4

Weight:

66.00lbs

Internal SKU:

bb5000d_2-sxpro12d4

Internal Product ID:

76094
