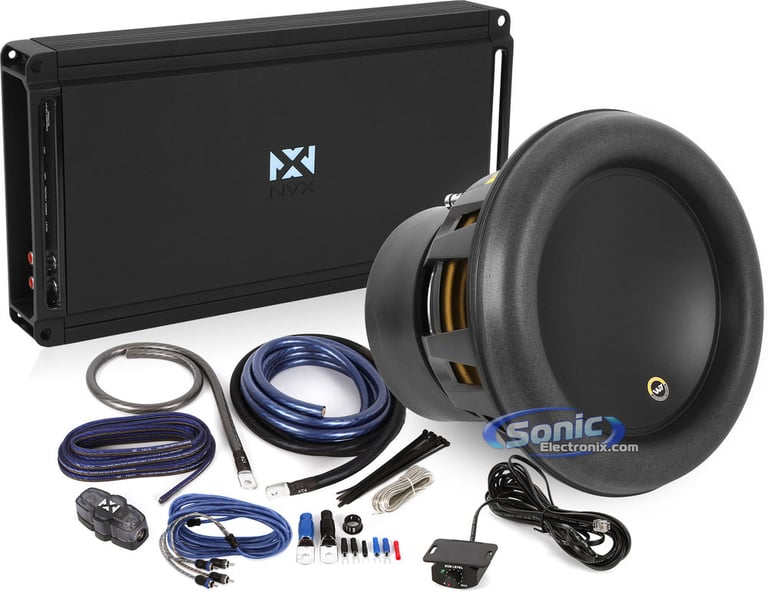

12" 12W7AE-3 JL Subwoofer + NVX 12000W RMS Amplifier + Premium Amp Kit

General Features:

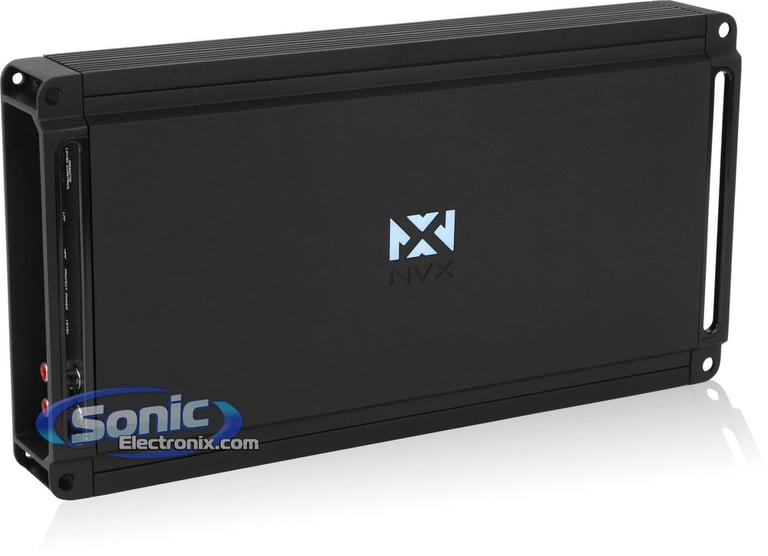

• Class D Monoblock Amplifier with Bass Remote
• CEA-2006 Compliant
• Peak Power Rating: 2400 Watts
• RMS Power Rating:
• 4 ohm: 500 watts x 1 chan.
• 2 ohm: 800 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• Sonic Electronix Certified Power Rating*:
• 4 ohm: 662 watts x 1 chan.
• 2 ohm: 1037 watts x 1 chan.
• 1 ohm: 1384 watts x 1 chan.
• Non-regulated efficient S.M.P.S power supply design
• Pulse Width Modulated MOSFET power supply

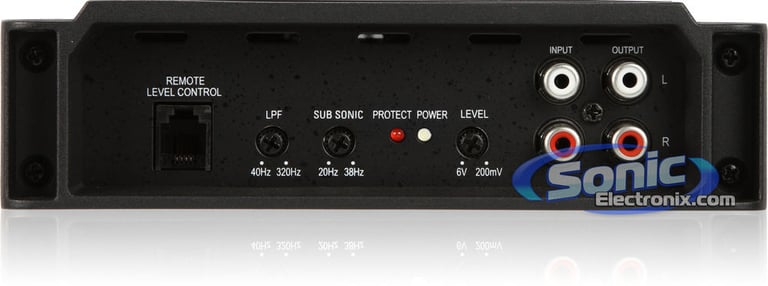

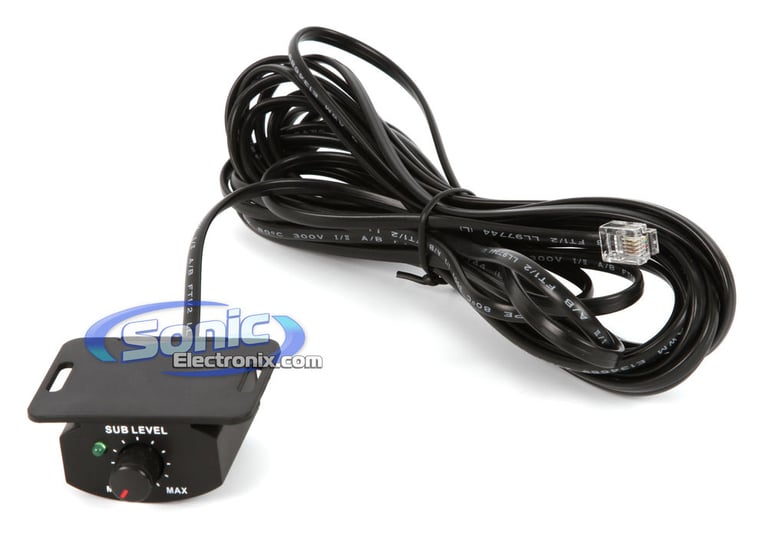

• Wired remote bass level control included
• LED power (green) and protect (red) indicators

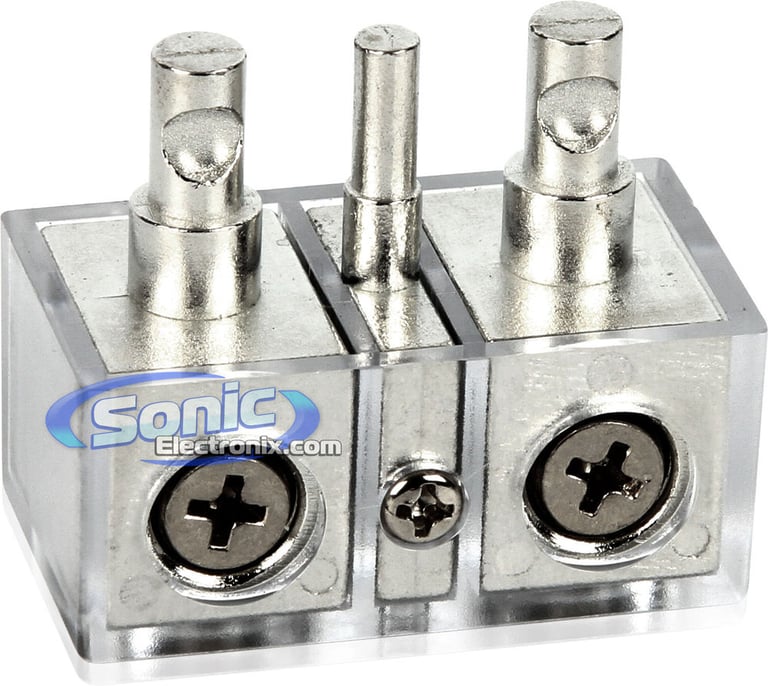

• Power and ground Gauge adapter included (Up to 0 gauge)
• Soft start turn-on
• Mono channel operation

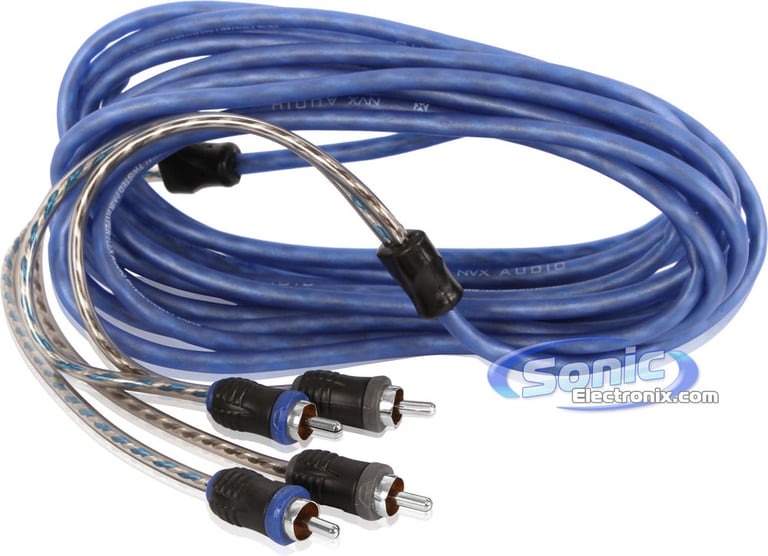

• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Variable subsonic filter: 20 - 38 Hz, 24 dB/octave
• Variable low-pass filter: 40 - 320 Hz, 24 dB/octave
• Signal to Noise Ratio: 111 dB
• Total Harmonic Distortion: <1.0%
• Damping factor: 200
• Input Sensitivity: 200mV-6V
• Frequency response: 20 - 200 Hz

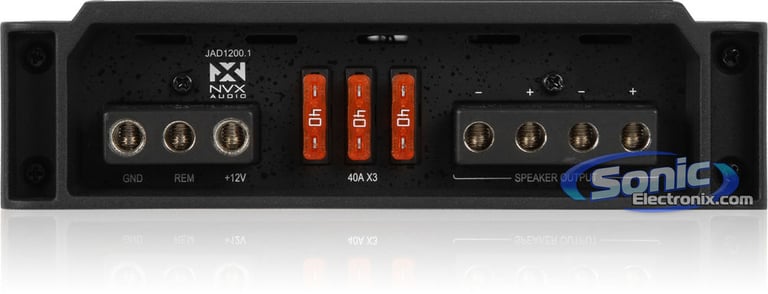

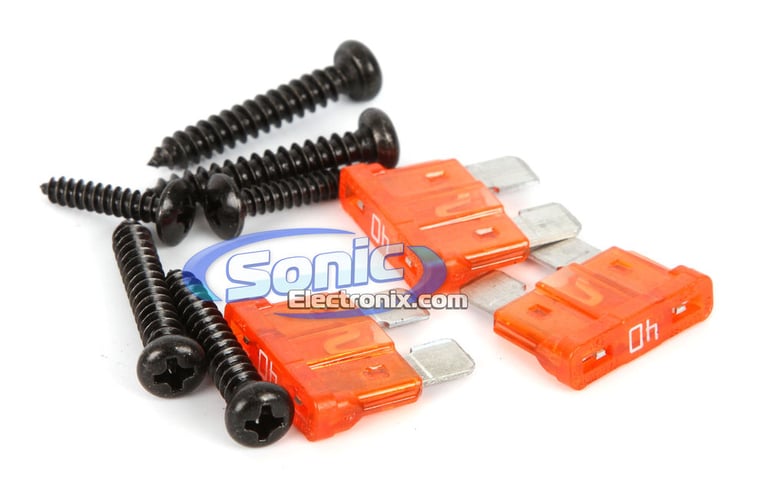

• Fuse Rating: 40A x 3
• Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter

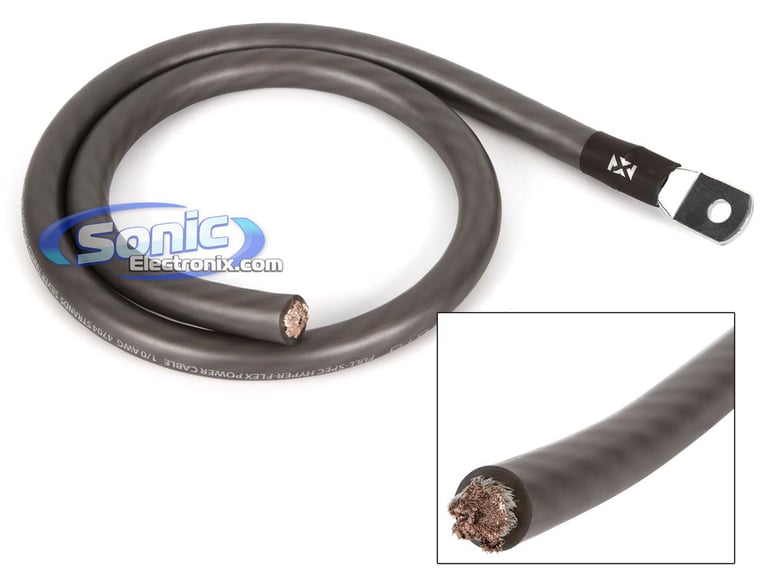

• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty**

Recommended Configurations:

• Two NVX VCW104 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
• One NVX VCW104 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
• One NVX VCW124 12" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
• One NVX VCW154 15" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
• Two NVX VSW124 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
• Two NVX NSW102V2 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS

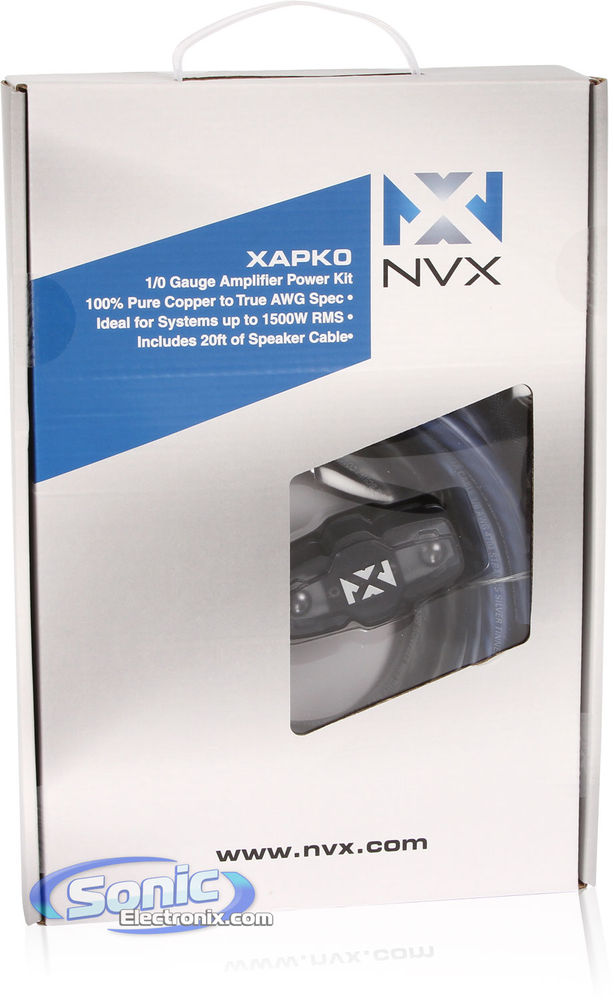

**Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT42, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Product Details:

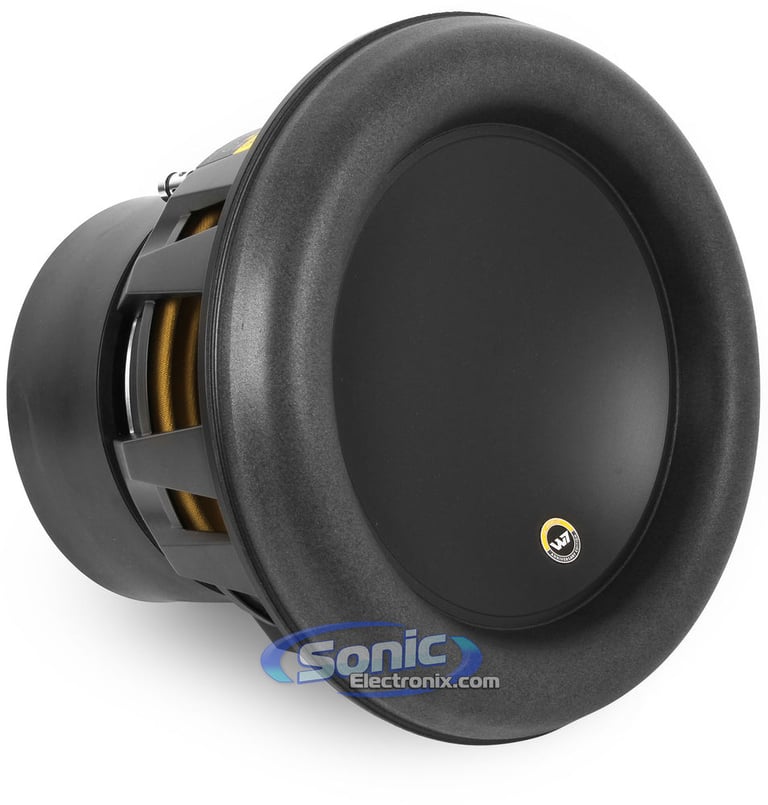

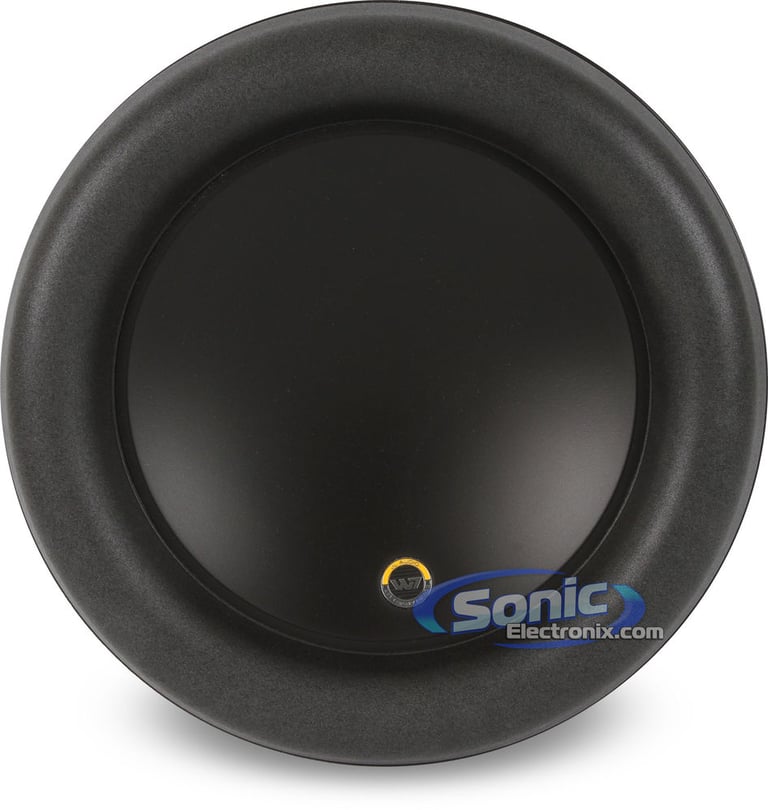

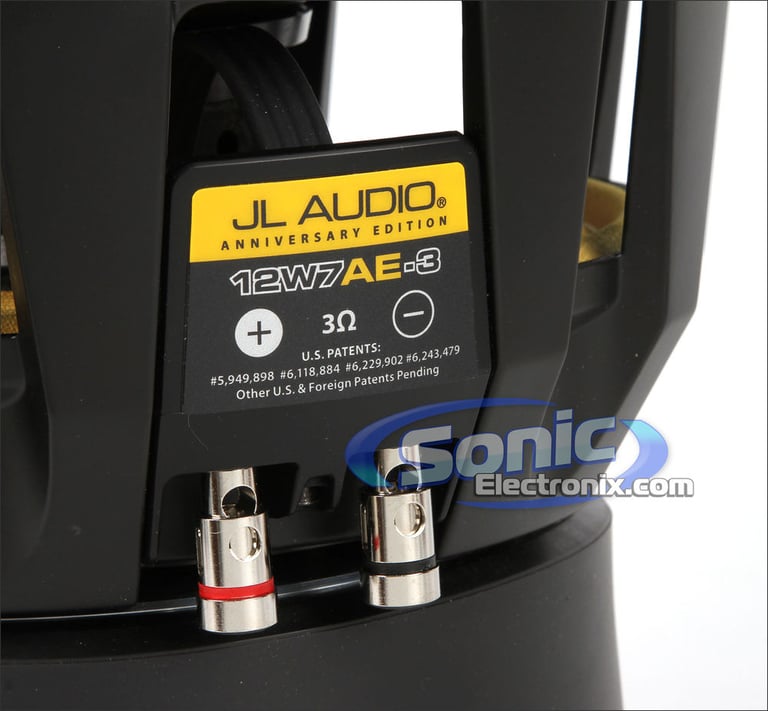

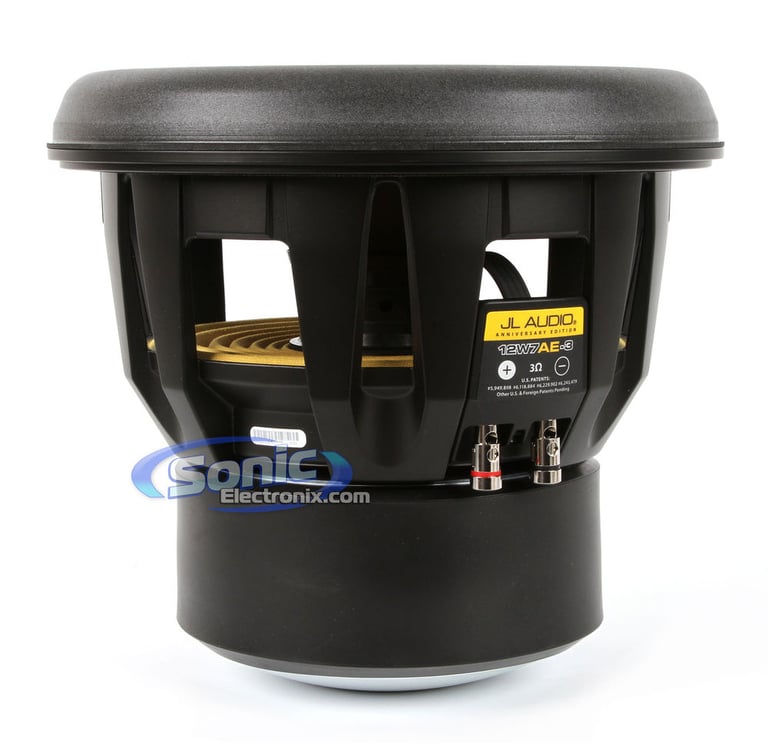

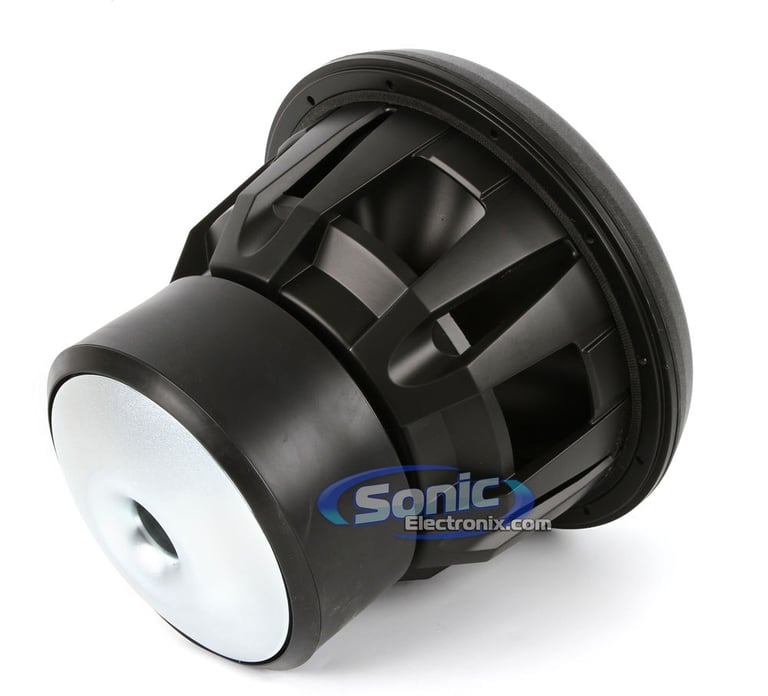

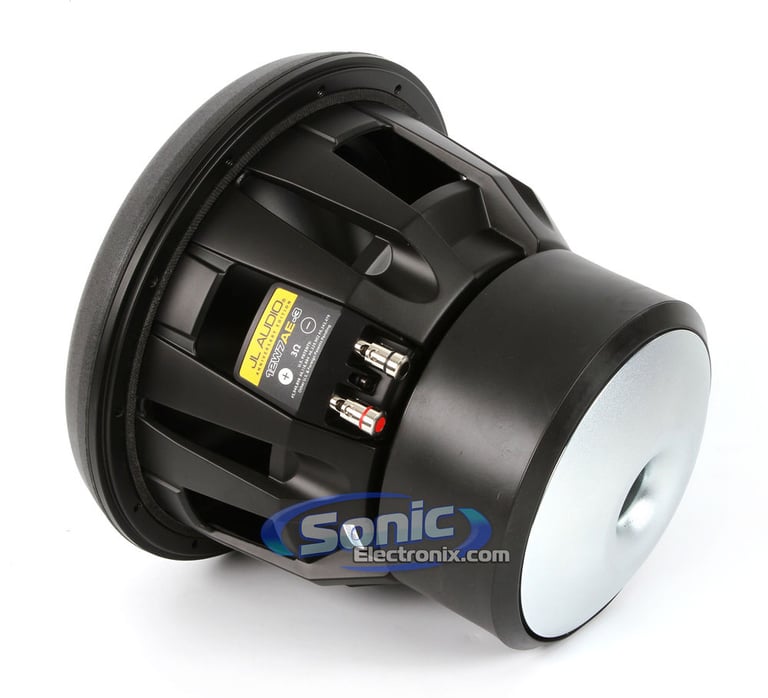

• 12" Single 3 ohm W7 Anniversary Edition Series Subwoofer
• Power Handling:
• RMS: 1000 watts
• Polypropylene Cone

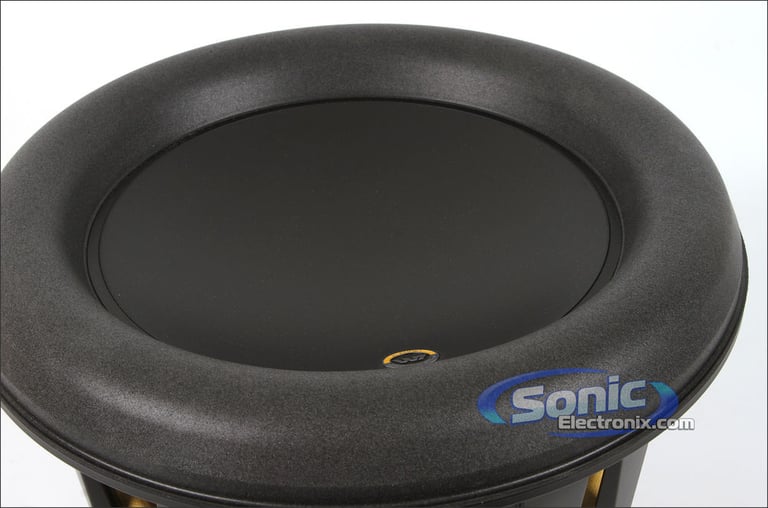

• Polyester Foam Surround
• Satin-black powder-coated baskets
• Bright anodized surround clamp ring
• Anniversary edition cone badge
• Anniversary edition terminal label
• 29 mm Xmax
• Single Stacked magnet motor structure
• Resonance Frequency (Fs): 27.2 Hz
• Sensitivity: 86.2 dB
• Recommended sealed box volume: 1.375 cubic feet
• Recommended ported box volume: 1.75 cubic feet
• Top-mount depth: 9.50"
• Cutout diameter: 10.50"
• Authorized Internet Dealer
• JL Audio SGR-12W7 optional protective subwoofer grille (sold separately)
• 1-year Manufacturer's Warranty



Priced Individually

JL Audio 12W7AE3 owner’s manual
