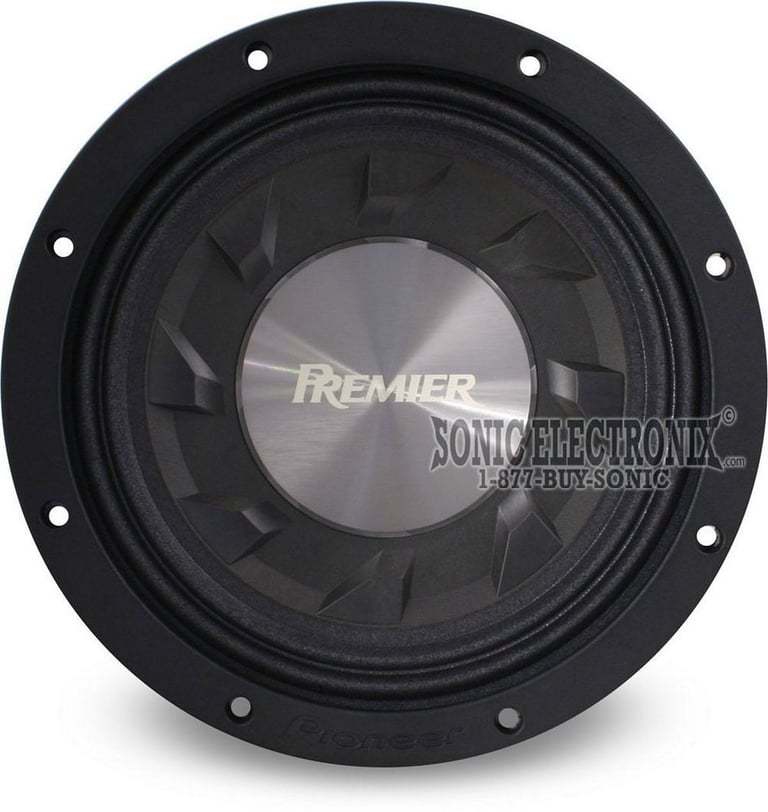

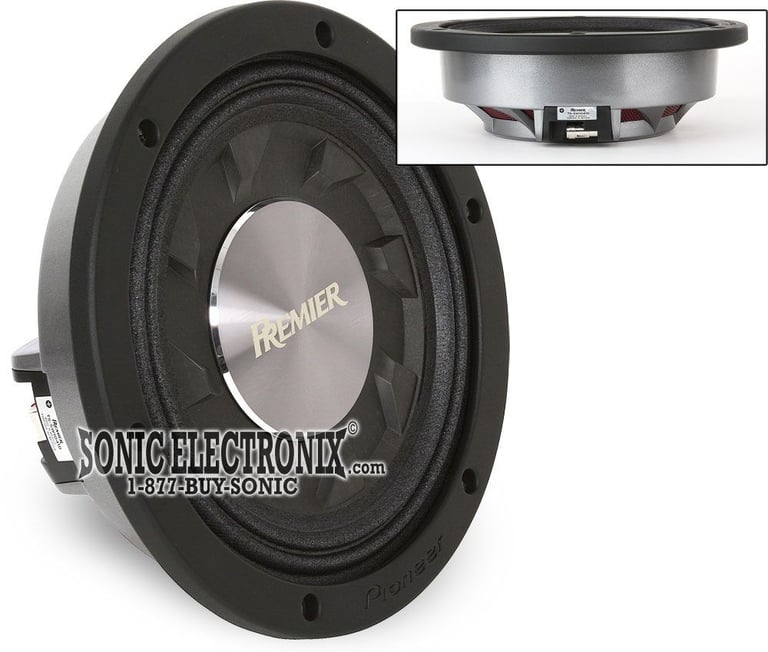

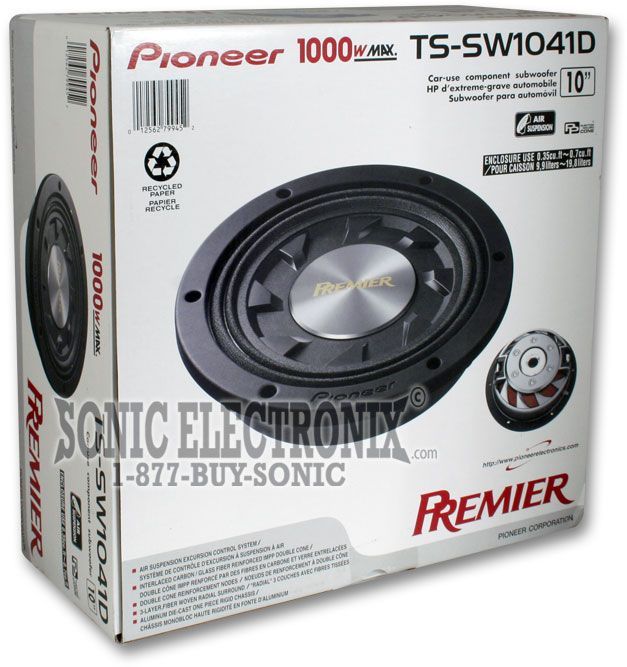

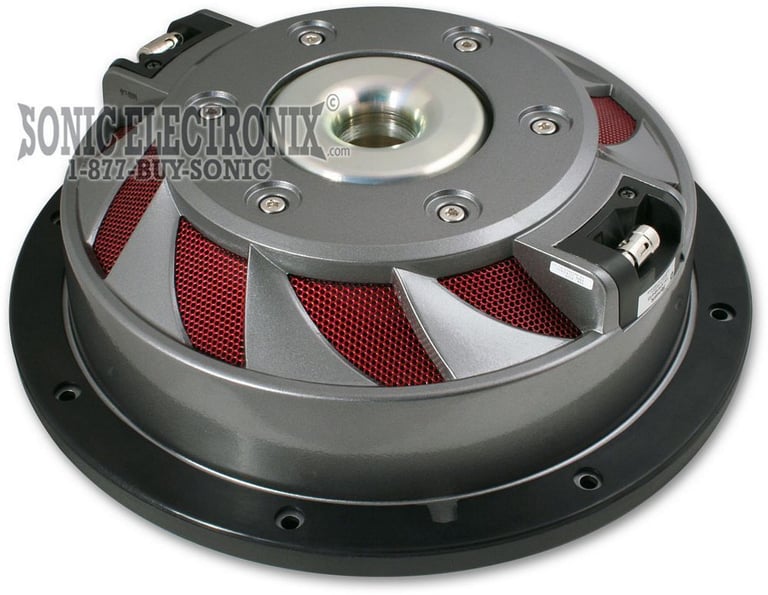

Pioneer Premier TS-SW1041D

Shallow-mount 10" Single 4 ohms Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

10" Single 4 Ohm Shallow Series Subwoofer • 1000W Max • 250W RMS • Injection molded polypropylene dual cone with interlaced carbon/glass fiber woofer • 3-Layer woven radial surround • Cast aluminum basket

Learn more about the tssw1041d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tssw1001s4 thumbnail

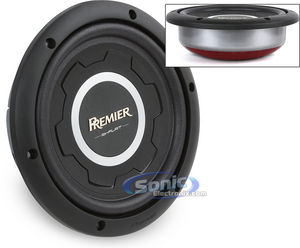

Pioneer Premier TS-SW1001S4

OUR PRICE: $99.99

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


10" Single 4 Ohm Shallow Series Subwoofer • 1000W Max • 250W RMS • Injection molded polypropylene dual cone with interlaced carbon/glass fiber woofer • 3-Layer woven radial surround • Cast aluminum basket

Description


Pioneer brand icon

Authorized dealer

  • 10" Single 4 Ohm Shallow Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Impedance: Single 4 ohm
  • Injection molded polypropylene dual cone with interlaced carbon/glass fiber woofer
  • 3-Layer woven radial surround
  • Air suspension control system
  • Projected pole yoke with vented pole
  • T-Pole yoke top plate
  • Cast aluminum basket
  • Spring compression wire terminals
  • Copper voice coil wire with glass cloth voice coil bobbin
  • Strontium magnet
  • Frequency response: 20-1000 Hz
  • Sensitivity: 87 dB
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-SW1001S4 thumbnail
(newest, current model)
Pioneer TS-SW1041D thumbnail
(previous model, replaced by Pioneer Premier TS-SW1001S4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer Premier TS-SW1041D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer Premier TS-SW1041D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-SW1041D Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-SW1041D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 1000 Hz
Sensitivity
87 dB
Woofer Composition
Injection Molded Polypropylene (IMPP) Carbon/Glass Fiber Composite
Woofer Surround
Woven Radial
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
3"

Item Details


Manufacturer:

Model Number:

TS-SW1041D

Weight:

13.00lbs

Internal SKU:

tssw1041d

Internal Product ID:

7684

Product and How-to Videos


Customer Ratings & Reviews


Pioneer Premier TS-SW1041D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Pioneer TS-Sw1041D Speakers

Great product. Great company to buy from. Great shipping/Great speakers. I couldn't be happier.

By Moe on February 5, 2009

5 found this helpful


loud as hell Get This Sub

i have just one of these subs in the pioneer enclosure that is recommended for this sub (get the box to if you want to get the best out of the sub) and it beats...it hits high bass and that deep bass...it will make you feel it in your chest

By Kyle B on March 2, 2009

3 found this helpful


powerfull subs

I put a set in my dodge quad cab because of the small air space the box has. I can not believe how hard they hit for such a small sub. they sound great and the bass is clean. no distortion at all.

By michael on August 26, 2008

3 found this helpful


oddly amazing

I bought 2 of these for my 04' standard cab ranger from sonix and I must say with an 800 watt amp and a custom built box im simply blown away, not only do i get enough bass to shake the drive through security camera(i can see it on the monitor inside) i also get all of my seat room which is awesome I would say if you have a standard cab pickup i would recommend gettin 2 of them oh and shipping was fast as usual cheap as hell too!!

By Noah on July 11, 2008

3 found this helpful


Great!

My friend just purchased two of these subs in the back of his truck and i have seen not many subs hit harder than his. Enough to have your chest feel it. I would defiantly recommend these, i am for sure getting some for my own.

By kyle on April 23, 2008

3 found this helpful


great product

was everything I wanted in a small package with big sound!!

By chris on April 3, 2015

2 found this helpful
