See all parts that fit your 2012 Journey

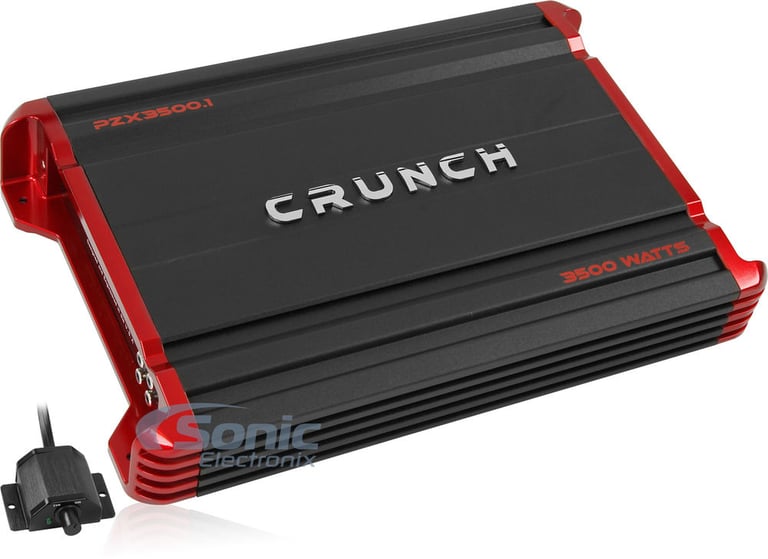

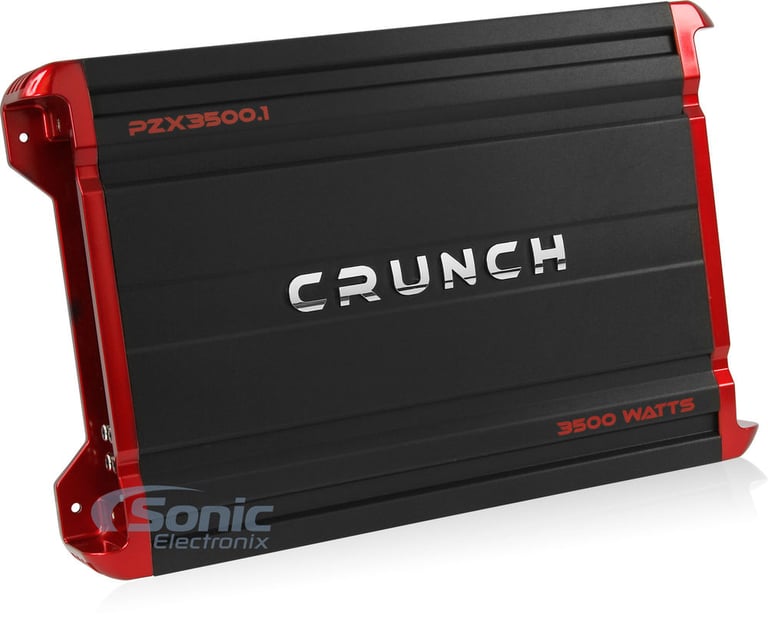

Crunch PZX3500.1

3500W Monoblock Powerzone Series Class AB Car Amplifier

Crunch
Shop all Crunch
Product videos
highlight-star-icon

• RMS Power: 875W x 1 @ 4 ohm, 1750W x 1 @ 2 ohm, 3500W x 1 @ 1 ohm
• Total Peak Power: 3500W
• Rugged MOSFET Pulse Width Modulation Power Supply

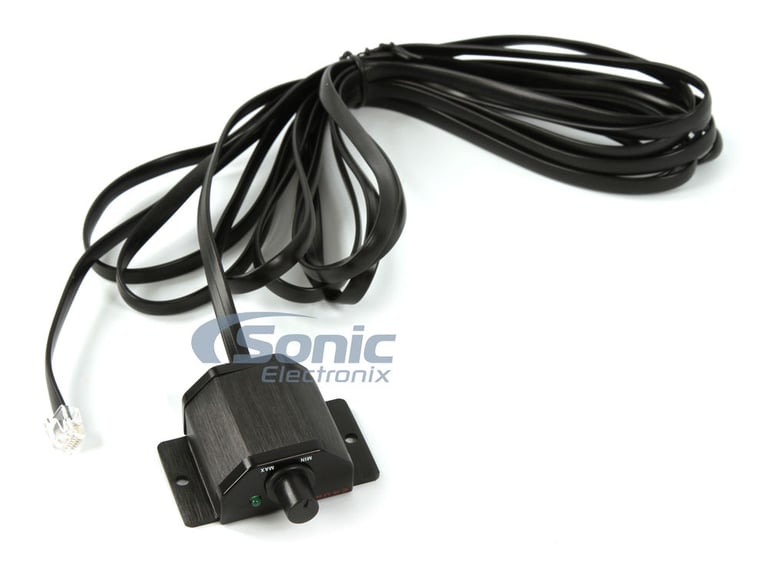

• Includes Wired Bass Boost Remote Control

Learn more about the pzx35001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

14
-18.19%

$44.99

List price $54.99

XSP692 main

NVX XSP692

900W Peak (300W RMS) 6x9" X-Series 2 Way Coaxial Car Speakers

15
-32.29%

$129.99

List price $191.99

Limited time!
THUNDER65 main

MTX Audio THUNDER65

120W RMS 6.5" Thunder Series 2 Way Coaxial 4-ohm Speakers

3
-43.55%

$95.96

List price $169.99

Pioneer MVH-S720BHS

Single DIN Digital Media Receiver with Bluetooth, HD Radio and SiriusXM Ready

4
-13.64%

$189.99

List price $220.00

Product Highlights


• RMS Power: 875W x 1 @ 4 ohm, 1750W x 1 @ 2 ohm, 3500W x 1 @ 1 ohm
• Total Peak Power: 3500W
• Rugged MOSFET Pulse Width Modulation Power Supply
• Includes Wired Bass Boost Remote Control

Description


Crunch brand icon

Authorized dealer

General Features:

  • 2-Channel Powerzone Series Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 875 watts x 1 chan.
    • 2 ohm: 1750 watts x 1 chan.
    • 1 ohm: 3500 watts x 1 chan.
  • Max power output: 3500 watts
  • Rugged MOSFET Pulse Width Modulation power supply

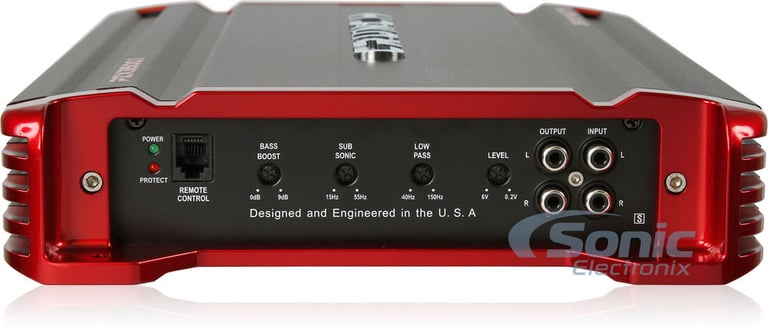

  • Amp protection with system diagnostics LEDs
  • Variable Bass Boost (0 to +9 dB bass boost at 50 Hz)
  • Wired bass boost remote control
  • 4/2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Daisy chain line outputs
  • Oversized speaker terminals
  • Subsonic Filter (15-55 Hz)
  • Variable low-pass filter (40-150 Hz)

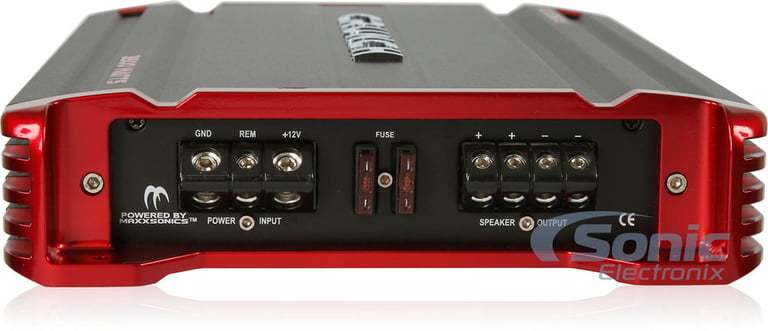

  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
875 watts x 1 channel
RMS Power @ 2 ohms
1750 watts x 1 channel
RMS Power @ 1 ohm
3500 watts x 1 channel
Amplifier Specifications
Series
PowerZone Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
3500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
Yes
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 150 Hz
Subsonic Filter
15 - 55 Hz
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PZX3500.1

Weight:

10.00lbs

Internal SKU:

pzx35001

Internal Product ID:

76949

Product and How-to Videos


Customer Ratings & Reviews


Crunch PZX3500.1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Big Boom....

I love this amp so far. I does what it was meant to do and it stays cool. I recommend a bigger battery at the very least if you install this amp. This thing sucks up some power and with the right sub setup, it sounds awesome.

By Jonathon on April 5, 2015

6 found this helpful


Sweetness

This amp supplies two 12" kicker cwd subs and does so hooked up parallel and sound awesome.

By kevin on March 30, 2015

5 found this helpful
