SPL DK-3400D R/B

(Refurbished) 3400W Max, Phantom Series Class D Monoblock Amplifier ( DK3400D )

SPL
Shop all SPL
Product videos
highlight-star-icon

SPL DK-3400D 3400W Max, Phantom Series Class D Monoblock Amplifier • 4 ohm: 1400 watts x 1 chan. • 2 ohm: 2100 watts x 1 chan. • 1 ohm: 2600 watts x 1 chan.

Learn more about the LS-dk3400d-RB

We apologize

This item has been discontinued

Product Highlights


SPL DK-3400D 3400W Max, Phantom Series Class D Monoblock Amplifier • 4 ohm: 1400 watts x 1 chan. • 2 ohm: 2100 watts x 1 chan. • 1 ohm: 2600 watts x 1 chan.

Description


SPL brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • SPL DK-3400D 3400W Max, Phantom Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1400 watts x 1 chan.
    • 2 ohm: 2100 watts x 1 chan.
    • 1 ohm: 2600 watts x 1 chan.
  • High Speed Digital Circuitry
  • Fully Regulated PWM Power Supply
  • Four Way Protection Circuit
  • 1 Ohm Stable
  • Bridging Synchronization
  • Variabe Low Pass Filter: 50 Hz - 150 Hz
  • Variable Subsonic Filter: 15 Hz - 40 Hz
  • Variable Subwoofer EQ @ 45 Hz
  • Phase Switch: 0 degrees to 180 degrees
  • System Disress Indicator
  • Mono Speaker Output Connector

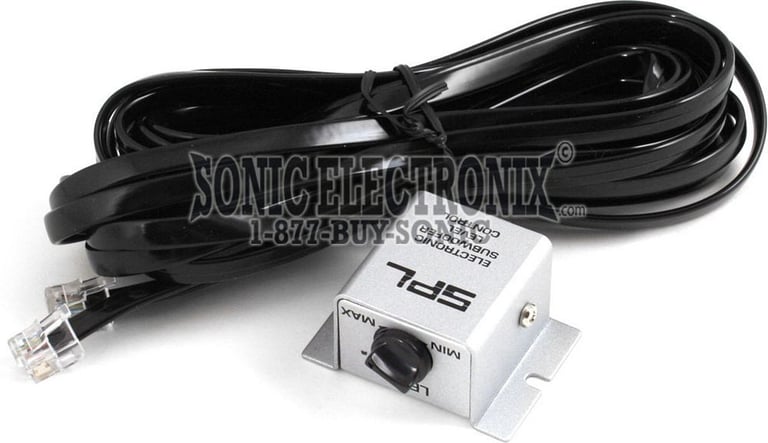

  • Remote Dash mount Low Level Gain Control with Cable
  • Nickel Plated Heavy Duty Power & Speaker Terminals
  • Dimensions: 18.3" L x 11.8" W x 3.4" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1400 watts x 1 channel
RMS Power @ 2 ohms
2100 watts x 1 channel
RMS Power @ 1 ohm
2600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3400 watts
Total RMS Power Output
2600 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.50%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 5

Item Details


Manufacturer:

SPL

Model Number:

DK-3400D-RB

Weight:

19.15lbs

Internal SKU:

LS-dk3400d-RB

Internal Product ID:

20618
