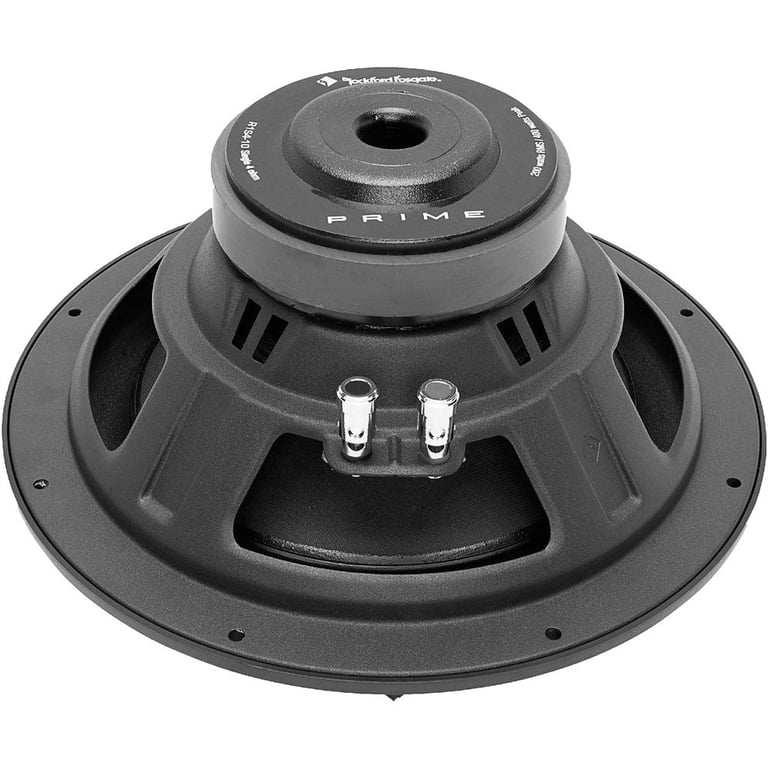

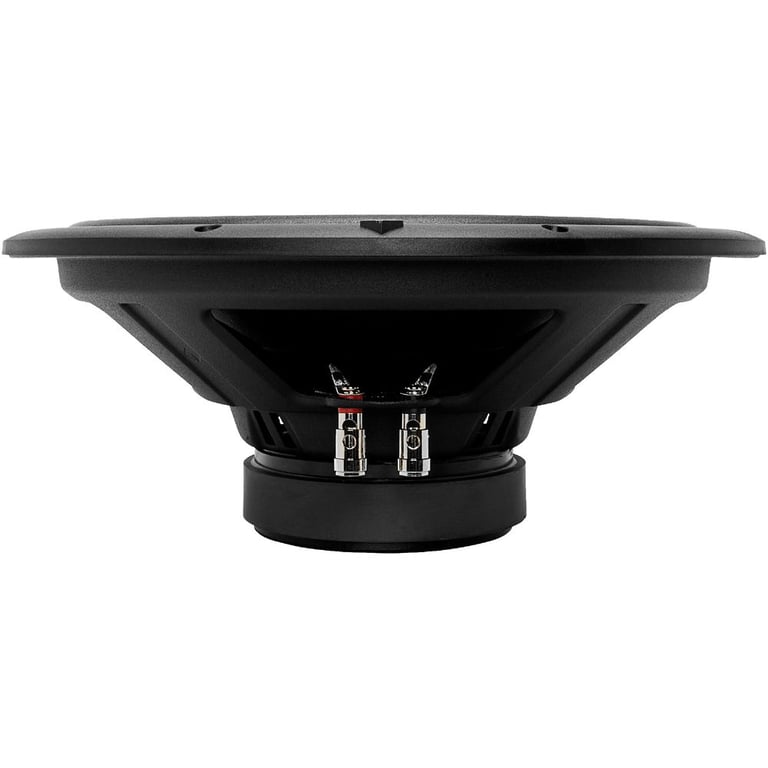

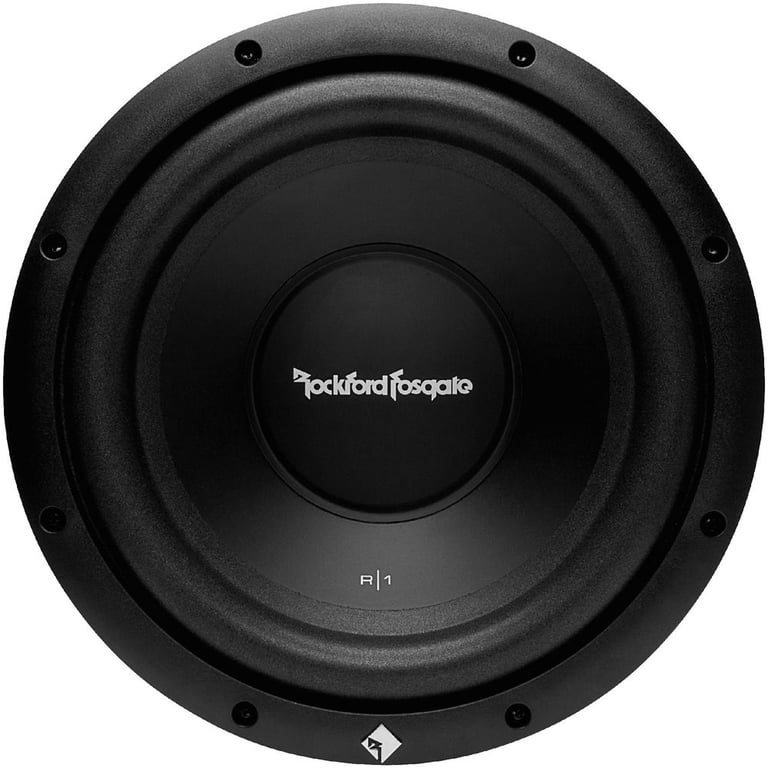

Rockford Fosgate Prime R1S4-10

10" Single 4-Ohm R1 Prime Series Subwoofer (200W RMS)

Product videos
highlight-star-icon

• 300W Max / 150W RMS
• Parabolic Polypropylene Woofer Cone
• 2" Single 4 Ohm Voice Coil Design
• Solid Stamped Steel Basket
• Anodized Aluminum Voice Coil Former
• CEA-2031 Compliant

Learn more about the r1s4-10

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

DMH-WT8000NEX main

Pioneer DMH-WT8000NEX

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, Alexa and Dolby Atmos Feature (SiriusXM and iDataLink Maestro Ready)

-18.75%

$1,299.99

List price $1600.00

MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

4

$158.00

List price $159.99

Product Highlights


• 300W Max / 150W RMS
• Parabolic Polypropylene Woofer Cone
• 2" Single 4 Ohm Voice Coil Design
• Solid Stamped Steel Basket
• Anodized Aluminum Voice Coil Former
• CEA-2031 Compliant

Description


Rockford Fosgate brand icon

Authorized dealer

General Features:

  • 10" Single 4-Ohm Prime Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Recommended power range: 100 - 200 watts RMS
  • CEA-2031 compliant
  • Verified with Klippel speaker certification
  • 12 AWG compression terminals
  • Fiber reinforced painted paper-pulp woofer cone
  • High temperature 2" voice coil
  • Laser-etched aluminum dustcap
  • High durability compressed foam surround
  • Proprietary powder coated stamped steel frame with spider cavity venting
  • Fatigue resistant poly-cotton spider with integral woven leads
  • High temperature copper voice coil with aluminum former
  • Integrated ABS decorative trim ring
  • Stamped mesh grille insert available: Rockford Fosgate R1G-10
  • Mounting Depth: 4.57"
  • Cutout Diameter: 9.13"
  • Magnet Weight: 51.57oz
  • Frequency Response: 24 - 250 Hz
  • Xmax: 5.8mm
  • Sensitivity: 86 dB @ 1 watt / 1 meter
  • Optimized for sealed enclosures
  • Recommended Sealed Enclosure: 0.50 - 0.85ft³
  • Matching Amplifiers: (one subwoofer)
  • Matching Amplifier: (two subwoofers)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Check out the Rockford Fosgate R1S4 Series Owner's Manual

Tips for Installing the R1S4-10 Subwoofer


Product history:

Rockford Fosgate R1S4-10 thumbnail
(newest, current model)
Rockford Fosgate R1S410 thumbnail
(previous model, replaced by Rockford Fosgate Prime R1S4-10)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Prime R1S4-10 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Prime R1S4-10 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Prime R1S4-10 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Prime R1S4-10 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Prime R1 Series
Subwoofer Size
10"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
24 - 250 Hz
Sensitivity
86 dB
Xmax (millimeters)
5.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Magnet Structure
Single Stacked
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Optimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
0.70 cubic feet
Top-Mount Depth (Mounting Depth)
4.57"
Cutout Diameter
9.13"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24 Hz
Equivalent Compliance (Vas)
87.7 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.42
Electrical Resistance of Voice Coil (Re)
3.35 ohm
Mechanical Q Value (Qms)
4.39
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R1S4-10

Weight:

7.50lbs

Internal SKU:

r1s4-10

Internal Product ID:

78109
