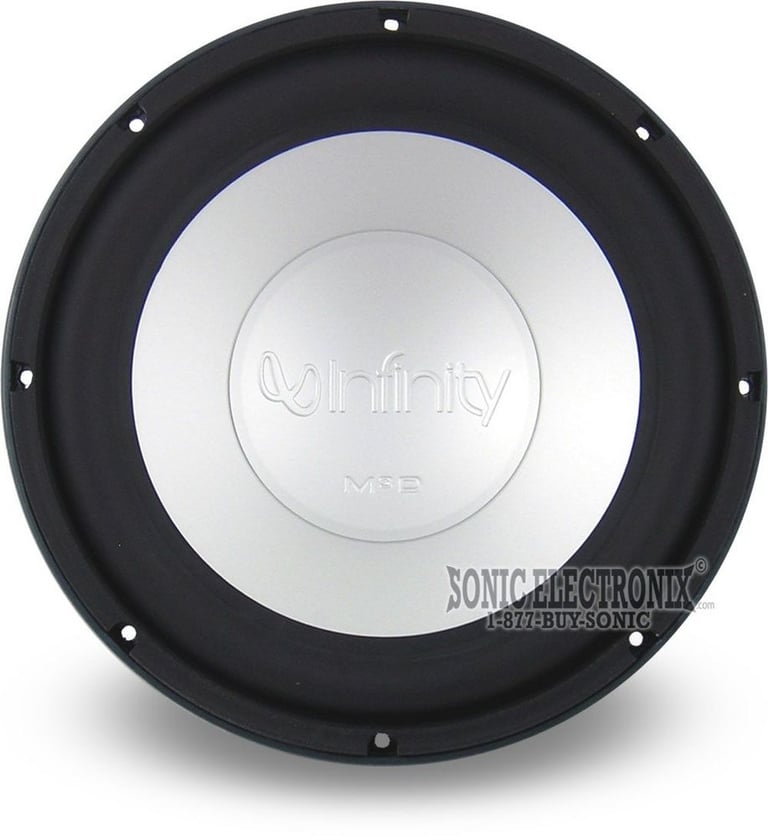

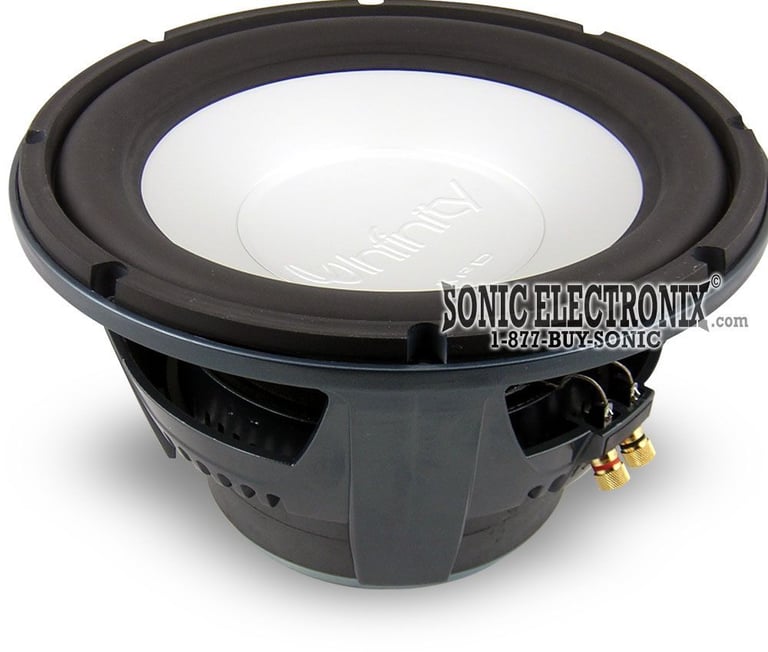

Infinity Kappa Perfect 12 VQ

12" Single 4 ohms Kappa Perfect Subwoofer (12VQ)

Infinity
Shop all Infinity
Product videos
highlight-star-icon

12" Single 4 Ohm Kappa Perfect Series Subwoofer • 1600W Max • 400W RMS • Magnesium Metal Matrix (M3D) woofer cone • Nitrile-butylene-rubber one-piece surround and gasket • Cast-aluminum basket

Learn more about the perfect12vq

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

R168X2 main

Rockford Fosgate Prime R168X2

220W Peak (110W RMS) 6x8" Prime Series 2 Way Coaxial 4-ohm Speakers

16
Stadium 862F main

JBL Stadium 862F

600W Peak (200W RMS) 6x8" Stadium Series 2-way Coaxial 3-ohm Speakers

5
-16.67%

$249.95

List price $299.95

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Limited time!

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

Product Highlights


12" Single 4 Ohm Kappa Perfect Series Subwoofer • 1600W Max • 400W RMS • Magnesium Metal Matrix (M3D) woofer cone • Nitrile-butylene-rubber one-piece surround and gasket • Cast-aluminum basket

Description


Infinity brand icon

Authorized dealer

  • 12" Single 4 Ohm Kappa Perfect Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 400 watts
  • Impedance: Single 4 ohm
  • Magnesium Metal Matrix (M3D) Woofer cone with curvilinear design
  • Large-roll nitrile-butylene rubber surround

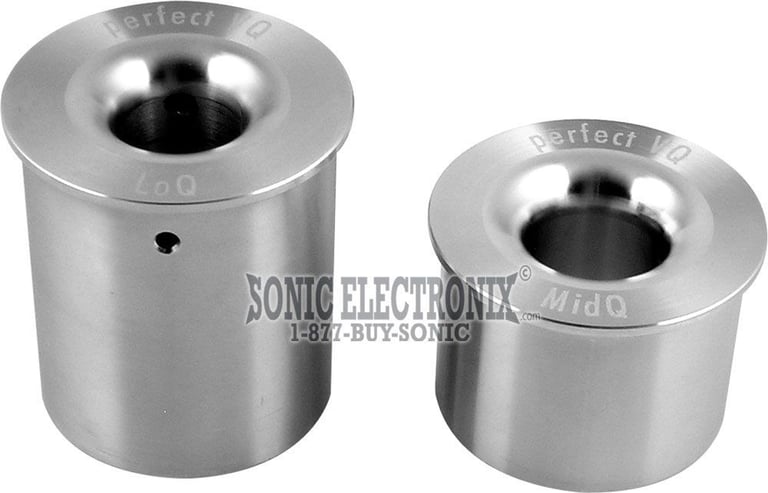

  • Bumped and vented pole pieces allow for 3 different motor strengths and performances
  • Cast-aluminum basket
  • Tinsel leads integrated into the Spider
  • Integrated front gasket
  • Proprietary die-cast aluminum basket
  • Single 3", 4-Ohm Voice coil
  • Frequency response: 23-400 Hz
  • Sensitivity: 89 dB
  • 1-year SonicElectronix.com warranty

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Kappa Perfect 12 VQ Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Infinity Kappa Perfect 12 VQ Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Kappa Perfect 12 VQ Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Infinity Kappa Perfect 12 VQ Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1600 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
23 - 400 Hz
Sensitivity
89 dB
Xmax (millimeters)
16.75 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Magnesium
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.4 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
3.0 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
10-7/8"
Shallow Mount Installation
No

Item Details


Manufacturer:

Model Number:

PERFECT12VQ

Weight:

34.00lbs

Internal SKU:

perfect12vq

Internal Product ID:

7817

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Infinity Kappa Perfect 12 VQ thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Excellent sub period...

This is a great subwoofer. I have two on a 1.2 ft. sealed enclosure. I'm only feeding them 600 watts RMS with an Alpine amp(MRP-M650 mono) wired the subs at 2 ohms. From rock to hip hop to jazz to salsa pop you name it. This subs delivers. The bass is accurate and sq is great too. If you come across one. Buy it and you will not be disappointed.

By Sam on March 3, 2011

11 found this helpful


Great Product

Running two of these in a sealed .75 cu/ft/each enclosure custom built for a 2005 Impreza on a Infinity KAPPA ONE amplifier.

Bought these with the intention of listening to rock music requiring sound quality rather than just power. My aim was to put together something that would put out more power then I wanted so I would never need to drive them hard.

All of my expectations were met with these subs. They give accurate, solid and deep sound that works well with the rest of my system.

The product was well packaged and comes with a complete manual.

By John on May 1, 2009

9 found this helpful


Blew my expectations away

I started with 2 infinity kappa 10's in a slot ported box in the trunk of my Chrysler 300M. Due to the ultra padded rear seats; it takes a lot of watts and cone area to get the sound and SPL to the cab of the car. I wanted to get the usage of my trunk and flow through with the seats down should i ever transport anything long, so I built a .85 cu ft sealed fiberglass box to fit behind the right tail light. I inserted the low Q insert into this 12" sub and BAM, sounds better AND louder than the 2 10's. Completely blew me away.

By William on April 2, 2009

8 found this helpful


Handle the power, sounds great.

I bought a used one, but it may be even better new. Mine is in a 1.25cu ft sealed enclosure. I think this thing sounds great, follows those close beats very accurately and seems to merge well into my sound system and not sound overbearing or boomy. I originally tested it with a Crown MT-1200 which puts out 1200wRMS and it didn't distort until about 80% volume on bass heavy material which, in car, would probably be hurting your ears.

Right now I have it hooked up to a USAmps USA300 which feeds it about 600wRMS, which seems a good match.

The cone is REALLY stiff... it's literally a formed sheet of metal which means you won't hear any cone breakup; the only distortion you'll get is due to reaching the mechanical excursion limits, which is HUGE at 17mm, meaning peak-to-peak the cone will move almost 1.5"!!

Another good thing about this sub is it's ability to adapt to the enclosure and the instructions are very good about suggesting enclosures and Q inserts. Unfortunately, it may be difficult to fit this into a shallow box since it needs about 7" of depth.

The only bad thing? It's kind of expensive. But the technology and craftsmanship give an idea of why.

By Ryan on October 20, 2006

8 found this helpful


Buy for SQ

These subs are pretty good but they dont hit lows that well but the highs and sound quality are amazing. I bought these subs when they were on sale and had them for a while until i sold them to a buddy and now he has them in his pontiac. They sound way better in that then they do in my blazer. They sound a lot louder but they still dont hit all the lows.

Good by for SQ, they last long, look good.

By ross on October 19, 2006

7 found this helpful


Great Sub

I have been using this sub for awhile now in a 1.0 sealed box and its running great. The construction is great. I wish I bought mine here becuase I overpaid for it at C**********.

Wouldnt hesitate to recommend this sub to anyone!

By Zachary on October 20, 2006

5 found this helpful


the perfect sub

the perfect sub is the kappa perfect...hence the name...this sub is ultra loud, deep, an super clear for being as loud as it is....if your looking for a sub get this one ..no get two of these...so people a couple blocks away know your comin.

By Sam on December 14, 2006
