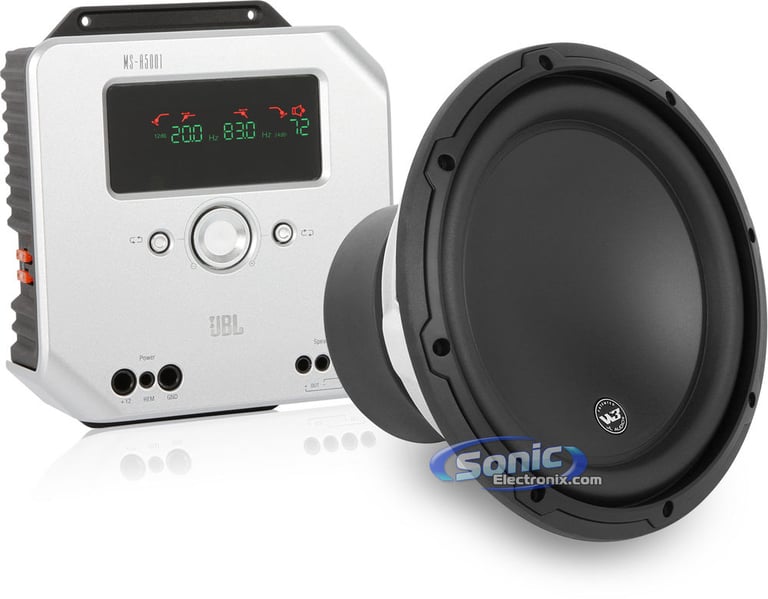

Premium JL Audio and JBL Bass Package

500W JL Audio Subwoofer + JBL MS Series Amplifier

JBL
Shop all JBL
Product videos
highlight-star-icon

• RMS: 500 x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• DSP (Digital Signal Processing)
• Sophisticated Crossover Functions and Selectable Crossover Slopes
• Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H• 600W Peak
• 500W RMS

Learn more about the msa5001_10w3v32

We apologize

This item has been discontinued


Loading...
BE7ACP.WX main

Boss Elite BE7ACP.WX

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

DPX395MBT main

Kenwood eXcelon DPX395MBT

Double DIN Shallow Chassis Digital Media Receiver with Bluetooth and Built-in Alexa

6
-19.52%

$169.00

List price $210.00

Product Highlights


• RMS: 500 x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• DSP (Digital Signal Processing)
• Sophisticated Crossover Functions and Selectable Crossover Slopes
• Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H• 600W Peak
• 500W RMS

Description


JBL brand icon

Authorized dealer

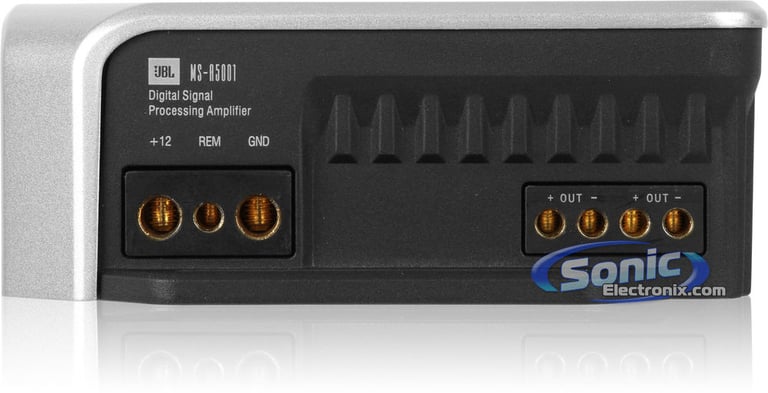

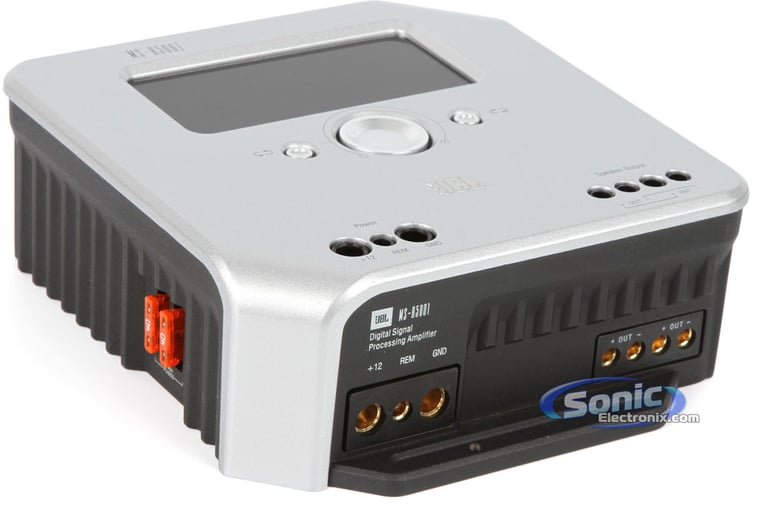

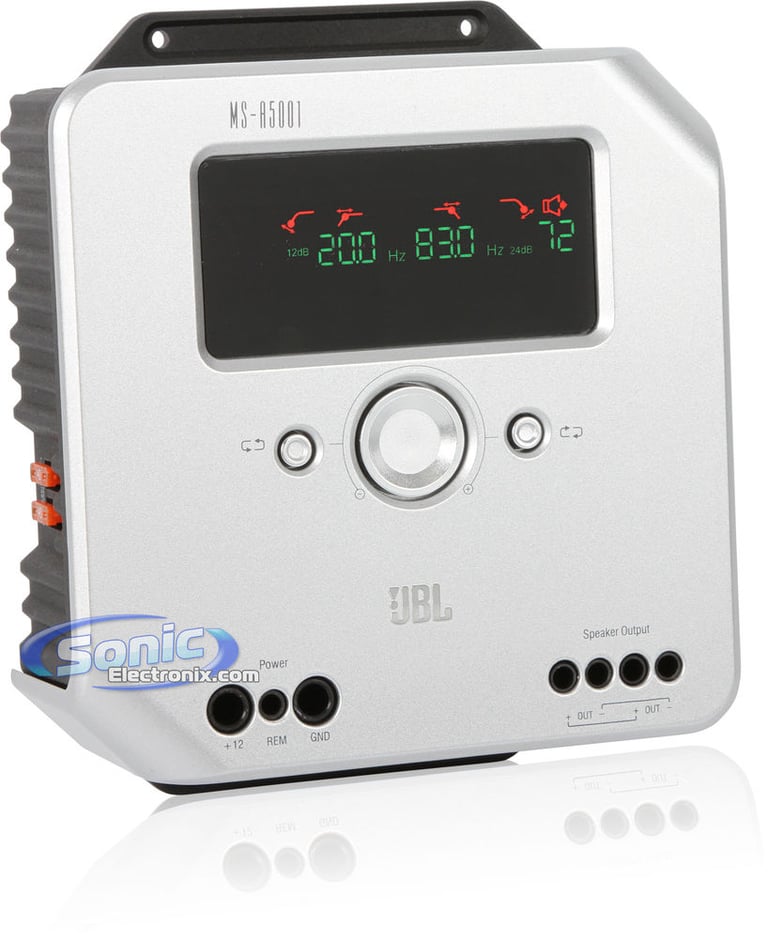

JBL MS-A5001

Tested at 750W RMS on our Amp Dyno! (Rated 500W RMS by JBL), 1-Channel Monoblock Class D Car Amplifier with Digital Input Mixer and Graphical Status Display
Quantity: 1

General Features

  • MS Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 468 watts x 1 chan.
    • 2 ohm: 692 watts x 1 chan.
  • CEA-2006 compliant amplifier
  • Digital signal processing amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wireless Remote bass level input (JBL MS-WBC remote level control sold separately)
  • Built-in display shows tone and gain settings
  • Soft Start Turn-on
  • Mono channel operation
  • "Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Digital input-mixer control eliminates the need for Y adapters
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • CD for system setup included
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity: 100mV - 20V
  • Signal to Noise Ratio: 80 dB
  • Frequency Response: 20 - 270 Hz
  • Selectable crossover slopes: 6 dB/oct, 12 dB/oct, 24 dB/oct
  • Variable low-pass filter: 97 points from 20 - 140 Hz
  • Variable high-pass filter: 97 points from 20 - 140 Hz
  • Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Recommended Configurations:

  • Two JBL GTO1214 12" Subwoofers wired to a 2ohm load for 692W @ 13.42v - 826W @ 13.28v RMS
  • One JBL W12GTi-MkII 12" Subwoofer wired to a 3ohm load for 500W - 725W RMS
  • One JBL GT5-2402BR Dual 12" Subwoofer/Enclosure wired to a 2ohm load for 692W @ 13.42v - 826W @ 13.28v RMS
  • Two Infinity Kappa 120.9W 12" Subwoofers wired to a 2ohm load for 692W @ 13.42v - 826W @ 13.28v RMS

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

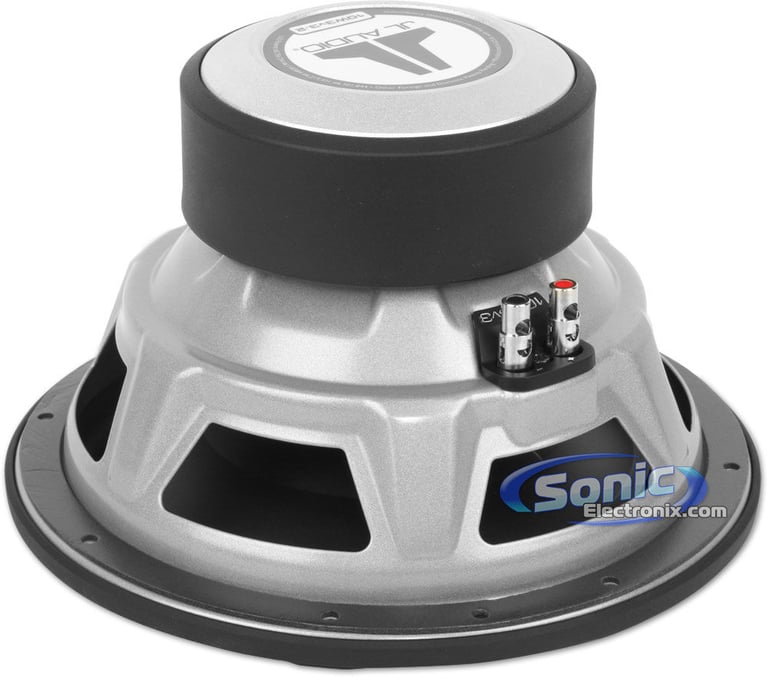

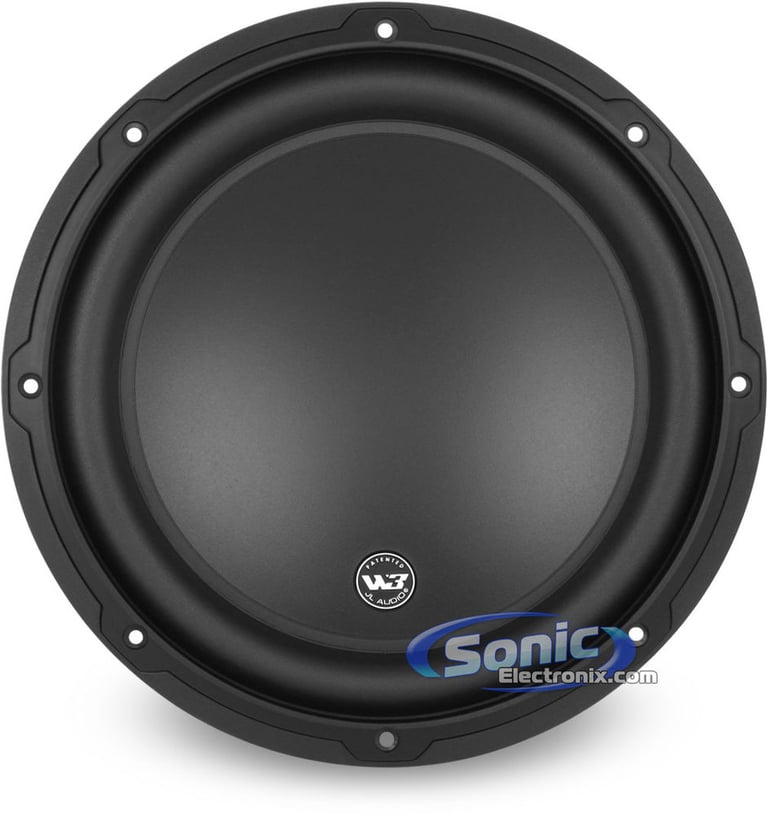

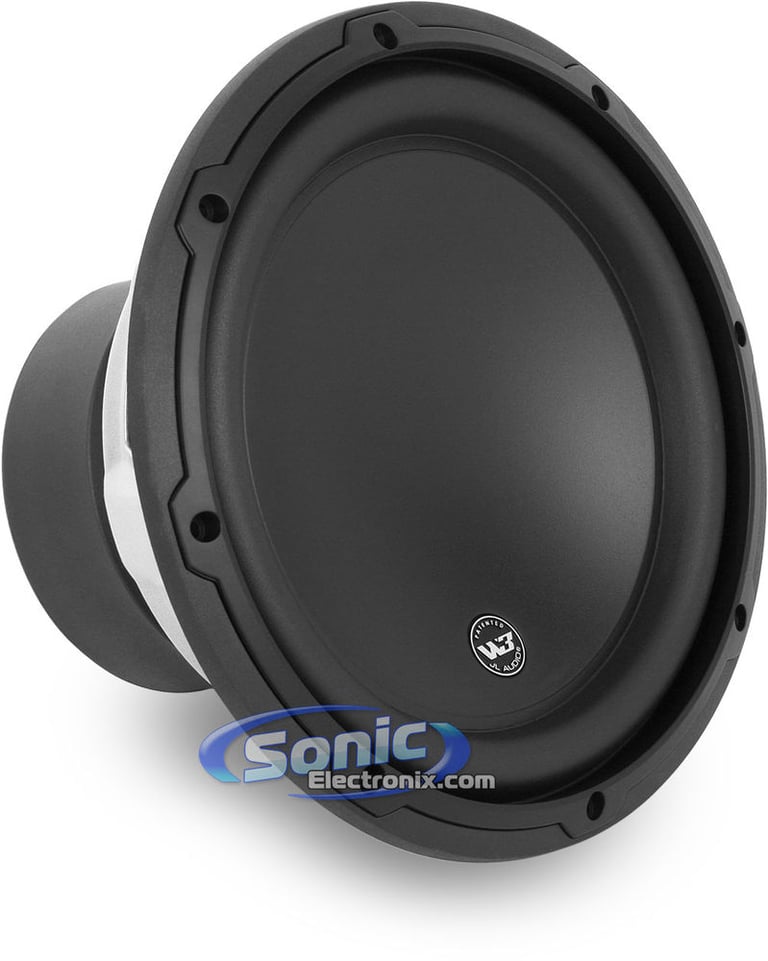

JL Audio 10W3v3-2

500W RMS 10" W3v3 Series Single 2-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Single 2 ohm W3 v3 Series Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Mineral-Filled Polypropylene Cone
  • Nitrile Butadiene Rubber NBR Surround
  • Stamped steel basket
  • Customization trim ring
  • Floating-cone attach method
  • Highly linear, DMA-Optimized motor system
  • Insert molded suspension, coil and terminal sub-assembly
  • Vented reinforcement collar (VRC)
  • Elevated frame cooling design
  • Nickel plated brass spring terminals
  • Engineered lead-wire design and attachments
  • 14 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 32.97 Hz
  • Sensitivity: 85.37 dB
  • Recommended sealed box volume: 0.625 cubic feet
  • Recommended ported box volume: 1.25 cubic feet
  • Top-mount depth: 5.93"
  • Cutout diameter: 9.0625"
  • Authorized Internet Dealer
  • JL Audio SGRU-10 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually
