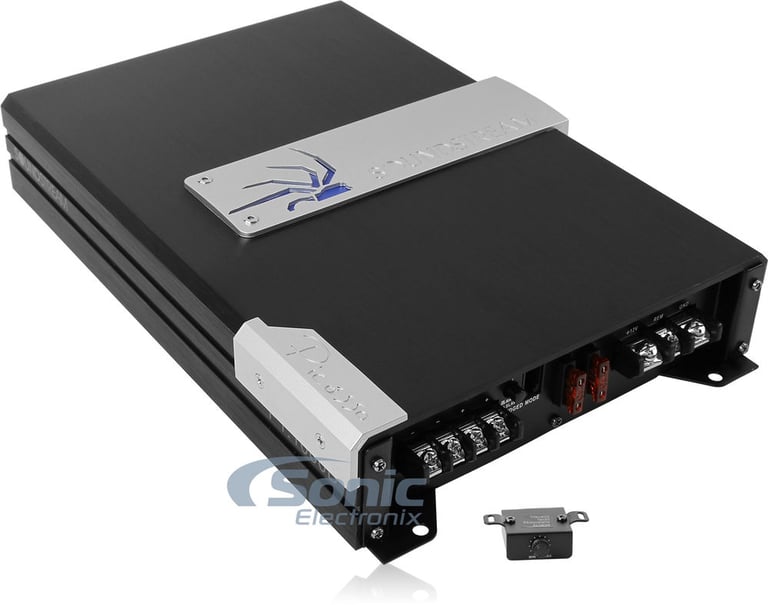

Soundstream P1.1000D

1000W RMS Monoblock Picasso Series Class D Amplifier

Product videos
highlight-star-icon

• RMS Power: 400W x 1 @ 4 ohm, 750W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Dash Mount Remote Bass Level Control Included
• Dimensions: 8.25"W x 11.75"L x 2"H

Learn more about the p11000d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

pa13500d thumbnail

Soundstream PA1.3500D

OUR PRICE: $159.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Product Highlights


• RMS Power: 400W x 1 @ 4 ohm, 750W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Dash Mount Remote Bass Level Control Included
• Dimensions: 8.25"W x 11.75"L x 2"H

Description


Soundstream brand icon

Authorized dealer

General Features:

  • Picasso Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Heavy duty aluminum heatsink
  • Soft turn-on circuit
  • Thermal and speaker short protection circuitry

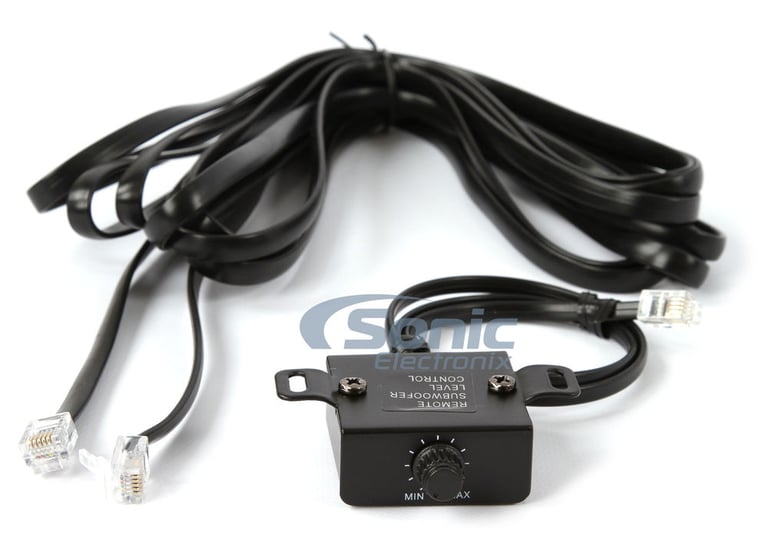

  • Dash mount remote bass level control included

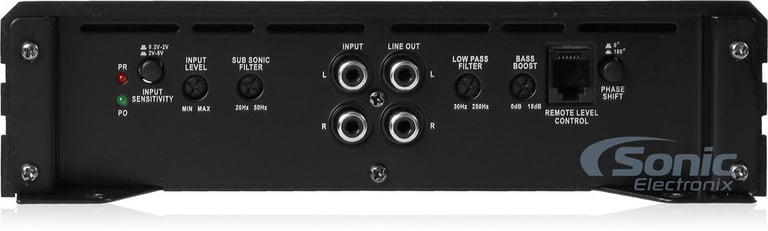

  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Mono channel operation
  • 180° phase switch
  • Speaker-level (high-level) inputs
  • Variable low-pass filter (50-150 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15-40 Hz)

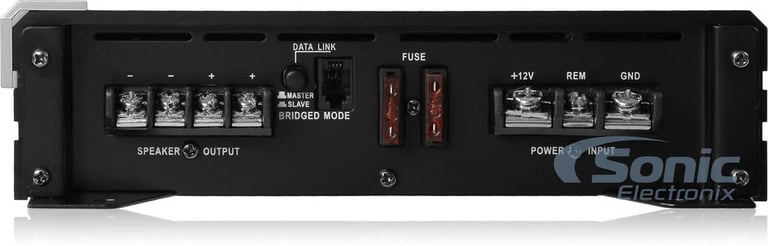

  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 8.25"W x 11.75"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Soundstream PA1.3500D thumbnail
(newest, current model)
Soundstream P1.1000D thumbnail
(previous model, replaced by Soundstream PA1.3500D)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Series
Picasso Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Bass Boost
6 - 12 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P1.1000D

Weight:

8.90lbs

Internal SKU:

p11000d

Internal Product ID:

79526

Product and How-to Videos


Customer Ratings & Reviews


Soundstream P1.1000D thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.5
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Soundstream p1.1000

Well worth the money, it's perfect to pushed to 12 's my girlfriend has the same amp to push the 12 inch subs in her car .

By Justin on May 3, 2015

13 found this helpful


great amp for the money

great amp power pushing 2 12'' sub better sub bass than my jbl amp

By avloga on August 20, 2014

15 found this helpful


P1.1000D

Purchased this as an upgrade for my sub. I have and always will run Soundstream. They actually under rate their stuff unlike most Brands. Hooked up to an r1.124 sub at 2 Ohms - it hammers to say the least. I recommend anything from Sounstream.

By Mike on February 11, 2016 Checkmark Icon Verified purchase


Great Amp for the Price!

Honestly I am really impressed with this amp for the price I paid. It's incredible overall and I've always been happy with SoundStream stuff. The spider logo on the amp lights up too in case you didn't know that! I'm using this to push my Sundown X-8 8 inch subwoofer and it's really powerful! It gets pretty hot but the whole shell is used for the heatsink so that's to be expected, I've run it for over 30 minutes straight before and it had no issues with overheating or going into protect mode which is great . I'm also impressed by just how small this amp is for the power it's outputting, I've seen 1000w RMS amps that are nearly 4 times this size and cost equally as much (4 times as much), SoundStream always seems to do a great job with their amps! I would highly recommend this to anyone needing a great, semi-compact (they actually make them even smaller) amp that puts out a really great amount of power. I might even be getting 2 more in the future to power more subs!

Overall I'm really happy with this amp and I would highly recommend it!

By Ethan on October 11, 2015 Checkmark Icon Verified purchase
