Name: Soundstream PN4.520D Open Box Complete
Brand: Soundstream
SKU: ls-pn4520d-obc6
Price: 87.99 USD
Availability: Discontinued

by Soundstream

About
Specs & Details
Reviews
Add-ons
Related Searches

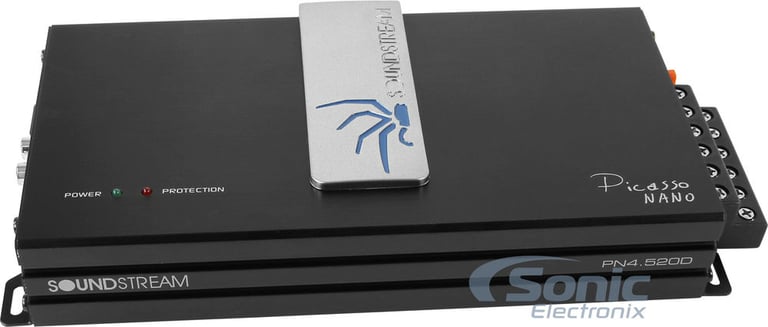

Soundstream PN4.520D Open Box Complete Image 1 — Soundstream PN4.520D Open Box Complete

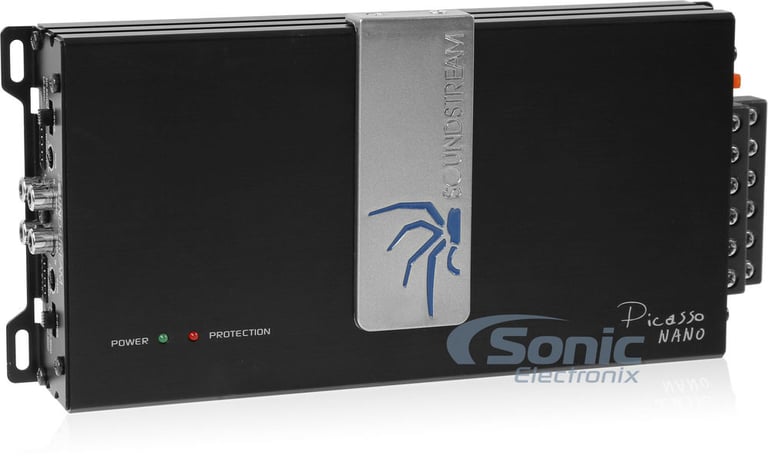

Soundstream PN4.520D Open Box Complete Image 2 — Soundstream PN4.520D Open Box Complete

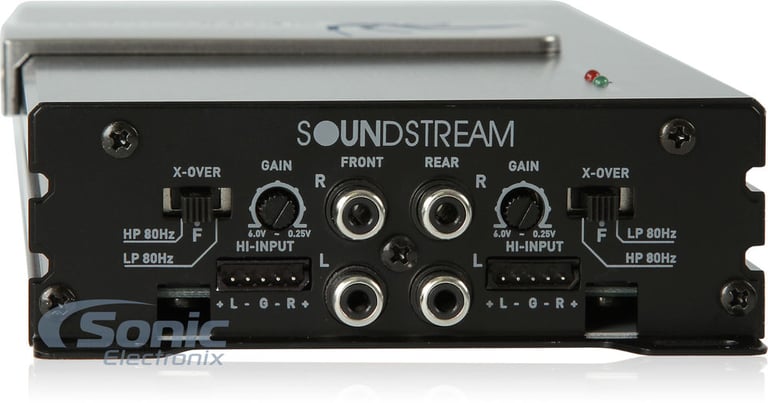

Soundstream PN4.520D Open Box Complete Image 3 — Soundstream PN4.520D Open Box Complete

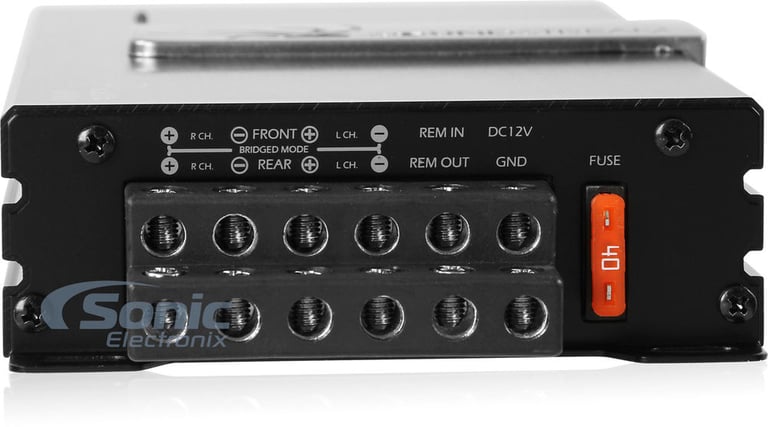

Soundstream PN4.520D Open Box Complete Image 4 — Soundstream PN4.520D Open Box Complete

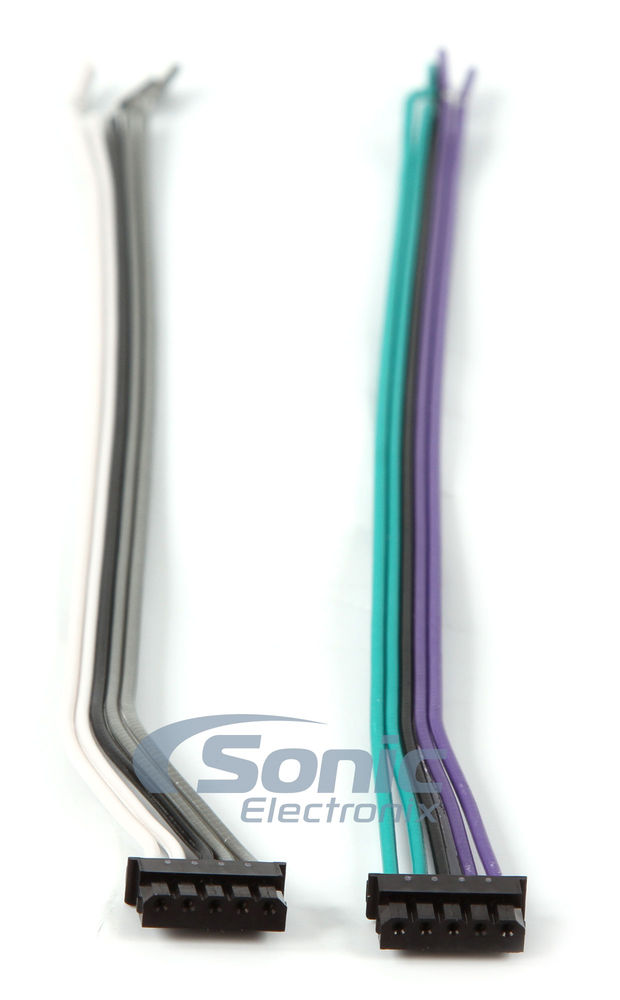

Soundstream PN4.520D Open Box Complete Image 5 — Soundstream PN4.520D Open Box Complete

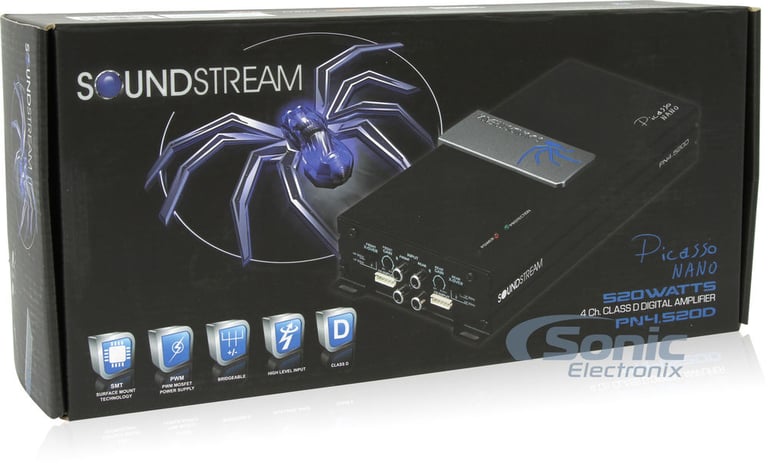

Soundstream PN4.520D Open Box Complete Image 6 — Soundstream PN4.520D Open Box Complete

Product highlights

• Open Box Complete
• RMS Power: 100W x 4 @ 4 ohm, 130W x 4 @ 2 ohm, 260W x 2 @ 4 ohm Bridged
• Total Peak Power: 520W
• Dimensions: 4.75"W x 9"L x 2"H

Learn more about the ls-pn4520d-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Sonic Electronix Power Certified Amplifier

Soundstream's PN4.520D 4-Channel amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings.

Impedance	Claimed Output	Certified Results	Dynamic Results
4 Ω	100W @ 14.4V	92W @ 14.14V	95W @ 14.18V
2 Ω	130W @ 14.4V	151W @ 14.14V	161W @ 14.14V
4 Ω Br.	260W @ 14.4V	263W @ 14.16V	321W @ 14.22V

A part that is fully functional but shows no sign of use outside of installation.

General Features:

Picasso Nano Series 4-Channel Class D Car Amplifier
RMS Power Rating:

4 ohm: 100 watts x 4 chan.
2 ohm: 130 watts x 4 chan.
4 ohm, Bridged: 260 x 2 chan.

Sonic Electronix Certified Power Rating*:

4 ohm: 92 watts x 4 chan.
2 ohm: 151 watts x 4 chan.
4 ohm, Bridged: 263 x 2 chan.

Max power output: 520 watts
Pulse Width Modulated MOSFET power supply
Heavy duty aluminum heatsink
Soft turn-on circuit
Speaker-level (high-level) inputs
Thermal and speaker short protection circuitry
4 and 2 channel operation
Selectable Crossover modes: HP (80Hz) / Full / LP (80Hz)
Fuse rating: 40A x 1
4 gauge power and ground wiring is recommended for installation

Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

Dimensions: 4.75"W x 9"L x 2"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

130 watts x 4 channel

Bridged RMS Power

260 watts x 2 channel

Amplifier Specifications

Series

Picasso-Nano Series

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

520 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

80 Hz

Low-Pass Crossover Frequency

80 Hz

Remote bass/level controller

Fuse Rating

40A x 1

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
