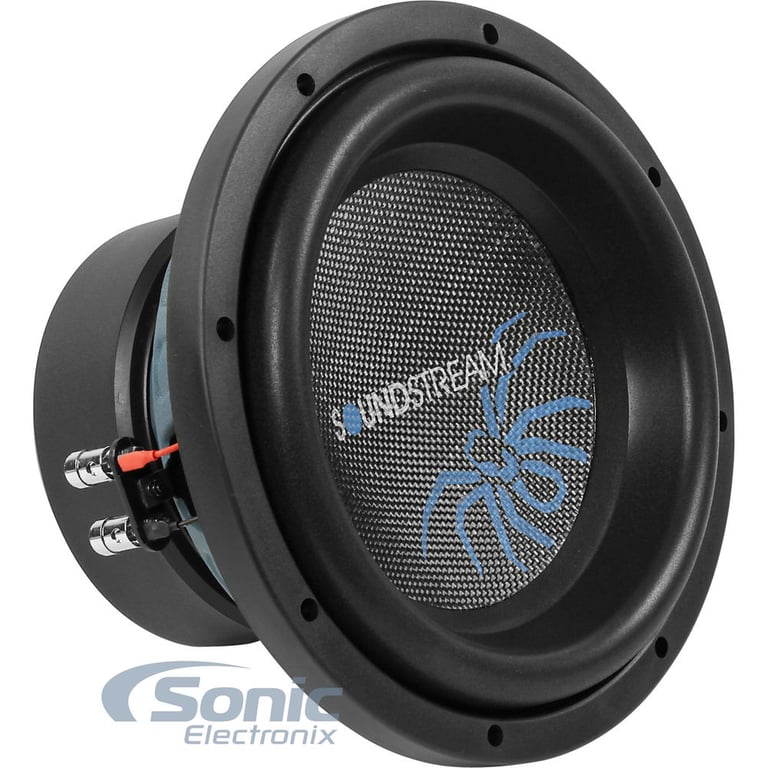

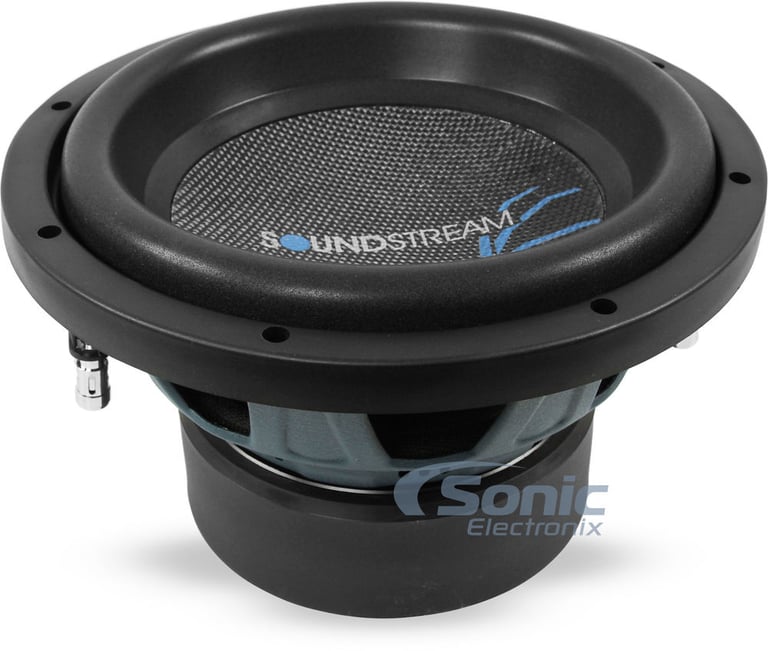

Soundstream R3.10

700W 10" Reference R3 Series Dual 2 Ohm Subwoofers

Product videos
highlight-star-icon

• RMS Power: 700W
• Sensitivity: 82.1 dB
• Oversized Concave IMPP Primary Cone
• Inverted Roll Polyether Foam Surround
• Nickel Plated 12 ga. Compression Wire Terminal
• 2.5" 4-Layer Stitched Voice Coil

Learn more about the r310

We apologize

This item has been discontinued


Loading...
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

82-5601 main

Metra 82-5601

5 1/4" Component Speaker to 6" x 8" Adapter Kit for select 1990-2019 vehicles from Ford, Mazda, Mercury

3
-13.64%

$18.99

List price $21.99

FD1327B main

Scosche FD1327B / FD1327 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mazda, Mercury trucks (Black)

154

$12.99

List price $13.25

99-5802 main

Metra 99-5802 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

3
-46.17%

$13.99

List price $25.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

72-5512 main

Metra 72-5512

Install New Speakers in select 1990-2006 vehicles from Ford, Mercury, Mazda

26
-26.68%

$10.99

List price $14.99

70-5603 main

Metra 70-5603 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1995-2004 vehicles from Ford, Lincoln, Mazda

4
-39.30%

$16.99

List price $27.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Product Highlights


• RMS Power: 700W
• Sensitivity: 82.1 dB
• Oversized Concave IMPP Primary Cone
• Inverted Roll Polyether Foam Surround
• Nickel Plated 12 ga. Compression Wire Terminal
• 2.5" 4-Layer Stitched Voice Coil

Description


Soundstream brand icon

Authorized dealer

General Features:

  • 10" Dual 2 Ohm Reference R3 Series Subwoofer
  • Power Handling:
    • RMS: 700 watts

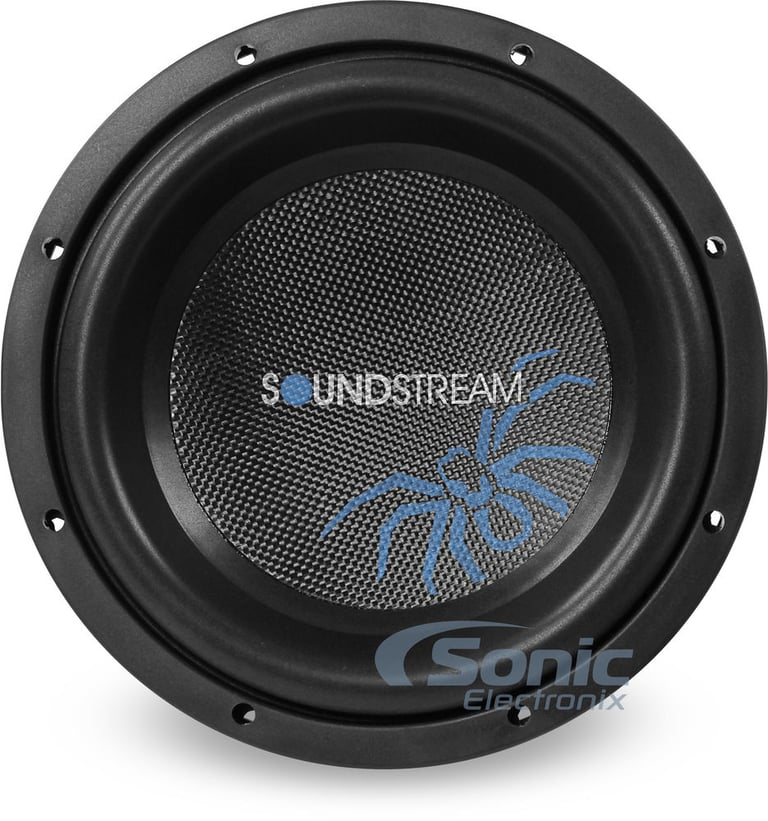

  • Oversized concave IMPP primary cone
  • Die-cast aluminum soundstream reference R3 frame
  • Inverted roll polyether foam surround
  • 2.5" 4-layer stitched voice coil

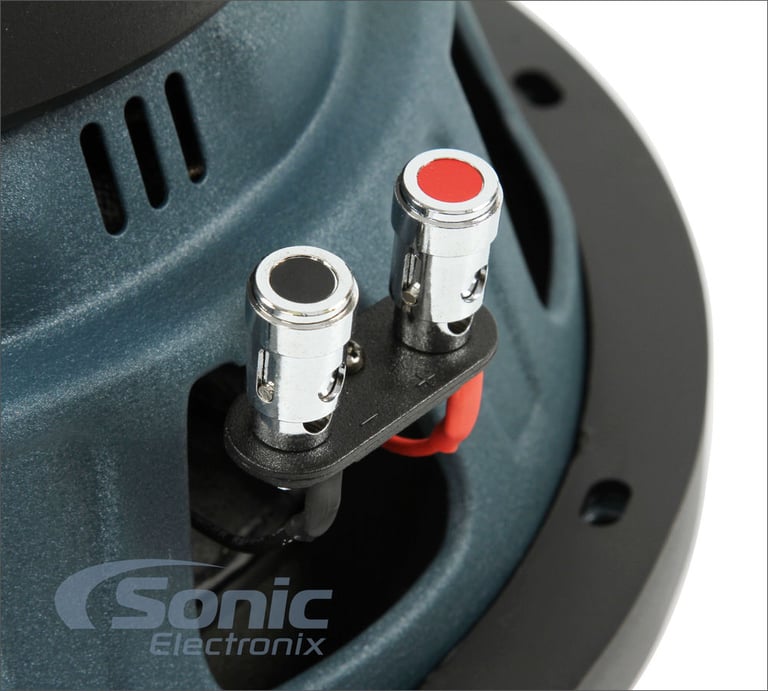

  • Nickel plated 12 ga. compression wire terminal

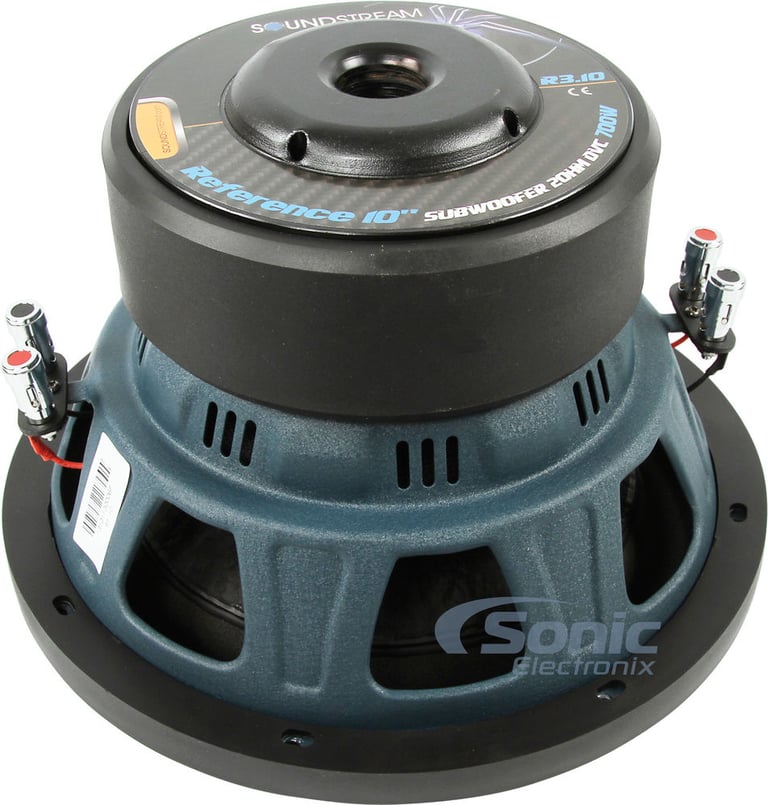

  • Double stacked magnet, t-yoke, and top plate
  • Top-mount depth: 6"
  • Optimum Sealed ft3: 1"
  • Optimum Ported ft3: 1.5"
  • Sensitivity: 82.1 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Soundstream R3.10 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Soundstream R3.10 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Soundstream R3.10 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Soundstream R3.10 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Reference R3 Series
Subwoofer Size
10"
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Sensitivity
82.1 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Poly-Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
7.875"
Cutout Diameter
9.6"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.58 Hz
Equivalent Compliance (Vas)
33.3893 liters
Total Speaker Q Value (Qts)
1.0703
Electrical Q Value (Qes)
1.253
Electrical Resistance of Voice Coil (Re)
2.1802 ohm
Mechanical Q Value (Qms)
7.3411
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R3.10

Weight:

17.65lbs

Internal SKU:

r310

Internal Product ID:

79641

Product and How-to Videos


Customer Ratings & Reviews


Soundstream R3.10 thumbnail image

5 star
82%
4 star
18%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Love Soundstream

I bought these speakers about a month ago... Very happy... Running them off an old Soundstream 500 what mono amp... Great sound... Cant beat em for the price... I have been installing car audio for 20 years and I have played with a lot of value priced subs.. I'm happy I took a chance on these subs...

By Batman on June 19, 2014

38 found this helpful


Great subwoofer!

I bought 2 of these R3.10s after having 2 other sets of 10s an a kicker comp 12. These subs blow them away. They pound so hard my rear windshield wiper rattles an door Linings rattle to. Im still breaking them in but i have them hooked up to a mono 4000 watt class D planet audio amp and they sound great. I want a soundstream amp but so far these subs are a great buy an built way better then the last subs i have had. They will take the power if you can give it. Break in if you want them to last, dont hook them up an start pounding cause they need to loosen up. Know how to wire properly to.

By Anonymous on September 18, 2018

23 found this helpful


Sounds good

Hooked up to a 1000w ssl amp in a ported box and it sounds way better the the kicker comp s in the same setup.

By brian on August 27, 2018 Checkmark Icon Verified purchase

21 found this helpful


Awesome

Sound stream sub's are the best especially the ten inch sub's there great and can handle the power

By Big-O on January 22, 2017

20 found this helpful


Cheaper on Amazon

Decent for the price but.... purchasing through Amazon you can save yourself $20, free shipping included!

By Will on January 28, 2022

19 found this helpful


Best bang for you buck

I recommend this product to the fullest. When I say they hit hard they really hit hard for the price. They sound amazing I have 2 and I love them. I’m so glad I read the reviews. They’re heavy and built solid. I’ve had plenty of subs beforehand and these win the prize.

By Brian Bailey on July 12, 2021

18 found this helpful


Not to bad for the price

Caught these on sale for roughly $78 a piece and the work very well for the price. So far are holding up good have 2 10s with dual 2ohm could wired up to a final 2ohm load off an mtx TE801d and havntnhad an issue yet

By Travis on May 1, 2018

18 found this helpful


Love my r2s

Well how do we say skv2 2500 vs 4 r2 10s at .5ohm? F..ing loves it they are in about 6cu of airspace tuned to 31hz and are asking for more power!!

By Whiiips on October 25, 2021

18 found this helpful


This Sub is a Trooper

I would certainly recommend this subwoofer for anyone who is looking go get a cheap and reliable sub. I had 2 of these hooked up to an rp2000 wired at 2 ohm and they never had an issue handling the power. Lots of excursion! They have been going strong for 3 years now. Highly recommended

By Jake on September 2, 2021

16 found this helpful


Love my r2s

Well how do we say skv2 2500 vs 4 r2 10s at .5ohm? F..ing loves it they are in about 6cu of airspace tuned to 31hz and are asking for more power!!

By Whiiips on October 25, 2021

15 found this helpful




BE8ACP small

Boss BE8ACP

8” Single-Din Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto

$299.99

List price $349.99

BCPA9 small

Boss BCPA9

9" Single-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto

$439.99

List price $539.99

MATRIXRS11L small

Clifford Matrix RS 1.1L

1-Way Remote Start System w/ One Mile Range & Venom SST Technology

(1)

$79.99

List price $179.99

BXi2408D-RB small

Hifonics Brutus BXi 2408D (BXi2408D) R/B

2400W RMS Brutus Series Class D Monoblock Amplifier

$249.99

List price $699.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1995 Ford Ranger

1965 Cadillac DeVille

2001 BMW Z8

2009 Buick Allure

1991 Ford E Series

1990 Subaru Loyale

1996 Dodge Avenger

2020 Audi SQ5

2016 Audi S3

2012 Lexus LX570

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
