Name: Hifonics XX-CHAOS R/B
Brand: Hifonics
SKU: LS-xxchaos-RB
Price: 219.99 USD
Availability: Discontinued

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

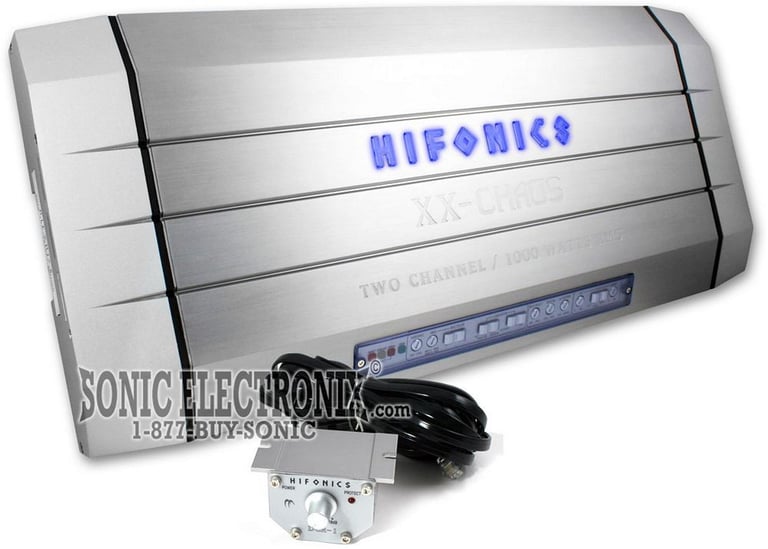

Hifonics XX-CHAOS R/B Image 1 — Hifonics XX-CHAOS R/B

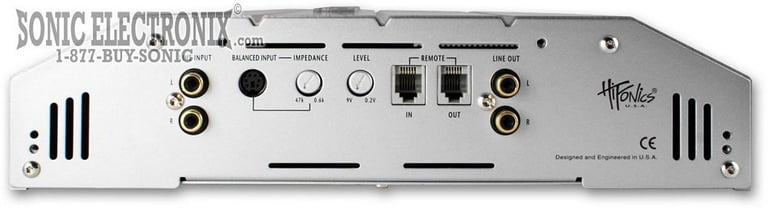

Hifonics XX-CHAOS R/B Image 2 — Hifonics XX-CHAOS R/B

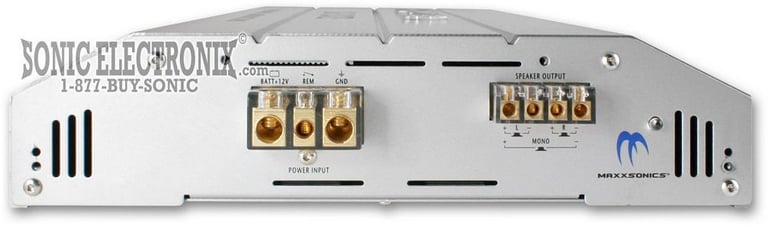

Hifonics XX-CHAOS R/B Image 3 — Hifonics XX-CHAOS R/B

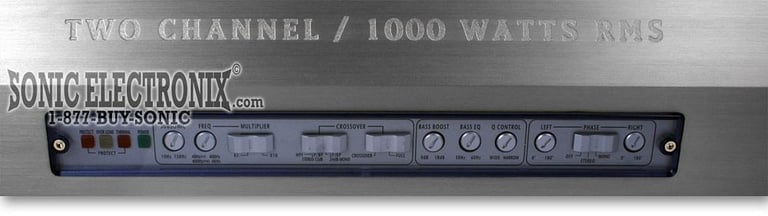

Hifonics XX-CHAOS R/B Image 4 — Hifonics XX-CHAOS R/B

Hifonics XX-CHAOS R/B Image 5 — Hifonics XX-CHAOS R/B

Product videos

Product highlights

Generation XX Series 2-Channel Super Class A/B Hybrid Car Amplifier • 500 watts RMS x 2 chan. @ 1 ohm • 400 watts RMS x 2 chan. @ 2 ohm • 1000 watts Peak x 1 chan. @ 2 ohm bridged • MOSFET Power Supply • 18dB Bass Boost

Learn more about the LS-xxchaos-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Shaking Off The Competition ...with the legendary Generation XX amplifier series from Hifonics. Hifonics has painstakingly developed Generation XX grade auto audio amplifiers unequaled in all the industry. Unequaled in performance, unequaled in sheer power and unequaled in value, the new Generation XX Amplifier Series without a doubt, is your best power plant choice! The original Hifonics amplifier engineer designed this awesome Generation XX Series. This taskmaster mixed decades of successful ground shaking amplifier design with today's highest quality components and hi-tech manufacturing capabilities, resulted in the world record breaking Hifonics Generation XX products that are creating today's audio legends. The Hifonics Generation XX legend continues. Get your "Power From The Gods" today.

Generation XX Series 2-Channel Super Class A/B Hybrid Car Amplifier
RMS Power Rating:
- 4 ohm: 250 watts x 2 chan.
- 2 ohm: 400 watts x 2 chan.
- 1 ohm: 500 watts x 2 chan.
- Bridged, 4 ohm: 800 watts x 1 chan.
- Bridged, 2 ohm: 1000 watts x 1 chan.
Full PMW Ultra-Fi Mosfet Power Supply

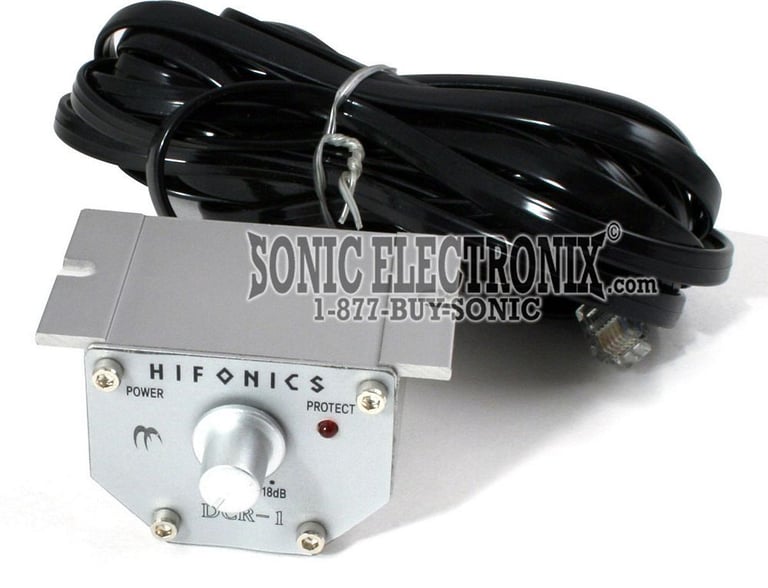

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
Soft Start Turn-on
2/1 channel operation
Package includes power from the gods
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heatsink with whisper fan for extreme heat dissipation
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- Low level: 200mV-9V
- High level: 400mV-18V
Variable high-pass filter (40-400 Hz, 12 dB/octave)
Variable low-pass filter (40-4000 Hz, 24 dB/octave)
Phase Shift: 0-180°
Damping factor: >300
Frequency response: 2-70,000 Hz
Dimensions: 25-5/16"L x 11-1/8"W x 2-3/4"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

250 watts x 2 channel

RMS Power @ 2 ohms

400 watts x 2 channel

RMS Power @ 1 ohm

500 watts x 2 channel

Bridged RMS Power

1000 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

2 ohms

THD at Rated RMS Power

.03%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

400 - 4000 Hz

Low-Pass Crossover Frequency

40 - 400 Hz

Subsonic Filter

10 - 150 Hz

Signal-to-Noise Ratio

95 dB

Channel Separation

70 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
