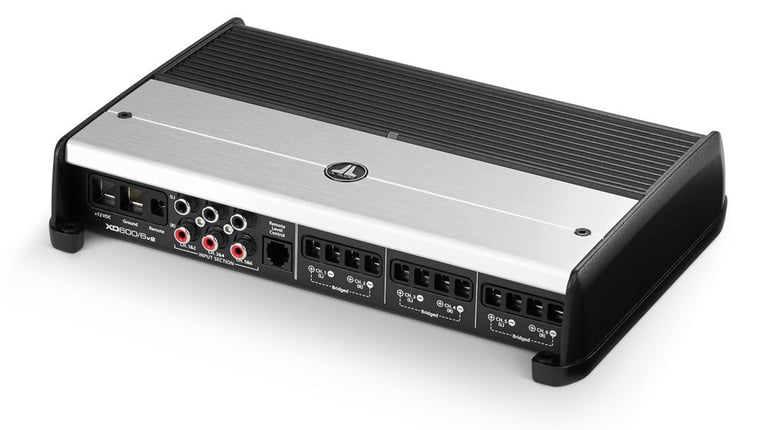

JL Audio XD600/6V2 (Open Box, Complete) Image 1 — JL Audio XD600/6V2 (Open Box, Complete)

JL Audio XD600/6V2 (Open Box, Complete) Image 2 — JL Audio XD600/6V2 (Open Box, Complete)

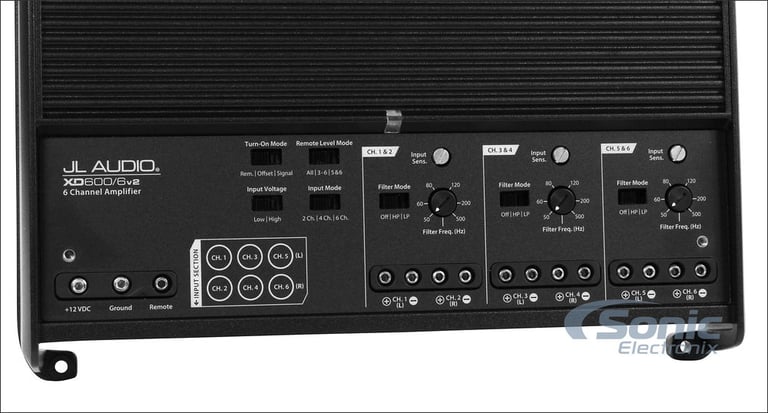

JL Audio XD600/6V2 (Open Box, Complete) Image 3 — JL Audio XD600/6V2 (Open Box, Complete)

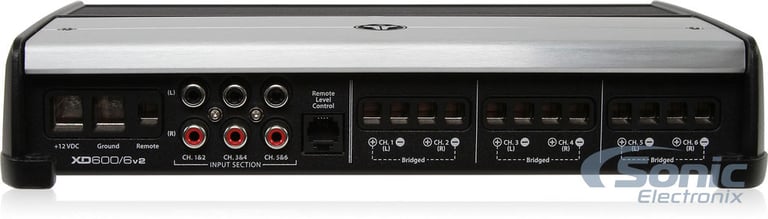

JL Audio XD600/6V2 (Open Box, Complete) Image 4 — JL Audio XD600/6V2 (Open Box, Complete)

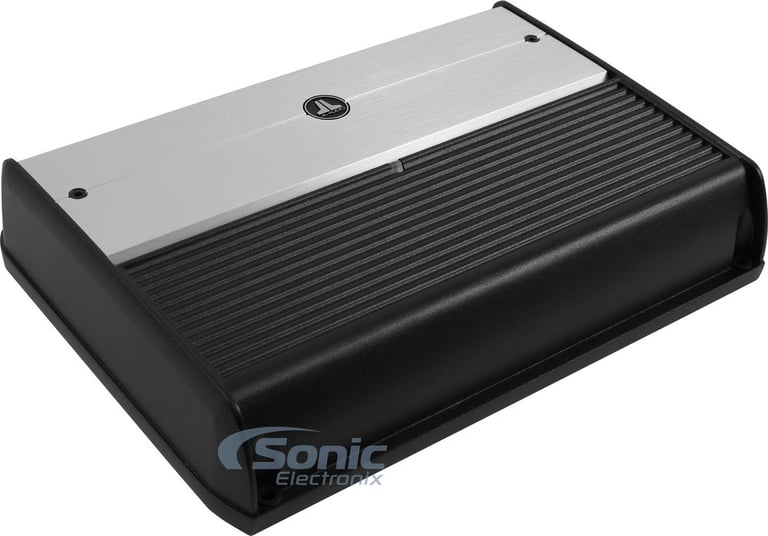

JL Audio XD600/6V2 (Open Box, Complete) Image 5 — JL Audio XD600/6V2 (Open Box, Complete)

JL Audio XD600/6V2 (Open Box, Complete) Image 6 — JL Audio XD600/6V2 (Open Box, Complete)

JL Audio XD600/6V2 (Open Box, Complete) Image 7 — JL Audio XD600/6V2 (Open Box, Complete)

Product highlights

• RMS: 75 W x 6 @ 4 ohm, 100 W x 6 @ 2 ohm, 200 W x 3 @ 4 ohm Bridged
• NexD™ Switching Technology
• Differential Balanced Input Section
• Advanced Rollback Protection
• Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
• Detented, Calibrated Filter Freq. Potentiometer

Learn more about the ls-xd6006v2-obc8

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

JL Audio XD600/6v2 - XDv2 Series 6-Channel Class D Full-Range Amplifier

This potent 6-Channel amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 600W of continuous total power into a 2 ohm load (14.4V, 1% THD). Targeted specifically for an audiophile-grade system, the XD600/6v2 includes a variable mode low-pass/high-pass filter with a continuously variable cutoff frequency selection from 50-500 Hz. With the XD600/6v2, you have lots of great options. Use it as a six-channel satellite amplifier with 75 W x 6 @ 4 ohm , or bridge four of its channels to create a staggered power four-channel amplifier with 200 W x 2 @ 4 ohm for your front satellites and 75 W x 2 @ 4 ohm for your rear satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2.

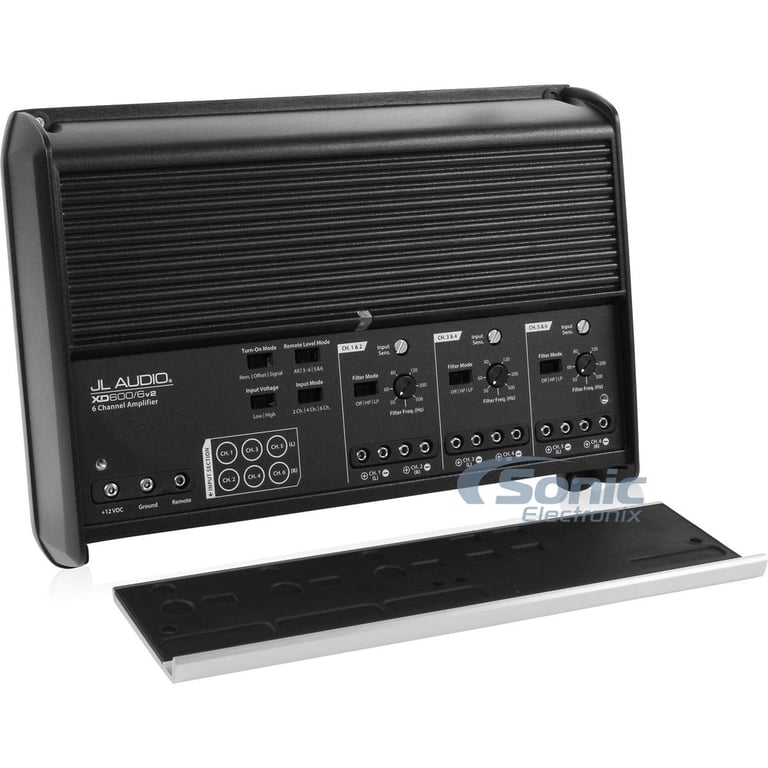

The XD600/6v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you can control the volume of one, two or all three channel pairs of the XD600/6v2 from the front of the vehicle. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

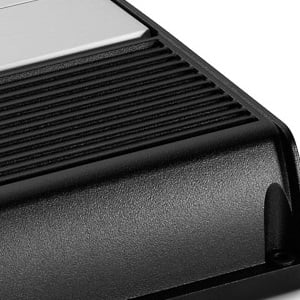

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.

NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD amplifiers and channels feature a variable, ultra-high speed version of the NexD technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

General Features:

XDv2 Series Class D 6-Channel Amplifier
RMS Power Rating @14.4V:

4 ohm: 75 watts x 6 chan.
2 ohm: 100 watts x 6 chan.
Bridged 4 ohm: 200 watts x 3 chan.

RMS Power Rating @12.5V:

4 ohm: 60 watts x 6 chan.
2 ohm: 90 watts x 6 chan.
Bridged 4 ohm: 180 watts x 3 chan.

NexD High Speed Switching Class D Technology
Wired HD-RLC remote level control available, sold separately
LED power (green), over-current (yellow) and protect (red) indicators
Advanced Rollback Protection

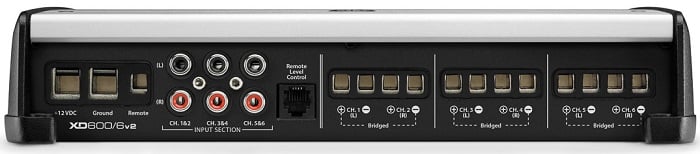

Differential Balanced RCA Input
Pass-through preamp RCA outputs
Selectable turn-on modes: REM / Offset / Signal

+12 V Remote Turn-On: Traditional remote lead wire, from headunit
DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)

Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
3-way protection circuitry (thermal, overload, and speaker short protection)
Detented, Calibrated Filter Freq. Potentiometer
State-variable, 12dB/octave Butterworth Crossover
Selectable input mode: 2 Ch. / 4 Ch. / 6 Ch.
Input sensitivity:

Low level: 800mV - 8V
High level: 200mV - 2V

Frequency Response: 12 - 22,000 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: >104 dB
Damping Factor @4 ohm: >150 / 50 Hz
Selectable Filter Mode: Off / HP / LP
Variable cutoff filter: 50 - 500 Hz, 12 dB/octave
Fuse Rating: 50A x 1 inline (not supplied)
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Weight: 6.00 lb
Dimensions: 7.09"W x 10.23"L x 2.05"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

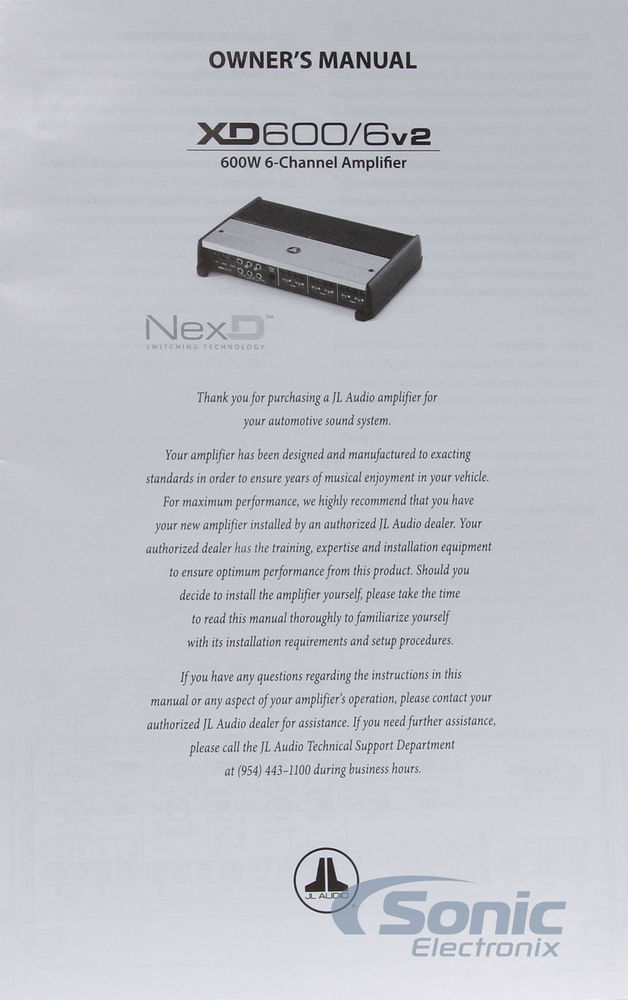

Check out the JL Audio XD600/6v2 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 6 channel

RMS Power @ 2 ohms

100 watts x 6 channel

Bridged RMS Power

200 watts x 3 channel

Amplifier Specifications

Series

XD-v2 Series

Amplifier Class

Number of Channels

6-Channel

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Signal-to-Noise Ratio

>104 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Fuse Rating

50A X 1 In-Line Fuse Recommended

Total Fuse Rating

Strappable

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

What is in the box?

Paperwork

User manual

WITB: Amplifiers

Amplifier
Adhesive brand badge
Allen wrench

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
