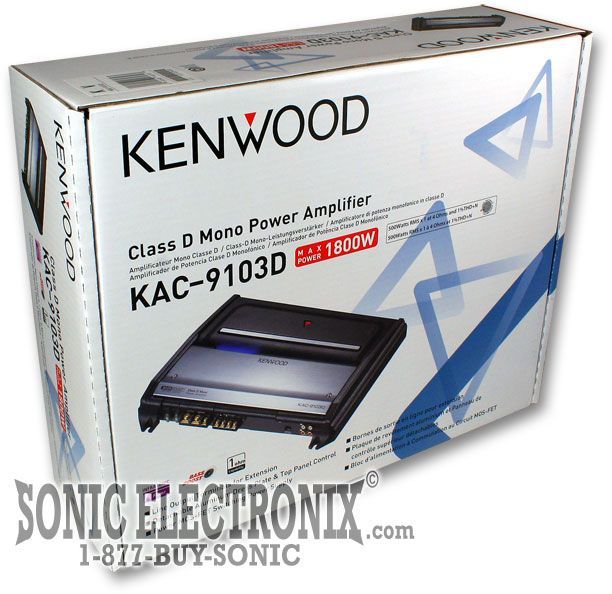

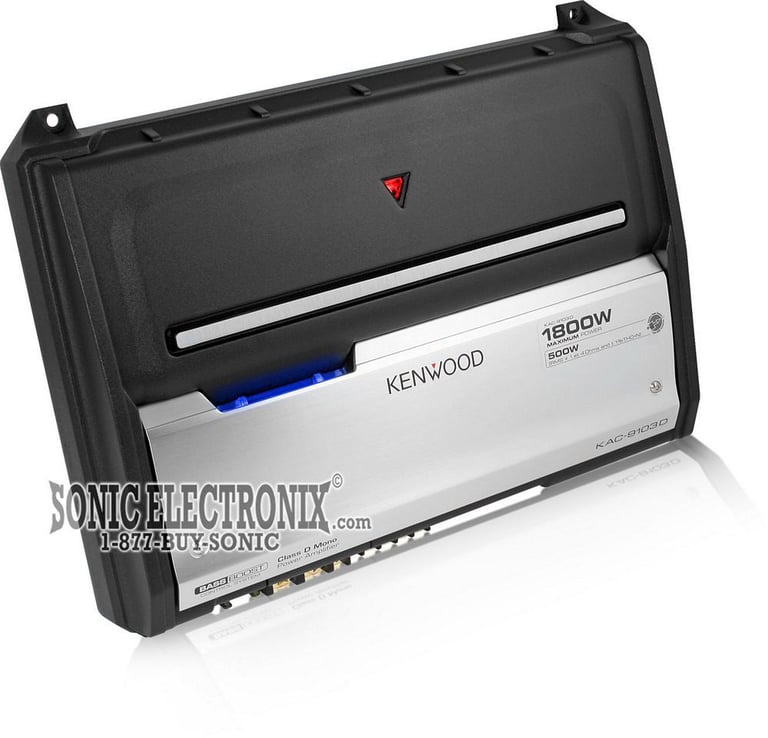

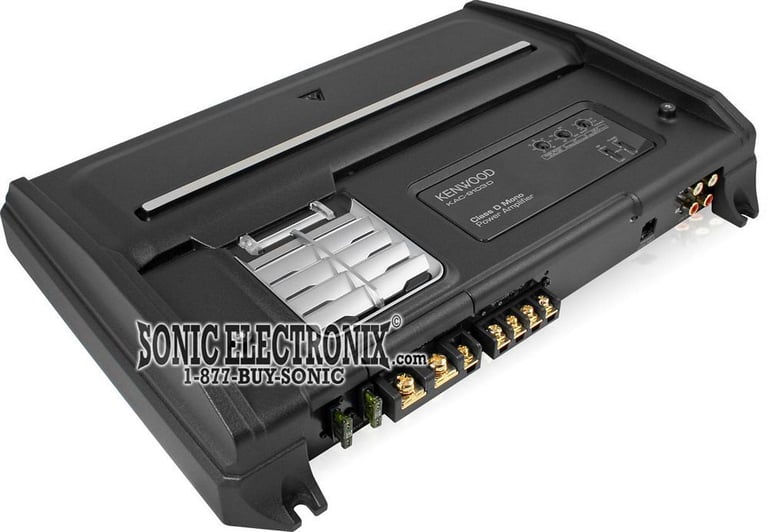

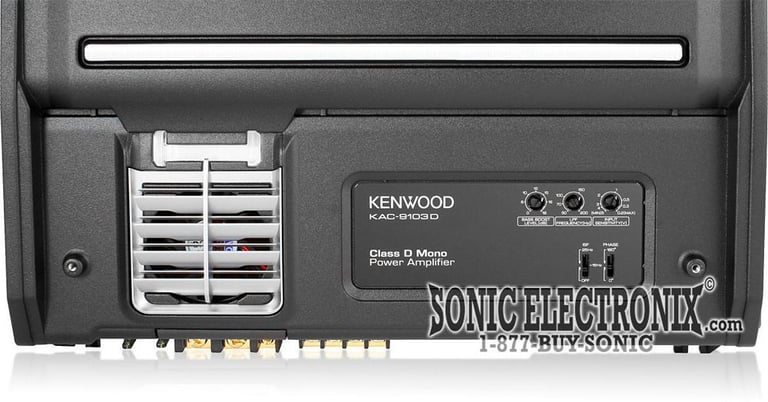

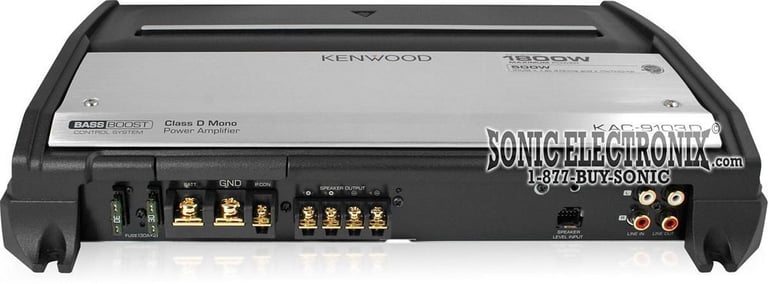

Kenwood KAC-9103D R/B

1800W Max, Class D Monoblock Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

1800W Class-D Monoblock Amplifier • 500W RMS x 1 @ 4 ohm • 900W RMS x 1 @ 2 ohm • Variable Low-Pass and Subsonic Filter • High and Low Level Inputs • 1 Pair RCA Outputs • 0 - 18 dB Bass Boost

Learn more about the LS-kac9103d-RB

We apologize

This item has been discontinued

Product Highlights


1800W Class-D Monoblock Amplifier • 500W RMS x 1 @ 4 ohm • 900W RMS x 1 @ 2 ohm • Variable Low-Pass and Subsonic Filter • High and Low Level Inputs • 1 Pair RCA Outputs • 0 - 18 dB Bass Boost

Description


Kenwood brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • Monoblock Class-D Subwoofer Amplifier
  • RMS Power Output:
    • 500 Watts x 1 Channel @ 4 Ohm
    • 900 Watts x 1 Channel @ 2 Ohm
  • CEA-2006 compliant
  • Top-Mounted controls
  • Preamp Outputs - 1 Pair
  • Power MOSFET Switching Power Supply
  • Variable Low-Pass Filter: 50 - 200 Hz
  • Infrasonic Filter: Off / 15 / 25 Hz
  • High- and Low- Level Input
  • Adjustable Input Sensitivity: 0.2 - 5V
  • Bass Boost Control: 0 - 18 dB
  • Class D Amplifier Circuit
  • RCA Inputs/Outputs
  • Fuse Rating: 30A x 2
  • Signal-to-Noise Ratio: 94 db
  • Dimensions: 11-1/4" L x 14-15/16" W x 2-9/16" H
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
900 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.5%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
15 - 25 Hz
Signal-to-Noise Ratio
94 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2

Item Details


Manufacturer:

Model Number:

KAC-9103D-RB

Weight:

12.00lbs

Internal SKU:

LS-kac9103d-RB

Internal Product ID:

11191
