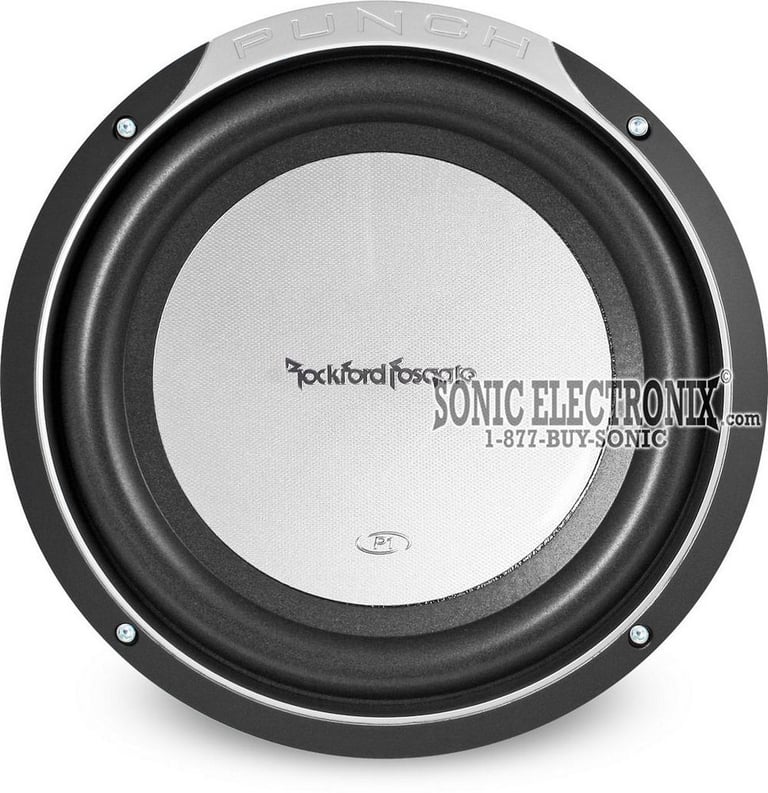

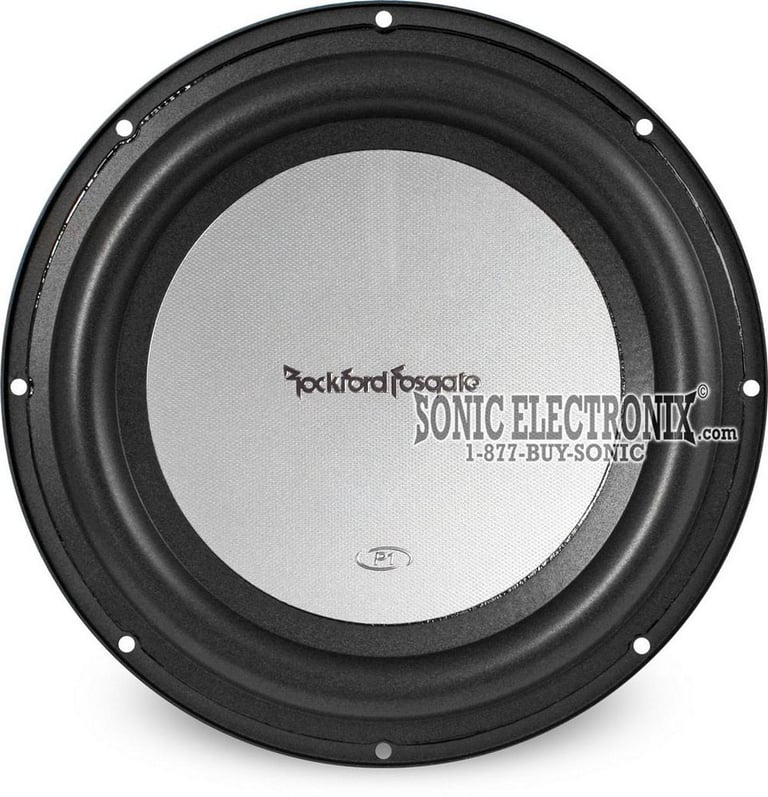

Rockford Fosgate Punch P1S810 (09P1S810)

10" Single 8 ohm Punch Stage 1 Series Subwoofer

Product videos
highlight-star-icon

Power Handling: Peak: 300 watts / RMS: 150 watts • Protective PVC textured magnet cover • Reversible ABS trim ring • Frequency Response: 30-250 Hz

Learn more about the 09p1s810

We apologize

This item has been discontinued


Loading...
VSP8SMBL main

Diamond Audio VSP8SMBL

Mercedes Benz® Specific 8″ Subwoofer Speakers (Left)

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

Product Highlights


Power Handling: Peak: 300 watts / RMS: 150 watts • Protective PVC textured magnet cover • Reversible ABS trim ring • Frequency Response: 30-250 Hz

Description


Rockford Fosgate brand icon

Authorized dealer

  • 10" Single 8 ohm Punch Stage 1 Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Impedance: 8 ohm
  • Thermoformed polypropylene cone
  • Parabolic injection molded ABS/Acrylic dustcap
  • Custom 10-AWG nickel plated push terminals
  • High density poly-foam surround allows for 20% greater linear excursion than standard surrounds
  • High-temp 1.5" voice coil with spun-laced Nomex® reinforcement collar
  • Linear spider with embedded 16 AWG tinsel leads handle tons of power
  • Protective PVC textured magnet cover
  • Reversible ABS trim ring

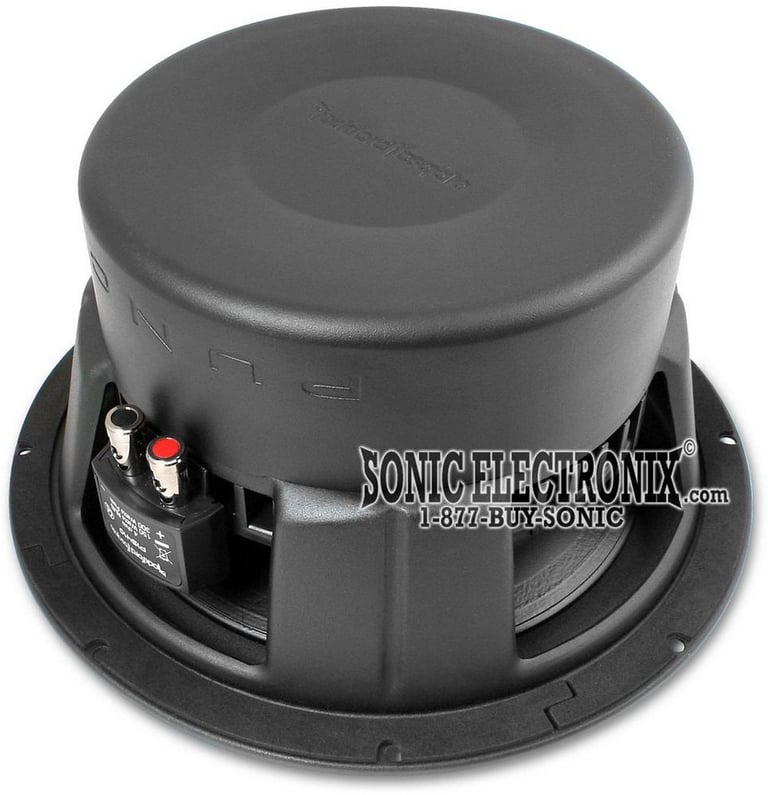

  • Cosmetic motor cover can be removed for additional mounting clearance
  • Frequency Response: 30-250 Hz
  • Sensitivity: 85 dB
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P1S810 (09P1S810) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P1S810 (09P1S810) Subwoofers

Mono Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P1S810 (09P1S810) Subwoofers

Mono Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P1S810 (09P1S810) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
Frequency Response
30 - 250 Hz
Sensitivity
85 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Thermoformed Polypropylene
Woofer Surround
Poly-Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
1.40 cubic feet
Maximum Ported Box Volume
1.40 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/8"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P1S810

Weight:

10.50lbs

Internal SKU:

09p1s810

Internal Product ID:

8759
