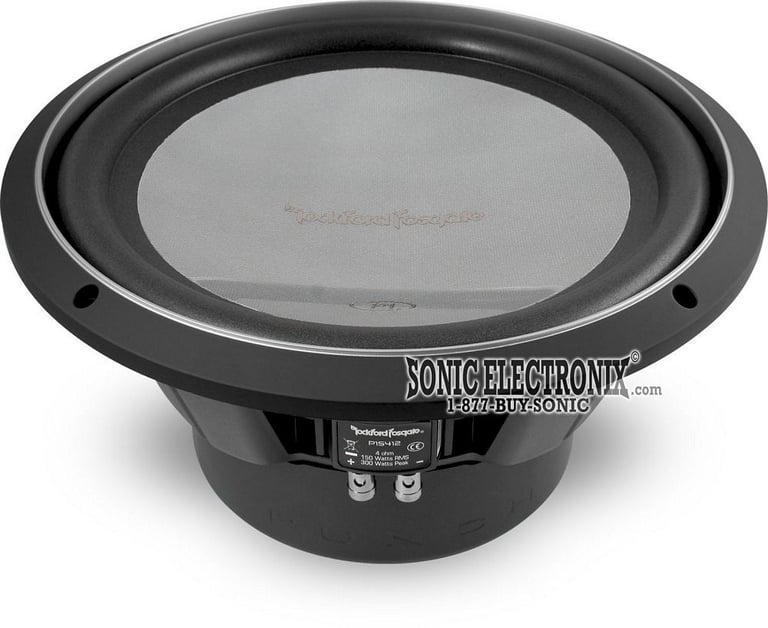

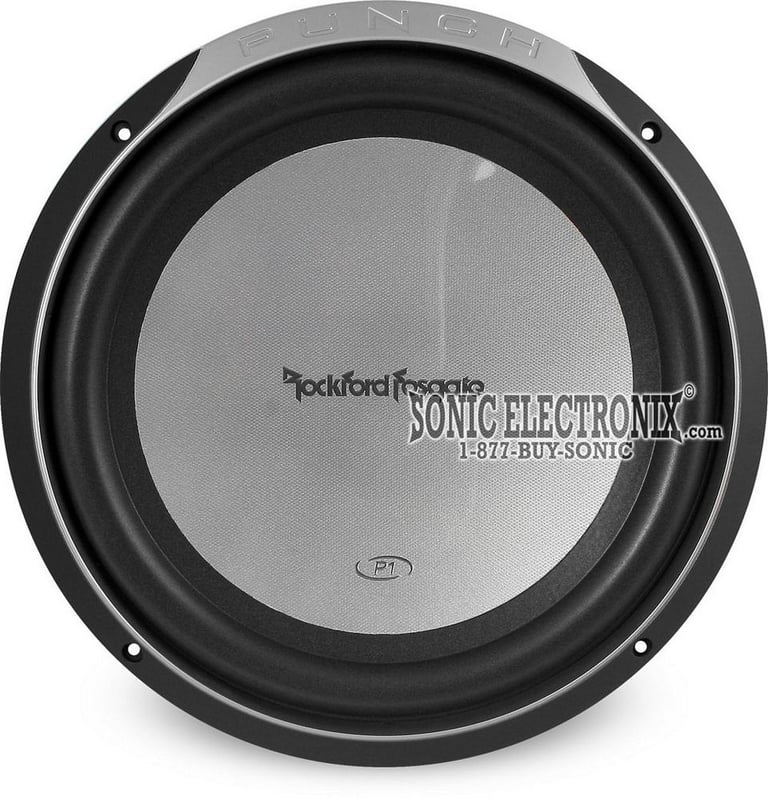

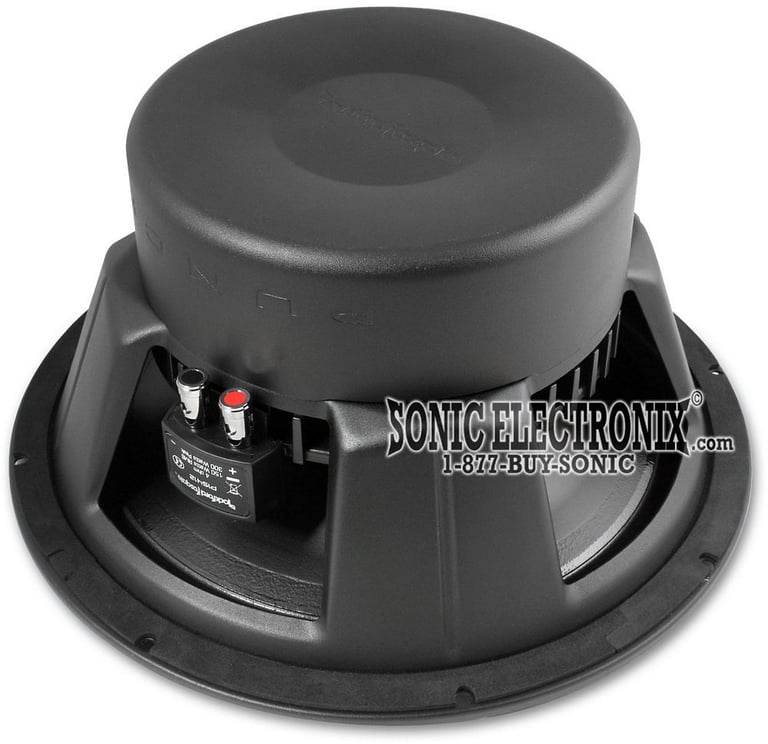

Rockford Fosgate Punch P1S412 (09P1S412)

12" Single 4 ohm Punch Stage 4 Series Car Subwoofer

Product videos
highlight-star-icon

Power Handling: Peak: 300 watts / RMS: 150 watts • Parabolic injection molded ABS/Acrylic dustcap • Linear spider with embedded 16 AWG tinsel leads • Frequency Response: 26-250 Hz

Learn more about the 09p1s412

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p1s412 thumbnail

Rockford Fosgate Punch P1 P1S4-12

OUR PRICE: $129.99

View item

Product Highlights


Power Handling: Peak: 300 watts / RMS: 150 watts • Parabolic injection molded ABS/Acrylic dustcap • Linear spider with embedded 16 AWG tinsel leads • Frequency Response: 26-250 Hz

Description


Rockford Fosgate brand icon

Authorized dealer

  • 12" Single 4 ohm Punch Stage 4 Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Impedance: Single 4 ohm
  • Thermoformed polypropylene cone
  • Parabolic injection molded ABS/Acrylic dustcap
  • Custom 10-AWG nickel plated push terminals
  • High density poly-foam surround allows for 20% greater linear excursion than standard surrounds
  • High-temp 1.5" voice coil with spun-laced Nomex® reinforcement collar
  • Linear spider with embedded 16 AWG tinsel leads handle tons of power
  • Protective PVC textured magnet cover
  • Reversible ABS trim ring
  • Cosmetic motor cover can be removed for additional mounting clearance
  • Frequency Response: 26-250 Hz
  • Sensitivity: 86 dB
  • 1-year SonicElectronix.com warranty

Product history:

Rockford Fosgate P1S4-12 thumbnail
(newest, current model)
Rockford Fosgate P1S412 thumbnail
(previous model, replaced by Rockford Fosgate Punch P1 P1S4-12)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P1S412 (09P1S412) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P1S412 (09P1S412) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P1S412 (09P1S412) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P1S412 (09P1S412) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

NVX YSW124

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(2)

$149.99

List price $227.99

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(2)

$149.99

List price $227.99

Deaf Bonce DB-SA302 D1

• Peak Power: 4,000 watts
• RMS Power: 2,000 watts
• Paper Cone
• Foam Surround
• Impedance: 1+1
• Mount depth: 7.07"
• Sensitivity: 86.30 dB

(3)

$331.42

List price $389.90

Rockford Fosgate Punch P3 P3D2-12

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 6.66"
• Sensitivity: 85 dB

(78)

$259.99

List price $259.99

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(17)

$569.99

List price $569.99

Deaf Bonce DB-SA302 D2

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.07"
• Sensitivity: 86.70 dB

(7)

$331.42

List price $389.90

Rockford Fosgate Punch P3 P3D4-12

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 6.66"
• Sensitivity: 85 dB

(131)

$259.99

List price $259.99

JL Audio 12W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Foam Surround
• Mount depth: 5.40"
• Sensitivity: 85.64 dB

(55)

$159.99

List price $159.99

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(63)

$469.99

List price $469.99

JL Audio 12W6v3-D4


• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(23)

$759.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 250 Hz
Sensitivity
86 dB
Xmax (millimeters)
7.75 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Thermoformed Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.7 cubic feet
Maximum Sealed Box Volume
1.8 cubic feet
Minimum Ported Box Volume
1.8 cubic feet
Maximum Ported Box Volume
1.8 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P1S412

Weight:

12.00lbs

Internal SKU:

09p1s412

Internal Product ID:

8761
