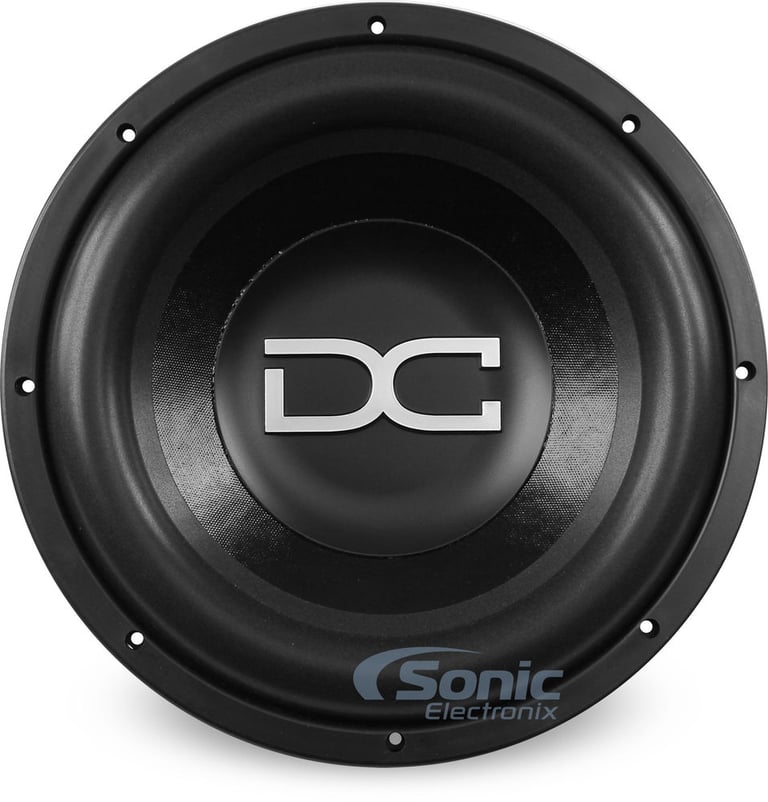

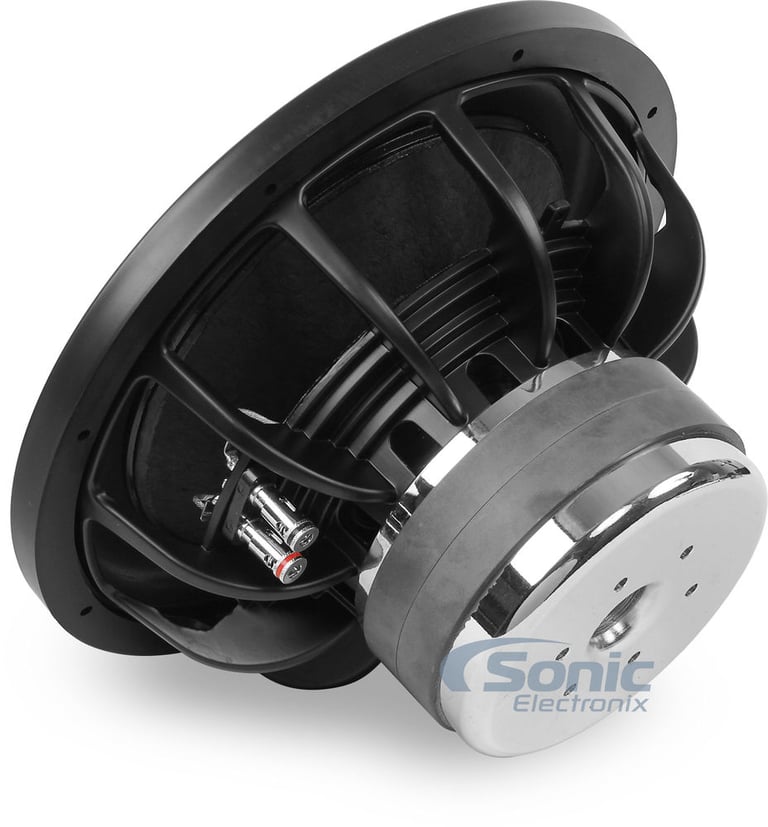

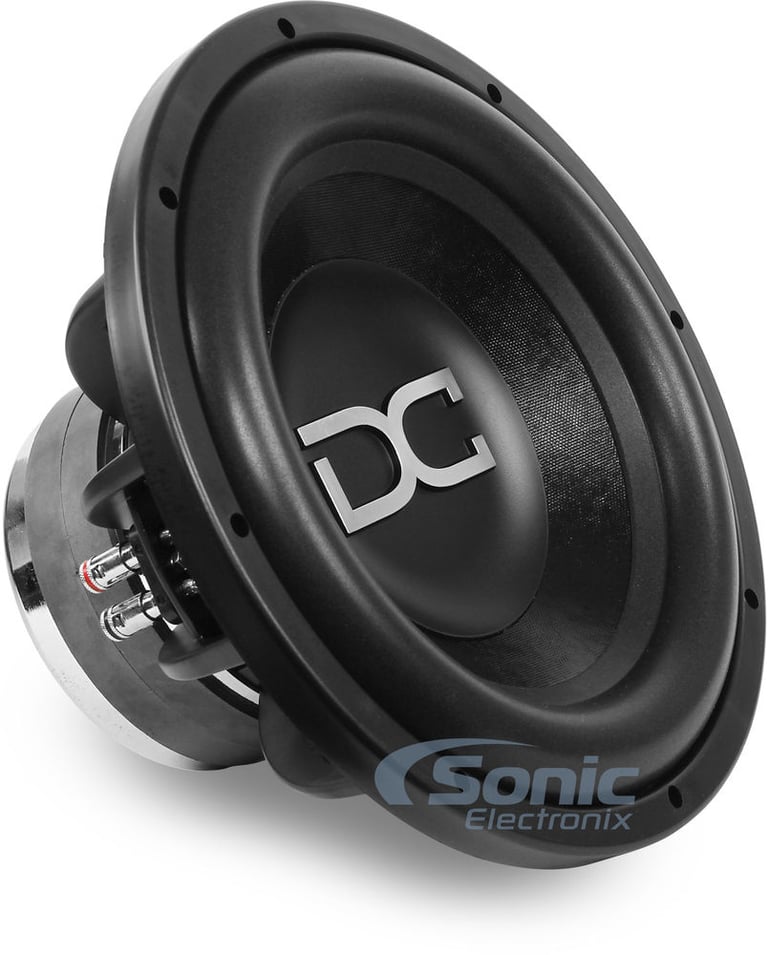

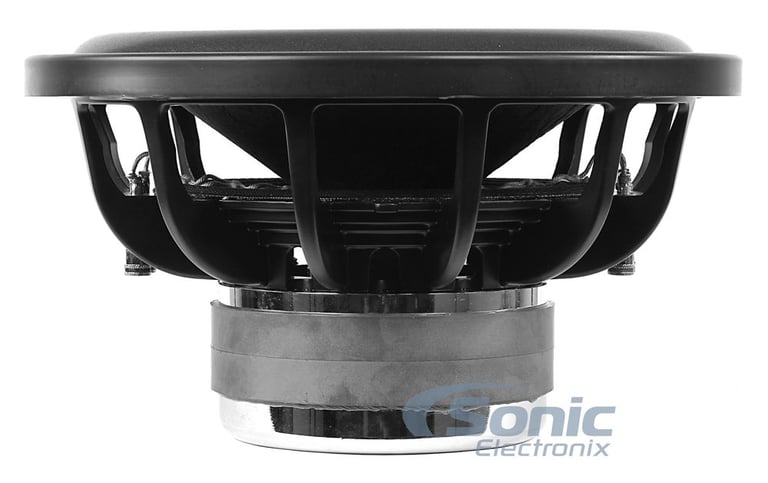

DC Audio Level 2 12 m2 D2

1200W Peak 12" Level 2 Series m2 Version Dual 2-Ohm Car Subwoofer - M2LV212D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 600W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv212d2

We apologize

This item has been discontinued


Loading...
70-7305 main

Metra 70-7305

Amplifier Bypass Wiring Harness for select 2010-2020 vehicles from Hyundai, Kia

-46.17%

$20.99

List price $38.99

HKSB110 main

American International HKSB110

6.5" or 6.75" Speaker Mounting Adapters for select 2006-2021 vehicles from Hyundai, Kia

11
-51.31%

$18.99

List price $39.00

82-7300 main

Metra 82-7300

Speaker Adapter for select 2006-2024 vehicles from Hyundai, Kia, Genesis

3
-33.34%

$19.99

List price $29.99

72-7300 main

Metra 72-7300

Install New Speakers in select 1998-2021 vehicles from Hyundai, Kia, Toyota

8
-33.36%

$9.99

List price $14.99

95-7296 main

Metra 95-7296

Double DIN Stereo Dash Kit for select 2011-2015 Sonata

-10.11%

$79.99

List price $88.99

40-KI10 main

Metra 40-KI10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

1
-41.20%

$9.99

List price $16.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Product Highlights


• Peak Power: 1200W
• RMS Power: 600W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 12" Dual 2 ohm Level 2 Series m2 Version Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended power range: 200 - 600 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 2.5" high temperature copper voice coil
  • Rubber mounting gasket

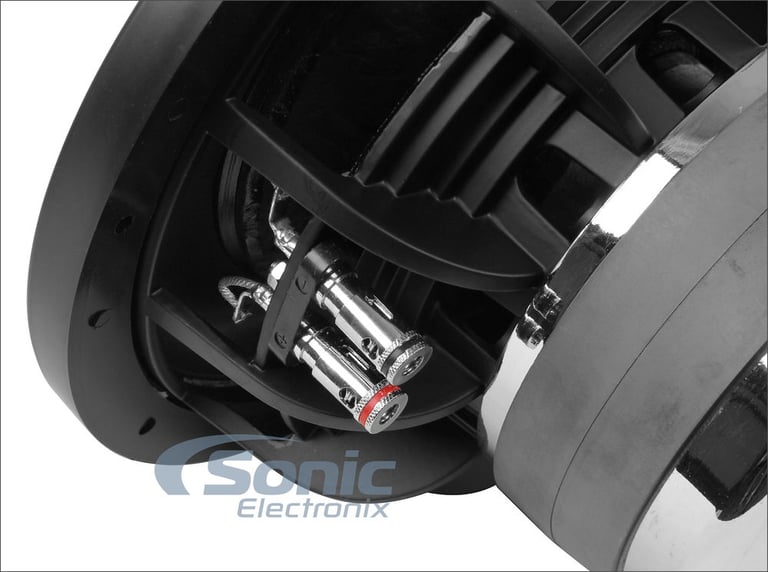

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6"
  • Mounting Hole Diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 2 12" T/S Parameters:

  • Electrical Q Value (Qes): 0.639
  • Mechanical Q Value (Qms): 8.46
  • Total Speaker Q Value (Qts): .594
  • Free Air Resonance (Fs): 33 Hz
  • Equivalent Compliance (Vas): 30.6 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (Ref SPL @ 1W): 84.2 dB (84.7dB @ 2.83V)
  • Effective Piston Area (Sd): 481 cm²
  • DC Resistance (Re): 7.20 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 24
  • Mechanical Compliance (Cms): .095 mm/N
  • Mechanical Mass (Mms): 245 g
  • Voice Coil Inductance (Le): 7 mH
  • Suggested Sealed Enclosure: .75³ ft
  • Suggested Ported Enclose: 1.25³ ft

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 2 12 m2 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 2 12 m2 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 2 12 m2 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 2 12 m2 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Level 2 Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Sensitivity
84.2 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Double Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
30.6 liters
Total Speaker Q Value (Qts)
.594
Electrical Q Value (Qes)
.639
Electrical Resistance of Voice Coil (Re)
7.20 ohm
Mechanical Q Value (Qms)
8.46
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV212D2

Weight:

22.00lbs

Internal SKU:

m2lv212d2

Internal Product ID:

88145

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 2 12 m2 D2 thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.8
Features
4.8
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

DC AUDIO

this sub is absolutely amazing it can handle up to 1200 rms at ease i ran it at 1000 rms and it never get hot and it takes a lot of play time to get it warm a little bit the cooling system in this sub is just awesome DC AUDIO subs are very well made they worth every cent

By hassan on July 16, 2015 Checkmark Icon Verified purchase

8 found this helpful


Lots of output

I put 4 in my 2015 Mega cab with a 2000M MMATS to them. Running Hybrid on the Highs. The subs are in a sealed enclosure that is 5cuft total. The woofers are very stiff so at first they had no bottom end but after a few days it is like it should be. Pro's: Good price point, sound quality is great, lots of output(remember im running 4, if you listen to the song "Blackened" at high output no clipping for the full song you will be done with punchy bass for a while, Low end from the song "stickem" comes through great and matches the upper bass note in that song) Cons: Build quality is beefy but there was a little over run of glue on one of them. Yes i would recommend these to friends.

By Scott on July 6, 2015

9 found this helpful


Great sub

This sub straight pounds! im running it at 800rms and it feels underpowered! its a great sub!

By colin on February 12, 2016

6 found this helpful


dc audio

Dc subs are great! Running 800 watts on 600 watt sub, it loves it! Fast shipping!

By Spinncity on August 26, 2015

6 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Hyundai Sonata

2015 Dodge Dart

1995 Mazda Millenia

2002 Cadillac Escalade

2002 Chrysler PT Cruiser

2001 Kia Sephia

2004 Jaguar XKR

2016 Audi A8 Quattro

2013 Kia Optima

2017 Tesla Model X

Vehicle
Store
Delete

2005 Harley Davidson FXSTS Springer Softail

2003 Harley Davidson FXSTD/I Softail Deuce

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
